China 2022 Most Popular Rainfine Linear Irrigation Machine with End Spray Sprinkler

GLOBAL MANUFACTURER OF IRRIGATION EQUIPMENT SINCE 2002

Rainfine is an international irrigation company based in Dalian, China that specializes in center pivot and lateral move systems.

We are a leading manufacturer across the globe, supplying irrigation parts and equipment to major manufacturers in the United States, France, Russia, Australia, Sudan, Kazakhstan, Nigeria and Saudi Arabia.

Our irrigation manufacturing meets the following standards:
International: ISO15873 ISO12374 ISOTR15155
French: NFEN909
British: BSEN12325-2
American for galvanizing: A123
ISO9001-2008 QC standard

website:www.rainfine.cn

Video:

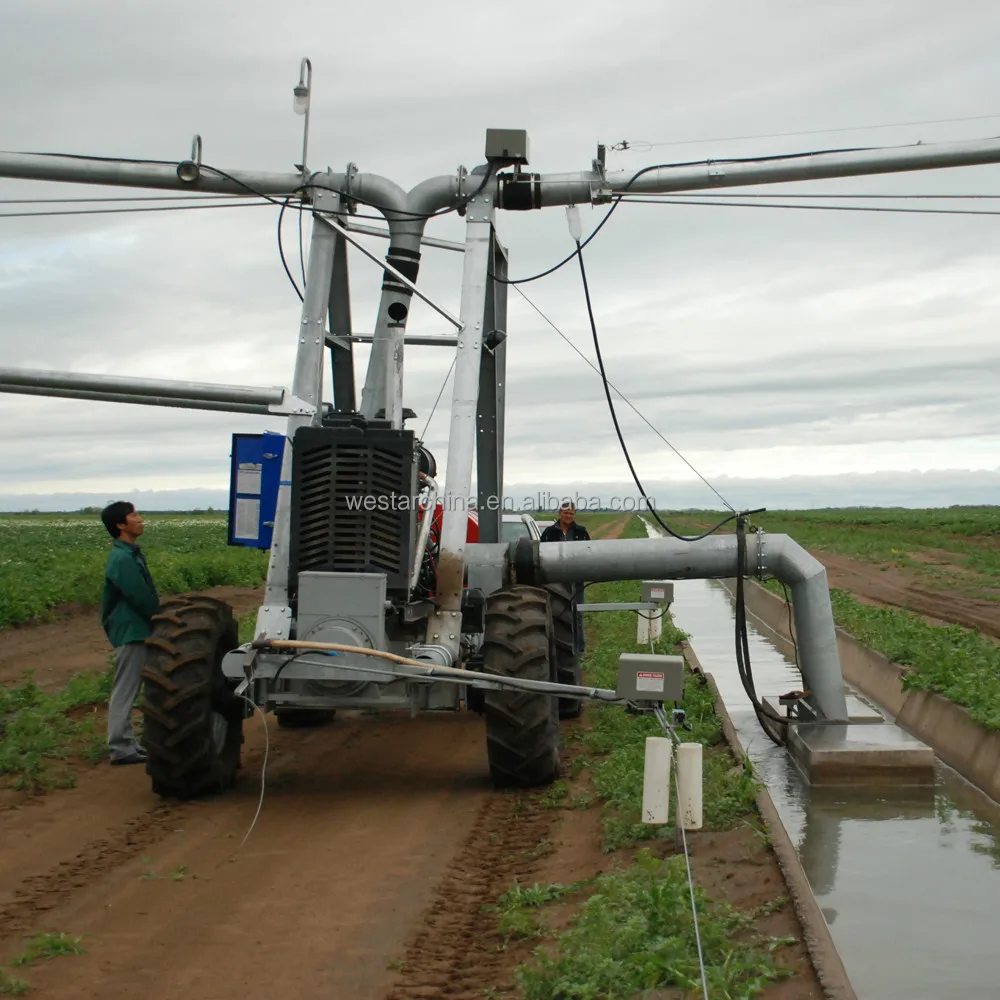

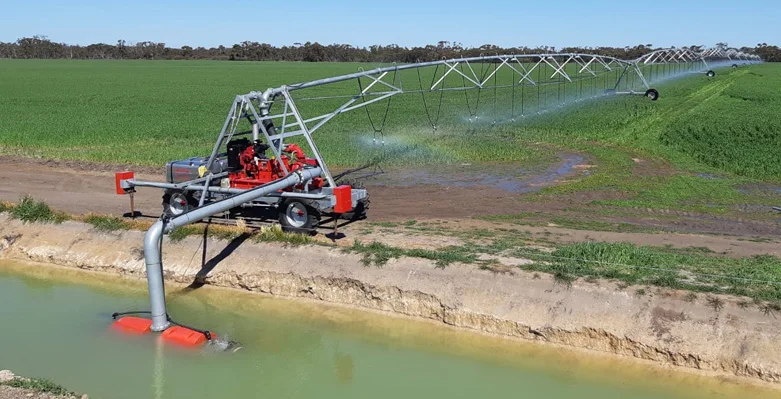

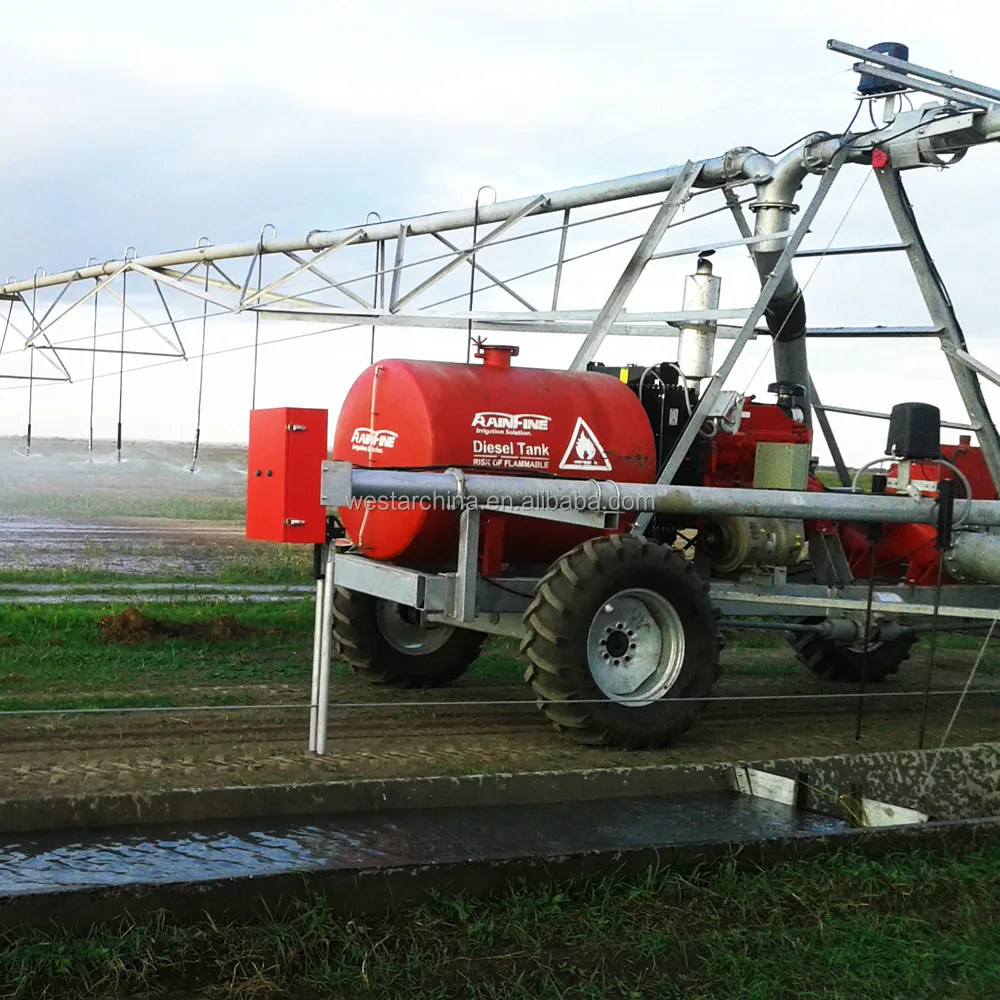

This is lateral move system or linear system. All the machines work in linear movement by motor driven tires to irrigate rectangle area. Unlike center pivot systems, where the area irrigated depends only on the length of the machine, lateral system area is determined by two factors: system length and travel distance.

This system is mainly used for grasses, grains, vegetables, cotton and sugar cane crops. The length can be from 1 span to 18 spans, normally more than 7 spans system is economical. Lateral move system is the only machine which can irrigate all land. In square land, all spans are parallel with the land, no blind angle. The irrigation ratio can increase to 99%.

Water source to fill the machine can be canal, concrete ditch, rivers and pond. It is not allowed to operate the machine without water.

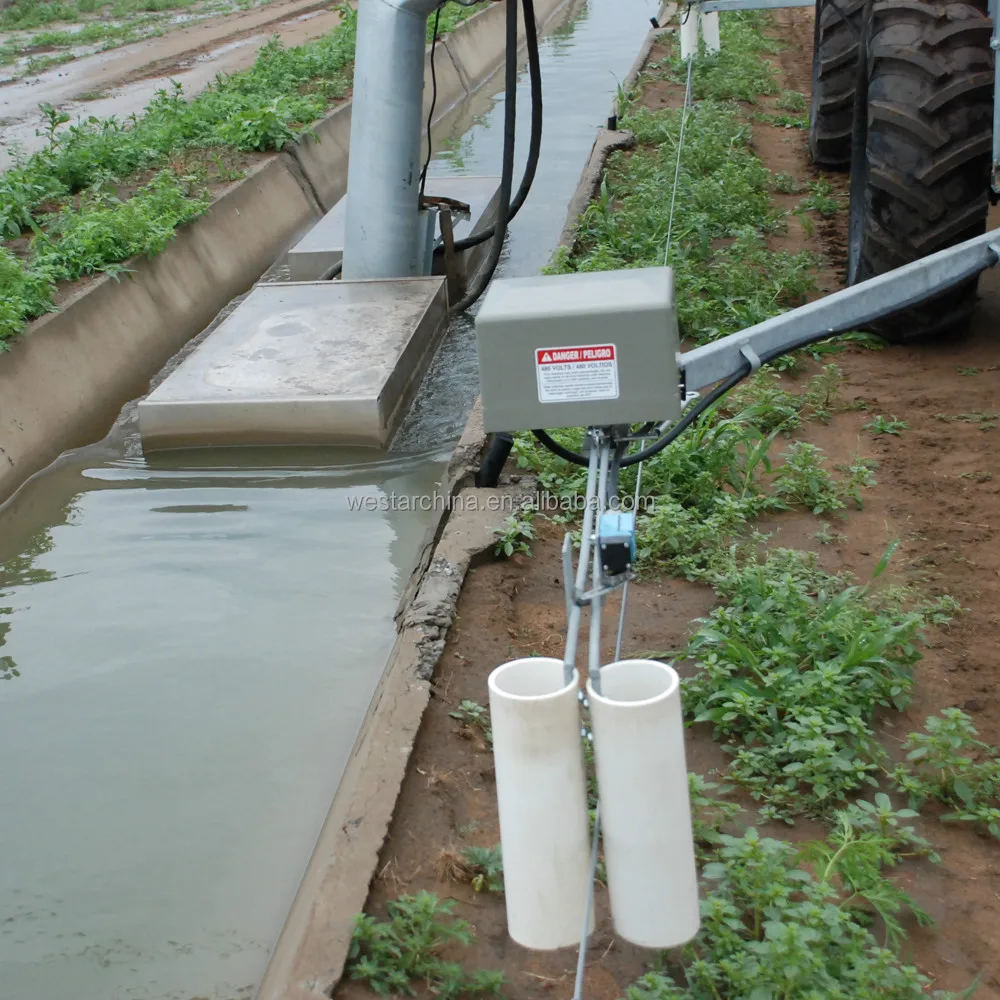

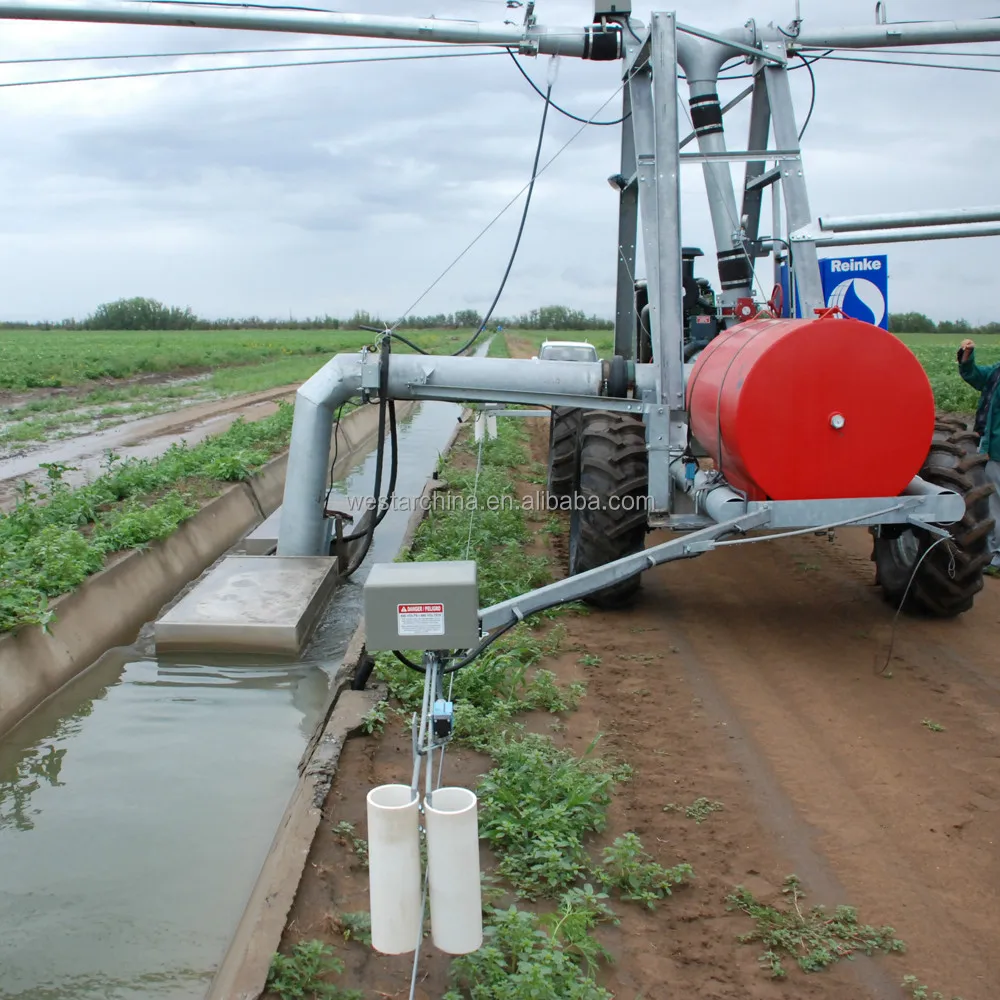

Ditch feed

• Benefits of Lining a Ditch


• Conserve water (e.g. reduce friction loss and seepage loss from earthen ditches)


• Minimizes irrigation-induced erosion and invasive weed growth


• Work well with a gravity system; No pumping is required


• Maintenance minimal compared to a dirt ditch


• Can work on any field, regardless of shape and be tailored to site-specific conditions

Hose feed

• Electric power provided by cable or genset


• PVC material, UV resistant


• Diameter from 4 to 12 inch


• Work pressure from 4 to 10 bar

1. If you want pivot, please give us the following details"

    - your country and name

    - land area (in ha or m² )

    - crop and water application (mm/day or m³ /h or LPS)

    - working degree (0- 360^O  )

   - if you need any extras (options) for pivot such as Diesel generator, end gun with booster pump, corner control system for end gun, Fertilizer unit

2. Parts are not sold seperately, except for large amount.

-land surveying and planning

-Pipeline network calculation
-Pump station calculation and design
-Business proposals and budget plans
-Pumps, valves and irrigation machines supply
-Installation and commissioning

-1 year concerning electric equipment
-10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
-20 years concerning the galvanized equipment against corrosion
-3 years for tires and rims
