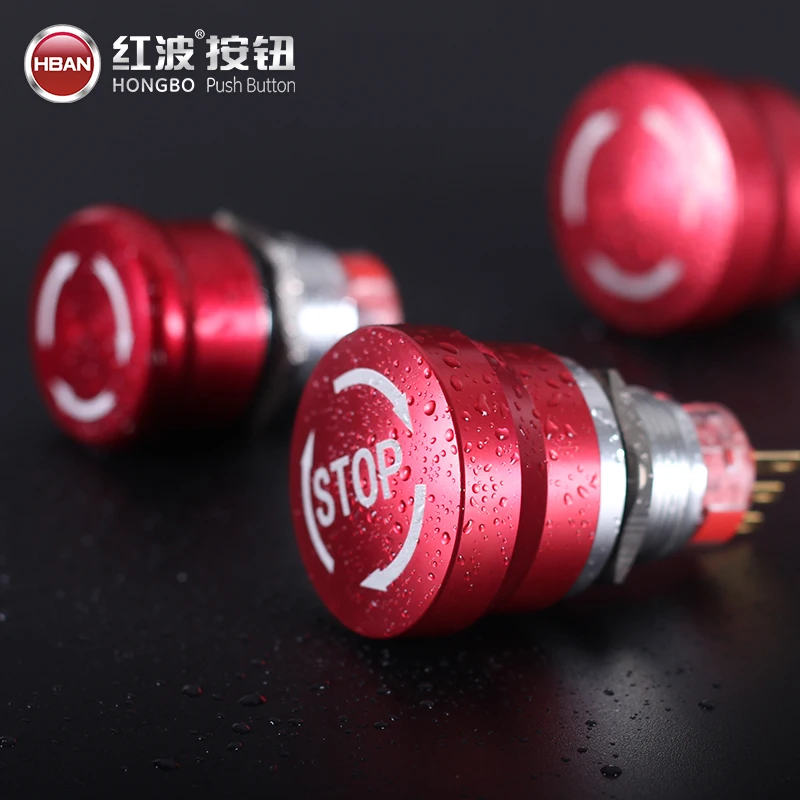

16mm metal aluminum alloy mushroom head 3 pin push switch waterproof emergency stop button
- Category: >>>
- Supplier: Yueqing Dahe Electric Co. Ltd.
Share on (60482254308):
Product Overview
Description
Products Description
Product Paramenters
Metal Emergency Stop Switch | ||

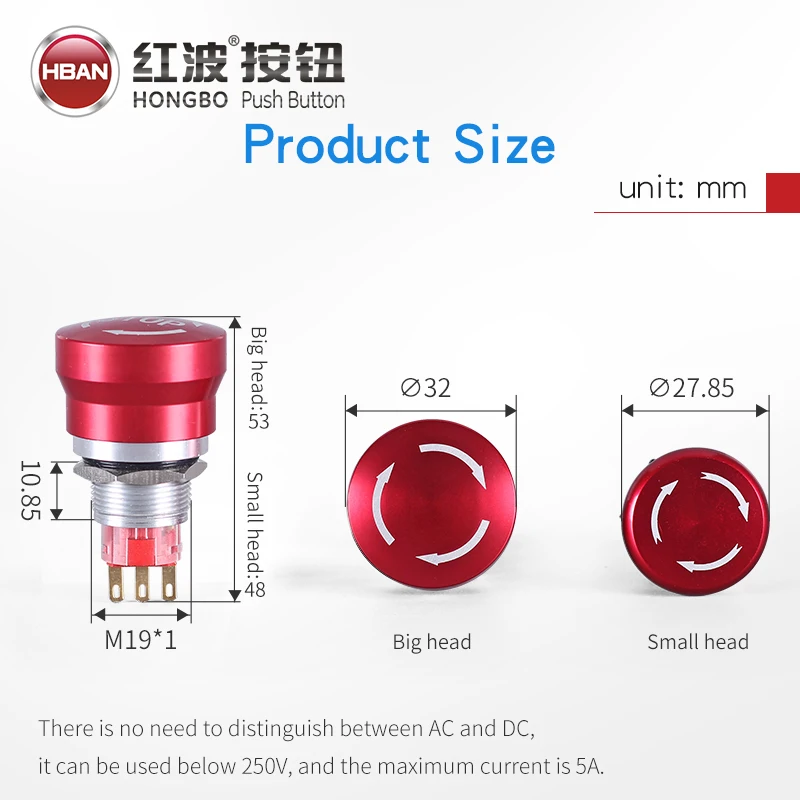

Mounting hole size: | 16mm | |
Switch value: | 5A/250V AC | |
Operation type: | Push lock ,Turn release | |

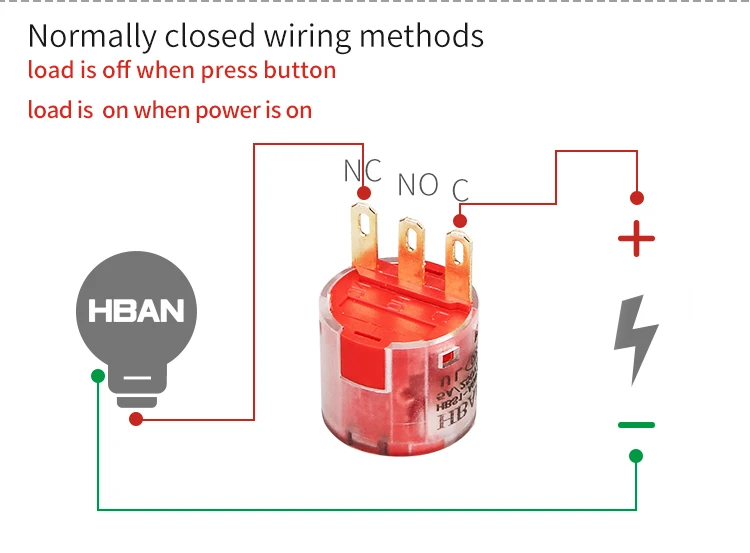

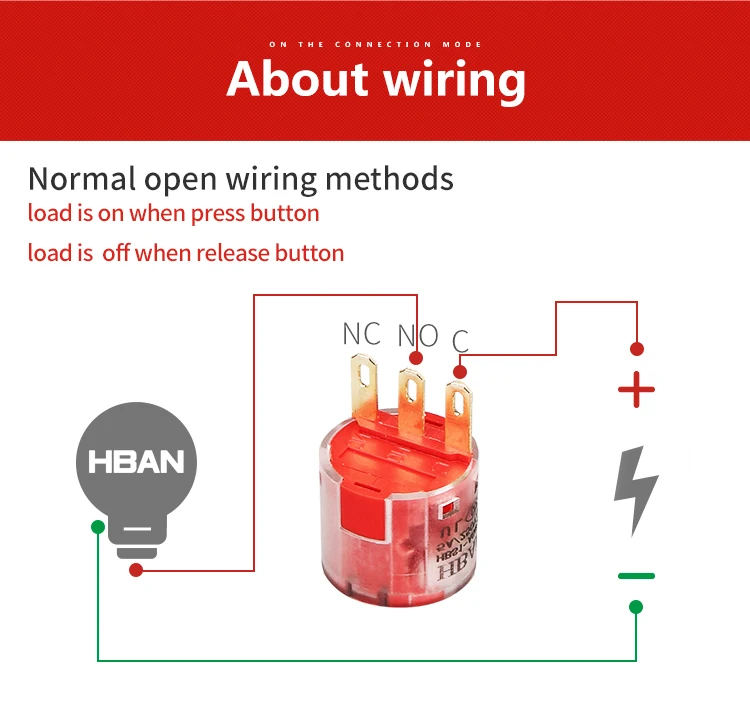

Contact configuration: | 2NO2NC | |
Switch type: | C(Single breakpoint snap-action changeover contacts ) | |
Head shape: | Mushroom head | |
Crust material: | Aluminum alloy | |
Terminal type: | Pin terminal | |
Electrical life : | ≥50,000 times | |
Mechanical life: | ≥1，000,000 times | |
Operation temperature: | -40℃~+80℃ | |
Contact Resistance: | ≤50mΩ | |
Insulation Resistance: | ≥1000mΩ | |
Operation stroke: | about 3.1mm | |

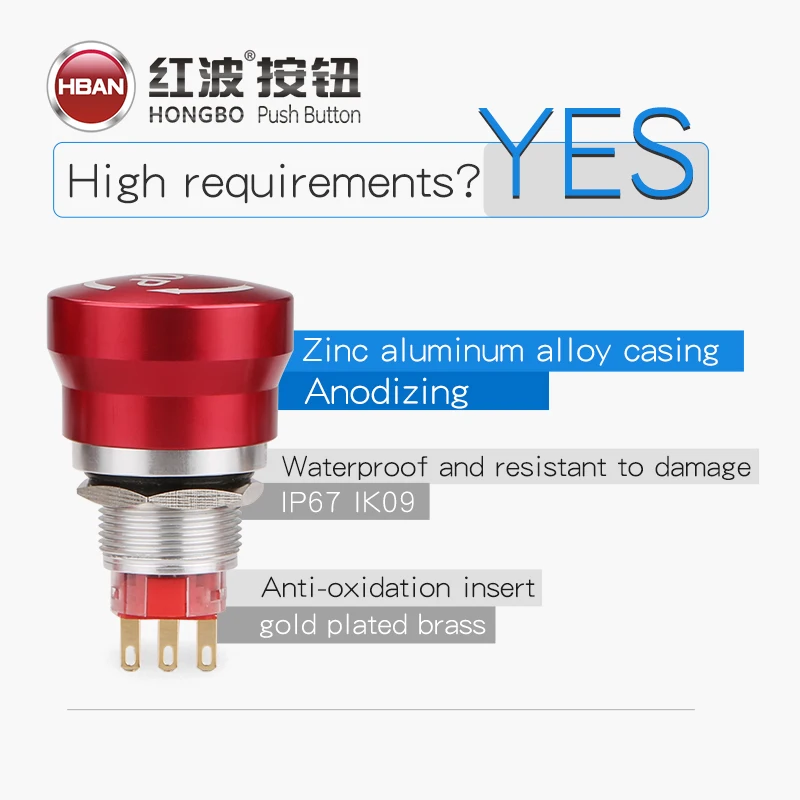

IP Class: | IP40&IP65,IK09 | |
Panel thickness: | 1~10 mm | |
Operation pressure: | 3~5 N | |
Symbol: | With Arrow, "STOP" text | |
Company information
Shanghai hongbo (hban) electric co.ltd is national high-tech enterprise specializing in the development and manufacturing of push button switches and indicators,Adhering to the concept of customer first and quality first.Since its establishment in 2003,the company has been committed to building a high-quality switch brand in China and has achieved fruitful results.Not only has it assembled an outstanding professional R&D team,equipped with advanced high-tech production equipments,but also trained a group of skilled first-line production employees,which lead to a great progress of the innovation level and supply speed,and set the company in a leading position in the same industry.In 2016,the company passed the SGS test and obtained TUV Rheinland certification,Reach certification,American UL and Canadian CUL certification.We also participated in the Munich Electronics Exhibition in Germany and reached a consensus on cooperation with many internationally renowned companies.
The factory Dahe mainly produces metal anti-vandalism and waterproof push button switches, plastic push button switches, metal micro travel switches,Indicator, buzzers. and has independently developed high-current push button switches,touch switches,and upgraded XB2 series push button switches etc.We have professional engineer support, high efficiency sales team and competitive price superiority, and have attracted customers from all over the world, including Europe, Poland, Serbia, Turkey, Russia, USA, Mexico, Brazil, India, Thailand , Middle east and South Africa. Looking forward to cooperation with you!
Product packaging
We pack 20 pieces diameter 16 mm metal push button switches into 1 foam box to protect them.We supply 20 pieces rubber rings.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Foam box packaging
Kraft paper outer box
③
External labeling
④ Packaging complete
1.We ship to worldwide
2.Generally,items will be shipped within 3-7 business day on payment received.
3. Delivery time depends on destination and other factors. it may takes up to 3-8
2.Generally,items will be shipped within 3-7 business day on payment received.
3. Delivery time depends on destination and other factors. it may takes up to 3-8
business days.
FAQ
Q:Do you have a catalog? Can you send me the catalog to me for checking them ?
A: Yes , We have product catalog.Please contact us on line or send an Email to hb at hban.cc for send-ing the catalog.
A: Yes , We have product catalog.Please contact us on line or send an Email to hb at hban.cc for send-ing the catalog.
Q: Can you provide samples ?
"A: Yes,we can provide samples.
we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the samplefee for you."
"A: Yes,we can provide samples.
we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the samplefee for you."
Q: What kind of payment do you accept ?
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can re-ceive the same amount of the Invoice.
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can re-ceive the same amount of the Invoice.
Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.will update to you within 48 hours"
"A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.will update to you within 48 hours"
Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT.That’s a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safet-y.We will be responsible to any product damage caused on delivery.
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT.That’s a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safet-y.We will be responsible to any product damage caused on delivery.
