heavy duty reefer truck 8.5m multi temperature refrigerated truck body
heavy duty reefer truck 8.5m multi-temperature refrigerated truck body
heavy duty reefer truck 8.5m multi-temperature refrigerated truck body
heavy duty reefer truck 8.5m multi-temperature refrigerated truck body
heavy duty reefer truck 8.5m multi-temperature refrigerated truck body
heavy duty reefer truck 8.5m multi-temperature refrigerated truck body
heavy duty reefer truck 8.5m multi-temperature refrigerated truck body

heavy duty reefer truck 8.5m multi temperature refrigerated truck body

Share on (60482274778):


Price:

Quantity:


Product Overview

Description


Truck Body Details
\t
Multi-Temperature Refrigerated Truck Body
Key Features
\t
ColdKing multi-temperature refrigerated truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
\t
Truck Body Outer Size
\t
8.5m(L)x2.5m(W)x2.6m(H)
\t
Truck Body Inner Size
\t
8.29m(L)x2.29m(W)x2.39m(H)
\t
Roof/Floor Panel
\t
105mm Thickness
\t
Side Wall Panel
\t
105mm Thickness
\t
Front Wall Panel
\t
105mm Thickness
\t
Rear Door Panel
\t
105mm Thickness
\t
Panel Structure
\t
All Closed Sandwich
\t
Panel Insulation
\t
FRP + PU Foam + FRP
\t
Side Door Quantity
\t
1 (One) Set
\t
Side Door Location
\t
On Left (On Right Optional)
\t
Side Door Type
\t
Single Opening
\t
Side Door Size
\t
900mm(W) x 1800mm(H)
\t

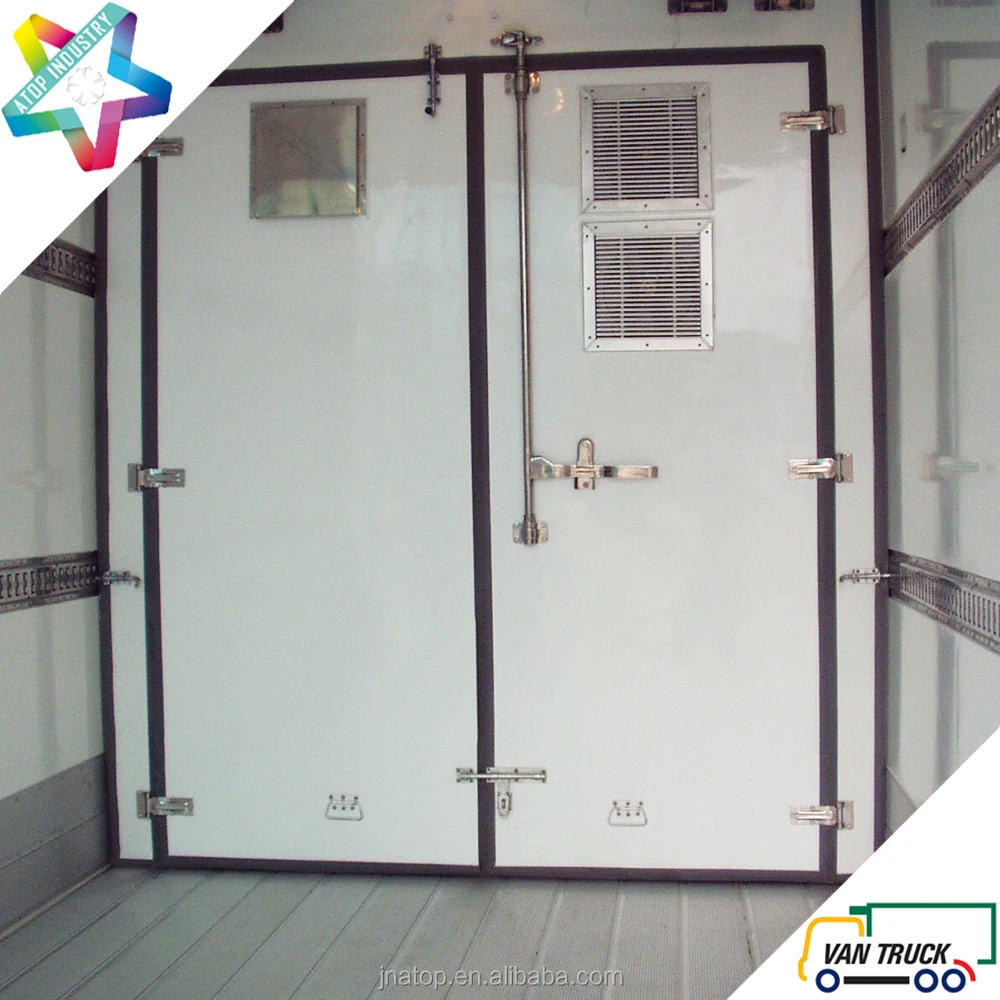

Rear Door Type
\t
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
\t
Multi-Temperature
System Type
\t
Double Temperature Configuration, Divided To Front & Rear Space, Lifting & Sliding Adjustable Partition Wall With Full Size Double Opening Access Door (Customized Size Single Opening Access Door Optional)
\t
Front Space Temp.
\t
-25C
\t
Rear Space Temp.
\t
-25C To +30C
\t

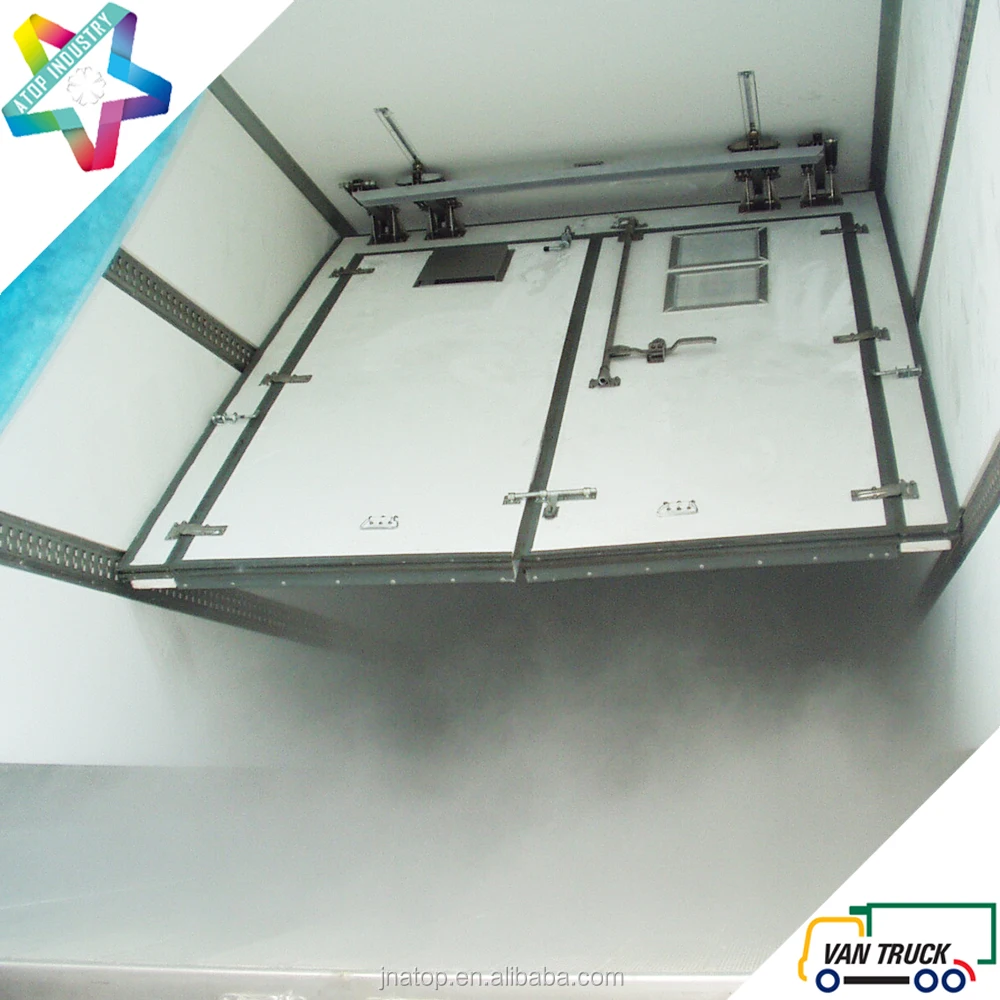

Partition Wall Panel
\t
45-85mm Thickness
\t
Partition Wall Door
\t
Full Size Double Opening
\t
Multi-Temperature Pressure Relief Ventilation
\t
24V Pressure Relief Vent (Without Heating Wire)
\t


Mulit-Temperature Adjusting Ventilation System
\t
24V Temperature Adjusting Fan System With Digital Controller For Partition Wall, With Partition Wall Wire Connecting Sets – One (1) Set Of Plug Without Wire, Two (2) Set of Socket With Stainless Steel Base, Two (2) Set of Socket Cover With Chain)
\t
Truck Body Flooring
\t
Anti-Slip FRP Reinforced Flooring For Pallet Trolley Operation
\t
Reefer Truck Body Inside Cargo Control System
\t
With Full Set of Cargo Control System (Each 3 Rows Full Length SS Cargo Control Track At Each Left & Side Wall For Partition Wall Locating & Cargo Controlling)
\t
Ceiling Light
\t
4 (Four) Sets of 12/24V Multi-Voltage LED
\t
Marker Light
\t
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
\t
Ceiling Light Switch
\t
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
\t
Insulating Curtain
\t
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
\t
Refrigeration Unit      Service Ladder
\t
Stainless Steel
\t
Refrigeration Unit      Service Platform
\t
Optional

24V Temperature Adjusting Fan System With Digital Controller For Partition Wall, 24V Pressure Relief Vent (Without Heating Wire)

With Full Set of Cargo Control System - Each 2 Rows Full Length SS Cargo Control Track At Each Left & Side Wall For Partition Wall Locating & Cargo Controlling.

Partition Wall Wire Connecting Sets – One (1) Set Of Plug Without Wire, Two (2) Set of Socket With Stainless Steel Base, Two (2) Set of Socket Cover With Chain)

With M Type Aluminum Airflow Flooring For Pallet Trolley Operation; With 3.0mm Aluminum Checkered Plate Customized Height Kicking Plate

Refrigeration Unit
\t
Optional Refrigeration Unit  - 1
\t
Refrigeration Unit Brand
\t
Carrier
\t
Refrigeration Unit Model
\t
Supra 850
\t
Refrigeration Unit Type
\t
Self-Powered Diesel Engine Driven, Condenser & Evaporator Combined
\t
Refrigerant
\t
HFC R404a
\t
Condenser Mounted Method
\t
Over-Cab
\t
Compressor Model
\t
05K4
\t
Compressor Type
\t
Cylinder Compressor
\t
Compressor Displacement
\t
>400cm3
\t
Diesel Engine Model/Displacement
\t
CT3-44 TriVortex/719cm3
\t
Airflow Volume
\t
2,500m3/Hr
\t
Maintenance Interval
\t
750/1,000Hrs
\t
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
\t
Return Air To Evaporator
\t
0C
\t
-20C
\t
Refrigeration Capacity
(On Engine Power @2400rpm)
\t
7,800W
\t
4,900W
\t
Electric Stand-By System
\t
Standard
\t
Refrigeration Capacity
(On Electric Stand-By)
\t
6,450W
\t
4,240W
\t
Defrost
\t
Automatic Hot Gas Defrost/Manual Defrost
\t
Optional Refrigeration Unit - 2
\t
Refrigeration Unit Brand
\t
Thermo King
\t
Refrigeration Unit Model
\t
T-800M
\t
Refrigeration Unit Type
\t
Self-Powered Diesel Engine Driven, Condenser & Evaporator Combined
\t
Refrigerant
\t
HFC R404a
\t
Condenser Mounted Method
\t
Over-Cab
\t
Compressor Model
\t
X214
\t
Compressor Type
\t
Scroll Compressor
\t
Compressor Displacement
\t
228cm3
\t
Diesel Engine Model/Displacement
\t
TK370/855cm3
\t
Airflow Volume
\t
2,700m3/Hr
\t
Maintenance Interval
\t
2,,000Hrs
\t
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
\t
Return Air To Evaporator
\t
0C
\t
-20C
\t
Refrigeration Capacity
(On Engine Power @2400rpm)
\t
7,500W
\t
4,250W
\t
Electric Stand-By System
\t
Available & Optional
\t
Refrigeration Capacity
(On Electric Stand-By)
\t
5,900W
\t
3,300W
\t
Defrost
\t
Automatic Hot Gas Defrost/Manual Defrost
\t
Optional Refrigeration Unit - 3
\t
Refrigeration Unit Brand
\t
Kingtec
\t
Refrigeration Unit Model
\t
K598D3
\t
Refrigeration Unit Type
\t
Self-Powered Diesel Engine Driven, Condenser & Evaporator Combined
\t
Refrigerant
\t
HFC R404a
\t
Condenser Mounted Method
\t
Over-Cab
\t
Compressor Model
\t
FKX30
\t
Compressor Type
\t
Cylinder Compressor
\t
Compressor Displacement
\t
275cm3
\t
Diesel Engine Model/Displacement
\t
Perkins 403D-07/761cm3
\t
Airflow Volume
\t
2,750m3/Hr
\t
Maintenance Interval
\t
1,000Hrs
\t
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
\t
Return Air To Evaporator
\t
0C
\t
-20C
\t
Refrigeration Capacity
(On Engine Power @2400rpm)
\t
7,200W
\t
3,850W
\t
Electric Stand-By System
\t
Standard
\t
Refrigeration Capacity
(On Electric Stand-By)
\t
5,150W
\t
2,900W
\t
Defrost
\t
Automatic Hot Gas Defrost/Manual Defrost
Optional Items

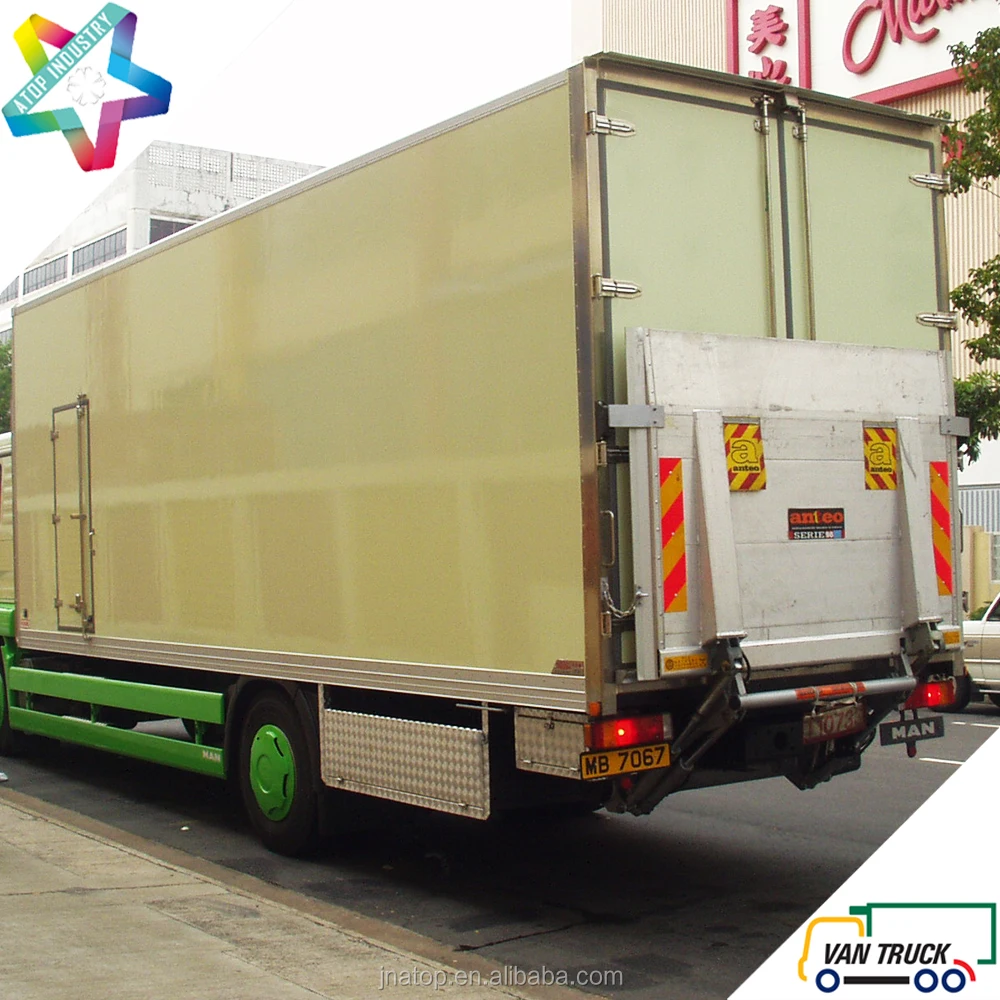

Hydraulic Tail Lift

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available multi-temperature reefer truck body reefer truck body  reefer truck body  reefer truck body  reefer truck body  reefer truck

Cargo Control System

Smart & customized cargo Loading control system multi-temperature refrigerated truck bodyreefer truck reefer truck reefer truck reefer truck reefer truck reefer truck reefer truck reefer truck reefer truck

Products Show

4.5T Refrigerated Truck

4.3m refrigerated/reefer truck body fitted on Foton Aumark Cummins engine light duty truck chassis

10T Refrigerated Truck

4.8m ice cream truck body fitted on Isuzu/Chevrolet NPR middle duty truck chassis

30T Refrigerated Truck

9.6m refrigerated/reefer truck body fitted on Sino-Truck T5G 340Hp heavy duty truck chassis
