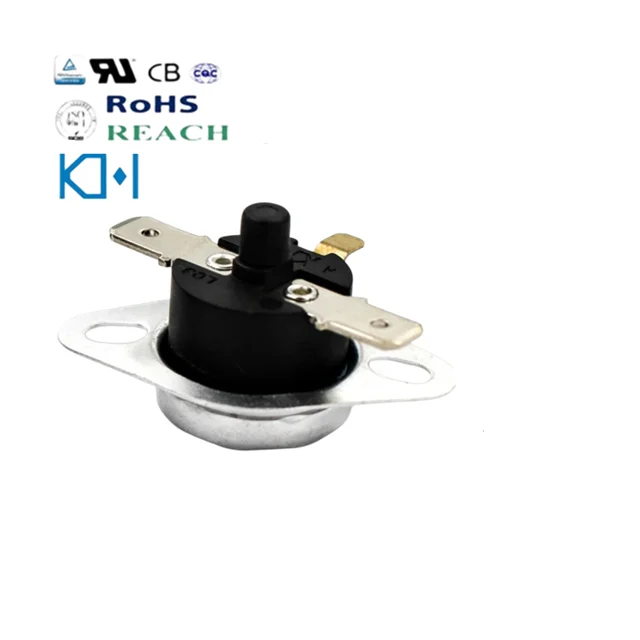

KH Manual Reset Tipo Wholesale Termostatos Bikelite Home Appliance Heater Fuser UL CQC TUV KSD301 16A 250V Bimetal Thermostat
- Category: >>>
- Supplier: Foshan Kehua Electric Appliance Co. Ltd.
Share on (60482305047):
Product Overview
Description
Product Description
KH Manual Reset Tipo Wholesale Termostatos Bikelite Home Appliance Heater Fuser UL CQC TUV KSD301 16A 250V Bimetal Thermostat
Technical Parameters
1.Electrical parameters: 1)TUV.DVE.CQC AC250V 50 ~ 60Hz 5A / 10A / 16A (resistive load)
2) UL AC125V 50Hz 5A 10A 16A (resistive load)
2.Body:Bakelite or ceramic
3 Action: Normally open or normally closed.
4.Reset Method: automatic reset and manual reset
5.Action temperatures range:45~300℃(Optional)
6.Recovery and action temperature difference: 5~200℃(Optional)
7.Temperature accuracy: ±3 ±5 ±10 degrees
8.Circuit resistance: ≤50mΩ
9.Insulation resistance:≥5mΩ (DC500V Normal State)
10.Dielectric Strength: AC50Hz 2500V /3S, no breakdown blinding (Normal State)
11.Life cycle:≥100000
12.Mounting bracket: Customized according to customer's requirements
13.Terminal:Customized according to customer's requirements
14.Terminal angle:Customized according to customer's requirements
15.Heat resistance: PF180℃.UP / PPS 220℃ EC 250℃ (24 hours)
1.Electrical parameters: 1)TUV.DVE.CQC AC250V 50 ~ 60Hz 5A / 10A / 16A (resistive load)
2) UL AC125V 50Hz 5A 10A 16A (resistive load)
2.Body:Bakelite or ceramic
3 Action: Normally open or normally closed.
4.Reset Method: automatic reset and manual reset
5.Action temperatures range:45~300℃(Optional)
6.Recovery and action temperature difference: 5~200℃(Optional)
7.Temperature accuracy: ±3 ±5 ±10 degrees
8.Circuit resistance: ≤50mΩ
9.Insulation resistance:≥5mΩ (DC500V Normal State)
10.Dielectric Strength: AC50Hz 2500V /3S, no breakdown blinding (Normal State)
11.Life cycle:≥100000
12.Mounting bracket: Customized according to customer's requirements
13.Terminal:Customized according to customer's requirements
14.Terminal angle:Customized according to customer's requirements
15.Heat resistance: PF180℃.UP / PPS 220℃ EC 250℃ (24 hours)
All thermostat Passed UL.TUV.DVE,CQC,CB.CQM,SGS .ROHS ,REACH ISO9001:2019;
FREE SAMPLE can be sent for evaluation first! Would you like to have a try?
What thermostat models you are currently need? Do you mind to send me the specifications & your requirement, so I will immediately evaluate and help you?
Terminals and covers(COVER CODE AND THER SKETCH)
KH Manual Reset Tipo Wholesale Termostatos Bikelite Home Appliance Heater Fuser UL CQC TUV KSD301 16A 250V Bimetal Thermostat
KH Manual Reset Tipo Wholesale Termostatos Bikelite Home Appliance Heater Fuser UL CQC TUV KSD301 16A 250V Bimetal Thermostat
KH Manual Reset Tipo Wholesale Termostatos Bikelite Home Appliance Heater Fuser UL CQC TUV KSD301 16A 250V Bimetal Thermostat
