NEMA8 Hollow Shaft Stepper Motor for pick n place head
NEMA8 Hollow Shaft Stepper Motor for pick n place head
NEMA8 Hollow Shaft Stepper Motor for pick n place head
NEMA8 Hollow Shaft Stepper Motor for pick n place head
NEMA8 Hollow Shaft Stepper Motor for pick n place head
NEMA8 Hollow Shaft Stepper Motor for pick n place head
NEMA8 Hollow Shaft Stepper Motor for pick n place head

NEMA8 Hollow Shaft Stepper Motor for pick n place head

Share on (60482487448):


Price:$15.00 - $19.00

Quantity:


Product Overview

Description


Product Description

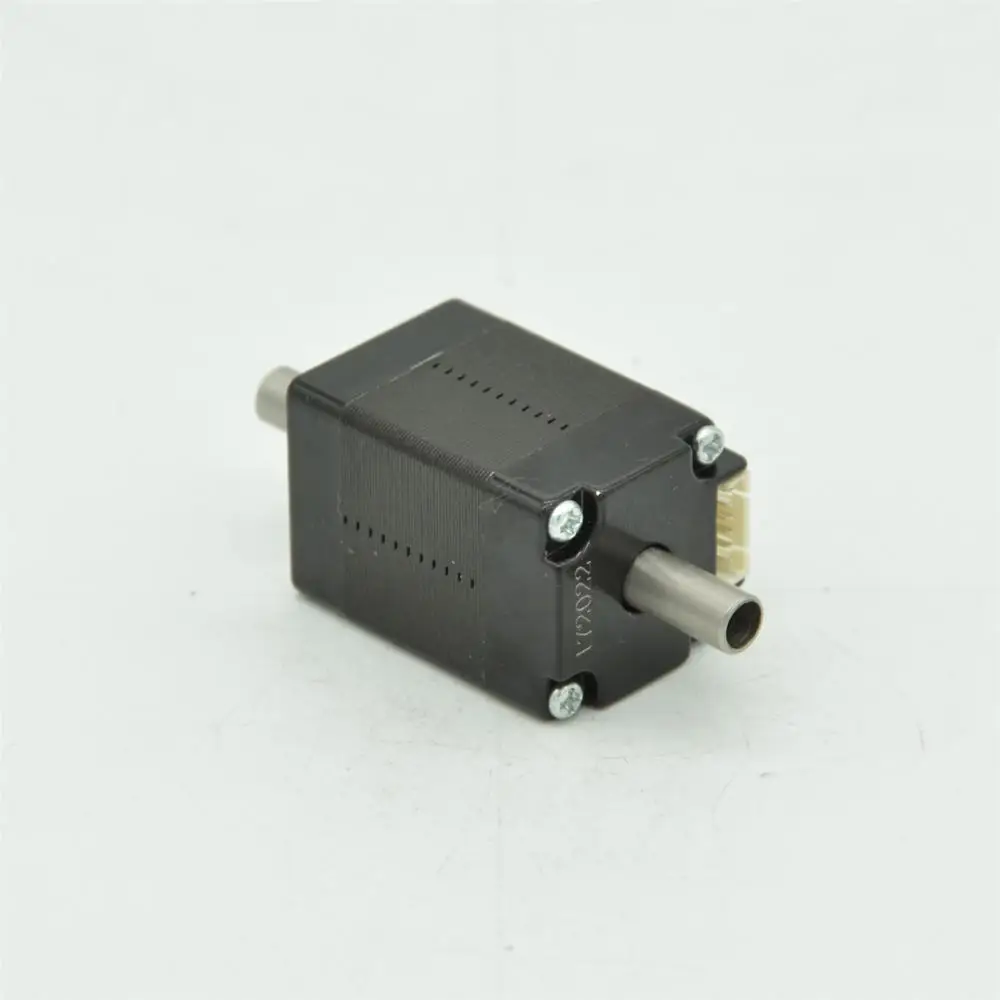

Nema8 size 20mm hollow shaft stepper motor

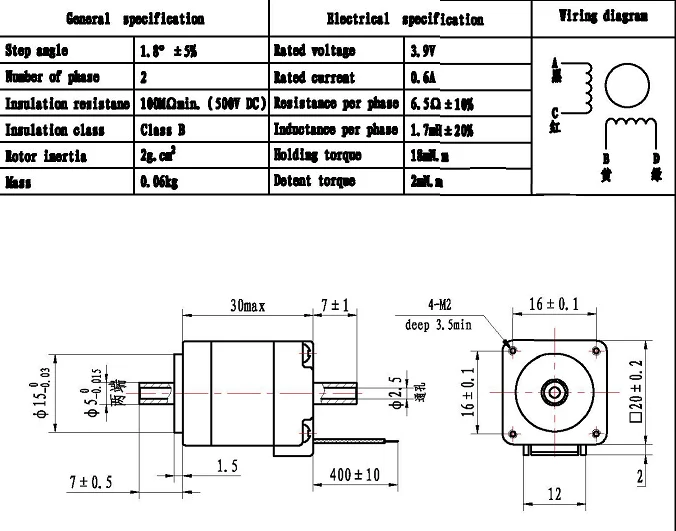

Specifications:
Holding Torque 18mN.m
Bore 2.5mm

Step Angle1.8 Deg
Rated Current0.6A per phase
Rated Voltage3.9V
Inductance per Phase1.7mH
Resistance per Phase6.5 Ohms
Motor Length30mm
Insulation Resistance100M Ohm Min. ,500VDC
Dielectric Strength500VAC for one minute
ShaftHollow Shaft 2.5mm Inner and 5mm Outer

The NEMA8 Hollow Shaft Stepper Motor is your option for pick&place machine pickup head VACUUM and other applications where cables need to be through the motor shaft to save space or easy wiring.





Packaging & Shipping



Package .png

About the shipping methods ,  for samples or small batch , air shipping  is recommended .



For mass production or big batch, ocean shipping is recommended .
