10 inch Gin Block Wheel with swivel eye and pulley wheel Safe working load 250Kg

Product Overview

Description

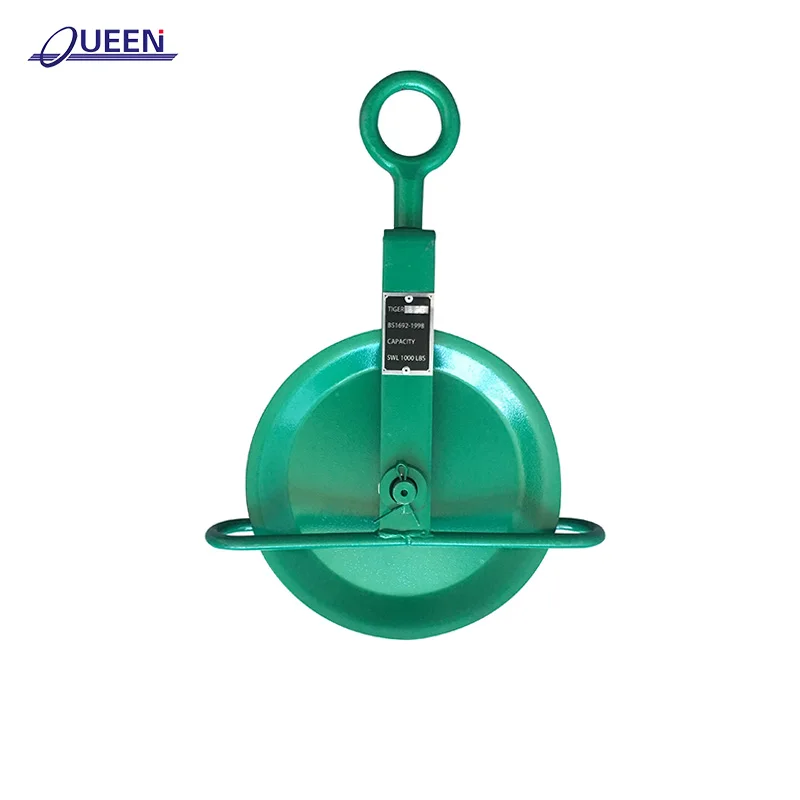

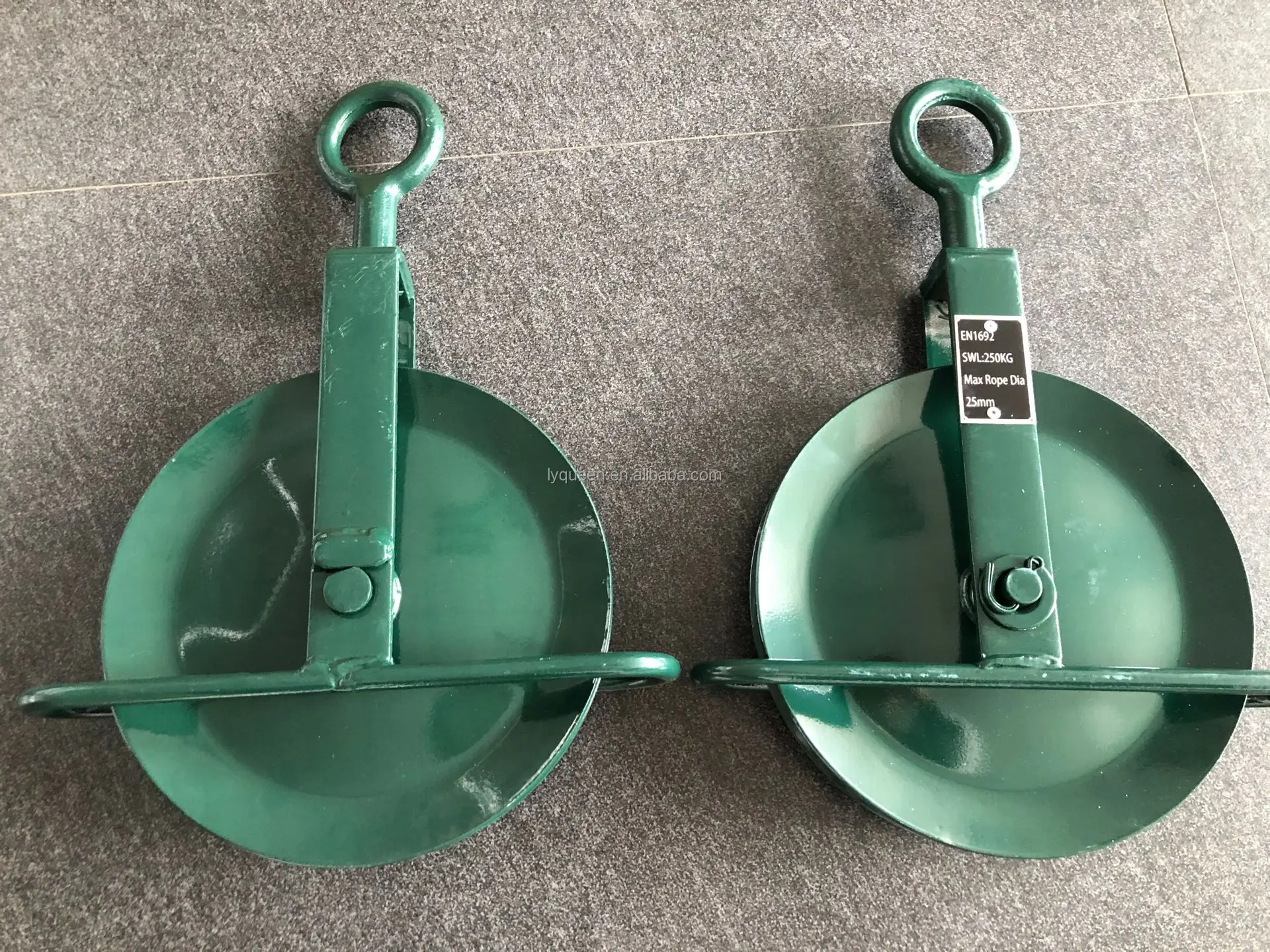

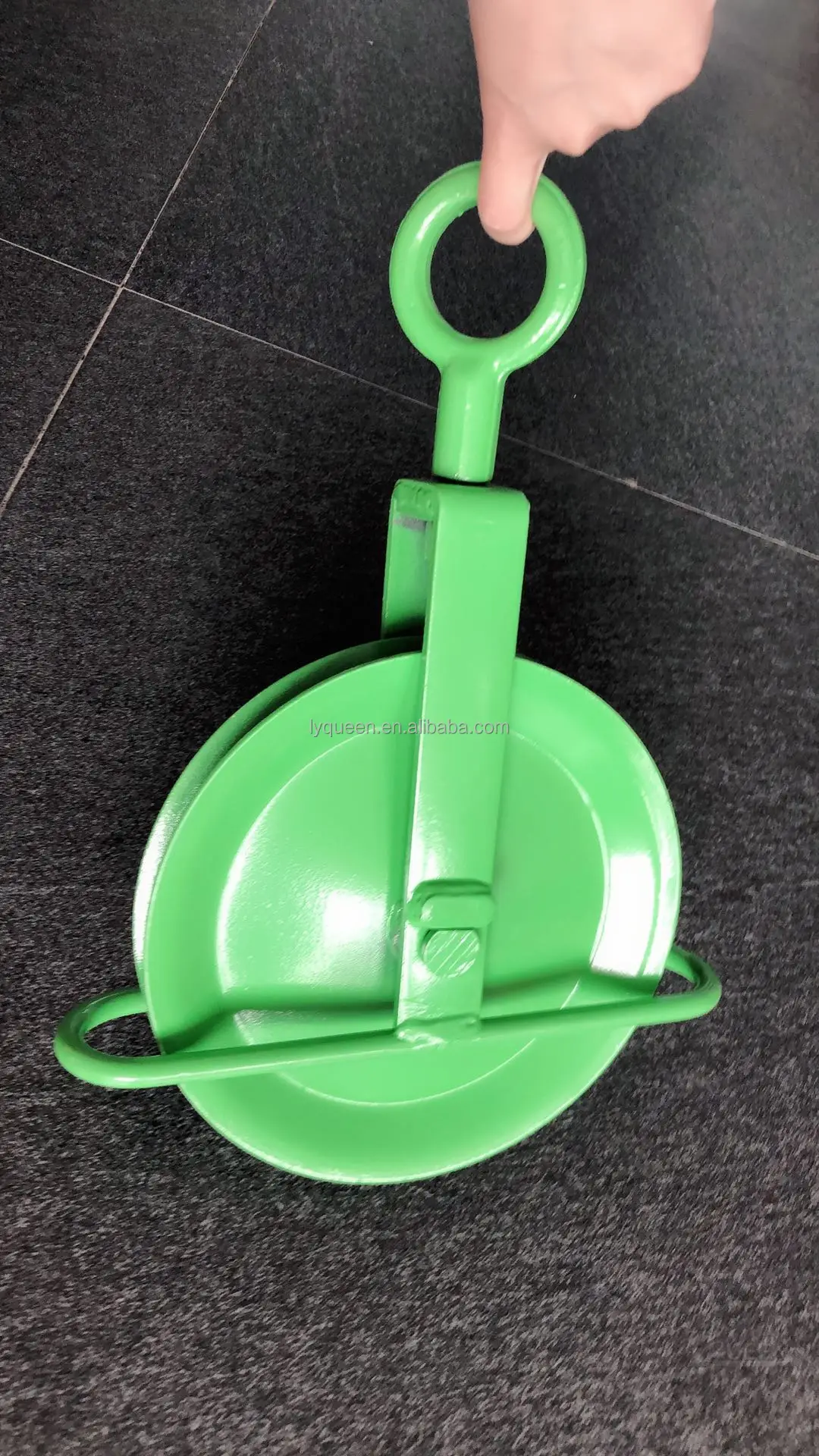

 Painted Green Gin Wheel Blocks, Gin Wheel Pulley For Fibre Rope

10″ Gin Wheel with swivel eye.

Widely used by scaffolders, roofers and builders for lifting equipment, tools etc up to the working area.



• Pressed steel body and sheave.


• Fitted with swivel round forged eye to fit standard scaffold tube.


• Suitable for light duty hoisting operations.


• To suit fibre rope.


• Comnplaince standard:EN BS 1692:1998

Our gin blocks are fitted with a swivel oval eye for attachment onto standard scaffolding tubes. These blocks are used within the construction industry as a pulley system. Our gin blocks are specifically made for light lifting by contractors, roofers and scaffolder's



Size	Code	S.W.L.	Dia of Rope	QTY/Case	N.W./G.W.	WD Size
(in)		(lbs)	(in)	(pcs)	(kg)	(cm)
8	QN1408	1000	7/8''	50	204/230	175x58x39
10	QN1410	1000	1	50	240/260	198x63x42
12	QN1412	1000	1	30	176/197	150x75x20
14	QN1414	1000	1	20	144/164	170x89x21
