high speed roll coil paper cutting machine for paper factory
jombo roll non-woven fabics slitter rewinder for non-woven Description |
| ZFJ Paper slitting rewinding machinemachine | Items | Details |
 | Item No. | ZFJ |
| Diameter | Φ1350mm | |
| Slit width | ≥30mm | |
| Speed | 180m/min | |
| Weight | 3.5T | |
| Paper Width | 1300mm-1800mm | |
Cutting | Automatic Cutting | |
| Power | 7.5kw | |
| Brand |
DC |
| jombo roll non-woven fabics slitter rewinder for non-woven Instruction |
|
| |
jombo roll non-woven fabics slitter rewinder for non-woven be used for processing tube roll paper,coated paper,non-woven fabrics and all kinds culture paper.Easy operation,with automatic loading system and unloading system. | ||
|
| jombo roll non-woven fabics slitter rewinder for non-woven Parameter |
| parameter/model | ZFJ-1300 | ZFJ-1600 | ZFJ-1800 |
| winding type | Surface coil | Surface coil | Surface coil |
| unwind width | 1300mm | 1600mm | 1800mm |
| unwind diameter | Max1350mm | Max1350mm | Max1350mm |
| rewind diameter | Max1350mm | Max1350mm | Max1350mm |
| unwind inner core | 76.2mm 152mm | 76.2mm 152mm | 76.2mm 152mm |
| rewind inner core | 76.2mm | 76.2mm | 76.2mm |
| slitting width | 30-1300mm | 30-1600mm | 30-1800mm |
| paper GSM | 100-510g/m² | 100-510g/m² | 100-510g/m² |
| Slit knife | 20sets | 20sets | 20sets |
| upper side knife | 105*48*1.5mm | 105*48*1.5mm | 105*48*1.5mm |
| down side knife | 108*80*30mm | 108*80*30mm | 108*80*30mm |
| rewind shaft | Air shaft | Air shaft | Air shaft |
| paper injection way | Downside paper injection | Downside paper injection | Downside paper injection |
| brake | pneumatic brake | pneumatic brake | pneumatic brake |
| motor power | 7.5KW | 7.5KW | 11KW |
| speed adjustment | frequency control of motor speed | frequency control of motor speed | frequency control of motor speed |
| speed | 180m/min | 180m/min | 180m/min |
| tension control | auto tension control | auto tension control | auto tension control |
| length counting | automatic | automatic | automatic |
| paper feeding | auto hydraulic shaft less loading | auto hydraulic shaft less loading | auto hydraulic shaft less loading |
| paper downloading | auto pneumatic downloading | auto pneumatic downloading | auto pneumatic downloading |
adjustable bow curved roll | movable | movable | movable |
| weight | 3.2T | 3.5T | 3.8T |
| dimension | 3200*2600*1500mm | 3500*2800*1500mm | 3800*3000*1500mm |
| jombo roll non-woven fabics slitter rewinder for non-woven Different models |
|
| |
Click below pictures to option different mahine 1 XFQ-800The cutting and rewinding small core winding machine main parameters and configuration 2 ZWQ paper slitting machine. It is mainly be used for paper making industry,printing,electric cable, aluminium foil,filter paper,plastic,food and paper second-processing. Steel plate body.with automatic wed guide system and adjustable bowcurved roll. 3 FQ-1600 paper roll cutting machine FQ-1600 paper roll cutting machine is mainly be used for processing tube roll paper,coated paper,non-woven fabrics and all kinds culture paper.Easy operation,with automatic loading system and unloading system.2x 4 ZFQ-1600 slitting machine paper ZFQ Full Automatic Slitter and Rewinder is mainly be used for processing all kinds paper.With automatic shaftless feeder loading system,automatic unloading system.Whole steel plate body,twining making.steady and higher precision.Easy operation and save labours. This machine is mainly be used in print industry,plastic industry,paper mills and so on 6 FQJ1600-2640 narrow disc of large diameter slitter rewinder This machine is the latest developed special for automobile filter paper, wallpaper, bobbin paper, box paperboard, white board paper Slitter rewinder. Slitting width is greater than or equal to 50mm, the winding diameter less than Phi 1500mm, width is 1600-2640mm, the machine solves the disc paper cutting function cutting narrow disc but rewinding diameter small, compact degree difference, and rewinding function rewinding diameter, tightness is good but not cutting the narrow disc problems, is a new generation product of the future paper and paper processing industry. 7 zwsj-2500 slitting machine This machine is mainly be used to processing jumbo paper rolls from paper machines,to get the good finished paper rolls. | ||
|
| jombo roll non-woven fabics slitter rewinder for non-woven below pictures |
|

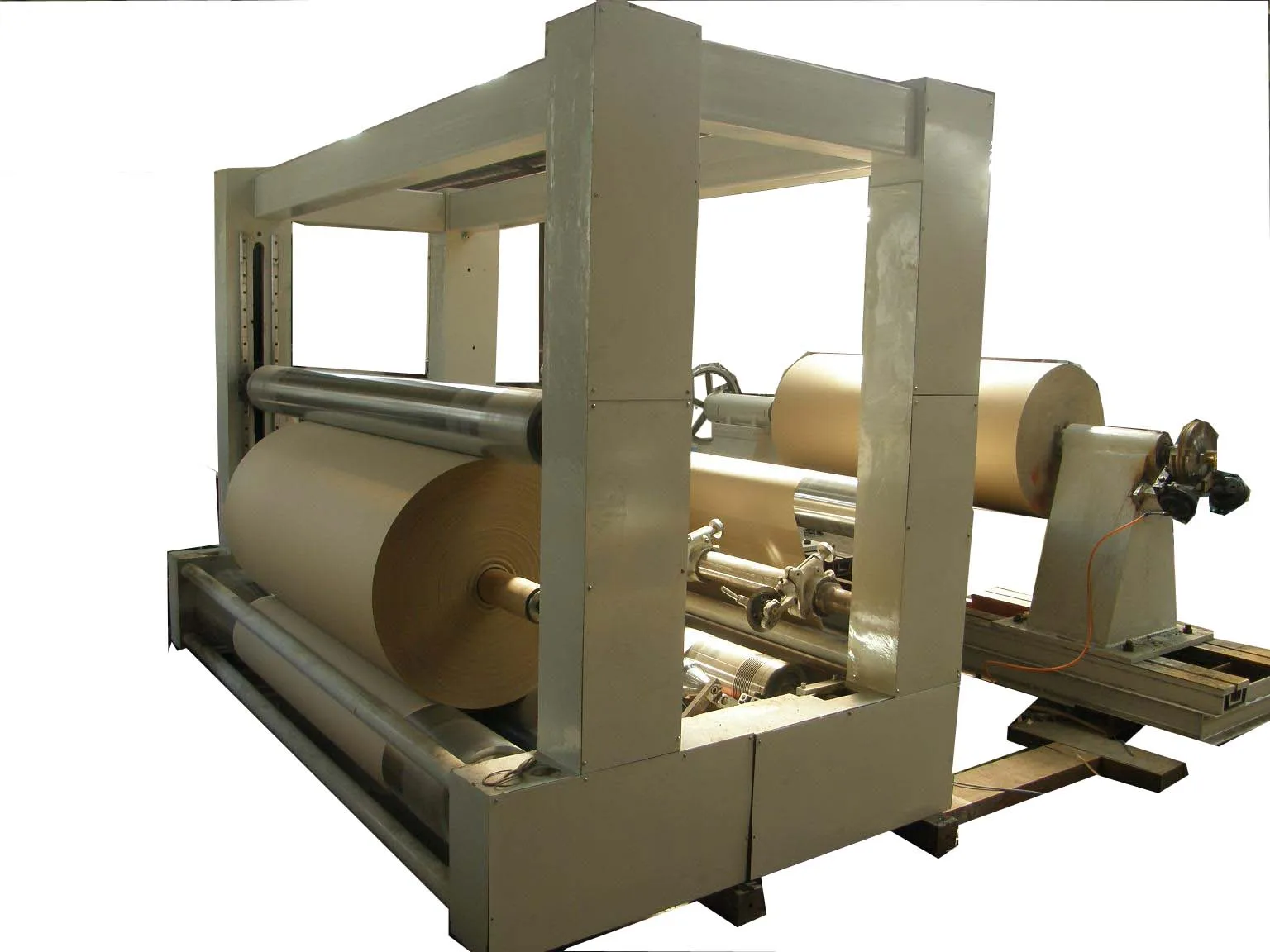

| ZWSJ jombo roll non-woven fabics slitter rewinder for non-woven |
|
| ZFJ jombo roll non-woven fabics slitter rewinder for non-woven product show |
|
| jombo roll non-woven fabics slitter rewinder for non-woven Sample show |
|

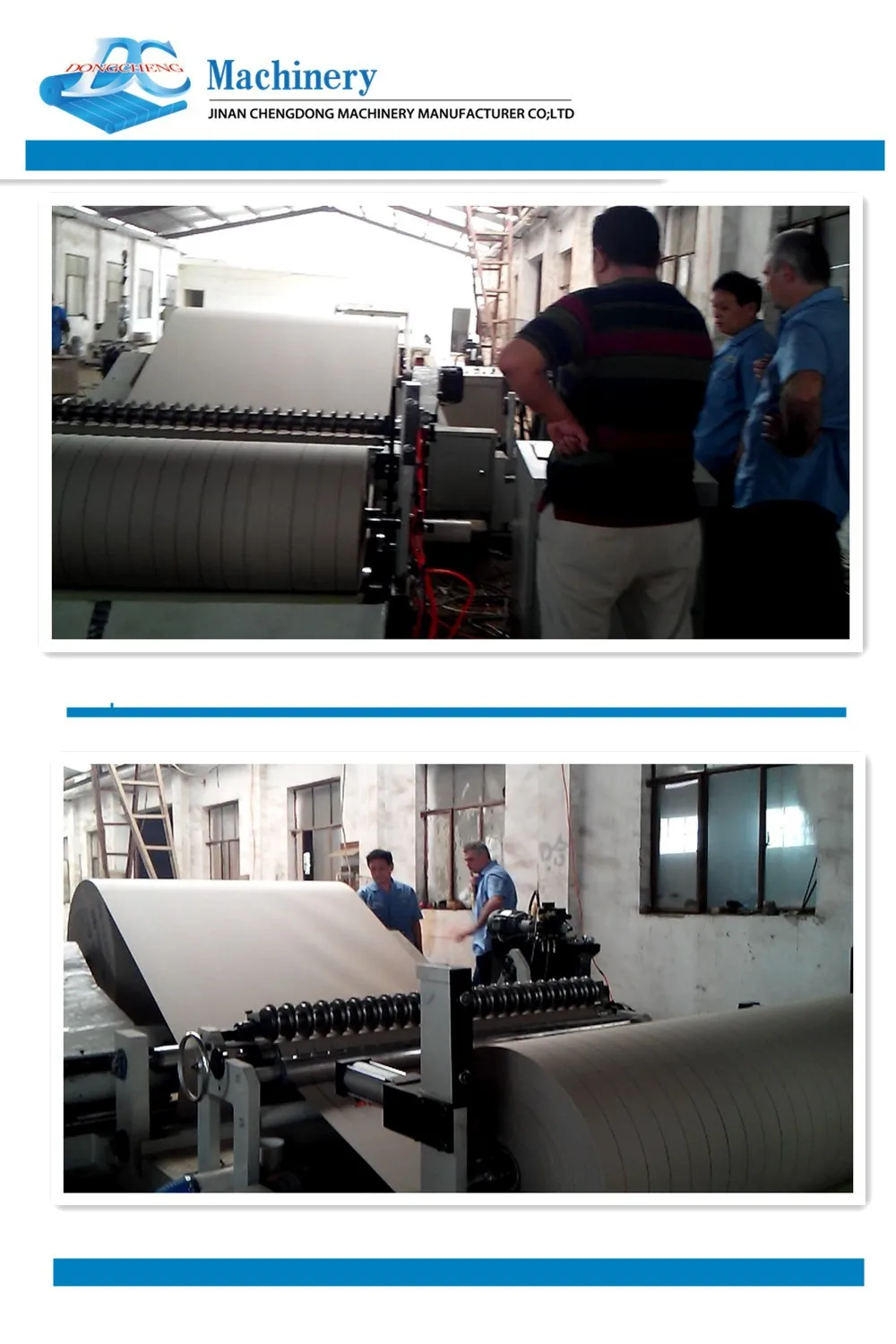

| jombo roll non-woven fabics slitter rewinder for non-woven Acceptance machine |
|
| jombo roll non-woven fabics slitter rewinder for non-woven Package |
|
| Other machine |
|
| |
1. Fully automatic paper tube cutting machine 2. HJG-100 paper edge machine 3. ZFQ auto matic shaftless paper sitting machine 4. SFQ double shaft slitting machine 5. ZWJ large paper slitting machine 6. Paper laminating machine 7. ZWSJ paper rewinding machine 8. FQ paper slitting machine 9. SJG-800-4 spiral paper tube machine 10. XFQ FAX/cash paper slitting machine 11. DC paper sheeting machine 12. Large spiral paper tube machine 13. CNC high speed paper tube cutting machine 14. JG-800-2 spiral paper tube machine
| ||
|
| Other machine picture show |
|
| Factory instruction |
|
| |
DONGCHENG was founded in 1992 and have more than 20 years for manufacturing experience of paper-processing equipments, be a very famous prefessional company in China, there are a group of senior engineers and technicans and R&D department to ensure the producing capacity and high quality.The company successively develops a group of leading products in homeland based on the ideology of constant development and creation. The main products including paper slitter rewinder machine, spiral paper tube/core/pipe machinery, parellel paper roll/drum machines, paper tube/core/pipe recutter, full paper barrel making machinery, iron-hoop cardboard barrel making machine, high-speed rotary paper sheeter,paper laminator, paper edgeboad machine, flexography printer,finishing equipments, andother different paper processing machines. Now Dongcheng is well-known brand in China paper machiney industry, which has excellent quality management team, professional research team and experienced engineers, it ensure consistent good product quality. the world to visit our factory and find the cooperation
| ||
|
| Factory workshop |
|
| Custom processing instructions |
|
| |
Dear user, To meet the needs of different industries, as well as the special requirements of the machine, our company, with a strong R & D capabilities, specially launches custom processing services, in addition to providing customers with conventional products. 1. Custom processing intended for customers tailor the machine, does not mean high prices. 2. Freely supply customers with technical solutions and design drawings. 3. Welcome customers to visit the factory and spot supervising producing. 4. Providing customers with on-site installation and commissioning services. Welcome the consultation, we will provide a satisfactory choice for you.
| ||
|
