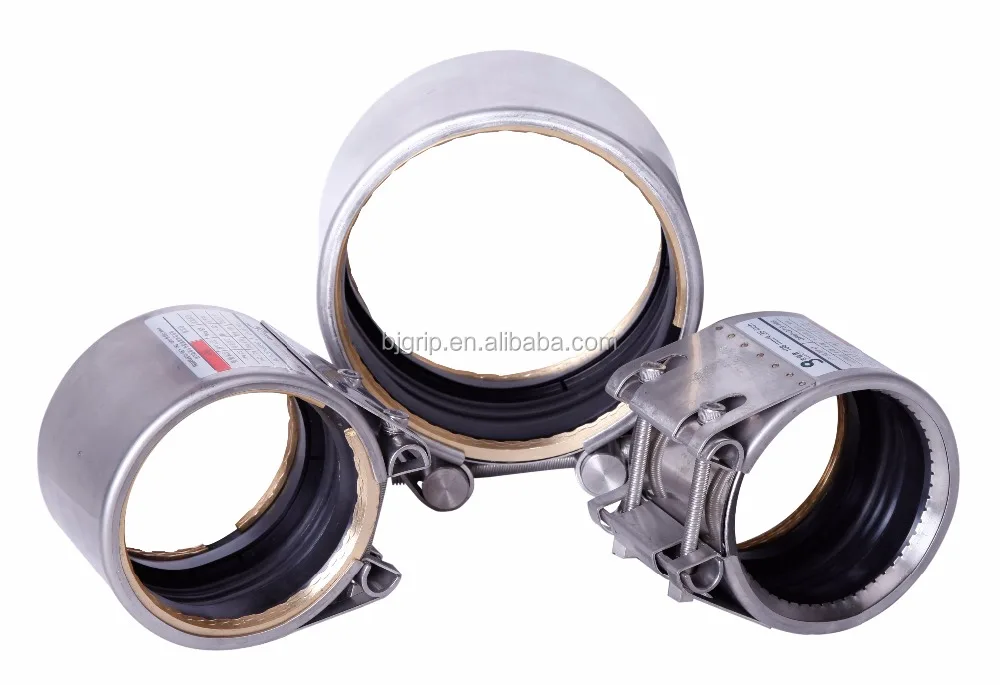

GRIP Axially Restrained Pipe Fitting Straight Plastic Pipe repair Coupling With Copper Anchoring Rings
- Category: >>>
- Supplier: Beijing Grip Pipe Tech Co. Ltd.
Share on (60482803096):
Product Overview
Description
Grip Pipe Coupling
Features & Benefits
GRIP pipe couplings offer you an easy to install, time saving and money saving solution. GRIP pipe couplings allow pipes to be joined without the need for flanging, grooving, threading or welding. By simply butting two pipes together and connecting with a GRIP pipe coupling, space, weight , time and cost savings are achieved with every installation .
Benefits of GRIP Couplings
- 1. Universal use
l Compatible with any traditional jointing system
l Joins pipes of the same or dissimilar materials
l Quick and simple repairs of damaged pipes without service interruptions
- 2. Reliable
l Stress-free, flexible pipe joint
l Compensates axial movement and angular deflection
l Pressure-resistant and leak-proof even with inaccurate pipe assembly
- 3. Easy handling
l Detachable and reusable
l Maintenance free and trouble free
l No time-consuming alignment and fitting work
l Easy installation technology
- 4. Durable
l Progressive sealing effect
l Progressive anchoring effect
l Corrosion resistant and temperature resistant
l Good resistant to chemicals
l Long service time
- 5. Space-saving
l Compact design for space-saving installation of pipes
l Light weight
l Needs little space
- 6. Fast and Safe
l Easy installation, no fire or explosion hazard during installation
l No cost for protective measures
l Absorbs vibration /oscillations
Product Description

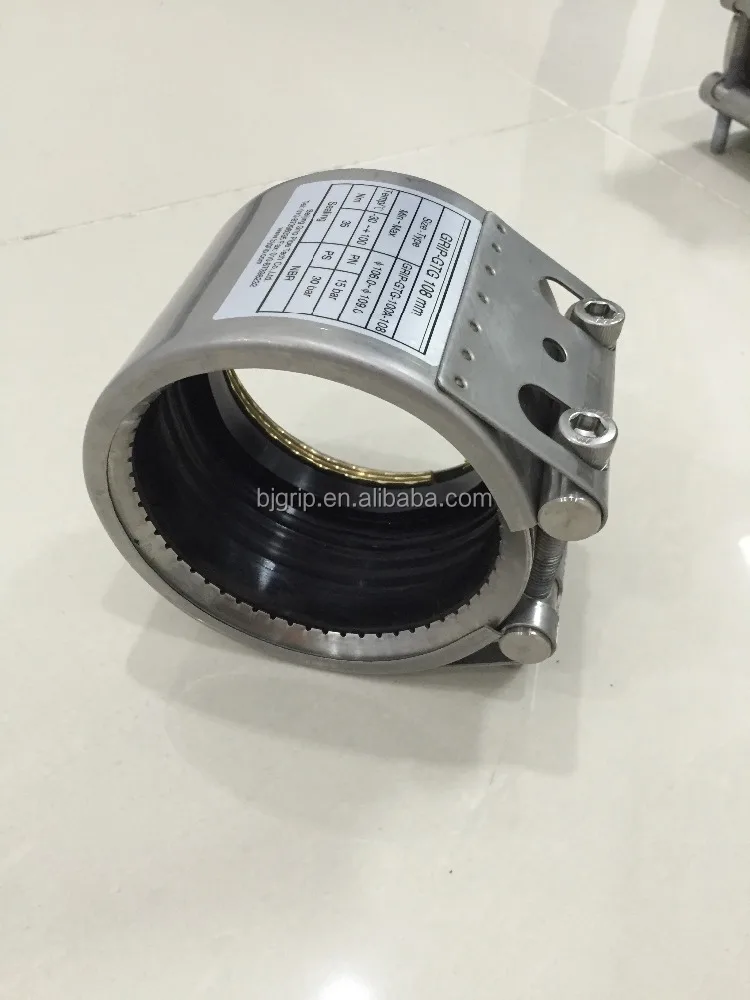

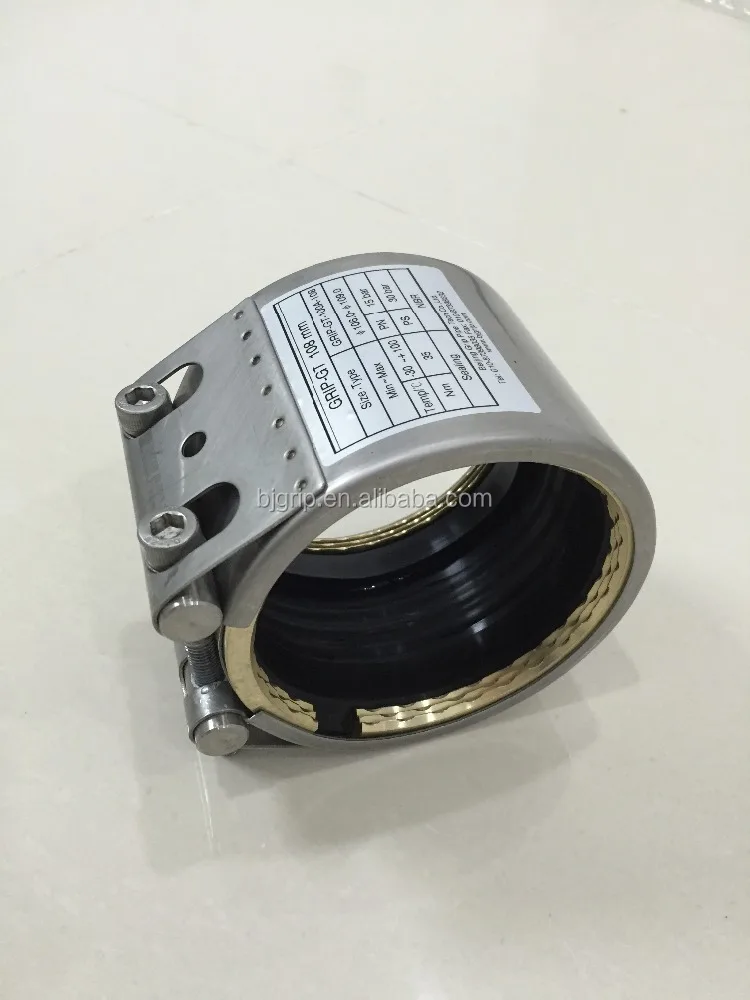

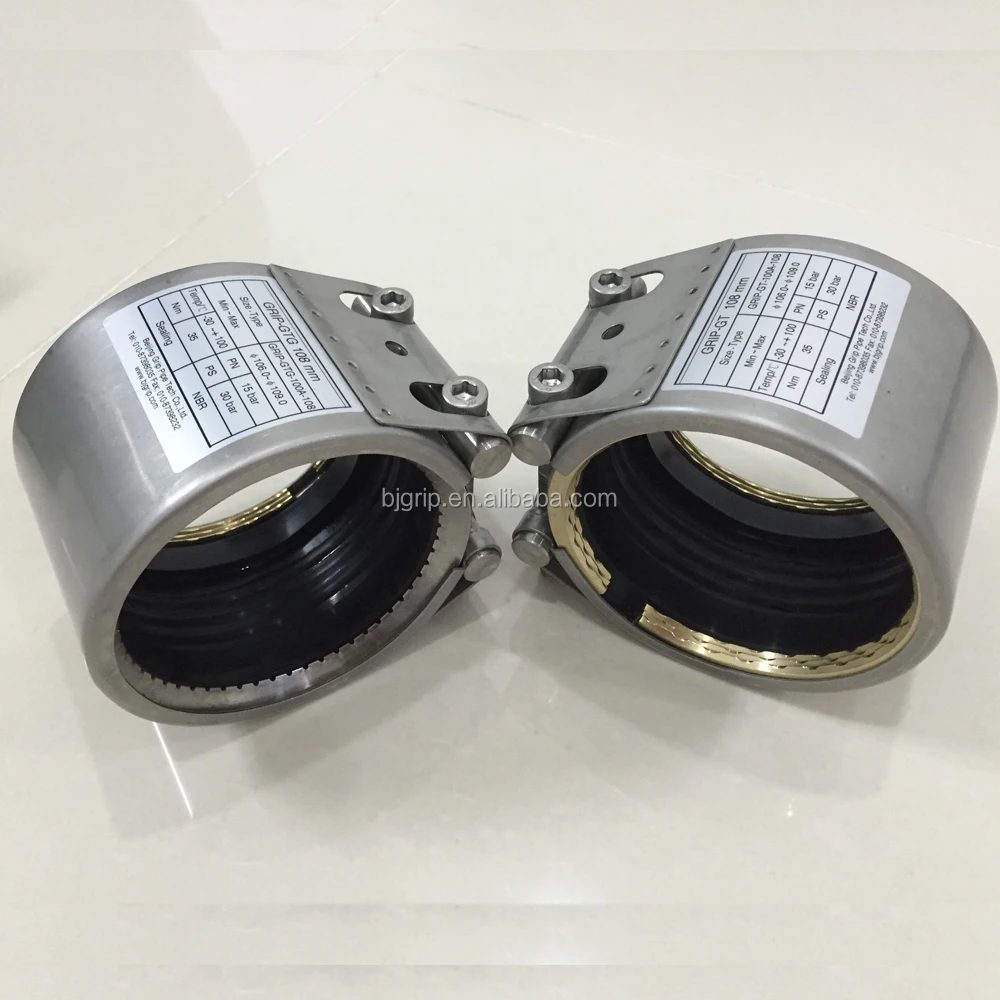

GRIP-GT Axially Restrained Pipe Coupling With Copper Anchoring Rings
- The GRIP-GT is ideal for various non-metal pipes axially restrained connection.
- Unique threaded copper anchoring ring design enable the coupling connect the pipes properly without slight scratch or damage.
- The coupling connects the pipe evenly.
- Suitable for pipes O.D φ26.9-φ800.0mm
| Pipe outside diameter | Clamping range | Working pressure | Product O.D. | Width | Distance between sealing slips | Setting gap between pipe ends | Torque rate | Bolt | ||||
| O.D. | Min-Max | Marine Industry | Φ D | B | C | without strip insert | with strip insert (Max) | |||||
| (mm) | (In.) | (mm) | (bar) | (bar) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (Nm) | M |
| 180 | 7.087 | 178-182 | 16 | 30 | 204 | 142 | 250 | 75 | 10~25 | 40 | 60 | M12×2 |
| 200 | 7.874 | 198-202 | 16 | 30 | 224 | 142 | 250 | 75 | 10~25 | 40 | 60 | |
| 219.1 | 8.626 | 216-222 | 16 | 30 | 251.1 | 142 | 250 | 75 | 10~25 | 40 | 60 | |
| 250 | 9.843 | 247-253 | 16 | 25 | 282 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 267 | 10.512 | 264-270 | 16 | 25 | 299 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 273 | 10.748 | 270-276 | 16 | 25 | 305 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 304 | 11.969 | 301-307 | 10 | 20 | 336 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 323.9 | 12.752 | 320-327 | 10 | 20 | 355.9 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 355.6 | 14.000 | 352-359 | 8.5 | 16 | 387.6 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 377 | 14.843 | 375-379 | 8.5 | 16 | 409 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 406.4 | 16.000 | 402-411 | 7.5 | 16 | 438 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 457.2 | 18.000 | 452-462 | 6.5 | 12 | 489 | 142 | 250 | 75 | 10~25 | 40 | 80 | |
| 508 | 20.000 | 503-513 | 6 | 10 | 540 | 142 | 250 | 75 | 10~25 | 40 | 120 | M16×2 |
| 558.8 | 22.000 | 554-564 | 5.5 | 10 | 590.8 | 142 | 250 | 75 | 10~25 | 40 | 160 | |
| 609.6 | 24.000 | 605-615 | 5 | 10 | 641.6 | 142 | 250 | 75 | 10~25 | 40 | 160 | |
| 711.2 | 28.000 | 708-715 | 4 | 5 | 743.2 | 142 | 250 | 75 | 10~25 | 40 | 160 | |
| 762 | 30.000 | 758-766 | 4 | 5 | 794 | 142 | 250 | 75 | 10~25 | 40 | 160 | |
| 812.8 | 32.000 | 809-817 | 4 | 5 | 844.8 | 142 | 250 | 75 | 10~25 | 40 | 160 | |
| 914.4 | 36.000 | 910-918 | 4 | 5 | 946.4 | 142 | 250 | 75 | 10~25 | 40 | 160 | |
| 1016 | 40.000 | 1012-1020 | 4 | 5 | 1048 | 142 | 250 | 75 | 10~25 | 40 | 200 | |
| 1117.6 | 44.000 | 1113-1122 | 3.5 | 5 | 1149.6 | 142 | 250 | 75 | 10~25 | 40 | 200 | |
| 1219.2 | 48.000 | 1215-1224 | 3.5 | 5 | 1251.2 | 142 | 250 | 75 | 10~25 | 40 | 200 | |
| 1320.8 | 52.000 | 1316-1325 | 3 | 5 | 1352.8 | 142 | 250 | 75 | 10~25 | 40 | 240 | |
| 1422.4 | 56.000 | 1418-1427 | 3 | 5 | 1454.4 | 142 | 250 | 75 | 10~25 | 40 | 240 | |
| 1524 | 60.000 | 1519-1529 | 2.5 | 5 | 1556 | 142 | 250 | 75 | 10~25 | 40 | 240 | |
| 1625.6 | 64.000 | 1621-1631 | 2.5 | 5 | 1657.6 | 142 | 250 | 75 | 10~25 | 40 | 240 | |
| 1727.2 | 68.000 | 1722-1732 | 2.5 | 5 | 1759.2 | 142 | 250 | 75 | 10~25 | 40 | 240 | |
| 1828.8 | 72.000 | 1824-1834 | 2 | 5 | 1860.8 | 142 | 250 | 75 | 10~25 | 40 | 240 | |
| 1930.4 | 76.000 | 1925-1935 | 2 | 5 | 1962.4 | 142 | 250 | 75 | 10~25 | 40 | 240 | |
| 2032 | 80.000 | 2027-2037 | 2 | 5 | 2064 | 142 | 250 | 75 | 10~25 | 40 | 240 | |
Packaging & Shipping
Certifications
All of proudcts are ISO9001:2008 certified and DNV CCS approved.
Factory and pack
FAQ
Q: Are you a manufacturer or agent?
A: We are a professionaol pipe fittings manufacturer in Beijing. With over 1500 square meters workshop, 60 skilled workers,advanced process equipment,we provide high quality and various pipe fittings, from stainless steel pipe couplings and clamps to forged steel victualic coupling, we can provide almost all pipe couplings you need.
Q: How can I buy from you?
A: Please send us an inquiry through alibaba or send emails to us directly. A quotation would be sent to you soon.
Q:How to pay you?
A: We accept L/C, T/T, Western Union as well as Paypal.
Q: What's your working time?
A: Regular opening hours: 8:30-12:00 and 13:00-17:30 from Monday to Friday.
Q: What will be the delivery time?
A: We usually keep small quantity of stock on regular items for immediate delivery.
Please check with us again before ordering in case of any possible changes on stock.
Q: Can I visit you in China?
A: You are welcome to visit us at any time.
Q: What's your address:
A: Office located in 32# Jinghai 1st Rd BDA Beijing China .
