Full Automatic Gypsum Board Production Line Full Automatic Low Price Gypsum Board Production Line
$700,000.00-3,000,000.00
precast wall panneling/precast wall machine manufacture/concrete fence molds for sale
- Category: >>>
- Supplier: Dezhou Haitian Electromechanical Technology Co. Ltd.
Share on (60482812221):
Product Overview
Description
precast wall panneling/precast wall machine manufacture/concrete fence molds for sale
Product description

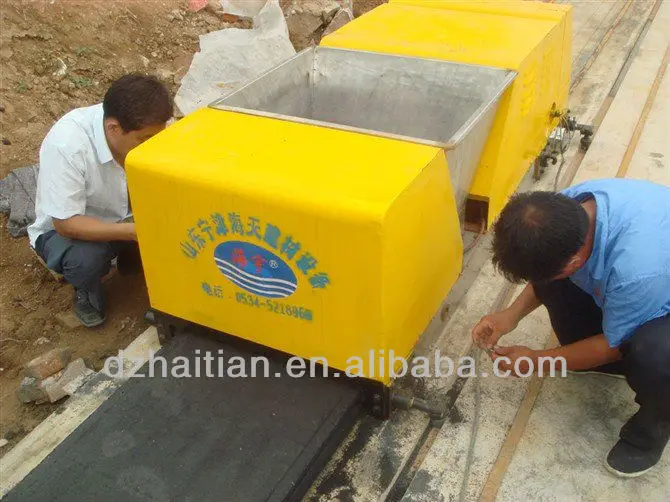

Haitian HQJ model extruder hollow core wall panel machine get China national patent. Pre-stressed steel wires can be put on top and bottom of the panels for reinforcement, that makes the panel can be used not only for partition wall but also for load bearing roof/floor system. Raw materials are like pumic, perlite, fly ash, slag are easy to get and can be replaced by similiar materials.
The mixing knife and other spare parts which are easy to be broken are protected by alufer. Long service life has been appreciated by lots of our loyal clients. The entire machine uses the anticorrosion technology, never get rust.
Main specifications:
Model(mm) | HQJ80X600 | HQJ90X600 | HQJ100X600 | HQJ120X600 | HQJ200X600 |
Panel width | 595±2 | 595±2 | 595±2 | 595±2 | 595±2 |
thickness(mm) | 78±1 | 88±1 | 88±1 | 118±1 | 198±1 |

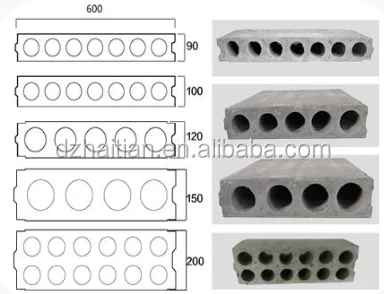

No of hole including diameter (mm) | 8Xφ43 | 7Xφ58 | 7Xφ62 | 5Xφ80 | 3Xφ145 |
forming speed(mm/min) | 1600 | 1600 | 1600 | 1600 | 1600 |
Main power(KW) | 4 | 5.5 | 5.5 | 5.5 | 7.5 |
vibration power(KW) | 0.8 | 0.8 | 0.8 | 0.8 | 3 |
machine dimentions(mm) | 2500X950X750 | 2500X950X700 | 2500X950X750 | 2550X950X750 | 2650X1000X850 |
machine weight(kg) | 1010 | 1010 | 1035 | 1650 | 1680 |
Production:

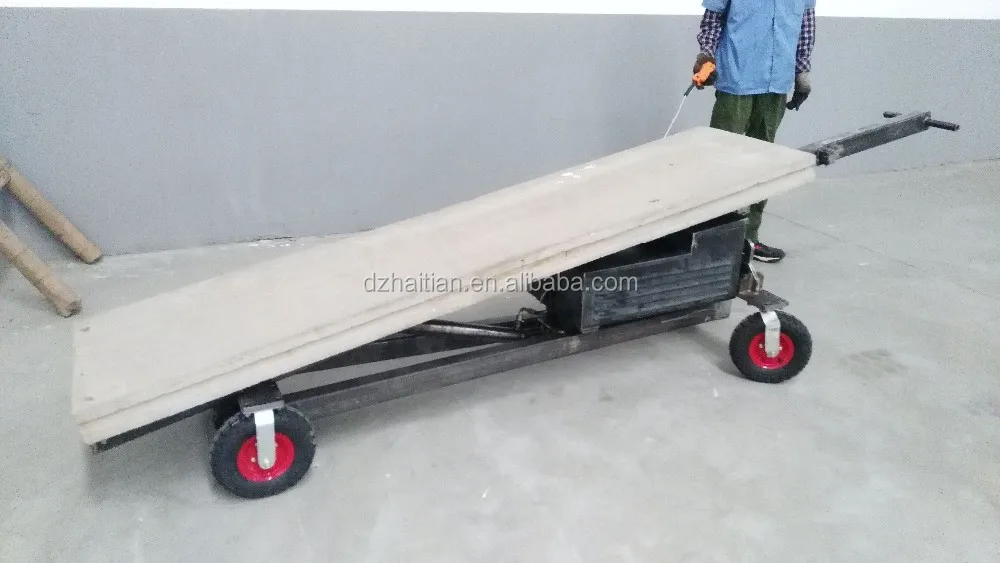

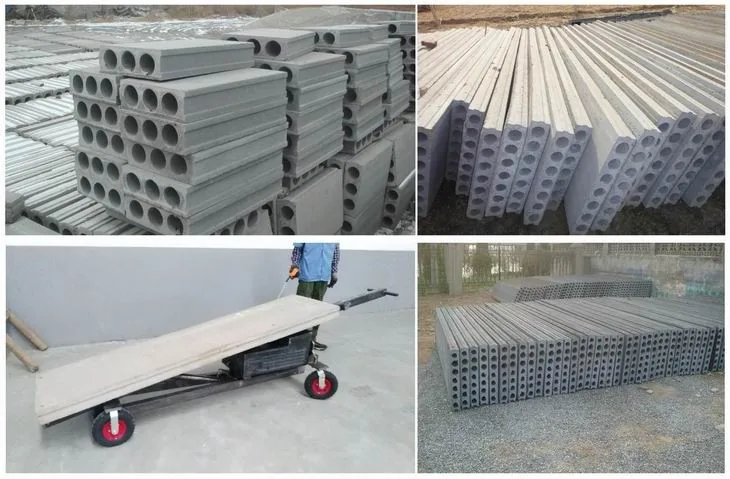

Finished products :

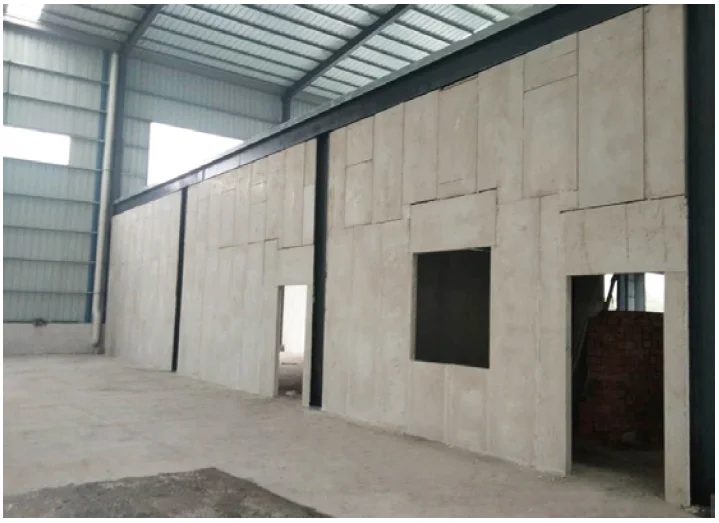

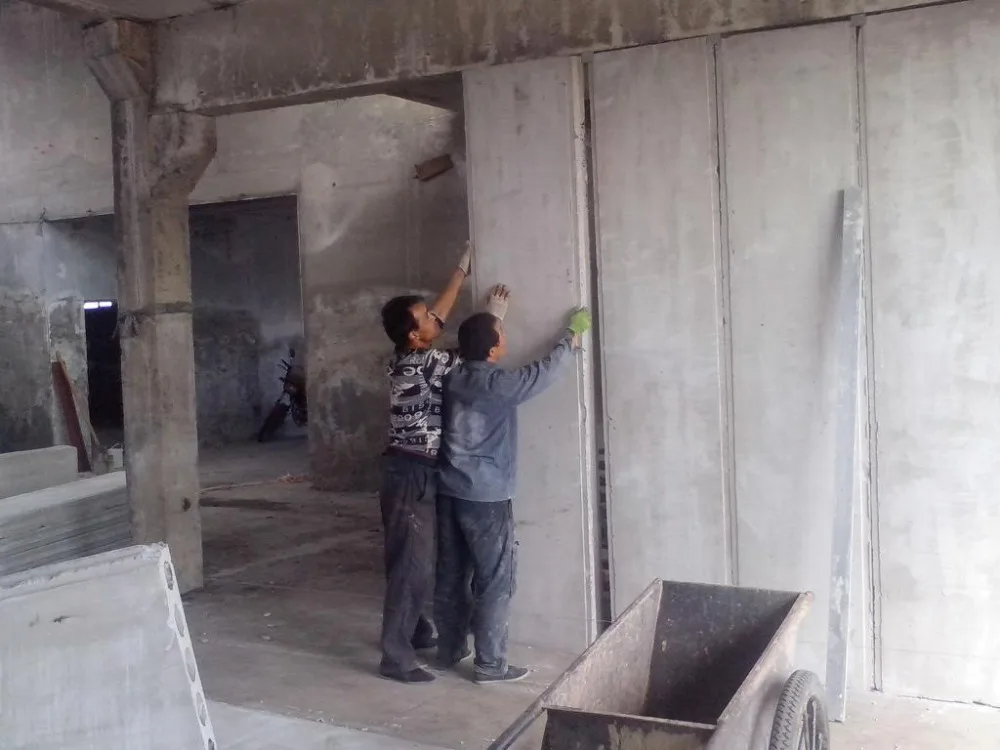

Used as partition wall:
Used as boundary wall with H beam
precast walls,lightweight wall panel fencing machine
H column
(contact whatsapp:0086 15253103786)
Company Information
Dezhou Haitian was founded in 1997. We have obtained 20 China national patents, products approved ISO9001:2008 certificate, CE certificate and EU Customs Union CU-TR certificate. For the past several years Haitian has been rated "AAA grade quality and integrity of Chinese brands". We are also the Vice President of “China Concrete and Cement Products Association”
Our main products:
1. HTSF Multi-functional Slipformer hollow core slab production line
2. Precast concrete Moulds (tilt table mould, staircase mould, beam column mould, box culvert mould etc)
3. GLY/TW series Pushing vibration type hollow core slab machine
4. Precast fence post machine
5. Precast concrete beam/lintel machine (concrete t beam/H beam machine)
6. Precast concrete boundary wall panel machine
7. Hectec Automatic Extruder hollow core wall panel production line
8.HLJ Vertical type CLC Wall Panel Molding Machine
9. HFJ Automatic EPS sandwich wall panel machine10.Precast prestressed concrete ribbed slab(half slab) production line
Welcome to visit our plant!
