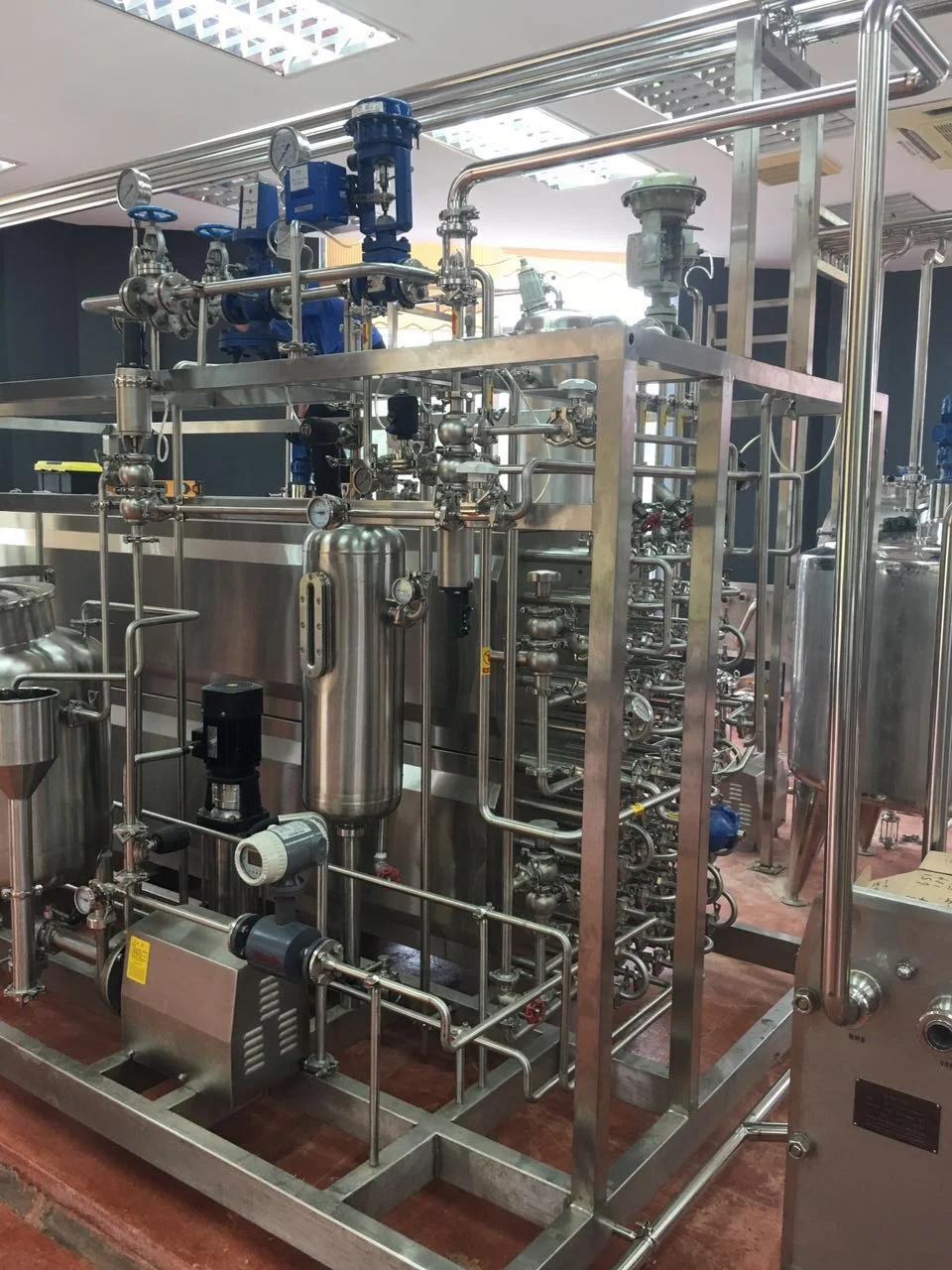

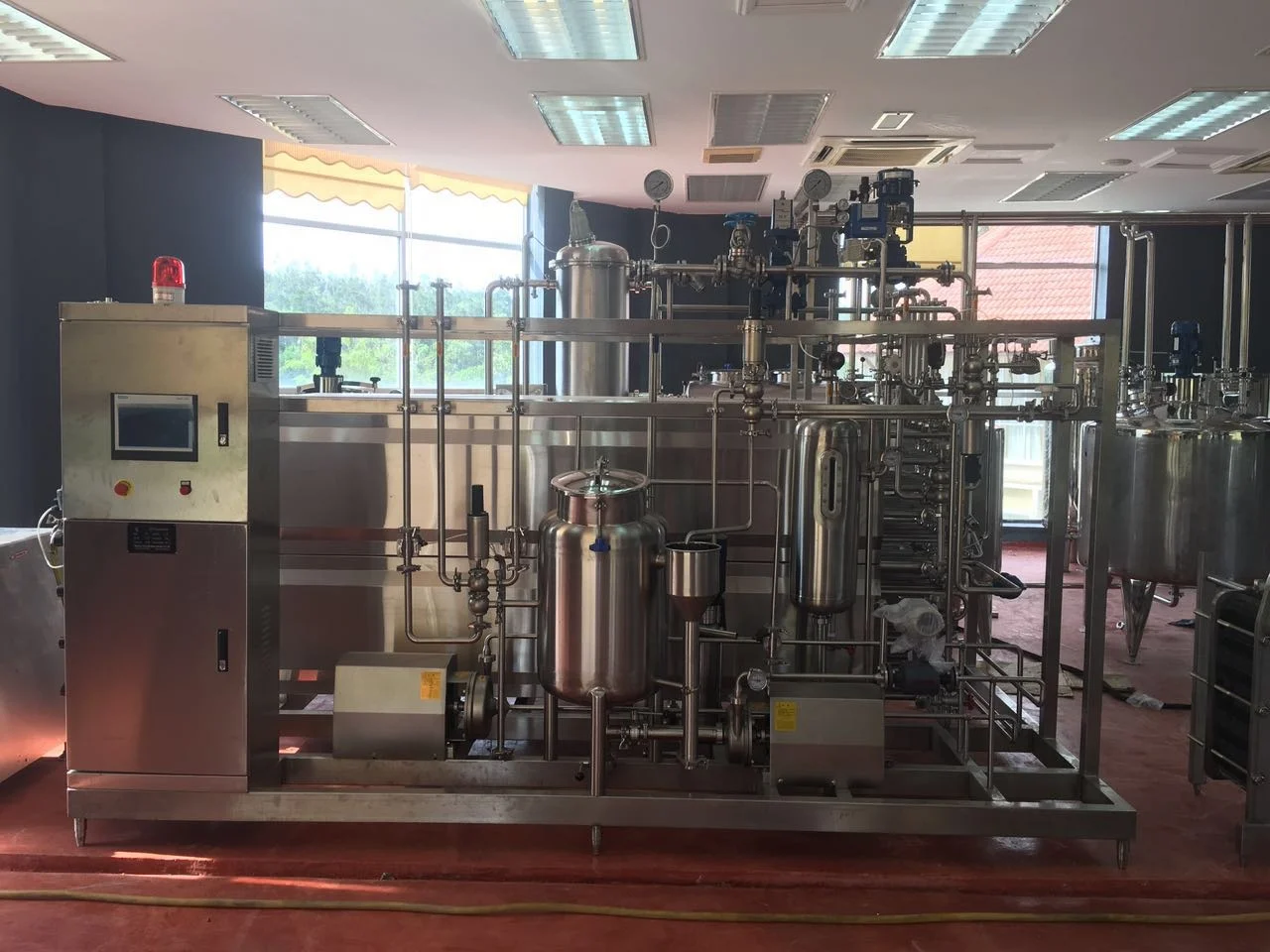

Tubular UHT Milk Pasteurizer
- Category: >>>
- Supplier: Wenzhou Vince Machinery Science Co. Ltd.
Share on (60483081069):
Product Overview
Description
Tubular Type Small Milk Pasteurizer
Product Description
Scope of application of tubular sterilizer: This machine is applicable to the sterilization of vacuum soft packaged food, flexible tube soft bottle packaging, glass bottle packaging of pickles, pickles, jam, jam, canned pickles, pickles, pickles, pickles, pickles, pickles, wild vegetables, jam, bean products, dairy products and other vacuum soft packaged food. It is also suitable for blanching or cooking of fruits, wild vegetables and other special fruits and vegetables.
Specifications
1. Material : SUS304/316
2. Capacity/Flow: 1~20T/H
3. Motor power: 1.9-11KW
4. quick sterilizing for food fluid
Capacity (t/h) | Steam Consumption (kg/h) | Steam Pressure (bar) | Power (kw) | Dimension (L*W*H) | Weight (kg) |
1 | 130 | 2.5 | 1.9 | 3.3×1.6×1.8 | 1490 |
2 | 260 | 2.5 | 2.1 | 3.3×1.6×1.8 | 1590 |
3 | 390 | 2.5 | 3.0 | 3.5×1.8×2.0 | 1630 |
4 | 520 | 2.5 | 3.0 | 3.5×1.8×2.0 | 1870 |
5 | 650 | 2.5 | 3.0 | 3.5×1.8×2.0 | 2060 |
6 | 780 | 2.5 | 3.0 | 3.5×1.8×2.0 | 2250 |
8 | 1040 | 2.5 | 3.7 | 4.5×2.0×2.0 | 2500 |
10 | 1300 | 2.5 | 5.2 | 4.5×2.0×2.0 | 2800 |
15 | 1950 | 2.5 | 7.0 | 6.5×2.0×2.2 | 3500 |
20 | 2600 | 2.5 | 11.0 | 6.5×2.0×2.2 | 4300 |
Machinery detailes
