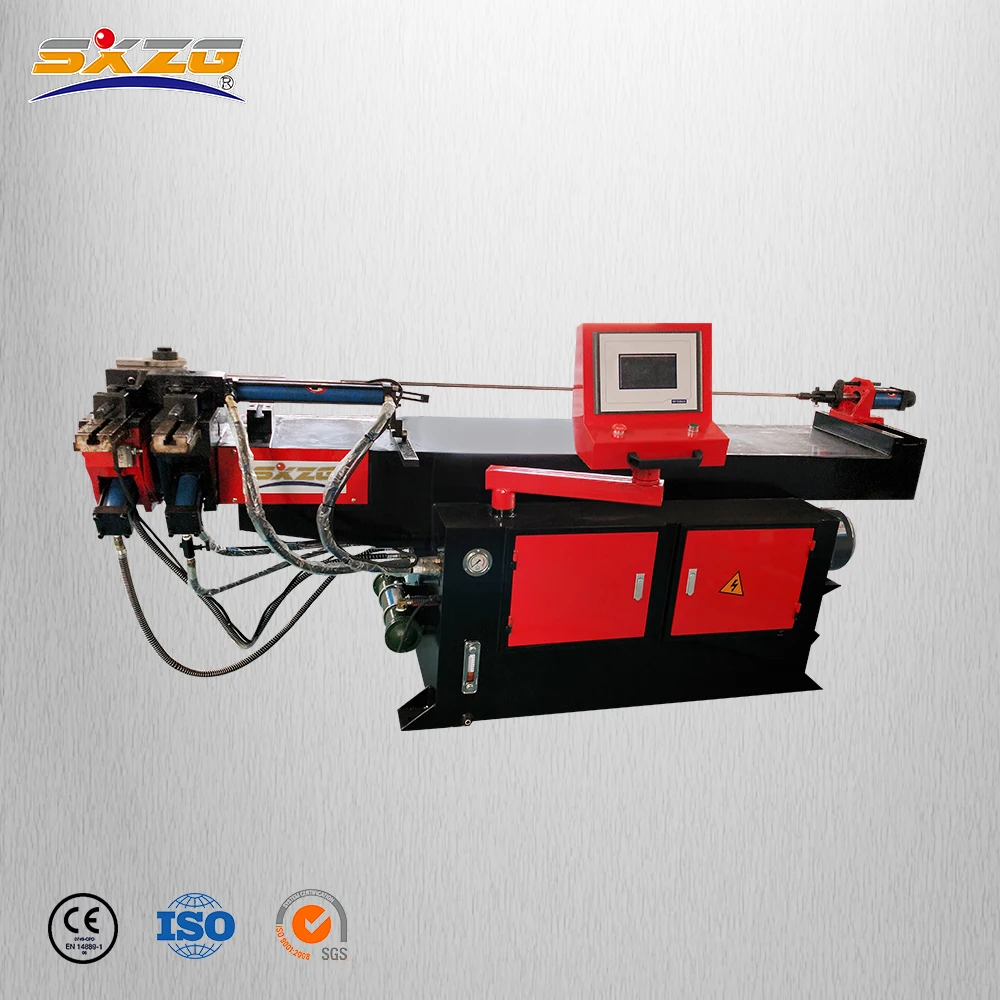

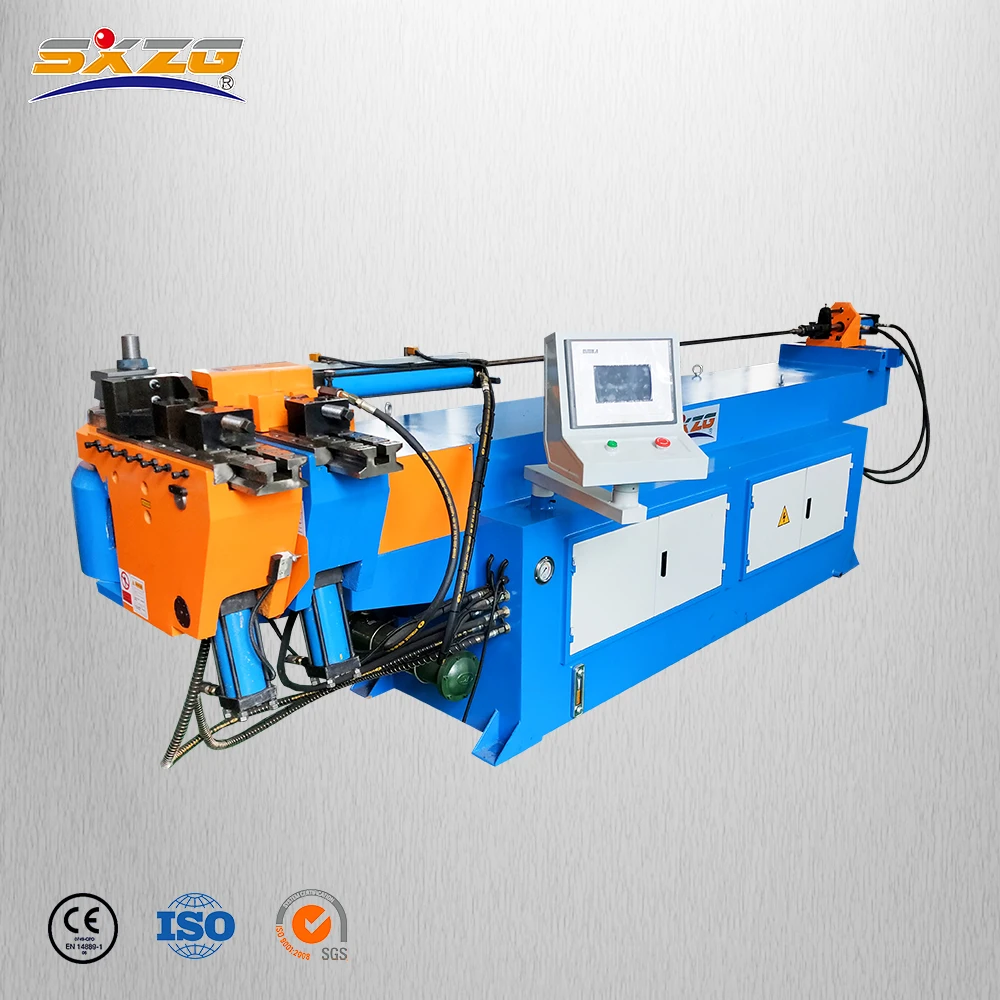

1 2 3 4 inch hydraulic manual pipe bender and SXZG automatic SS MS NC pipe bender machine
- Category: >>>
- Supplier: Anhui Sanxin Heavy Industry Machinery Manufacturing Co. Ltd.
Share on (60483101144):
Product Overview
Description
1 2 3 4 inch hydraulic manual pipe bender and SXZG automatic SS MS NC pipe bender machine
Pipe bender
Product Description

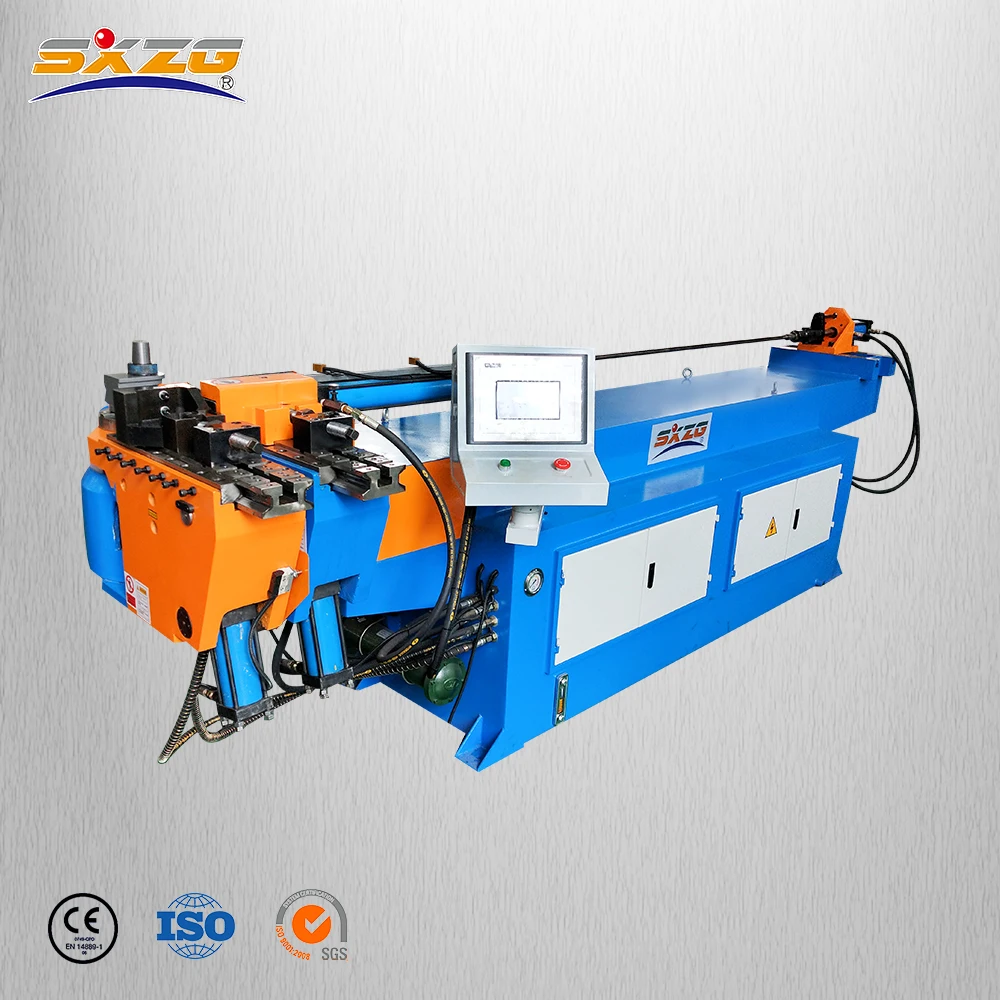

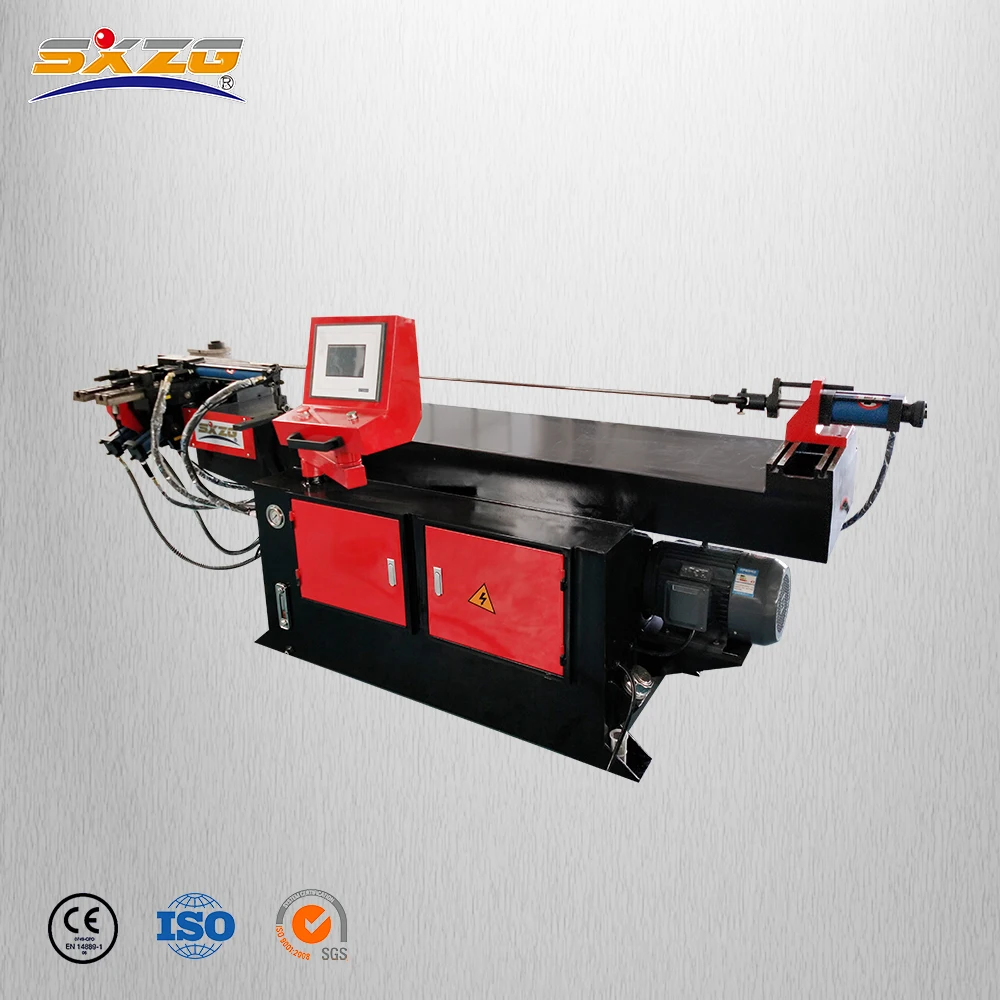

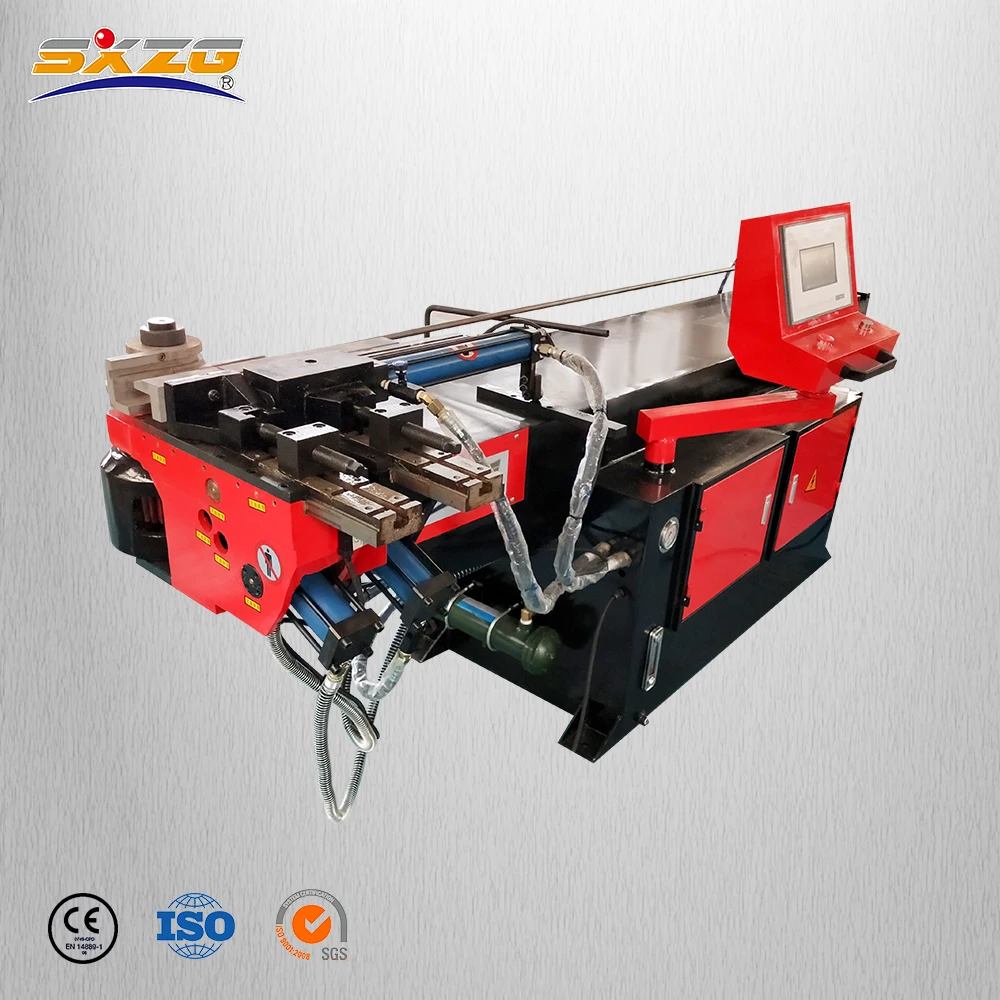

NC Tube Bending Machine

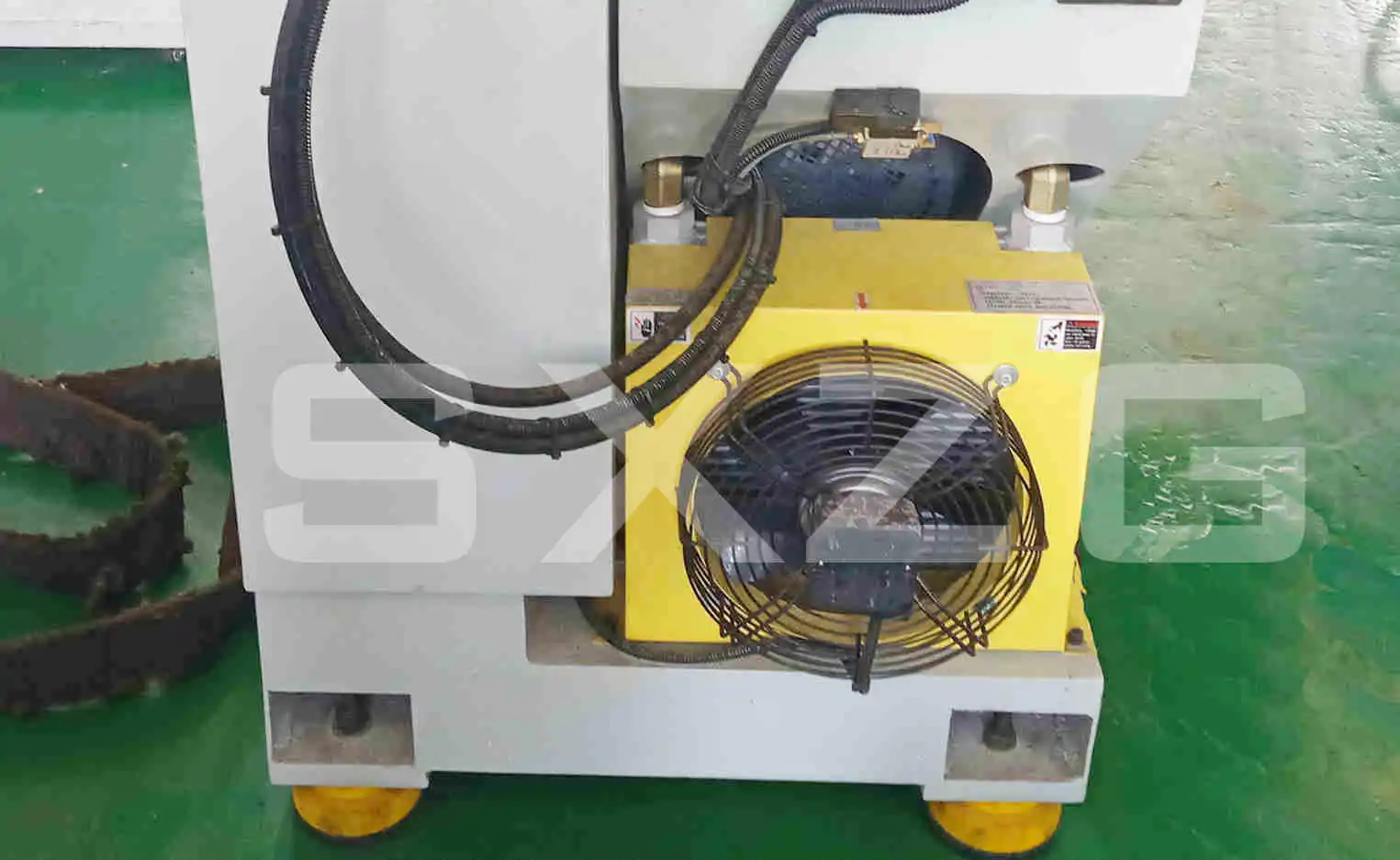

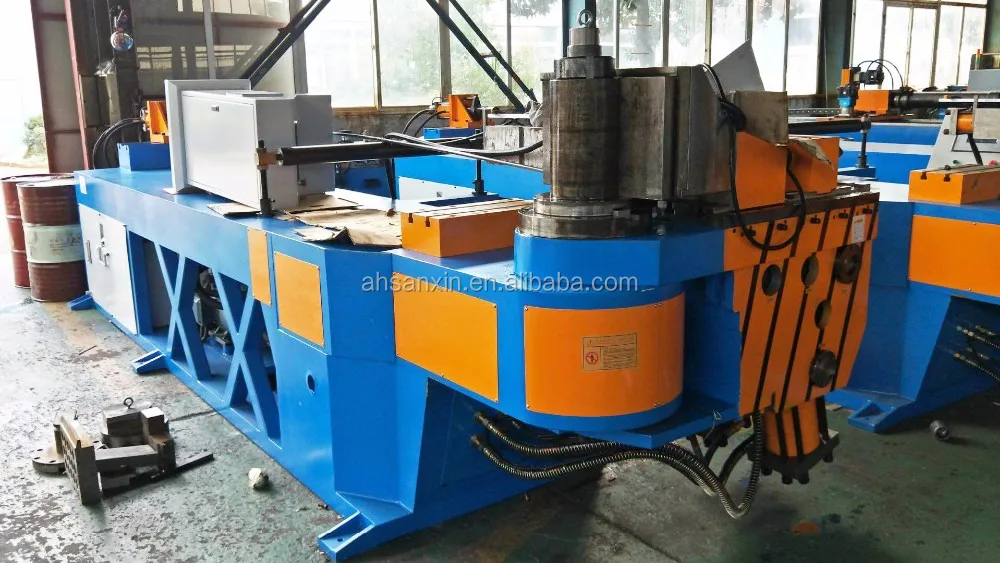

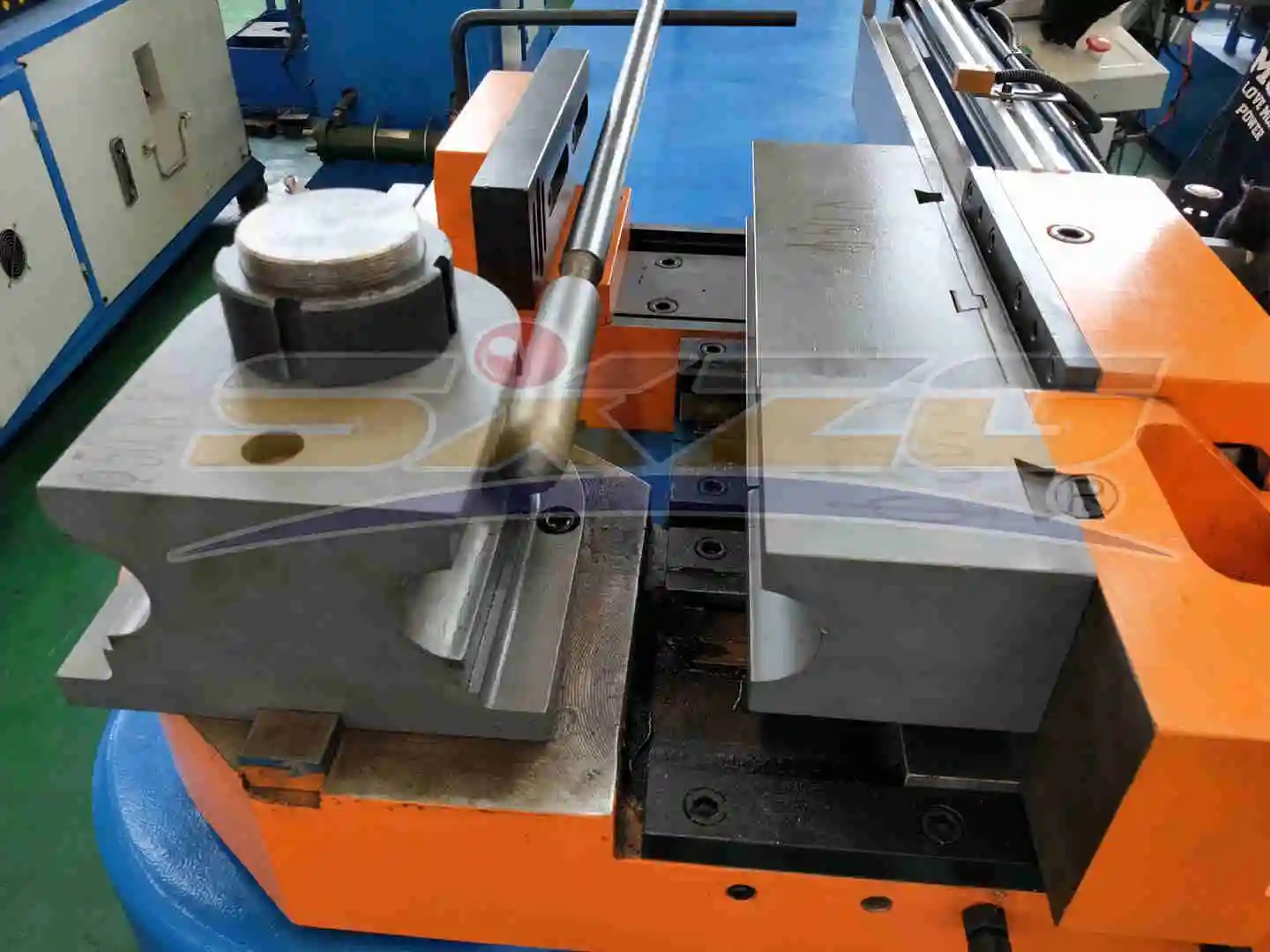

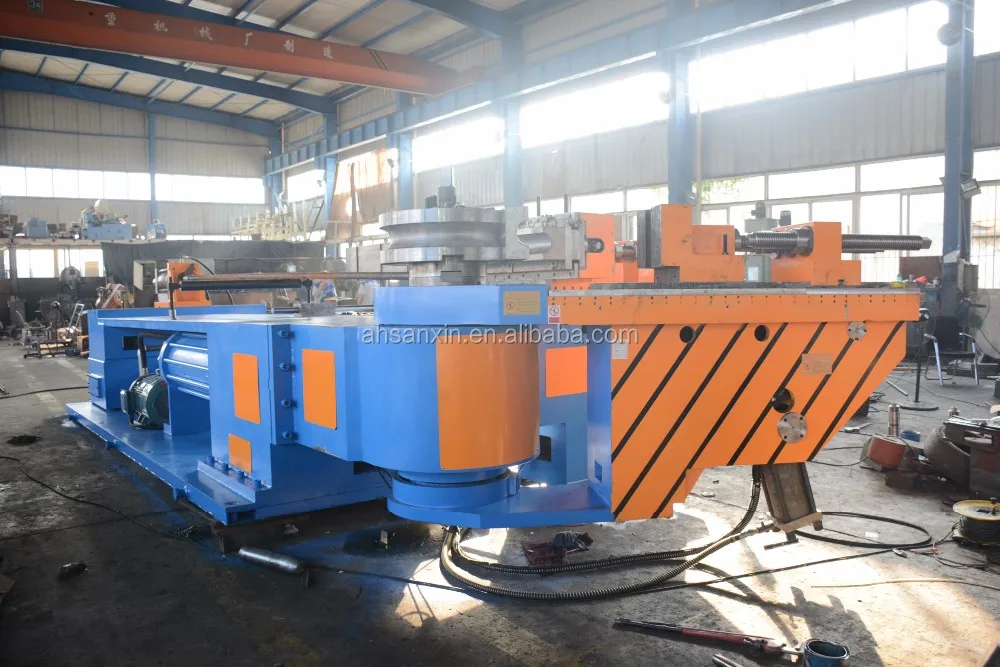

Large and medium-sized pipe bending machine with boosting design,can solve the trouble of big radius,big angle and tin bending pipe. Adopting touched operation panel by single chip computer control,man-machine conversation operating, very convenient. The angle of bending uses encoder tracking and video and feedback with a high bending precision. With automatic counting and power-off memory function. Equipped with water cooling system to ensure the stability of the machine for a long timeDetailed Images
Hydraulic Tube Pipe bending machine for making trolley, exhaust pipe,ship,car,etc.
Size Information
Size Chart of This Design
Model | 38NC | 50NC | 63NC | 76NC | ||||
Max Capacity | ￠38.1 (1.5”)×2mm | ￠50.8 (2”)×2mm | ￠63.5 (2.5”)×4mm | ￠76.2 (3”)×5mm | ||||
Bending Degree | 0-190° | 0-190° | 0-190° | 0-190° | ||||
Bending Radius | 10-200mm (for machine) | 15-250mm (for machine) | 20-300mm (for machine) | 25-350mm (for machine) | ||||
Min Bending Radius | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) | ||||
Mandrel Length | 2300mm (can be customized) | 2500mm(can be customized) | 3000mm(can be customized) | 3200mm(can be customized) | ||||
Max Bending Speed | 90°/s | 65°/s | 60°/s | 45°/s | ||||
Bending Accuracy | ±0.1° | ±0.1° | ±0.1° | ±0.1° | ||||
Motor Power | 4 Kw | 55.5 Kw | 7.5 Kw | 7.5 Kw | ||||
Model | 89NC | 114NC | 129NC | 168NC | ||||
Max Capcity | ￠89 (3.5”)×8mm | ￠114 (4.5”)×8mm | ￠129(5”)×12mm | ￠168(6.5”)×16mm | ||||
Bending Degree | 0-190° | 0-190° | 0-190° | 0-190° | ||||
Bending Radius | 30-450mm (for machine) | 40-550mm (for machine) | 50-650mm (for machine) | 60-850mm (for machine) | ||||
Mini Bending Radius | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) | R≥1.5D (for pipe) | ||||
Mandrel Length | 3800mm(can be customized) | 4500mm(can be customized) | 4600mm(can be customized) | 6500mm(can be customized) | ||||
Max Bending Speed | 40°/s | 25°/s | 20°/s | 10°/s | ||||
Bending Accuracy | ±0.1° | ±0.1° | ±0.1° | ±0.1° | ||||
Motor Power | 11 Kw | 15 Kw | 18.5 Kw | 22 Kw | ||||
Workpiece Samples
