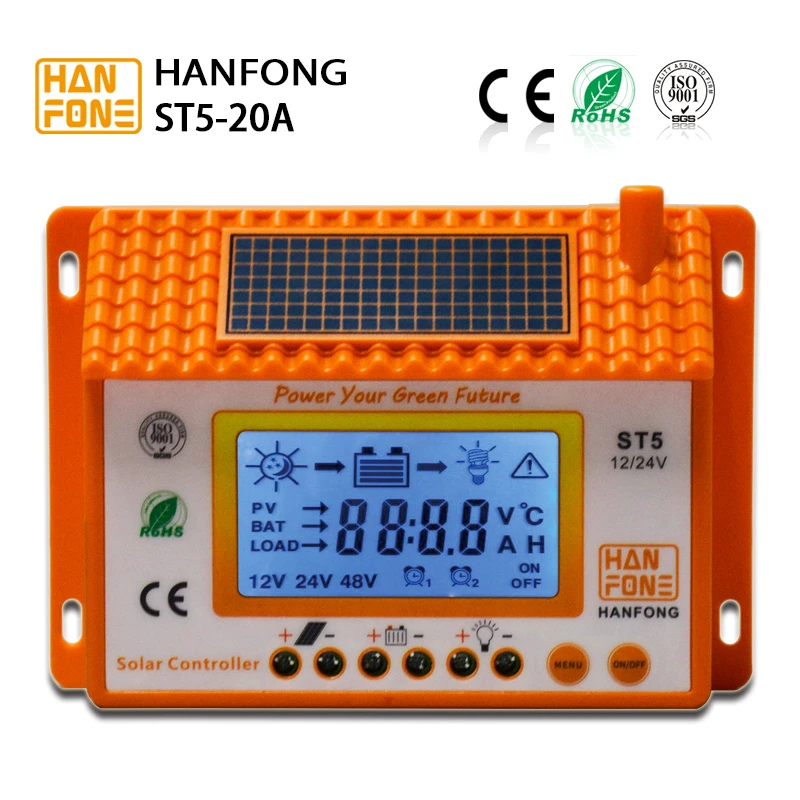

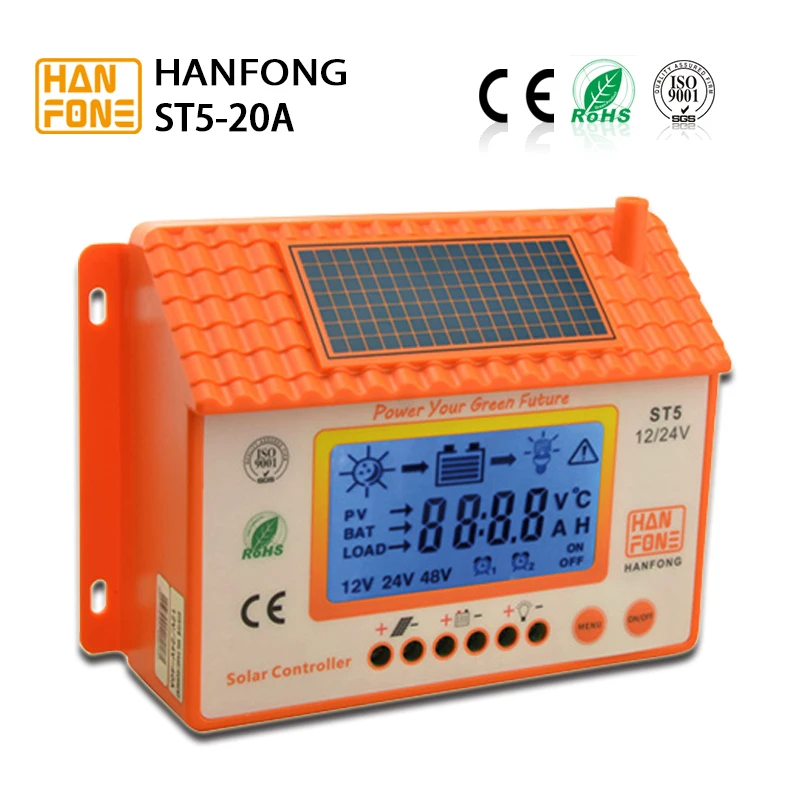

20A automatic switch manual pwm 12 volt 20 amp solar charge controller with blue backlight wind solar hybrid charge controller

Share on (60483140088):


Price:

Quantity:


Product Overview

Description











2016 New solar charger controller With fashion design and blue backlight, convenient for operate in Dark condition















Product Description

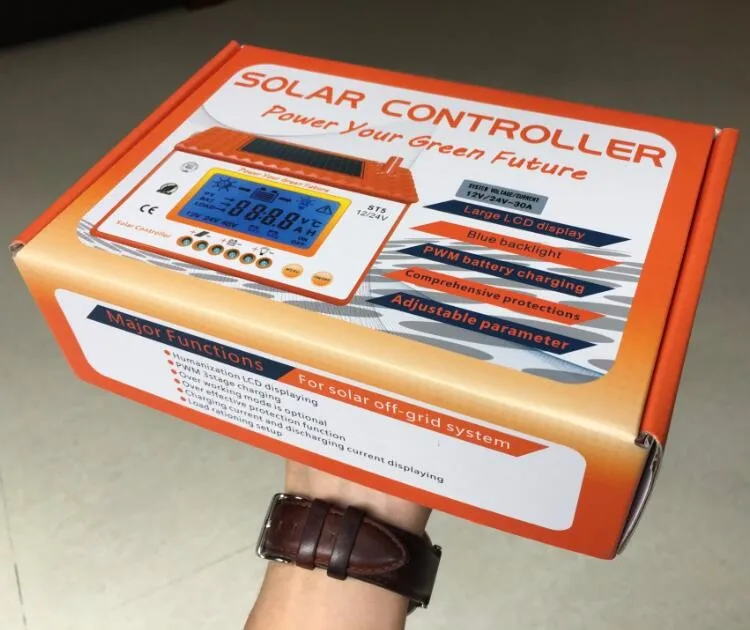

Packaging & Shipping



















Technical Date

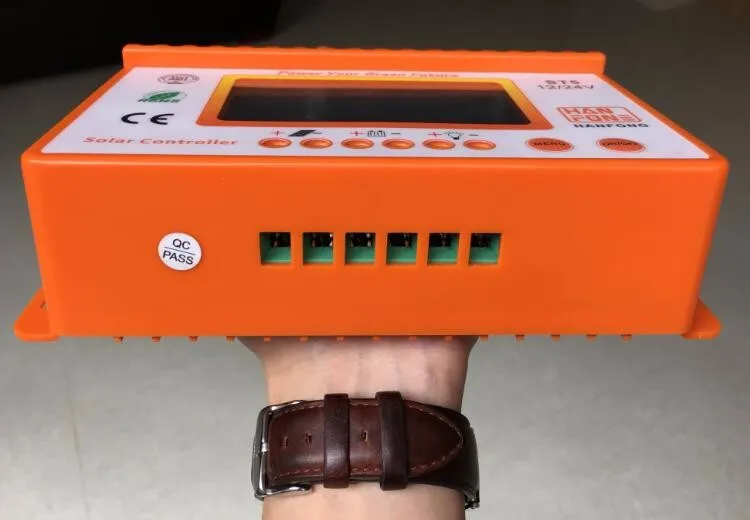

ST5 Series Specification
                              Model
   Parameters
10A20A30A40A50A60A

































































































Rated voltage12V/24V Automatic voltage recognition
Max charge current10A20A30A40A50A60A
Max discharge current10A20A30A40A50A60A
Full charge cut16.5V/33V
Low voltage cut11V/22V
Low voltage restore12.6V/25.2V
Temperature compensation-3mv/℃/cell
Static current≤45mA
Voltage drop<200mv<200mv<220mv<240mv<270mv<295mv
Wire area max4mm26mm210mm2
Weight0.26KG0.62KG0.70KG
controller size155.25*106.53*43.36mm194.10*133.67*60.18mm194.10*133.67*60.18mm
packing size173.6*117.1*48.2mm213.2*145*64.8mm213.2*145*64.8mm
Packing quantity40PCS24PCS24PCS
Carton size520*370*260mm450*420*310mm450*420*310mm
Gross weight14.43KG18.27KG20.67KG

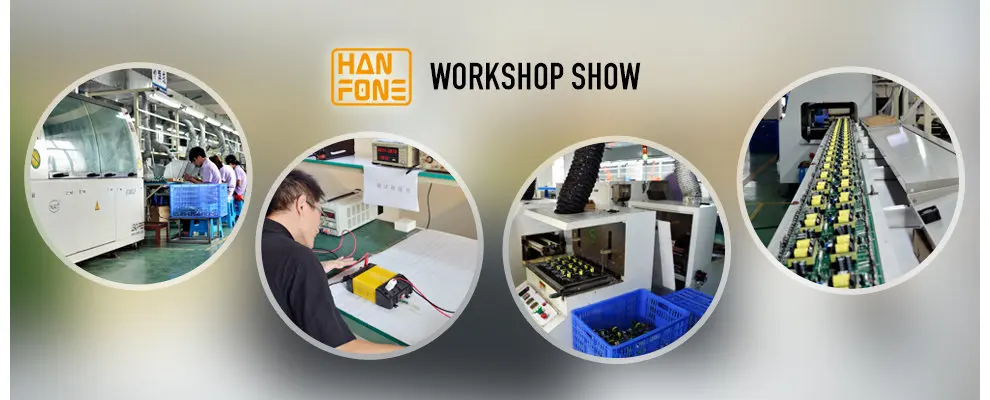

Our Workshop


workshop.jpgE. Our Showroom&Production.jpg





Exhibition show


For expand our oversea market ,we have took part in solar product and electronics products


exhibition around the world.


.jpg





Certifications


Over the past 19 years, we have earned many honors and certificates for company and also the products, such as Canton Fair Excellent supplier, CE, RoHS and patents certificates.







Company Information


Guangzhou Hanfong New energy technology Co., Ltd. is a professional High-Tech modern enterprise, specialized in developing and producing series photovoltaic system. solar panel, fast charger, DC to AC inverter, UPS battery, solar controller,power inverter is our main product. Hanfong new energy technology is subsidiary of Guangzhou Gamatong electric co., ltd. Gamatong had decades of history in Communication and electric power industry. It is a professional High-Tech modern enterprise specialized in developing and manufacturing and sales founded in 1996.

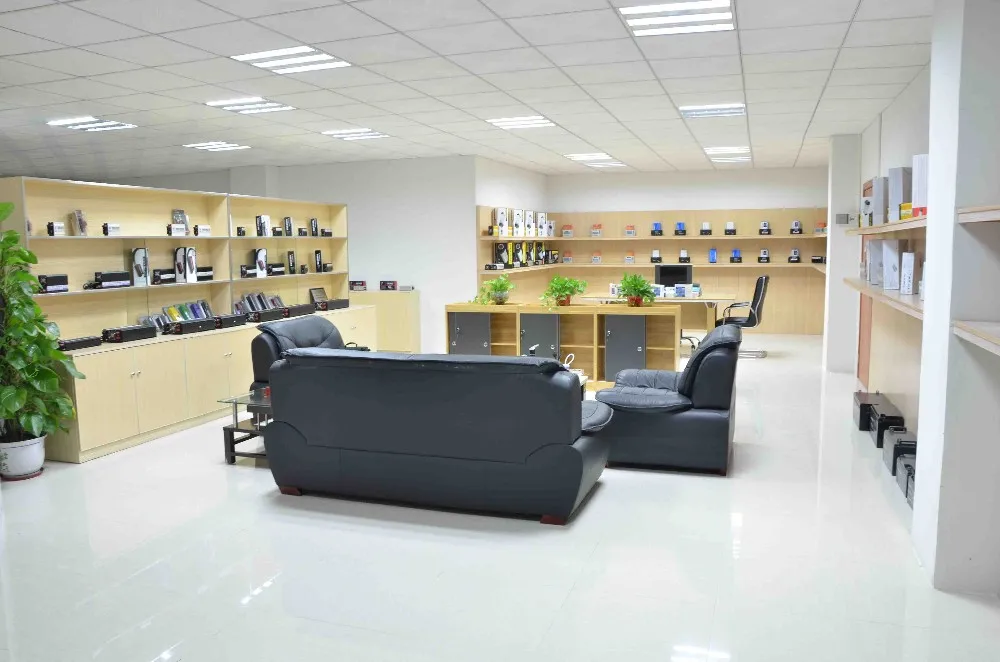

officeshowroom
