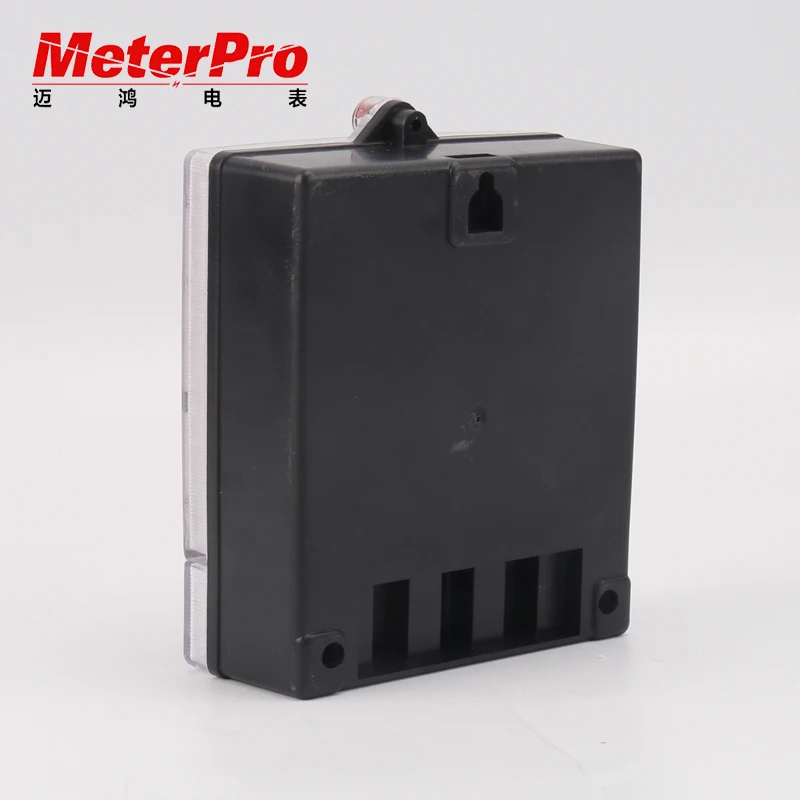

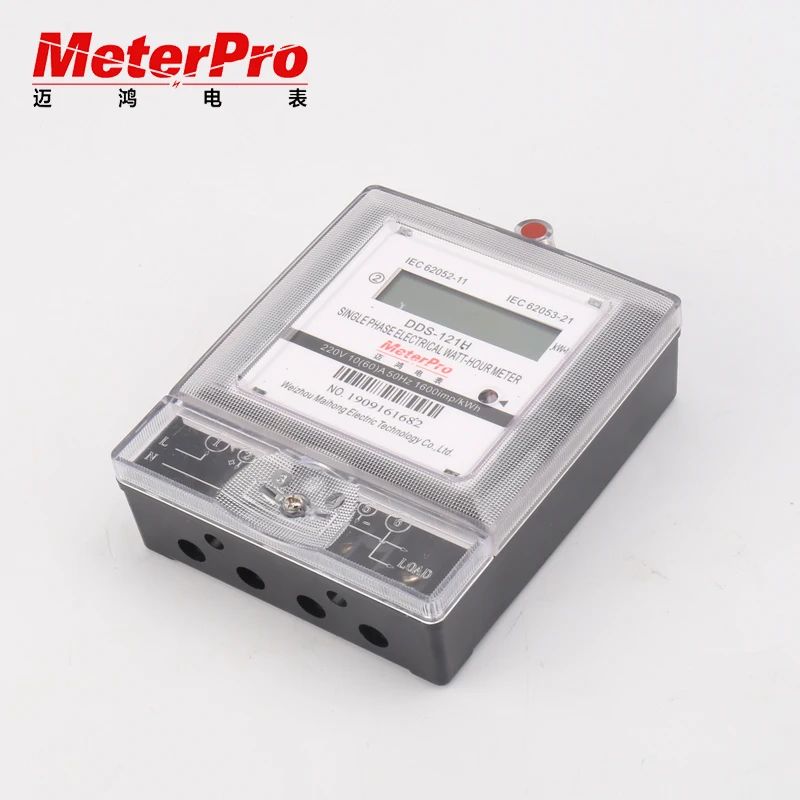

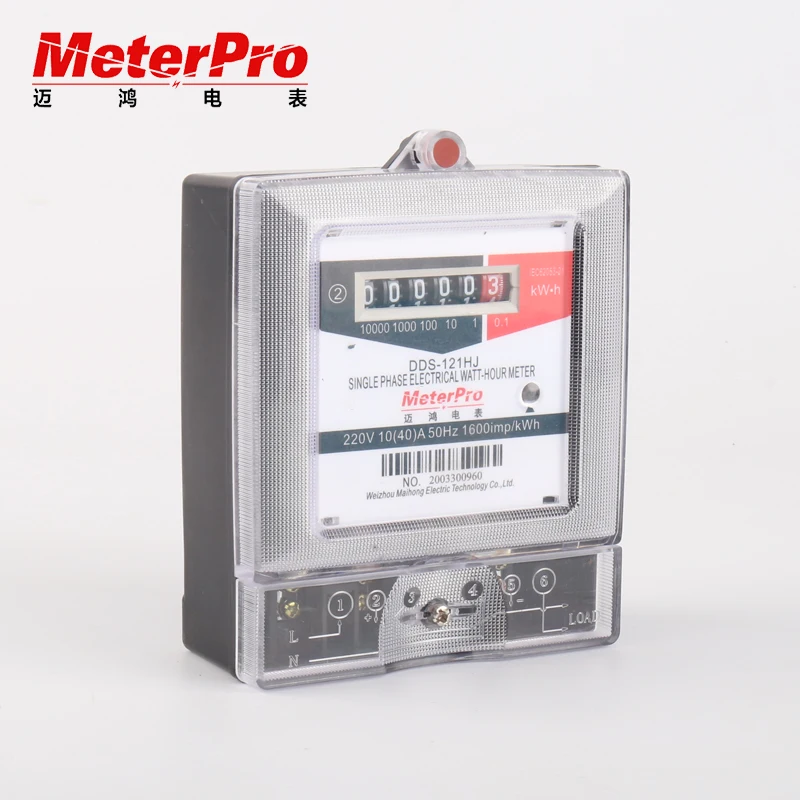

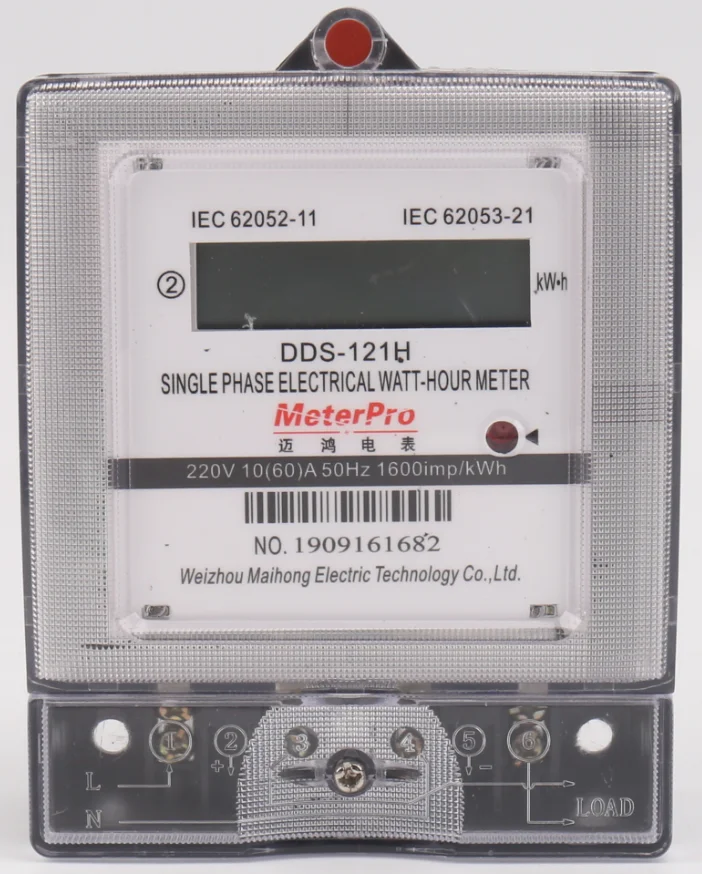

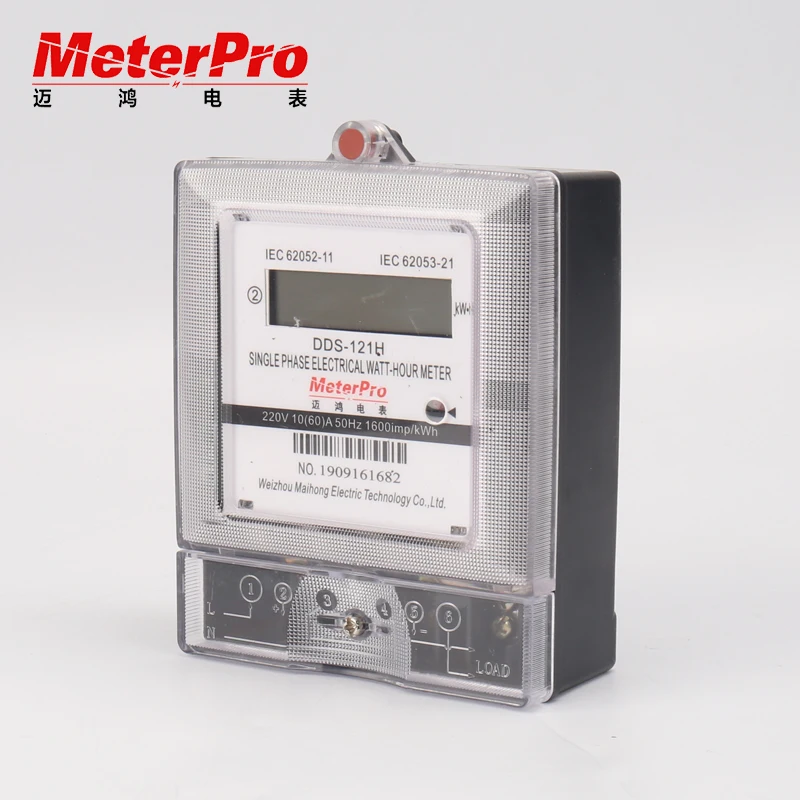

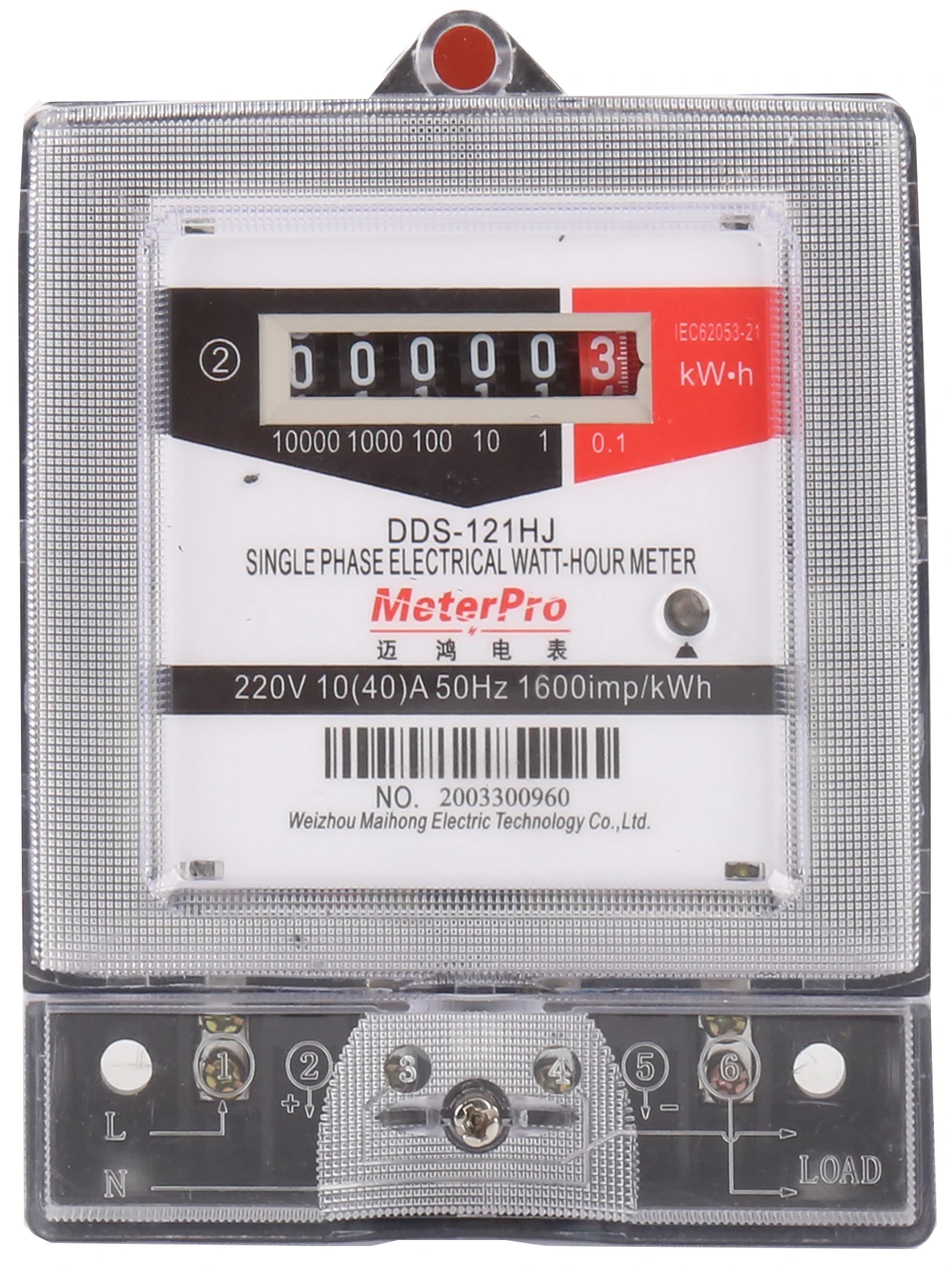

DDS-121H HOT SALE single phase digital electric energy meter manufactory price
Product Description
Functions and features
* Front board mounted with three point fixed installation.
* 5+1 digits (99999.1kWh) step motor impulse register display
* LED indicator indicate the power impulse signal.
* Measure single phase two wire active energy consumption in one direction with single element
* Direct connection,2 types for option,standard configuration connection type B,may select connection type A.
* Short terminal cover,may select extended terminal cover to protect use safety.
Technical parameters
| Model | Accuracy | Reference Voltage(V) | Current Specifications(A) | Starting Current(A) | Insulation Performance |
| DDS-121H | Class 1 | 220v/240v | 2.5(10)A | 0.4% (Class 1.0) | AC voltage 4kv for 1 minute,1.2/50us wave form impulse voltage 6kv |
| 5(20)A | |||||
| 10(40)A | |||||
| 15(60)A | |||||
| 20(80)A | |||||
| 30(100)A |
Outer and mount dimension
