big line array speaker professional CVR AUDIO 8 inch speaker line array model

Product Overview

Description

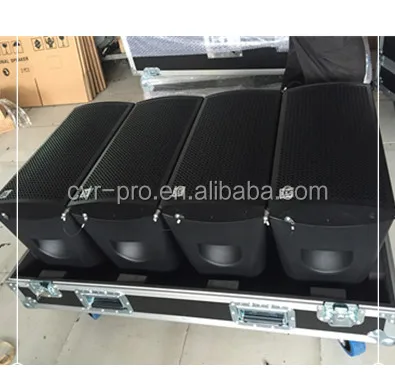

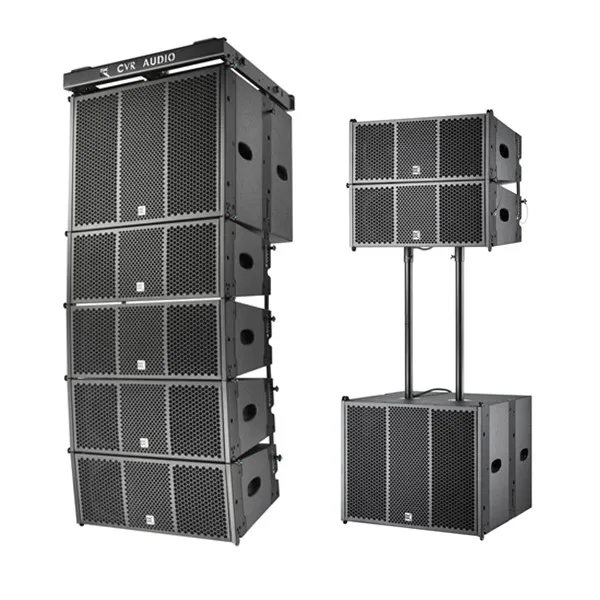

W-208&W-208P is a line array system which is made of two 8" neodymium woofers, one 3" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-208&W-208P will integrate seamlessly with W-18&W-18P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-208&W-208P is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

Model	W-208&W-208P
Type	Two-way line array system
Frequency Response	70Hz-20KHz±3dB
Power handling	LF 400W(RMS)1600W(PEAK)
	HF 100W(RMS)400W(PEAK)
Sensitivity	LF 100dB(1W@1M)
	HF 101dB(1W@1M)
Max SPL	LF 125dB(PEAK/1M)
	HF 128dB(PEAK/1M)
Drivers	LF 2×8"(210mm) neodymium woofer 75mm(3in)coil
	HF 1×3" neodymium compression driver with 75mm titanium diaphragm
Nominal impedance	LF 16 ohm
	HF 16 ohm
Coverage	110°H×10°V
Connections	LF 1(+)1(-) HF 2(+)2(-)
Connectors	2×NL4MP speakon
Finish	Textured high-density polyurethane coating
Enclosure Material	Birch Plywood
Crossover	LF  70Hz-2KHz   HF 2KHz-20KHz
Dimensions	640×261×380mm(W×H×D)
Packing Dimensions	730×365×450mm(W×H×D)0.12cbm
Net weight	25.5kg (W-208) 27.5kg(W-208P)
Gross weight	26.5kg (W-208) 28.5kg(W-208P)





Model	W-18&W-18P
Type	Sub-bass system
Frequency Response	40Hz-500Hz±3dB
Power handling	600W(RMS)2400W(PEAK)
Sensitivity	101dB(1W@1M)
Max SPL	129dB(PEAK/1M)
Driver	1×18"(460mm) woofer 100mm(4in)coil
Nominal impedance	8 ohm
Finish	Textured high-density polyurethane coating
Connectors	2×NL4MP speakon
Enclosure Material	Birch Plywood
Dimensions	640×502×600mm(W×H×D)
Packing Dimensions	720×610×670mm/0.29cbm
Net weight	48.5kg  (W-18)/50.5kg(W18P)
Gross weight	50.5kg  (W-18)/52.5kg(W18P)

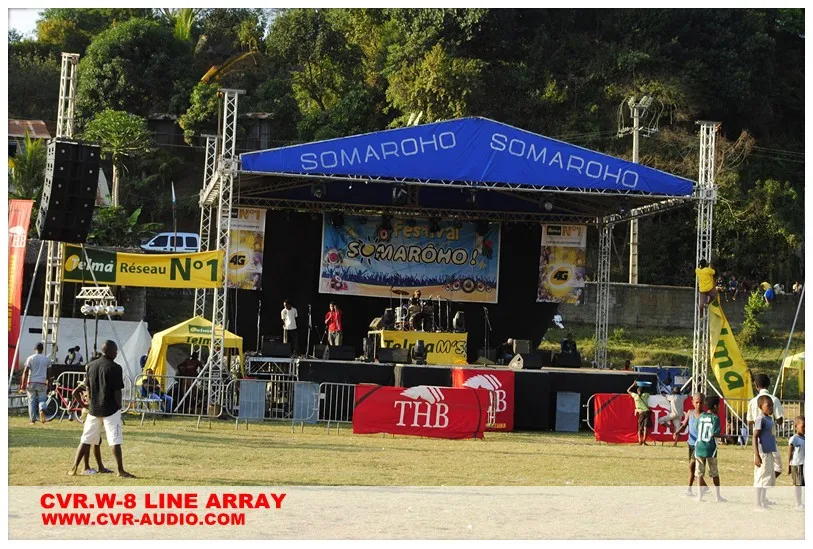

WHAT THE SYSTEM IS DESIGNED FOR:
A wide range of applications, including:
Houses of worship
Auditoriums
Performing arts venues
Arenas
Mobile and fixed DJ systems
Sound system rental and tour









CVR PRO AUDIO aims to:
Become your most trusted and reliable manufactory
Provide high quality pro sound equipment at realistic prices
Provide outstanding designs together with delicate finished
Provide meticulous and considerate service for clients





WAHT WE CAN OFFER YOU:
If you are searching a reliable pro sound equipment supplier, CVR PRO-AUDIO is your best choice.GUANGZHOU CVR PRO-AUDIO Co., Ltd was founded in 2005, We are one of the best manufacturer of PA speaker,indoor and outdoor line array speaker,subwoofer,floor monitor,karaoke speakers and power amplifier.We perform well in OEM & ODM projects, over 10 years' experience has been ensured our high quality and good price. Annual sales are approximately 10,000,000 USD, serving customers in more than 50 countries.
1.Country of origin
2.Quality appprovals(CE,ROHS)
3.Free guarranee/warranty
4.Small order accepted
5.Prompt delivery
