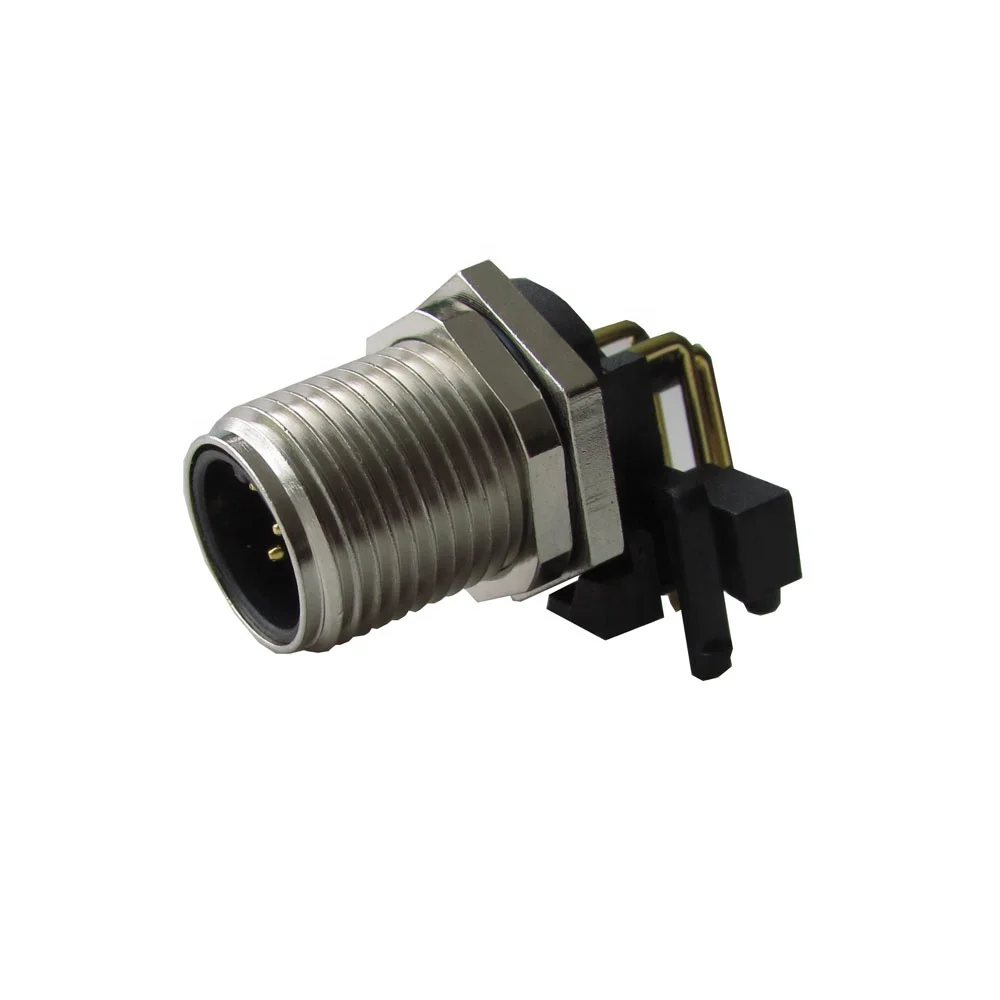

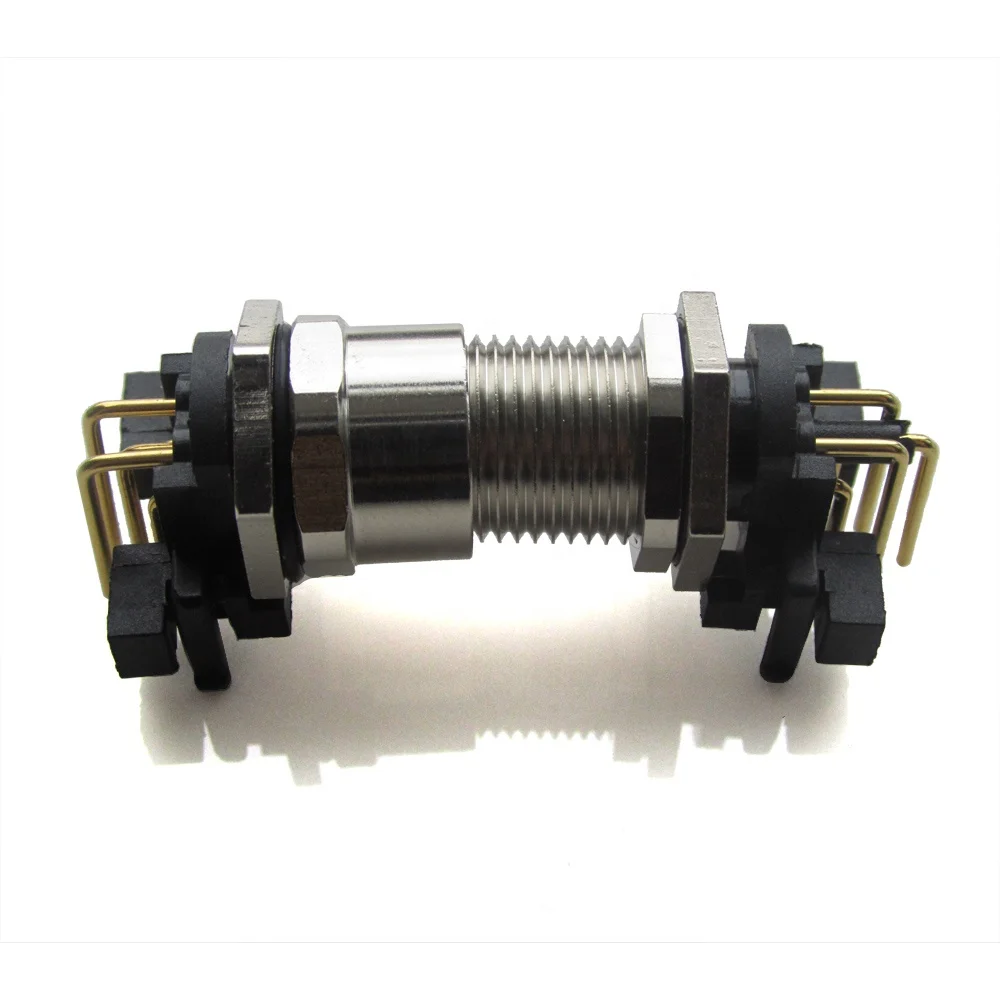

panel feet through connector m12 90 d type connector
- Category: >>>
- Supplier: Shenzhen Element Automation Co. Ltd.
Share on (60483604305):
Product Overview
Description
Connector Detail
| Item name | panel feet through connector m12 90 d type connector | ||||
| Number of contacts | 3 | 4 | 5 | 8 | 12 |
| Connector locking system | screw | ||||
| Termination | pcb | ||||
| Degree of protection | IP67 | ||||
| Mechanical operation | >100 mating cycles | ||||
| Upper temperature | ~+80℃ | ||||
| Lower temperature | ~-25℃ | ||||
| Rated voltage | 250V | 250V | 125V | 60V | 30V |
| Rated impulse voltage | 2500V | 2500V | 1500V | 800V | 500V |
| Pollution degree | 3 | ||||
| Overvoltage categorie | Ⅱ | ||||
| Material group | I | ||||
| Rated current(40℃) | 4A | 4A | 4A | 2A | 1.5A |
| Contact resistance | ≤3mΩ | ||||
| Material of contact | Brass | ||||
| Contact plating | Gold | ||||
| Material of contact body | PA | ||||
| Material of housing | Brass nickel plated | ||||
Application
Outdoor lightbox | Building machinery | Electronic device | Mining equipment | Ships |
Cars device | Automation device | Sensor | Meter etc.
Discount information
Brief summary-m12
Automation M12 A-Coded Connectors
M12 locking is for factory automation, process control, industrial instrumentation, and commercial electronics. The M12 series offers many different cable connectors, panel-mounted receptacles, and accessories. Connectors have industry-standard A-coding .
- Plastic, metal or stainless steel shells
- 360° shielding and IP 67 protection
- 3 to 12 contacts per connector
- Contacts with solder, screw, or cage clamp termination
Sensor M12 B-Coded Connectors
B-coding could ensure B-coded connectors do not mate with standard A-coded connectors.
- B-coding
- Metal housings shielded and IP 67
- 4 or 5 contacts per connector
- Contacts with screw termination
Sensor M12 D-Coded Connectors
The m12 D code connectors are for industrial networks and harsh commercial environments. They have industry-standard D-coding for Ethernet and Fieldbus use. The IP67 field-attachable connectors offer spring cage or screw termination, both aimed at providing quick and easy installations.
Customized product is available.
For more product's informations,pls kindly send your requirement to info(AT)sz-eauto.com
*Replace (AT) with @
Packaging & Shipping
Company Information

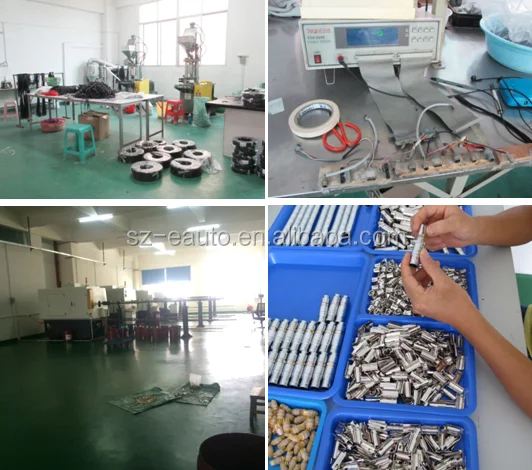

We focus on industrial connection technology with many years. The main products are circular connectors,push-pull connector, industrial automation cables and customer service.The items meet with international standard and compliant with similar items.
