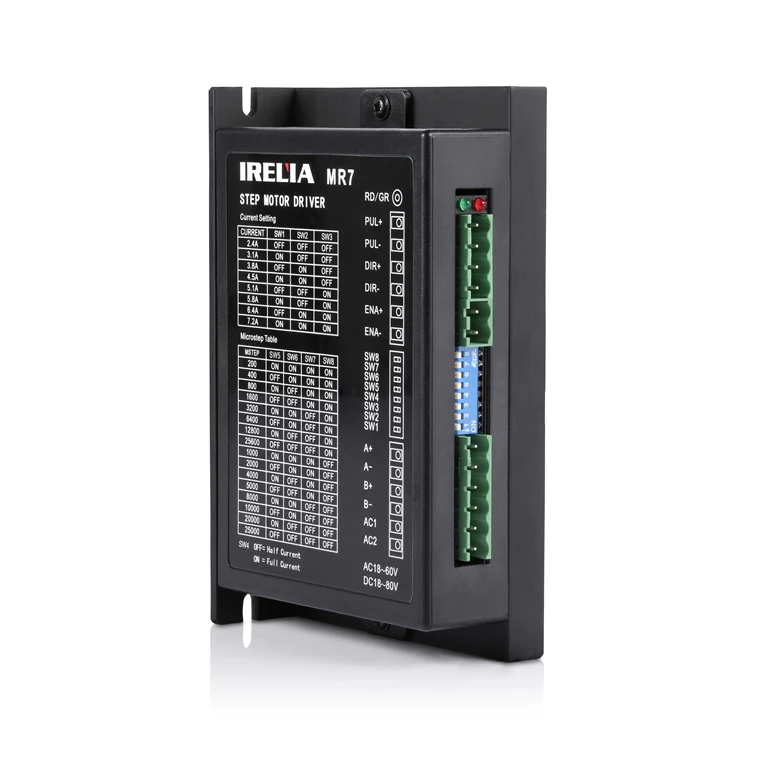

DMA860H engraving machine driver 86 stepping motor driver DMA860H
US $12.00-$19.00
Хорошая цена 80 В 7.2A вышивальная машина шагового двигателя драйвер контроллера
- Category: Motor Drivers >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (60483634811):
Product Overview
Description
Good price 80V 7.2A embroidery machine stepper motor controller driver
Product Description
Features
| ♦ Low noise and compact ♦ Pulse, direction, enable 5~24V input ♦ Automatic idle current reduction(50%) ♦ Maximum input pulse frequency: more than 2MHZ | ♦ Microstep emulation to provide smooth motion ♦ Double pulse input control or pulse&dir control ♦Over-voltage, over-current and less-voltage self-protection |
Indexes

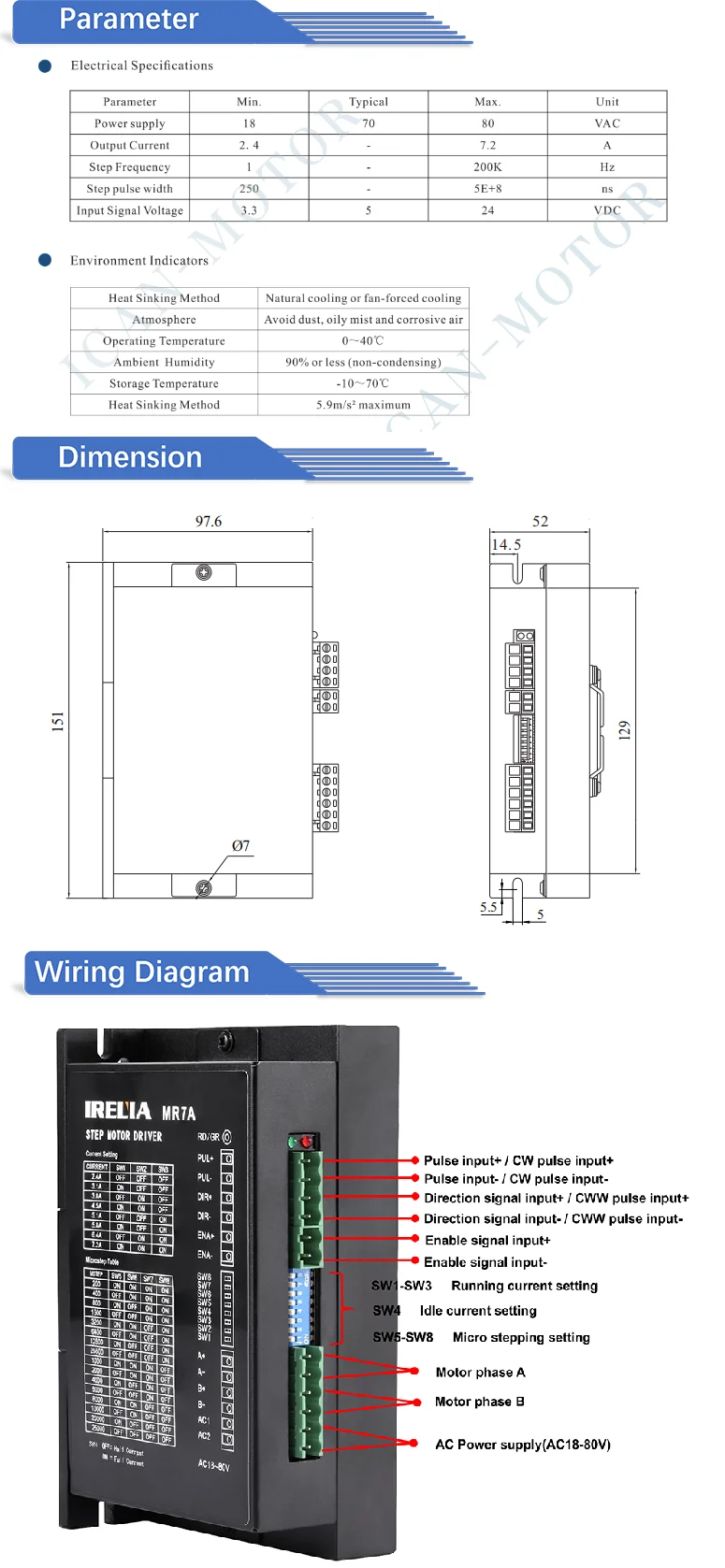

Electrical indexes
| Driver parameters | Minimum value | Rated value | Maximum value | unit |
Output current | 2.7 | - | 7.2 | A |
| Input voltage | 18 | 70 | 80 | VAC |
| Input Pulse Width | 250 | 5E+8 | ns | |
| Input Pulse Frequency | 1 | 500K | V | |
| Input signal voltage | 3.6 | 5 | 24 | VAC |
Environmental indexes
| Environmental factors | Environmental indexes |
| Use occasion | Avoid dust, oil stain and corrosive gas |
| Operating temperature | 10℃~+50℃ |
| Environment humidity | 40-90%RH (no condensation) |
| Vibration | 5.9m/s2 Max |
| Storage temperature | -20℃~+125℃ |
| Cooling mode | Natural cooling or forced cooling |
Driver interface and wiring diagram
| Item | Function |
| PUL+(+5V ) | Pulse control signal: effective pulse falling edge, |
| PUL-(PUL) | |
| DIR+(+5V) | Direction control signal(5-24V), which controls the forward and reverse direction of the motor. |
| DIR-(DIR) | |
| ENA+(+5V) | Motor free signal: When effective(high level 5-24V), motor is in free state. It is used for motor debugging. |
ENA-(ENA) | |
| AV1 | Power supply 18-80V |
| AV2 | |
| A+.A- | Motor phase A |
| B+.B- | Motor phase B |
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
Certifications
All our motors and motor drivers passed CE Certifications. ISO9001:2008 is also passed.
