fire alert smoke detector and fire alarm customized package jikaida offer Europe market

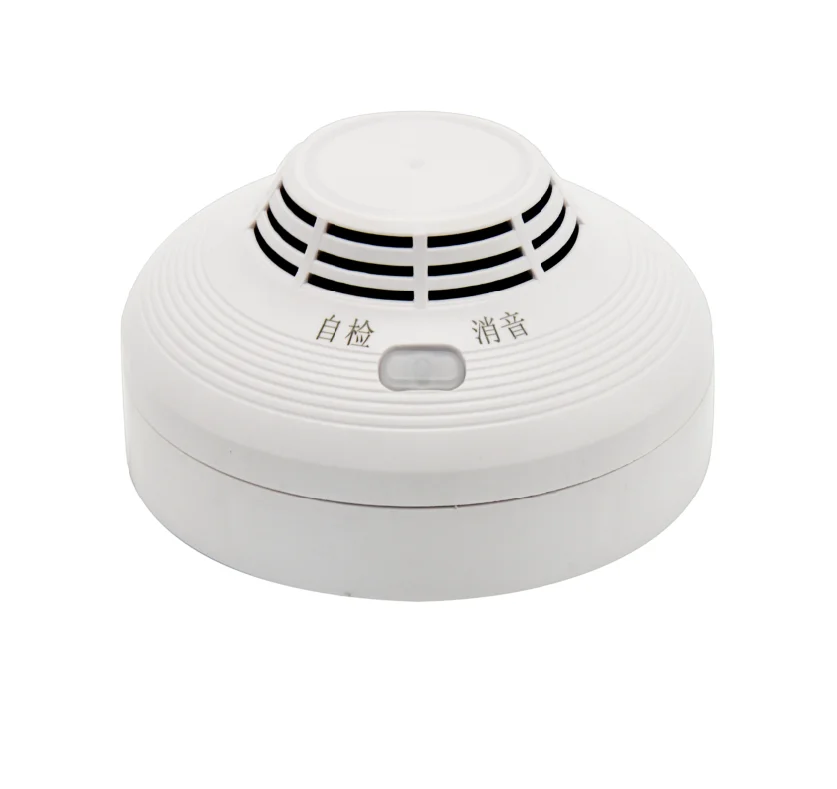

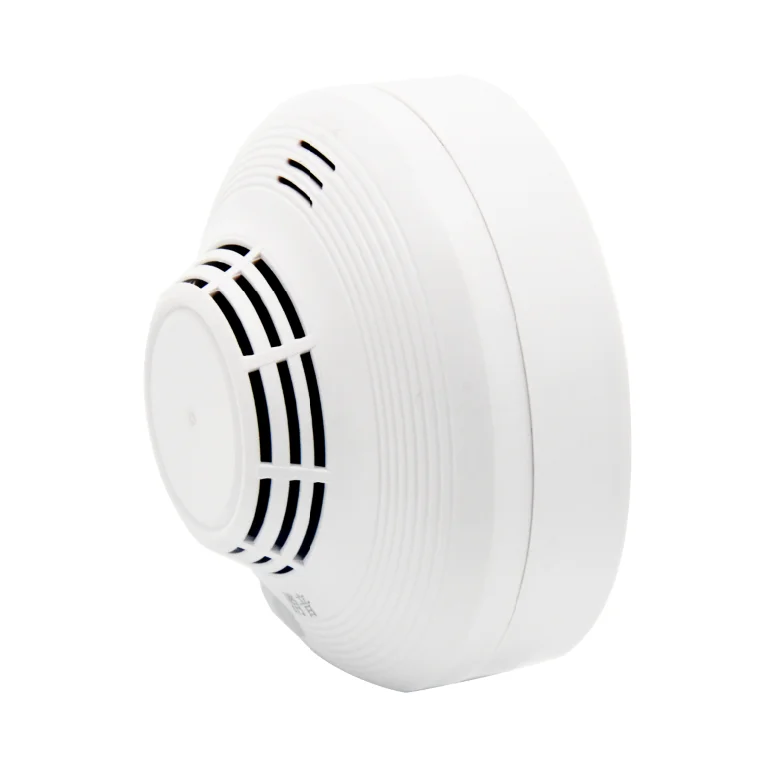

The product is a new smoke detector, hereinafter called detector. With a unique structure design and an intelligent MCU to process photoelectronic signals, it is provided with dust-proof, mothproof and anti-light interference etc. functions, ensuring the detector stability from design basis and suitable for all kinds of installation environments and also with the optional wireless interconnection function. It reacts very quick to visible smoke released by smoldering fire and flaming fire, and suitable for fire alarm in house, factories, shopping malls, hotels, restaurants, office buildings, teaching buildings, banks, libraries, warehouses, etc..
Model No. | JKD-505C |
Power Supply | 9V battery sealed |
Static current | <10uA |
Alarm current | <35mA |
Sensitive level | 2.06%/ft ± 1.3 |
Alarm indication | Big Area LED flashes in Red |
Alarm Sound | 85dB/3m |
Temperature | -10~50 ℃ |
Relative Humidity | ≤95%RH |
Dimensions | 90*50mm |
Execution standard | GB4715-2005, En14604, UL217 |
Detecting area | 80 at 6-12m installation height; 60 at installation height <6m |
Adopts MCU Auto-Processing Technology
ten years' battery life sealed
Wireless Interconnection Alarm (Optional)
Low-battery warning
Auto-Reset after trigger
Infrared Photoelectronic Sensor
Sound & Flash Alarm & LED indicating Alarm
SMT Manufacture Technology, Reliable Stability
Dust-proof, Mothproof and Anti White light interference
Choose your location. It is recommended by firefighters that you mount smoke detectors high on the wall, or on the ceiling away from windows and exterior doors. (This is not the case for carbon monoxide alarms, about which, see #2, below.) Smoke fills up a room from the ceiling down, so having the detectors high should alert you early on. It is also recommended that detectors be placed at least 10 centimeter (3.9 in) / 4" from the wall when installed on the ceiling, and 10 centimeter (3.9 in) / 4" from the ceiling for wall installation.
Install the hardware.
--Measure the distance between the mounting holes on the back of the mounting bracket.
--Mark the same distance on your chosen location.
--Drill small holes at the marks.
--Attach the mounting bracket to the surface with the screws. See "Tips" for seeking professional assistance.
--Mount the rest of the detector into the bracket.


Packing:
Carton size: 58x29.5x24.5CM
70pcs per carton, gross weight 14kgs

Shipping: We offer shipped by express, by air or by sea. customsers choose the most suitable way bas on the quantity and volume.

Payment: Accept T/T, Western Union, welcome paypalfor sample order and small orders.
Accept 30% deposit and 70% before loading.






Welcome to contact for more details. Thank you !
