Multicolor digital paper sublimation printing machine printer plotter for sale
Product Description

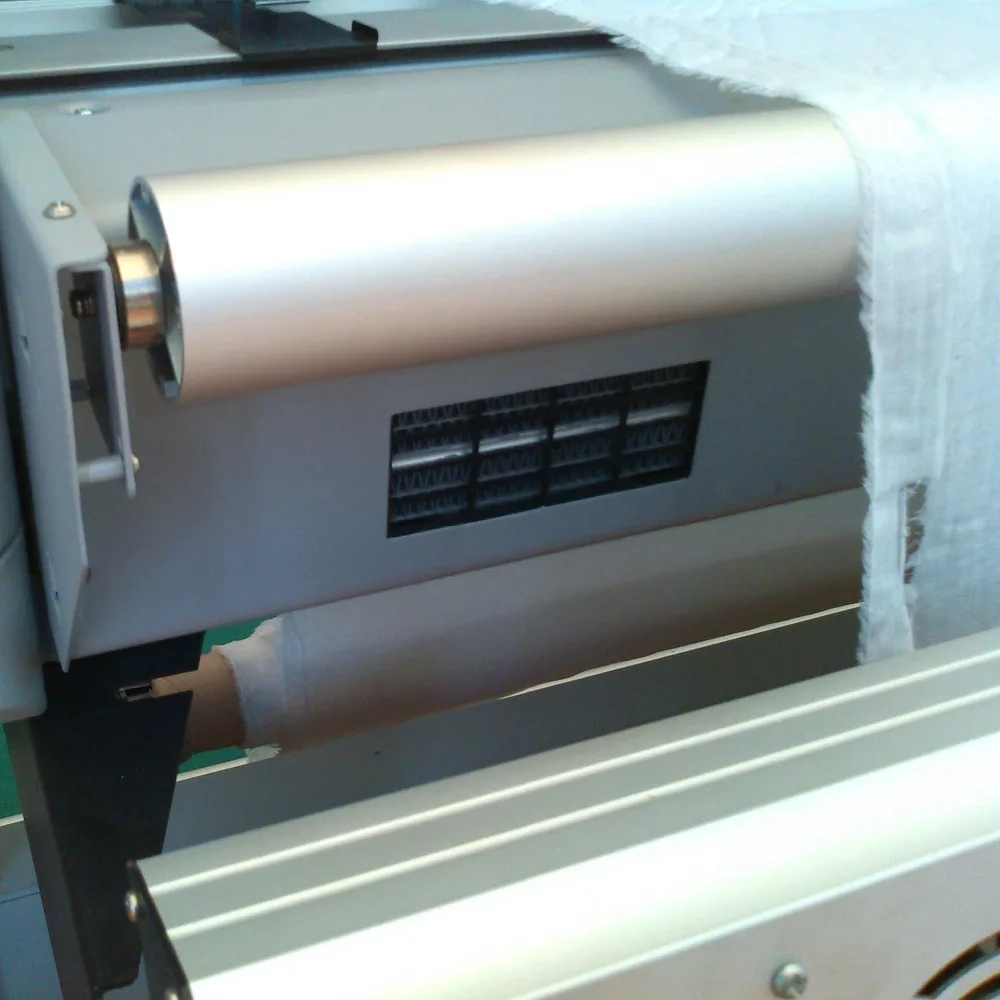

This Multicolor digital paper sublimation printing machine printer plotter for sale is designed for meet the quickly changed fashion garment market. It can not only to response the market requirement quickly, but also help reduce printing pollution the environment. Thanks to the on demand piezo ink jetting technology. You do not need to make plate through complicated process. What you need to do is to print the images your want from computer to the fabric directly. The inner hot wind dryer and fabric guiding roller is equipped as to dry the backside of the printing fabric instantly. Ink trough is also equipped to collect the waste ink which penetrate the fabric holes. Other machine performance is exactly the same as the original Mutoh valuejet 1638w. So please refer to the printer specifications below.
SPECIFICATIONS
| Model Name | VJ-1638W | |
| Printer Technology | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print Head Nozzle Configuration | 180 nozzles x 8 lines x 2 Heads | |
| Print Head Height Adjustment | 1.5mm / 2.5mm / 4.0mm | |
| Ink Cartridge | Ink Types | Mutoh Original Water-based Pigment Ink Mutoh Original Sublimation Ink |
| Ink Color | 4 Colors (C,M,Y,K) | |
| Capacity | 220ml / 1,000ml Cartridge (±5%) | |
| Maximum Media Width | 1,625mm | |
| Minimum Media Width | 900mm | |
| Media Thickness | 0.3mm ~ 2.8mm | |
| Maximum Roll Media Weight & Media Core Diameter | 30kg / φ150mm (3 inches scroller) | |
| Maximum Print Width | 1,615mm | |
| Maximum Print Length (*1) | 200,000mm | |
| Print Margin | 5mm (front) / 5mm (Back) / 5~25mm (Left / Right) | |
| Print Modes | Quality1-4 / Graphic1-2 / Banner 1-4 | |
| Print Resolutions | 1440dpi / 720dpi / 360dpi | |
| Maximum Production Speed (*2) | 48 square meters/h | |
| Heating System | None | |
| Interface | Ethernet 100BASE-TX/10BASE-T | |
| Printer Language | MH-RTL pass | |
| Memory | 256MB | |
| Power Supply | AC100-240±10%(50/60Hz) | |
| Power Consumption | Power OFF | 3.8W |
| Operation | 210W (Main) | |
| Noise Level | 69.8dB | |
| Operating Environment | Temperature 20~32℃ Humidity 40~60% (no condensation) | |
| Certification | MET(USA), CE(EU), FCC(USA), VCCI(Japan), RoHS(EU), CB REPORT | |
| Dimensions | (W)2,698 mm x (D)885.5 mm x (H)1,261 mm | |
| Printer Weight | Body | 185kg |
| Stand | 34kg | |
| Packing Dimension | Body | 2,880 mm x 1,150 mm x 851 mm / 281kg |
| Stand | 2,177 mm x 395 mm x 250 mm / 38kg | |
| Option | 1,000ml Cartridge Adapter VJ-HCIPADPT Cutter Blade VJ-CB Take-up System VJ-16TUP30 (30kg) Feed / Take-up System VJ-16TUP80 (80kg) | |
All Specifications liable to changes without notice.
All trademarks mentioned are property of their respective owners.
(*1) Maximum Print Length varies with the conditions such as print data size, computer, application software, interface.
(*2) All print speed vary with the conditions such as print mode(wave, fine wave, super fine wave, fuzz), print data size, computer, application software, and interface.
All trademarks mentioned are property of their respective owners.
(*1) Maximum Print Length varies with the conditions such as print data size, computer, application software, interface.
(*2) All print speed vary with the conditions such as print mode(wave, fine wave, super fine wave, fuzz), print data size, computer, application software, and interface.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging & Shipping
Mutoh valuejet 1638 roll to roll industrial inkjet textile direct printer will be packed in the package like the above mentioned carton box with crates protection. And the direct to fabric printing solution will be packed in the carton box like the below picture showing.
