11kva 343.75kva standby power weifang engine diesel generator for military

Product Overview

Description





11kva-343.75kva  stanby power  weifang engine diesel generator for  military  :

  Prime Power(kw/kva):8kw/10kva -250kw-312.5kva

 Standby Power(kw/kva):8.8kw/11kva-275kw-343.75kva

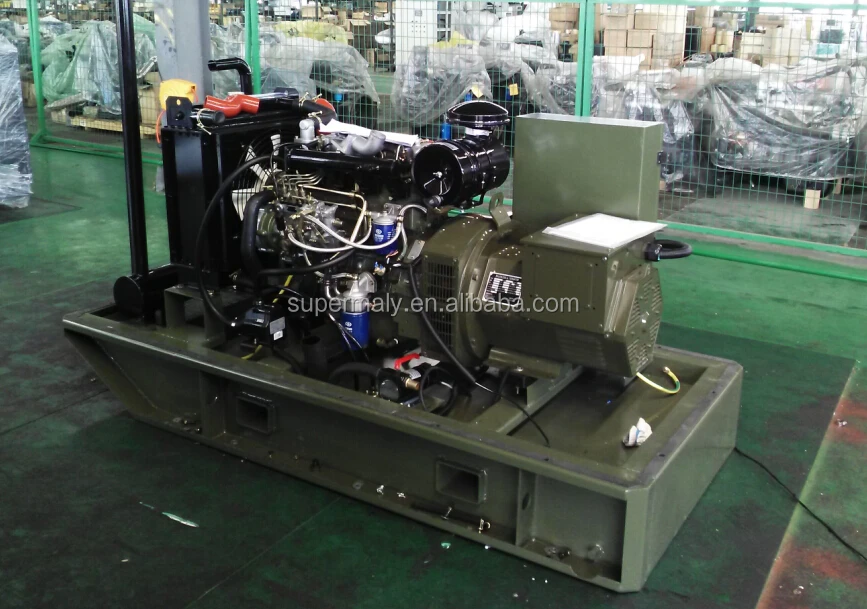

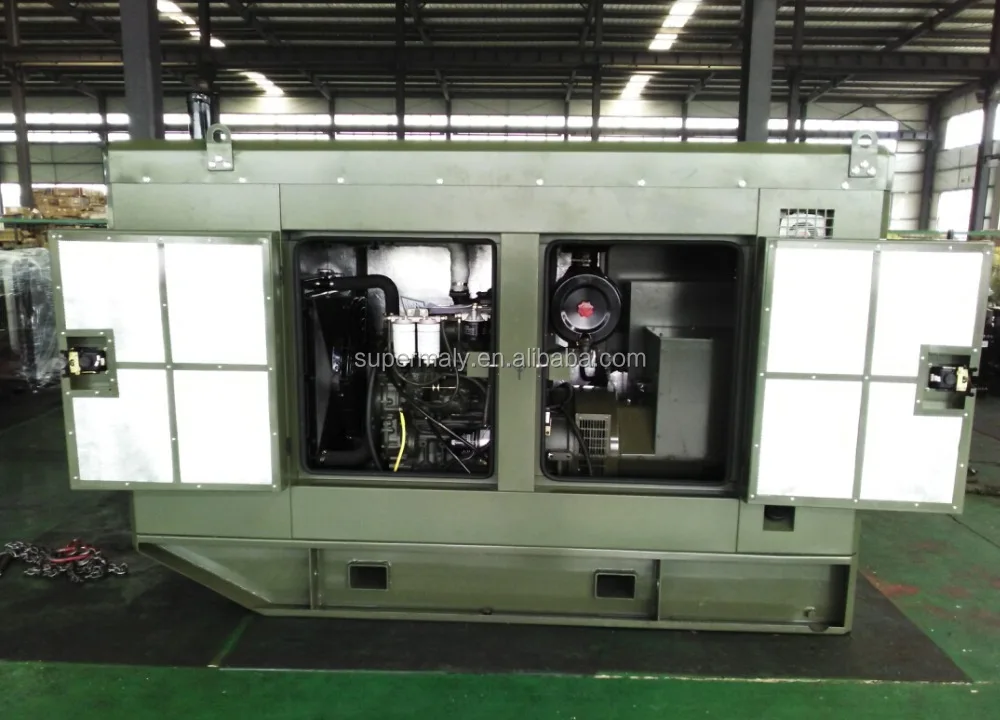

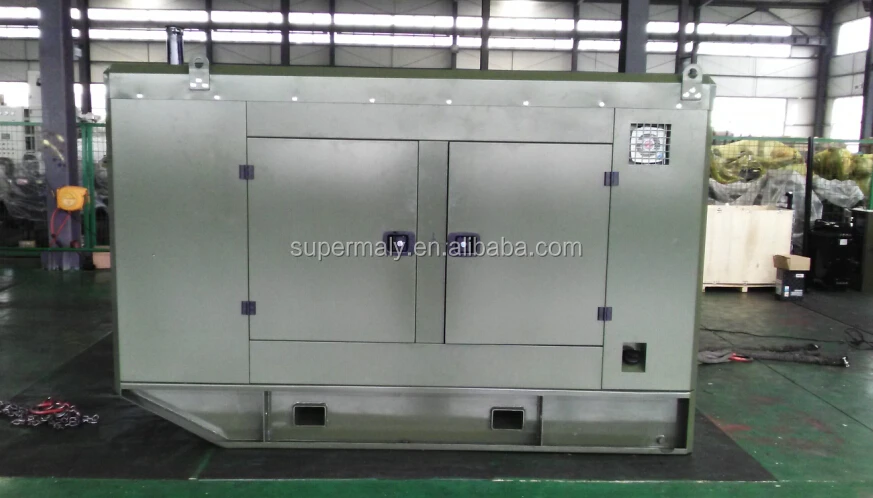

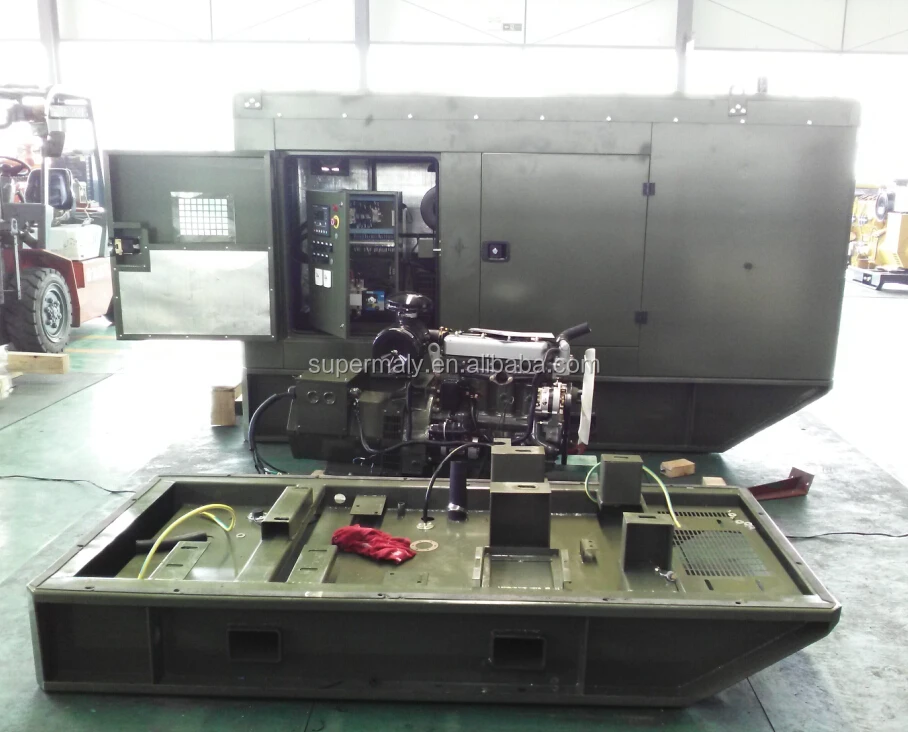

Photos of 11kva-343.75kva  stanby power  weifang engine diesel generator for  military













            This series diesel gneerator set is powered by Ricardo series diesel engine .With the importing of technology of Ricardo Company (U.K.).The engine has the feature of  low fuel consumption ,good power performance ,safety and good reliability .This series generaotr set is widely used as prime or  standby power  supply in fieldwork ,building ,supermarket ,industrial and mining factory ,oil field, highway ,harbour countryside  and so on .

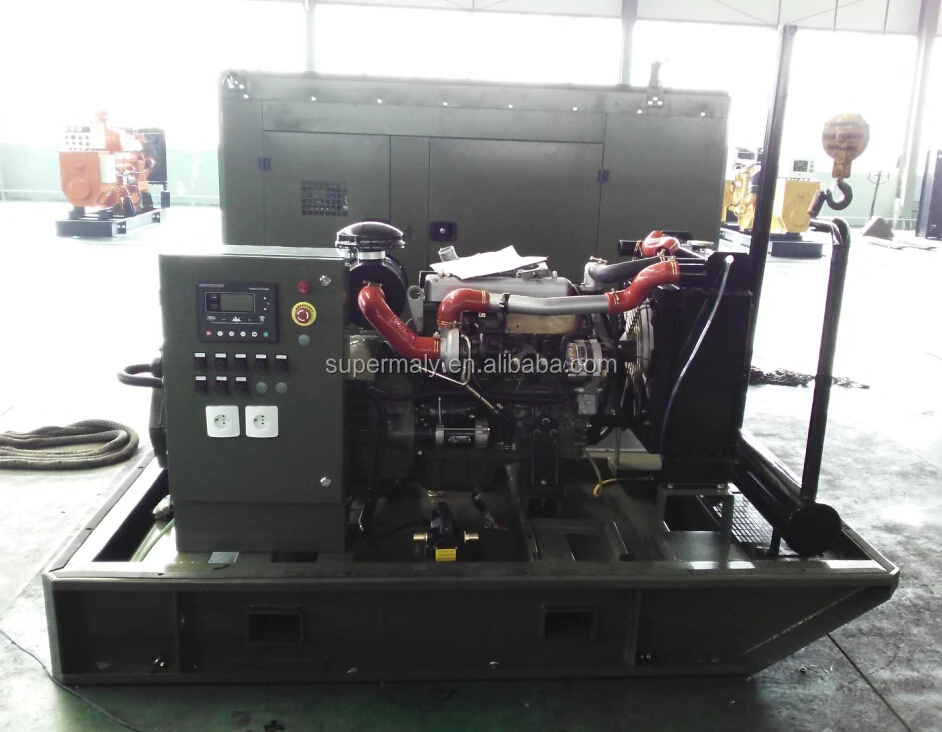

Control Panel  of 11kva-343.75kva  stanby power  weifang engine diesel generator for  military









   Standard Control Panel is the basic configuration for normal operation and usage. It is of some advantage such as easy to operate various function and well protection. Operative buttons such as Turn On, Per-heart. Starting, Stop (Emergency Stop) on the panel .while malfunction occurs, control panel will stop the generator and also alarm with light or buzz.



 Specification of 11kva-343.75kva  stanby power  weifang engine diesel generator for  military





Genset  Model

Prime power kw/kva

Standby power  kw/kva

Engine  Model

Rated power kw

Intake type

No.of Cylinder

BorexStroke mm

Dispalcement L

Lub oil capacity L

Rated fuel consumption L/h

Model alternator

Excitation type

Insulation class

SH8GF

8/10

8.8/11

YSAD380D

10.3

Natural

3

80x90

1.375

6

2.88

WHI164B

Brushless

H

SH10GF

10/12.5

11/13.75

YD480D

14

Natural

4

80x90

1.809

6

3.95

XN164C

Brushless

H

SH12GF

12/15

13.2/16.5

YD480D

14

Natural

4

80x90

1.809

6

3.95

XN164D

Brushless

H

SH20GF

20/25

22/27.5

K4100D

30

Natural

4

100x115

3.61

9

7.74

WHI184FS

Brushless

H

SH30GF

30/37.5

33/41.25

K4100ZD

42

Turbocharged

4

100x115

3.82

9

9.45

WHI184H

Brushless

H

SH40GF

40/50

44/55

K4100ZD

42

Turbocharged

4

100x115

4.33

13

14

WHI224D

Brushless

H

SH50GF

50/62. 5

55/68.75

R4105ZD

56

Turbocharged

4

105x125

4.33

13

14

WHI224E

Brushless

H

SH60GF

60/75

66/82.5

R6105ZD

84

Turbocharged

6

105x125

6.49

16

21

WHI224F

Brushless

H

SH80GF

80/100

88/110

R6105ZD

84

Turbocharged

6

105x125

6.49

16

24.53

WHI274C

Brushless

H

SH100GF

100/125

110/137.5

R6105AZLD

110

Turbocharged

6

105x130

6.75

16

27.25

WHI274DD

Brushless

H

SH120GF

120/150

132/165

R6105IZLD

132

Turbocharged

6

105x135

7.2

18

32.25

WHI274E

Brushless

H

SH150GF

150/187.5

165/206.25

R6113ZLD

155

Turbocharged

6

113X125

7.52

21

34.48

XN274G

Brushless

H

SH160GF

160/200

176/220

R6126ZLD204

204

Turbocharged

6

126X135

7.8

40

54.26

XN274H

Brushless

H

SH200GF

200/250

220/275

R6126ZLD235

235

Turbocharged

6

126X135

7.8

40

62.2

XN274K

Brushless

H

SH250GF

250/312.5

275/343.75

R6126ZLD288

288

Turbocharged

6

126X135

7.8

40

75

XN4ES

Brushless

H















11kva-343.75kva  stanby power  weifang engine diesel generator for  military  Features



1.engine brand:Ricardo .

2.automatic

3.Silent

4.Tairler

5.Stamford generator





 configurations

1. Standard High-level quality engine .

 2. Standard High-level quality alternator, Stamford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.

 3. Maintenance-free start battery.

 4. After acidification under frame, High-level strong.

 5. Electric start, use key start.

 6. Electric throttle.

 7. Standard control panel .

 8. Daily fuel tank.

 9. High-level shock absorber system.

 10. Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler.

 11. 40°C radiator as standard.

 12. Exhaust silencer

 13. Charger motor for battery.

 14. Standard export box.

 15. Manuals.

 16. Tools box.

Our  partner





  With the high quality and good service we work with these cooperators many years.They have many advantages in everry field.They are your best choice.  Deutz,Yuchai,Weichai,and so on ,their diesel engines are the best quality. Leroy Somer and Malathon superiorer in alternator .





  With many year's efforts,We not only the reliable factory ,but also the credit partner



Control  Panel







GENERAL SPECIFICATIONS

Ricardo ™ENGINE SPECIFICATIONS

· Ricardo Diesel Engine

· Direct Injected

· Industrial 4-Cycle, Water-Cooled (Radiator-Cooled)

· Engine Speed: 1800 rpm /1500rpm

· Governor: (Automatic) Electrical

· Turbo-charged

· After-cooled (on some models)

ALTERNATOR SPECIFICATIONS

· New Brushless Alternator

· Built-In Automatic Voltage Regulator (A.V.R.)

· Rotating Field, Self-Ventilated, Double-Shielded Single Bearing

· Class [H" Insulation

· Rotor Balance (in accordance with BS5625 Standard 12.5)
