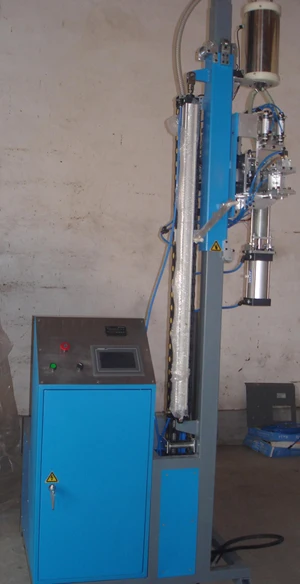

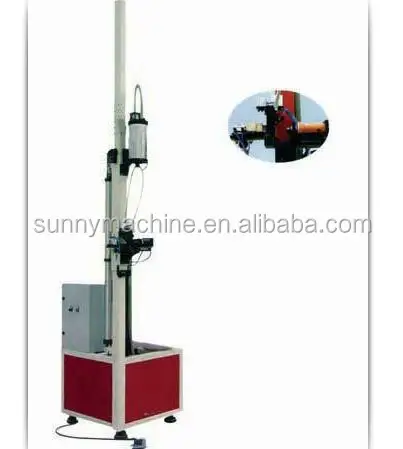

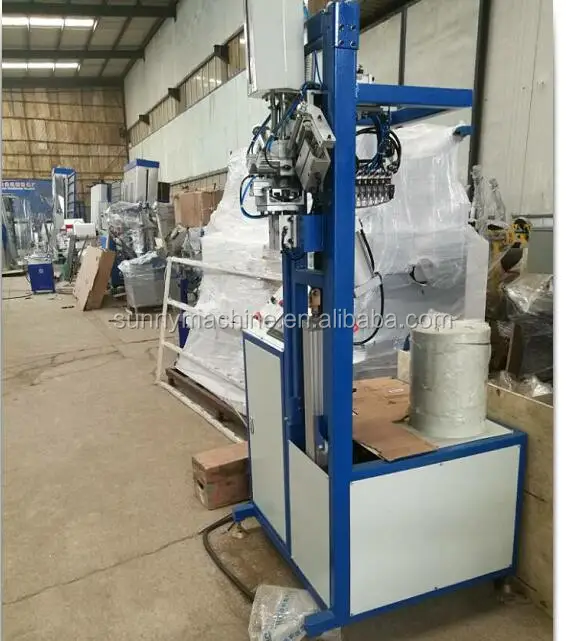

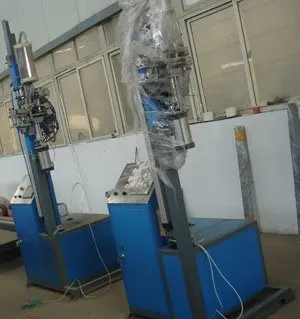

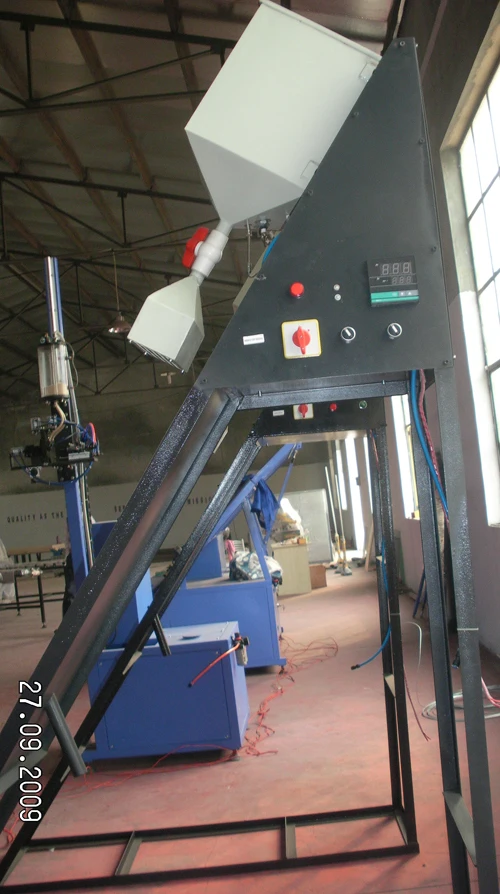

Insulating glass Desiccant Filler FGJ 03 Automatic Desiccant Filling Machine

Product Overview

Description

Insulating glass Desiccant Filler  FGJ03 automatic insulating glass Desiccant filling machine



We have three kinds, Automatic Style, Semiautomatic Style, Manual Style

 Automatic Style

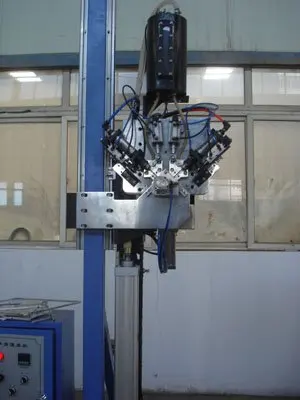

The Automatic style can Automatic Drill hole, Automatic filling , Automatic sealing hole with glue

 Semiautomatic Style

The Semiautomatic Style can Automatic Drill hole, Automatic filling, without Sealing hole with glue



Introduction

PLC control system
Both bended and corner-connected spacers are available, Molecular Sieve Filling Machines Desiccant Filling Machine, Desiccant Filling Machines, Desiccant Filling Machinery, Desiccant Filling Equipment, Desiccant Filling Equipments, Molecular Sieve Filling Machine
Adjustable filling height according to the spacer size
Automatic feeding material and pulging the drilled hole
Preset function for the filling speed



Technique parameter

Desiccant diameter     0.5-0.8mm
Spacer width           6~24mm
Max filling frame size2000×2000mm
Air pressure            0.6MPa
Power                  1P 220V 5A 1kW
Machine size          1680mm(L)×1080mm(W)×3050mm(H)



Insulating glass flat press production line

More Machines Specifications, warmly welcome to inquiry me, thank you.
