panel beating machine/ Hydraulic Cylinder Repair Bench/ car bench price
- Category: >>>
- Supplier: Shandong Lantian Huaer Environmental Protection Equipment Co. Ltd.
Share on (60483938277):
Product Overview
Description
panel beating machine/ Hydraulic Cylinder Repair Bench/ car bench price
Product Description
FM2500 (Slope Manganese plate) | A | B | C |
Working platform length | 17'/5.2m | 18'/5.5m | 19'/5.8m |
Working platform width | 7'/2.1m | 7'/2.1m | 7'/2.1m |
Working platform height | 22"/560 mm | 22"/560 mm | 22"/560 mm |
Max working pressure of hydraulic | 70MPa(10000psi) | 70MPa(10000psi) | 70MPa(10000psi) |
Max lifting force of tower cylinder | 95KN | 95KN | 95KN |
Pulling range of the tower | 360° | 360° | 360° |
The pressure of the air source | 0.8MPa | 0.8MPa | 0.8MPa |
Max lifting weight | 3500kg | 3500kg | 3500kg |
Equipment gross weight | 2400kg | 2600kg | 2800kg |
Features:
No notice for changed physical object ang parameters,etc.

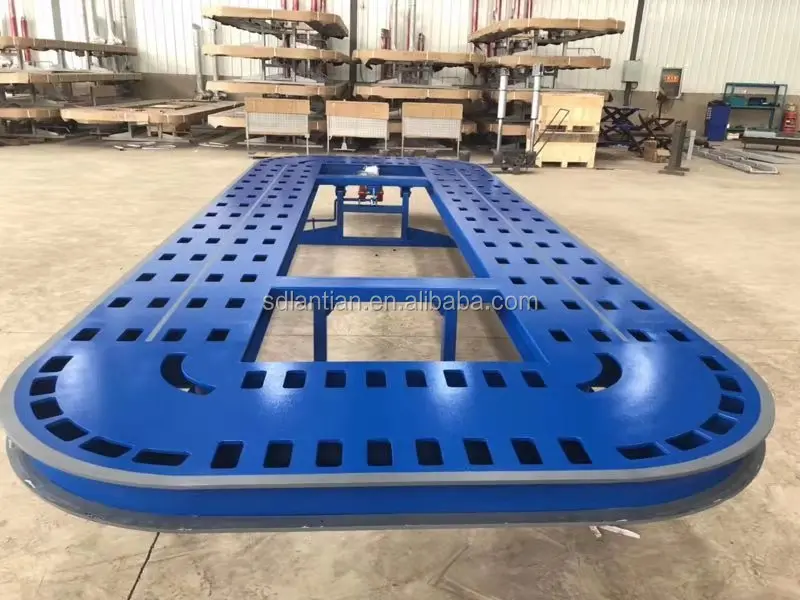

1. The platform is Manganese plate with its panel formed by the large-scale CNC cutting machine from a single cut. The notch is smooth with no heat deformation.
2. All parts are treated with shot blasting to eliminate welding stress and increase surface strength, which improves the painting adhesion.

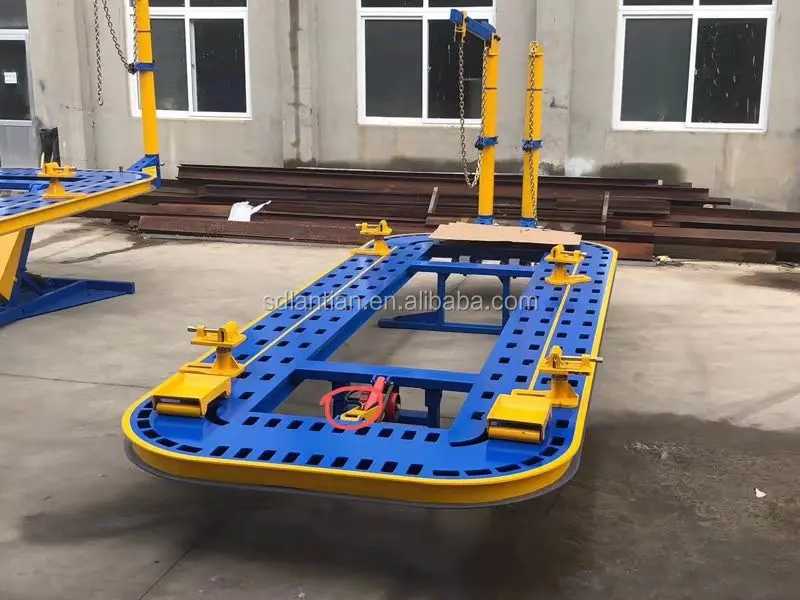

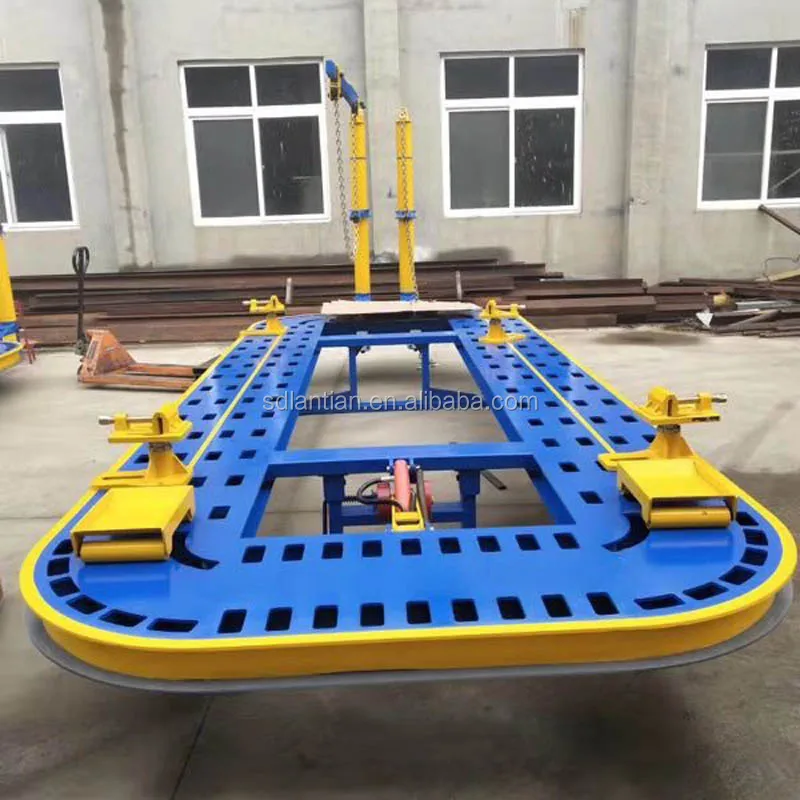

3. The towers are 360°movable,freely and flexibly,the cylinder works vertically without any components forces consumption,powerful and accurate tensile force.
4. Hydraulic system with good design is powerful and gives it a long useful life and low failture rate.
5. Portable measuring system is easier for workers,3D mechanical measuring system optional.

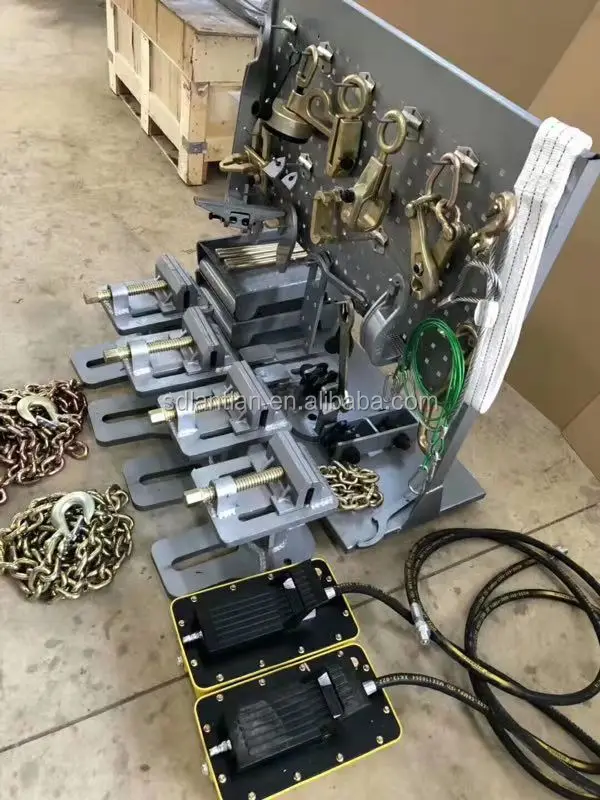

6. High quality chain (T8) and forged sheet metal tools (45#) are easy and convenient to operate with long service life.
7. Strength needed parts like tower guiding ring, main clamp support and tower rear coverplate adopt inblock cast to ensure high strength and deformation resistance.
8. The principal clamp can fix position and clamp the cars rapidly,accurately and firmly. Many clamps such as ABB optional.
9. Appropriate for operating maintenance of medium or small cars.
Our Services
1. OEM ODM service.
2. Customized service: The color and size of the product can be customized.
3. One Year Quality warrant service, during the period spare part supplied free if you pay for shipping.
4.Professional team supply service for life long time.
Company Information
Shandong Lantian Huaer Environmental Protection Equipment Co.,Ltd is professional auto maintenance equipment manufacture since 2000 with brand “BLUESKY”, in Chinese Lantian means Bluesky.
Our factory covers an area of more than 2,500 squares metters and with our up-today manufacturing facilities, high tech industrial, product developing manufacturing sales and perfect after-service with total capital of more than ten millions.
For many years our copany have been awarded as”Enterprise with high reputation” ”Enterpris with high credit in quality” and “China national grade AAA enterprise” ....etc. Besides, we have passed ISO9001, authenticated by 2000 international quality control system.
FAQ
1. Can you make the machine size and color as our request?
Yes, we can make the machine size and color according to your request.
2. What’s the Min order to your company?
1 set.The sample order, if we have stocks, we will send out the products within 1 week.
3. OEM is available?
Yes, we can put your logo on the machine if needed.And we can make the machine structure as your design request.
4. What kind of measuring system do you have?
We have the two dimension measuring,three dimension measuring and CHEIF electric measusing system for your choice.
5.What’s the advantage of your company?
We have exported our lifts and service to more than 100 countries. We have specialized team work for you, you will get our feedback within 24 hours./ Germany and Italian advanced technology.
Contact
Good cooperation comes from good communication.
If you have any question, please freely to contact me.
I am of service at any time!
