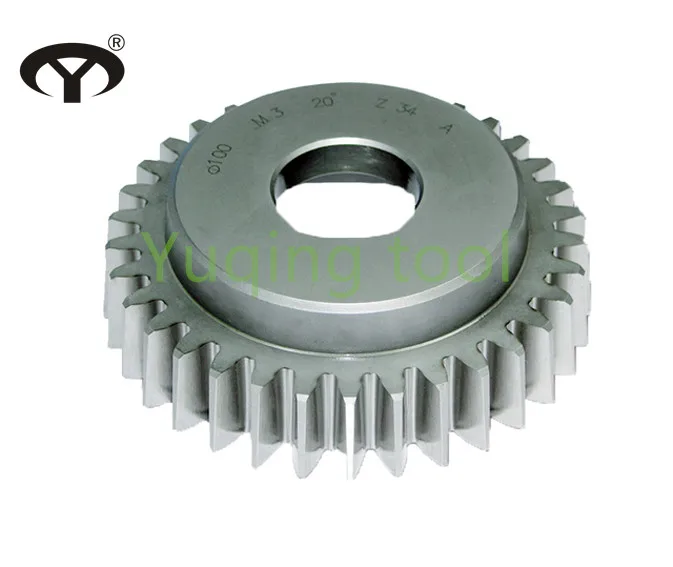

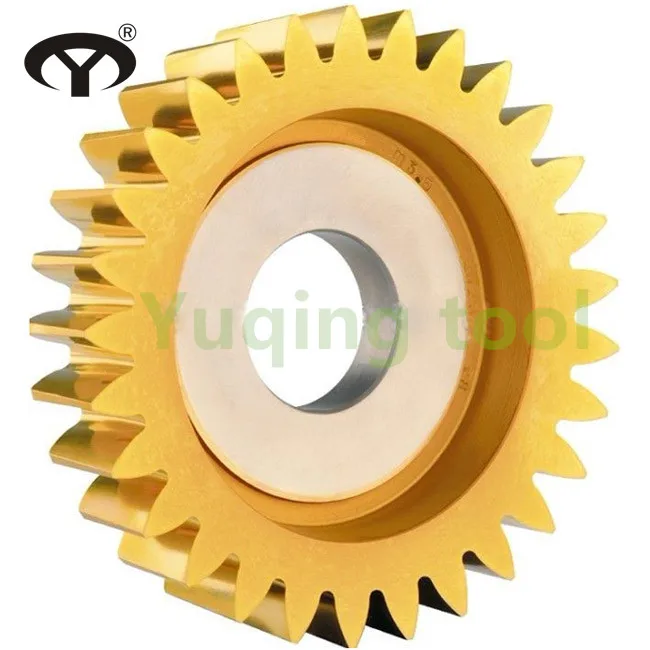

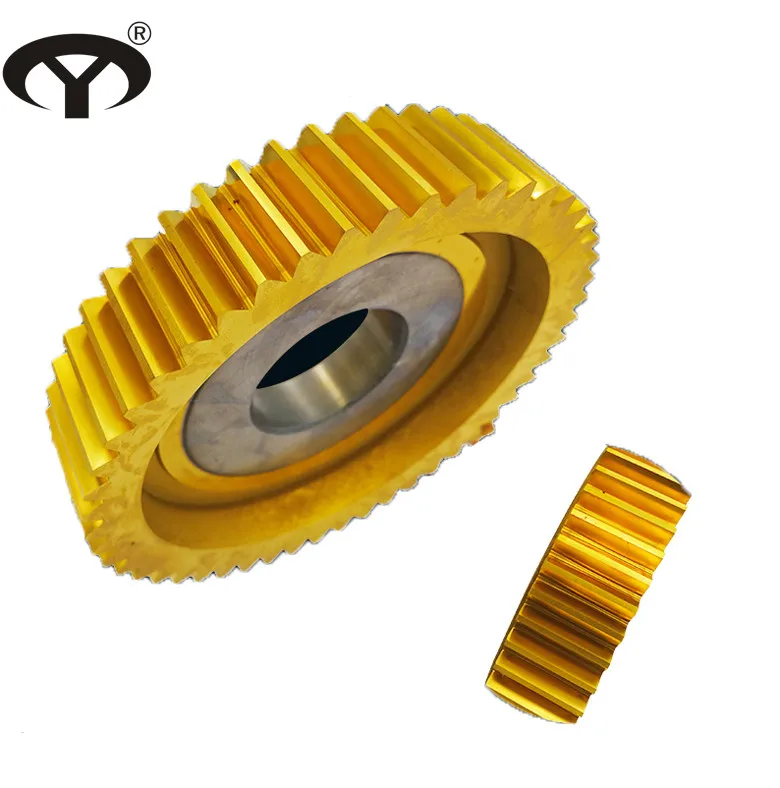

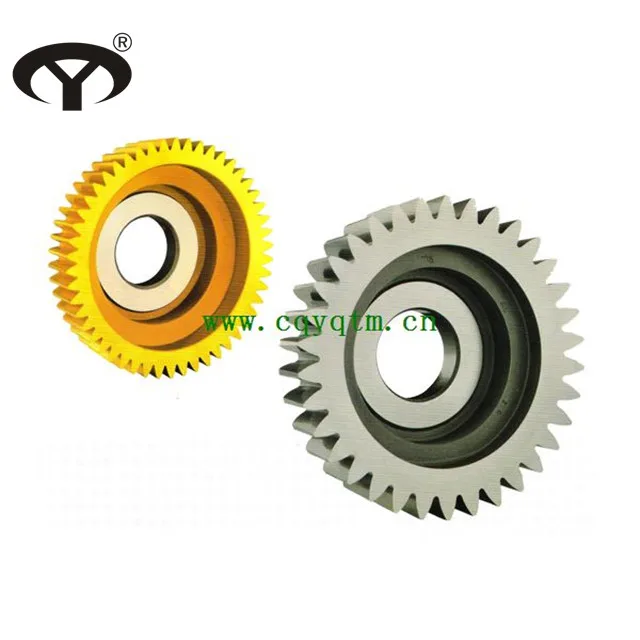

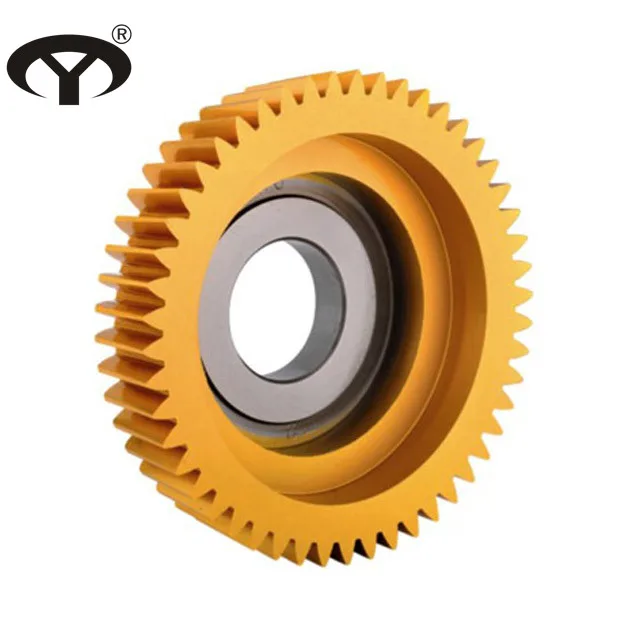

HSS M2 PCD100 Bowl Gear Shaper Cutter with Straight Teeth

Product Overview

Description

HSS M2/M35 PCD100 Bowl Gear Shaper Cutter with Straight Teeth



Gear shaper cutter is a kinds of gear cutting tool with gear shape rack shape.  It is used for machining



internal gearing and external gearing straight teeth and cylindrical gear with generating method.



Features of gear shaper cutter :  cutting gear with step , multigang gear and double helical gear



Specification table of bowl type gear shaper cutter :



1.Nominal pitch circle dia.:75mm ClassAA,ClassA ,ClassB



Module	No. of teeth	Outside dia.	Dia.
1	76	78.72	31.743
1.25	60	78.38
1.5	50	79.04
1.75	43	79.99
2	38	81.40
2.25	34	82.56
2.5	30	81.76
2.75	28	84.42
3	25	83.10
3.25	24	86.78
3.5	22	86.44
3.75	20	85.14
4	19	86.80



2. Nominal pitch circle dia.:50mm ClassA , ClassB

Module	No. of teeth	Outside dia.	Hole dia.
1	50	52.72	20
1.25	40	53.38
1.5	34	55.04
1.75	29	55.49
2	25	55.40
2.25	22	55.56
2.5	20	56.76
2.75	18	56.92
3	17	59.10
3.25	15	57.53
3.5	14	58.44



3.Nominal pitch circle dia.:100mm ClassAA , ClassA ,ClassB



Module	No. of teeth	Outside dia.	Dia.
1	100	102.62	31.743(or 44.443)
1.25	80	103.94
1.5	68	107.14
1.75	58	107.62
2	50	107.00
2.25	45	109.09
2.5	40	108.36
2.75	36	107.86
3	34	111.54
3.25	31	110.71
3.5	29	112.08
3.75	27	112.35
4	25	111.46
4.5	22	111.78
5	20	113.90
5.5	19	119.68
6	18	124.56



4. Nominal pitch circle dia.:125mm ClassAA, ClassA, ClassB

Module	No. of teeth	Outside dia.	Hole dia.
4	31	136.80	31.743(or 44.443)
4.5	28	140.14
5	25	140.20
5.5	23	143.00
6	21	143.52
6.5	19	141.96
7	18	145.74
8	16	149.92

















Material Introduction:



A. W6Mo5Cr4V2 (GB), M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition: C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application: It is widely used for making all kinds of cutters and durability cold-work die





B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), S6-5-2-5(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application: It is often used for making blades with high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
