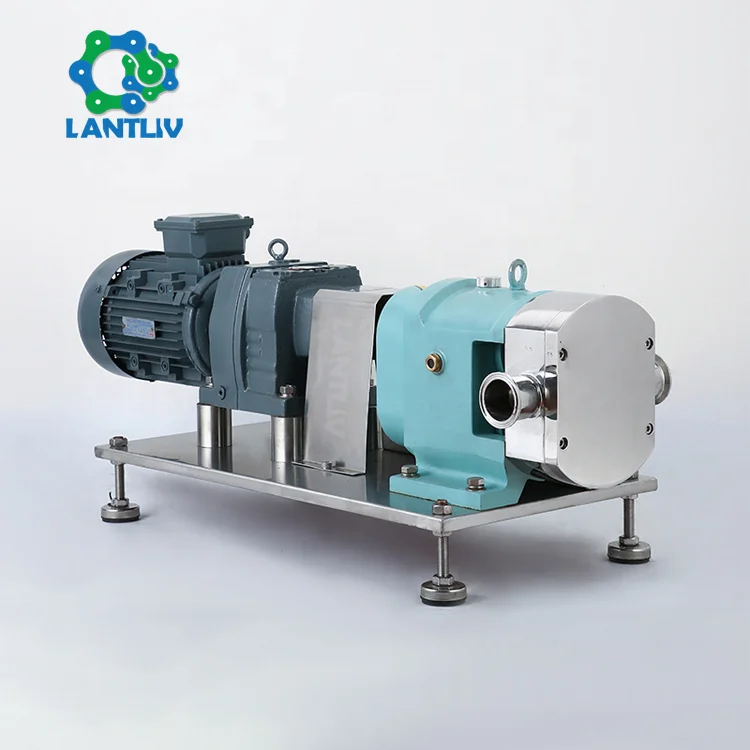

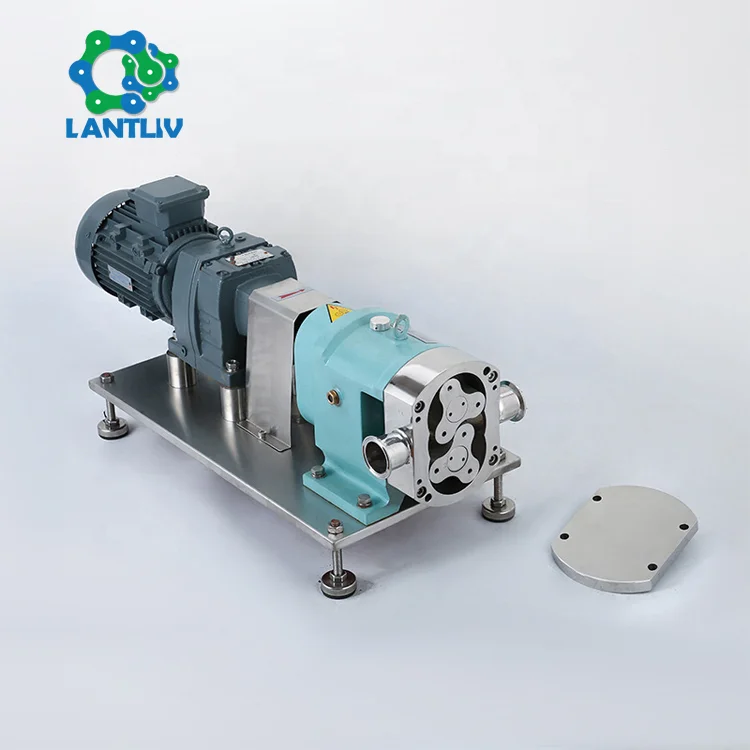

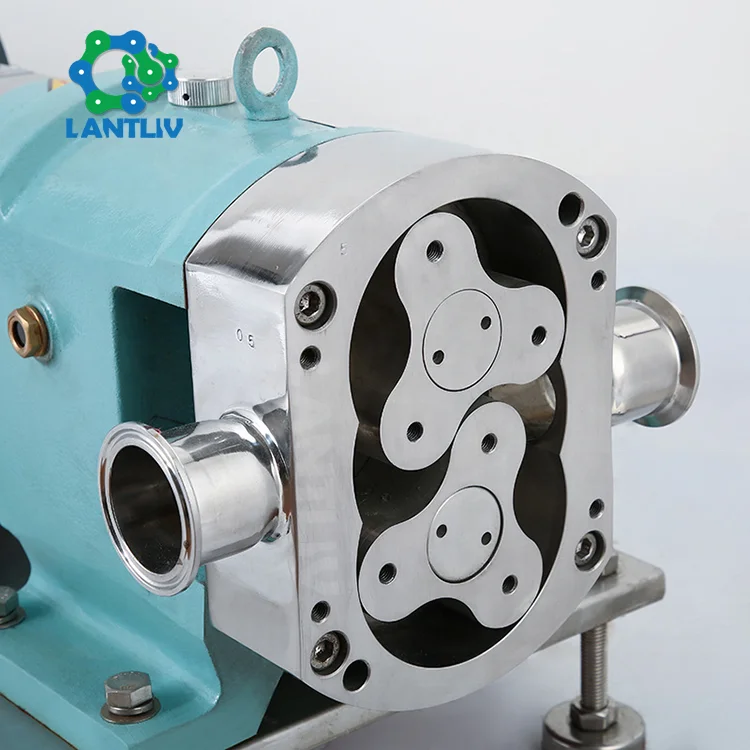

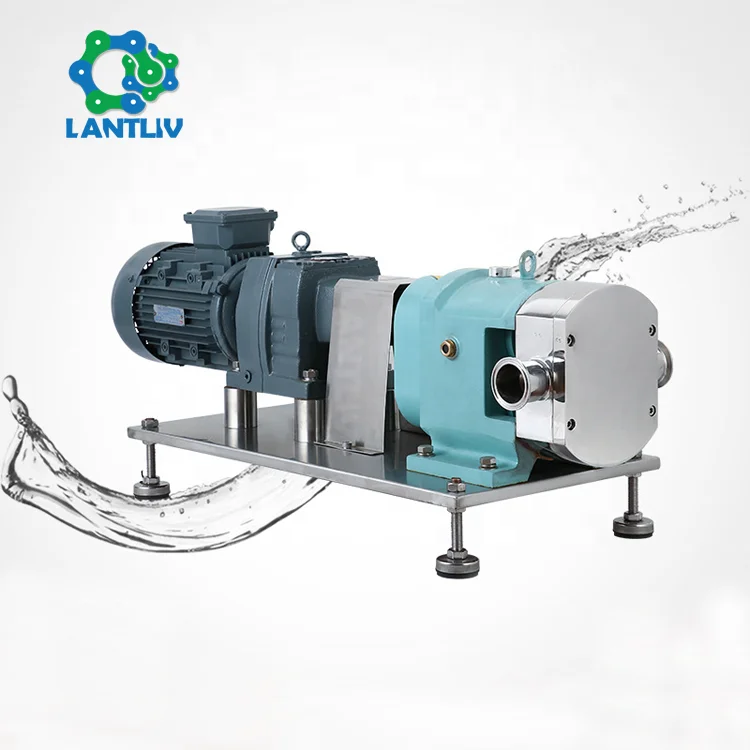

Food Grade Rotary Lobe Pump High Viscosity Syrup Jam Sanitary Transfer Pump SS316L 3kw Positive Displacement Pump For Seasonings
- Category: >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (60484046300):
Product Overview
Description
Products Description
Sanitary stainless steel positive displacement pump is a high efficiency industrial displacement pump. The pump has a wide range of viscosity adaptations. It has the characteristics of low speed, high efficiency, stable operation, strong self-priming ability, convenient operation and preheating of the pump. The pump adopts advanced sealing, reliable performance and long service life.
Features
1. Between rotor and stator keep a certain gap, no friction coefficient and long service life.
2. High efficiency and energy saving, conveying smooth, low failure rate, reliable sealing and low noise.
3. Simple assembly and disassembly, maintenance, cleaning is convenient, less easy worn parts.
4. To keep the continuity of operation reliability and no leak time.
5. This pump to use special stainless steel, can conveying strong corrosive fluid.
6. According to user needs,in the pump shell increase thermal insulation and health-grade safety valve.
7. Have a strong self suction.
8. Conveying medium ingredients won’t change.
9. According to the user requirements of connect, can choose flange, threaded type, fast interface type and mobile.
6. According to user needs,in the pump shell increase thermal insulation and health-grade safety valve.
7. Have a strong self suction.
8. Conveying medium ingredients won’t change.
9. According to the user requirements of connect, can choose flange, threaded type, fast interface type and mobile.
Technical Parameters
Model | Power (kw) | Flow (per 100rpm) | Suggested Speed (rpm) | Flow Rate (L/H) | Inlet / Outlet Diameter (mm) | |||||
ZB3A-3 | 0.55 | 3L | 200-500 | 300-800 | Φ25*1.5 | |||||
ZB3A-6 | 0.75 | 6L | 200-500 | 650-1600 | Φ25*1.5 | |||||
ZB3A-8 | 1.5 | 8L | 200-500 | 850-2160 | Φ38*1.5 | |||||
ZB3A-12 | 2.2 | 12L | 200-500 | 1300-3200 | Φ38*1.5 | |||||
ZB3A-20 | 3 | 20L | 200-500 | 2100-5400 | Φ38*1.5 | |||||
ZB3A-30 | 4 | 30L | 200-500 | 3200-6400 | Φ50.8*1.5 | |||||
ZB3A-36 | 4 | 36L | 200-400 | 3800-7600 | Φ50.8*1.5 | |||||
ZB3A-52 | 5.5 | 52L | 200-400 | 5600-11000 | Φ50.8*1.5 | |||||
ZB3A-66 | 7.5 | 66L | 200-400 | 7100-14000 | Φ63.5*1.5 | |||||
ZB3A-78 | 7.5 | 78L | 200-400 | 9000-18000 | Φ63.5*1.5 | |||||
ZB3A-100 | 11 | 100L | 200-400 | 11000-22000 | Φ76*2 | |||||
ZB3A-135 | 15 | 135L | 200-400 | 15000-30000 | Φ89*2 | |||||
ZB3A-160 | 18.5 | 160L | 200-400 | 17000-34000 | Φ102*3 | |||||
ZB3A-200 | 22 | 200L | 200-400 | 21600-43000 | Φ102*3 | |||||
Notes: 1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump. 2. Speed, flow rate, electrical power and pressure will be verified according to different liquid properties. 3. Port size can be changed as needed. 4. Pump big sizes required please consult us. | ||||||||||
Product Details
Product Advantages

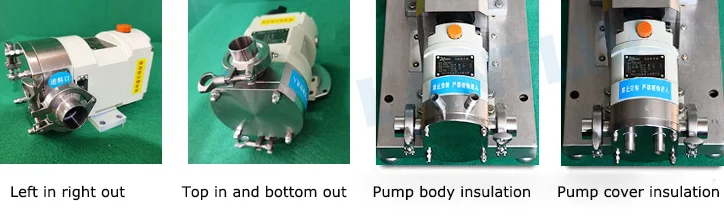

There is a hollow around the rotor, a cavity that can pass cooling water or steam and other media, can provide cooling or heating function for the cavity of the rotor pump, and can convey materials at a constant temperature according to needs. Generally used for conveying materials that are easy to solidify at low temperature: such as chocolate paste, etc. It can also transport materials that are volatile at high temperatures.

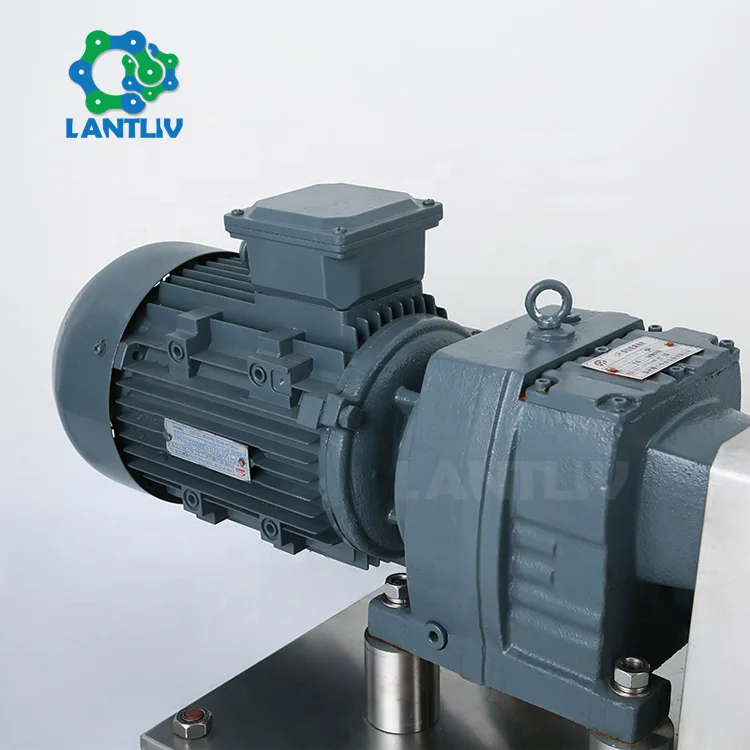

The rotor pump of this series is equipped with manual speed regulation, mechanical friction type stepless reducer, the reducer is equipped with a gear reducer, its conditioning mechanism has a subtle and accurate shock-absorbing output system, powerful output torque, can meet the many material transportation needs.
In addition, you can also choose frequency control.

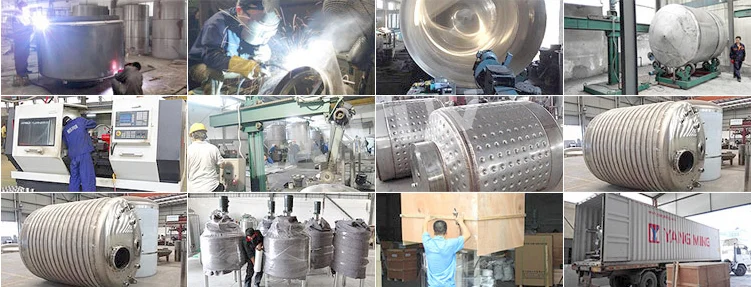

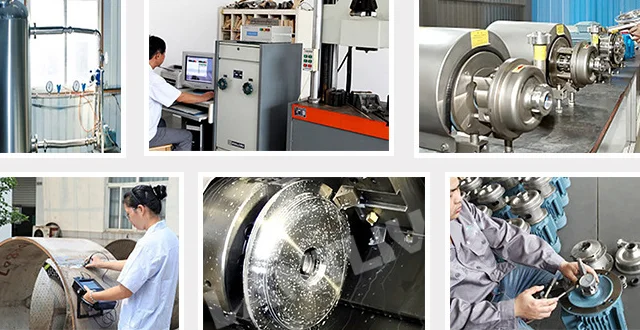

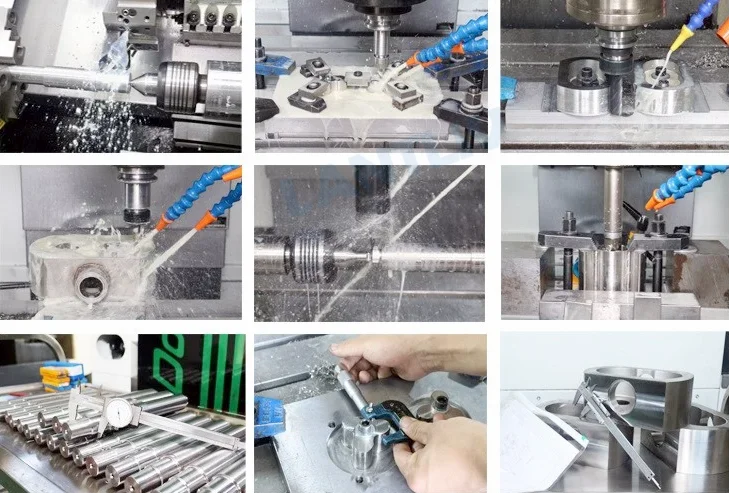

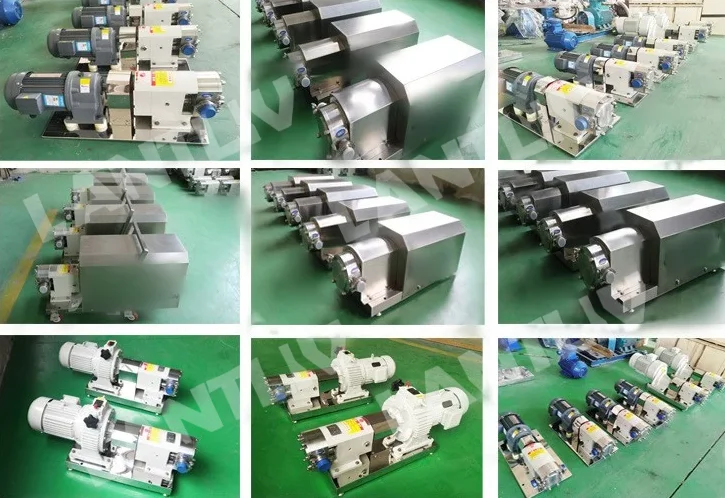

Workshop Production
Plant Installation
