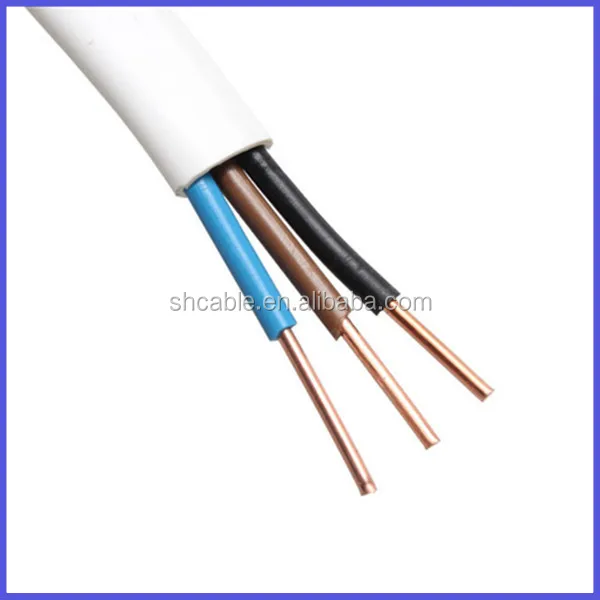

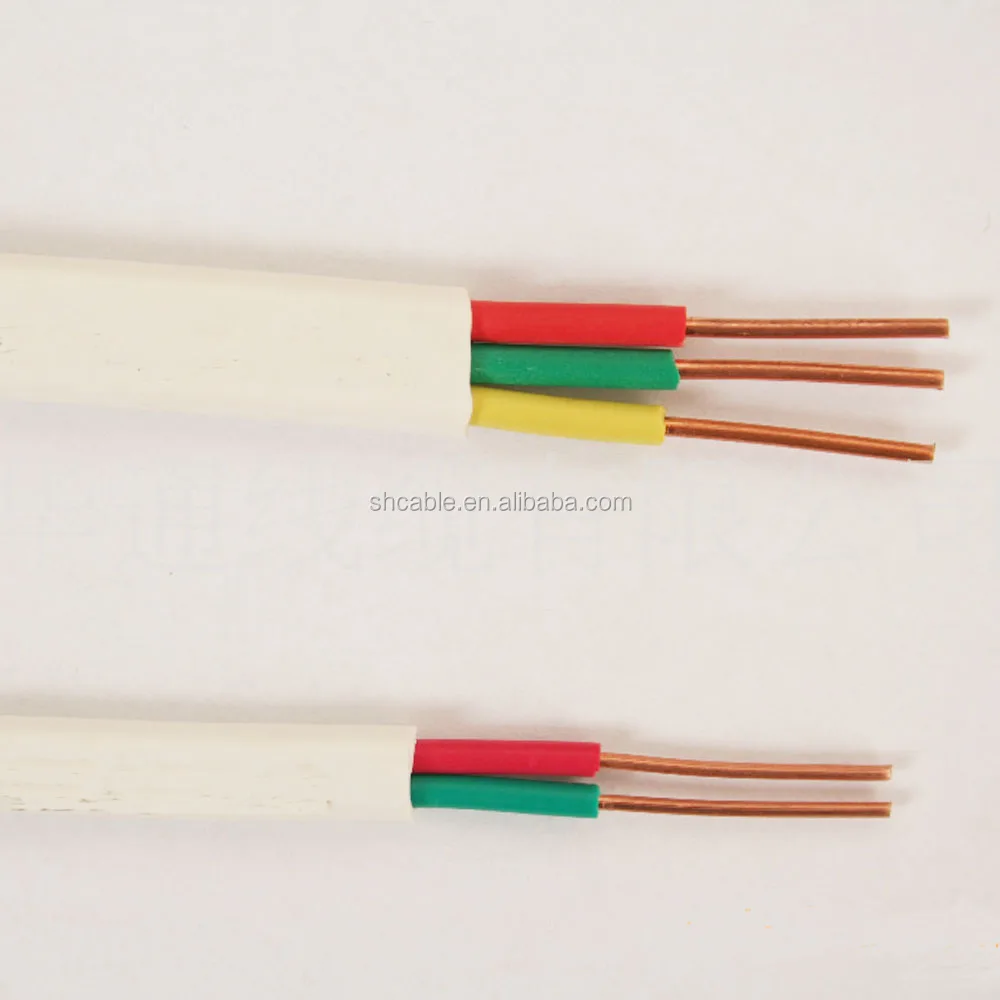

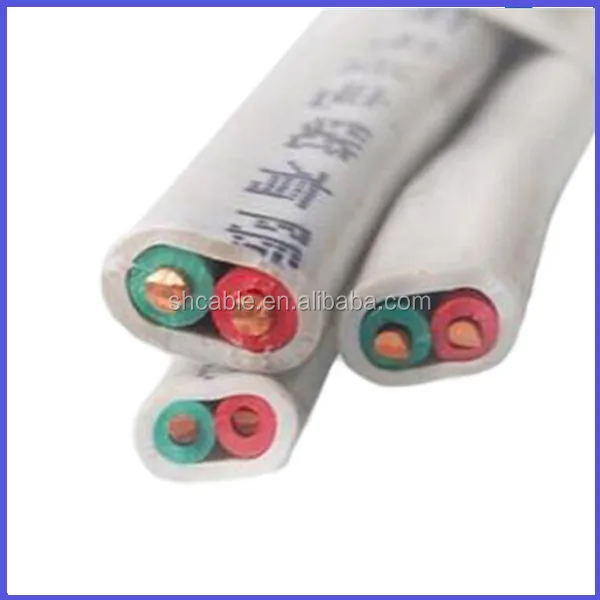

BVVB ydyp flat building electrical wire cable
- Category: >>>
- Supplier: Henan Sanheng Industrial Co. Ltd.
Share on (60484052005):
Product Overview
Description

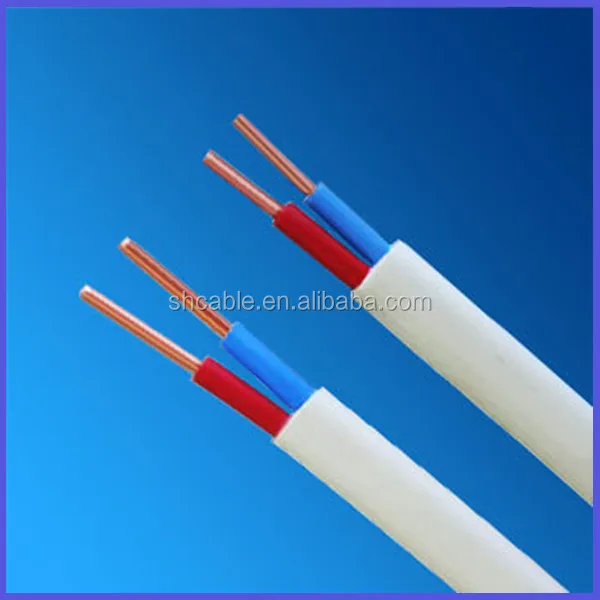

BVVB ydyp flat building electrical wire cable
Product Description
BVVB ydyp flat building electrical wire cable
A. Standard
1. BVVB ydyp flat building electrical wire cable is made complying with the national stranded and have pass the CCC--China Compulsory Certification,which contains the recondition of national security certificate--CE.
B. Product description
1.Power wires cables range of application: fit A.C.
2.Earth ground wires flat cables rated voltage300/500V.
3.The permissible continuous operating temperature of wire shall not exceed 70°c and the installation temperature of wire shall not be lower than -15°c.
4.Parallel wires cables standard: ISO 9001.CCC.
5.Electrical wires flat cables core: 2 or 3
6.Range of nominal cross section: 0.75~35mm2.of BVVB flat cable electrical power wire 7.Conductor material: copper ,aluminum of BVVB flat cable electrical power wire
8.If the external diameter (D) of the cable is less than 25mm, the maximum bending radius shall not be less than 4D;
C. Application:
This BVVB ydyp flat building electrical wire cable applies to electrical appliances ,instrument and telecom device with rated voltage up to and including 300/500V .Maximum temperature allowance when the cables are for long term use: temperature shall not exceed70°C.

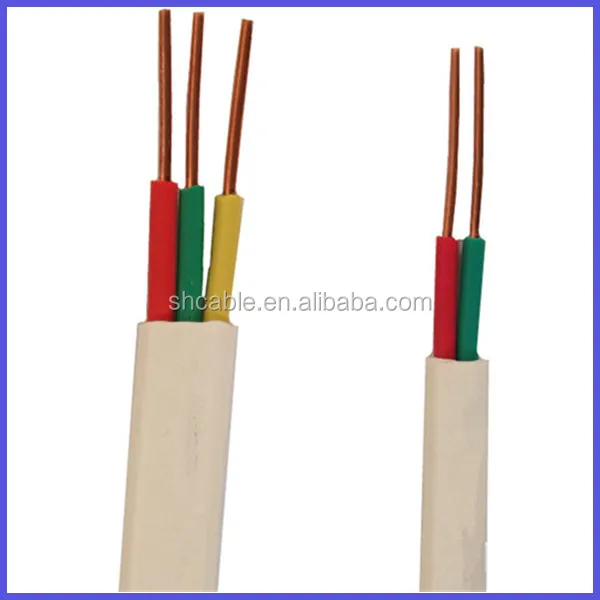

BVVB ydyp flat building electrical wire cable
Nominal section(mm²) | Type | Max Outer Dia (mm) | Resistance in 20°c (Ω/km) | Min Insulation resistance in 70°c (Ω/km) |
2*0.75 | 2*1/0.97 | 4.6*7.1 | 24.5 | 0.012 |
2*1.0 | 2*1/1.13 | 4.8*7.4 | 18.1 | 0.011 |
2*1.5 | 2*1/1.38 | 5.3*8.5 | 12.1 | 0.011 |
2*2.5 | 2*1/1.78 | 6.2*10.1 | 7.41 | 0.010 |
2*4(A) | 2*1/2.25 | 6.7*11.1 | 4.61 | 0..085 |
2*4(B) | 2*7/0.85 | 7.2*11.5 | 4.61 | 0.0080 |
2*6(A) | 2*1/2.76 | 7.5*12.5 | 3.08 | 0.007 |
2*6(B) | 2*7/1.04 | 8.0*13.0 | 3.08 | 0.0065 |
2*10 | 2*7/1.35 | 9.5*16.2 | 1.83 | 0.0065 |
3*0.75 | 3/1/0.97 | 4.6*9.6 | 24.5 | 0.012 |
3*1.0 | 3*1/1.13 | 4.8*10.1 | 18.10 | 0.011 |
3*1.5 | 3*1/1.38 | 5.3*11.7 | 12.10 | 0.011 |
3*2.5 | 3*1/1.78 | 6.2*14.0 | 7.4 | 0.010 |
3*4(A) | 3*1/2.25 | 7.0*15.8 | 4.61 | 0.0085 |
3*4(B) | 3*7/0.85 | 7.4*16.5 | 4.61 | 0.0080 |
3*6(A) | 3*1/2.76 | 7.5*17.5 | 3.08 | 0.007 |
3*6(B) | 3*1/1.04 | 8.0*18.0 | 3.08 | 0.0065 |
3*10 | 3*10 | 9.5*25.0 | 1.83 | 0.0065 |
welcome to inquire the BVVB ydyp flat building electrical wire cable.
Company Information
Company Profile
Sanheng industrial CO.,Ltd,is one of the most professional cable &wire producer under modern enterprise system in China,which was founded in 2000,integrating production and sales.Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerialbundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe,

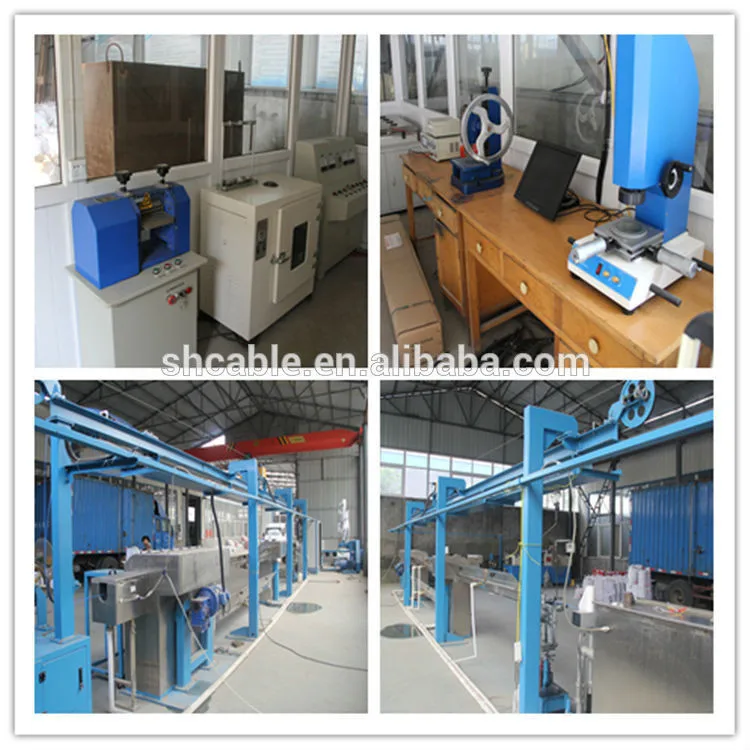

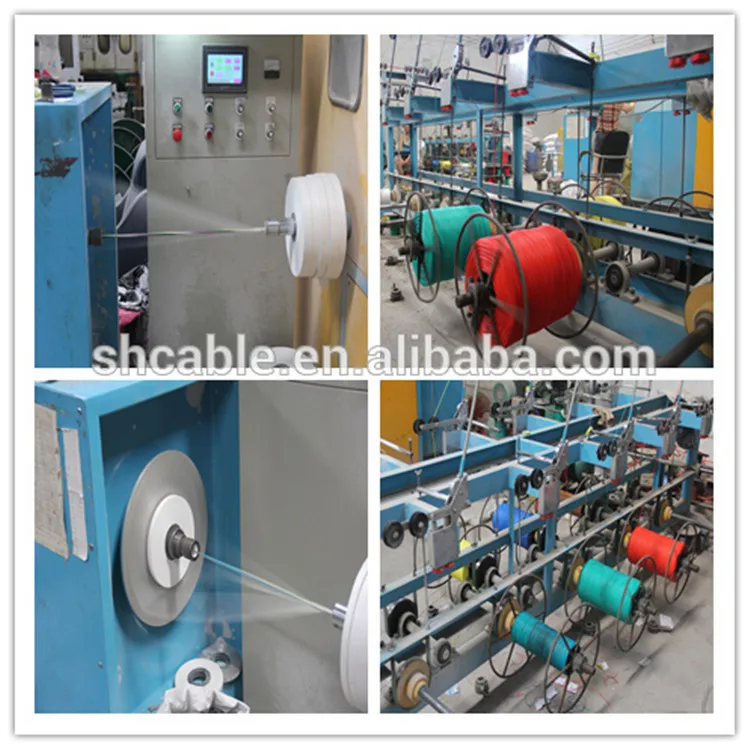

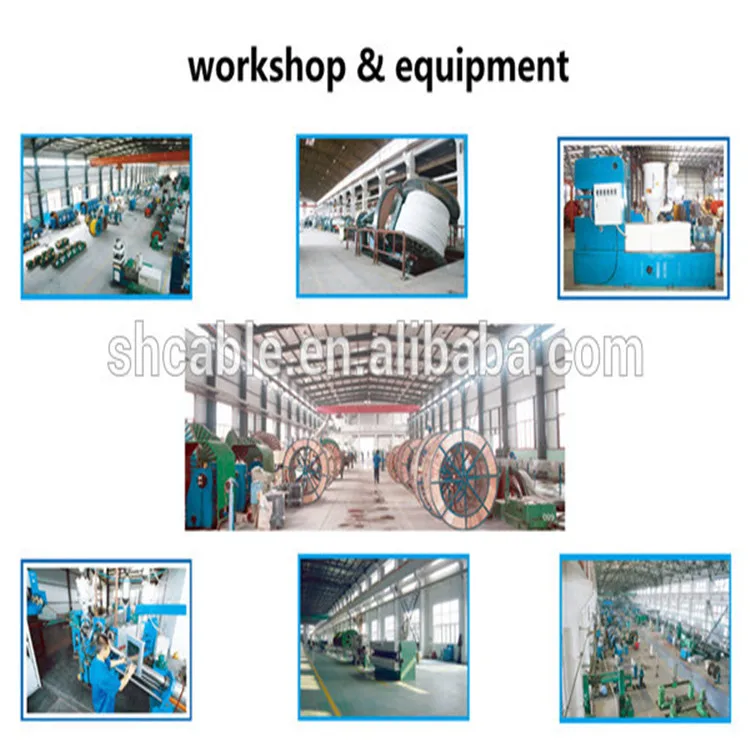

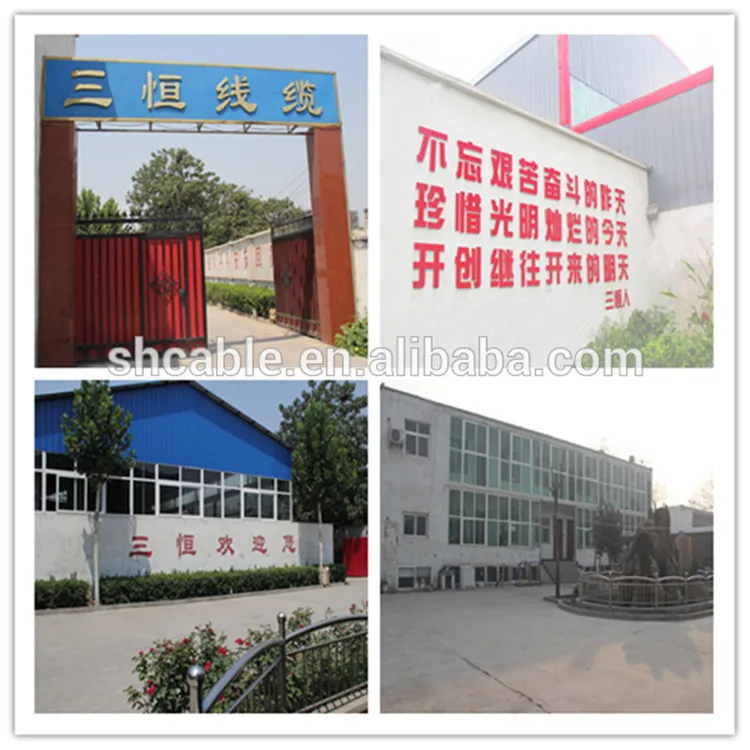

factory
The factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, firstclass technicians, Elite team, high quality workers.
Manufacturer ,best quality,fast delivery,safety.
