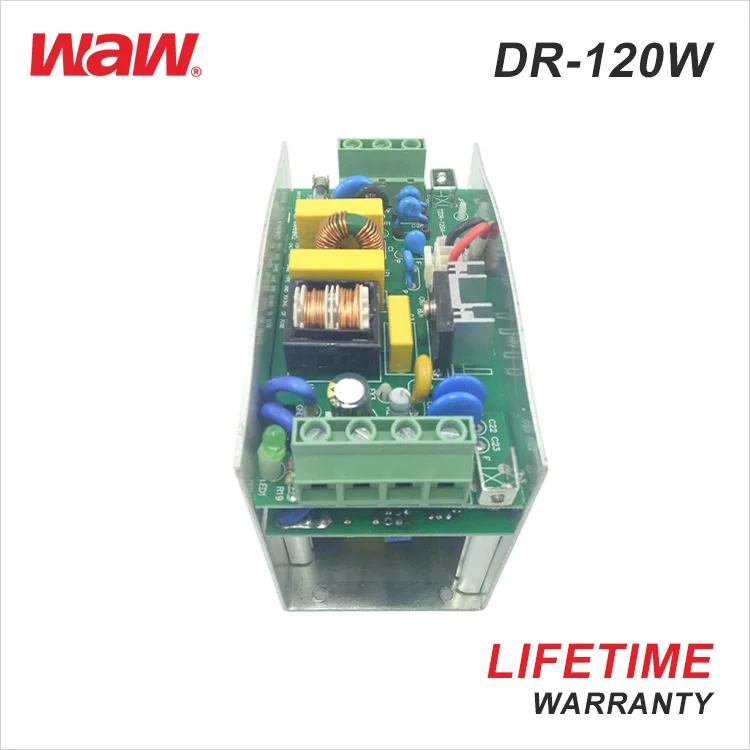

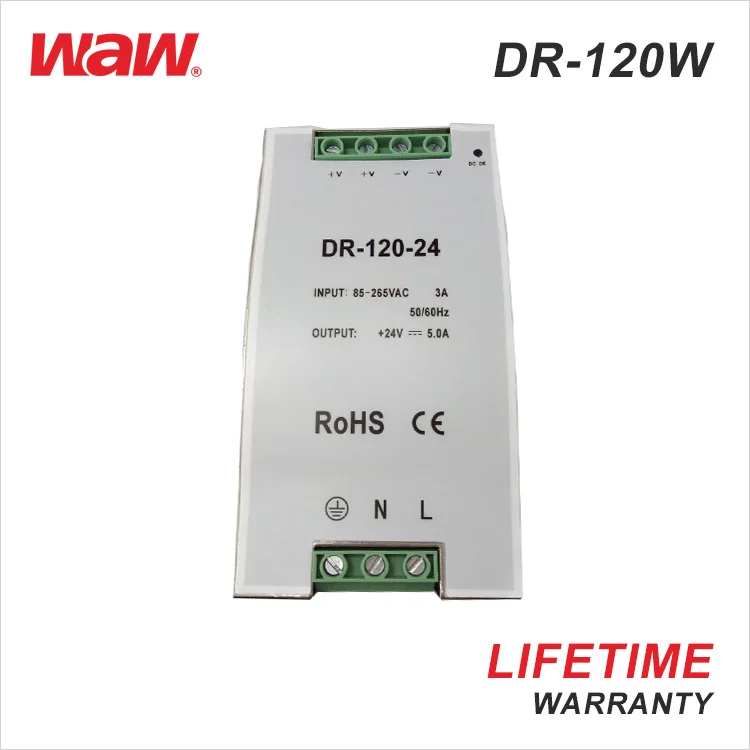

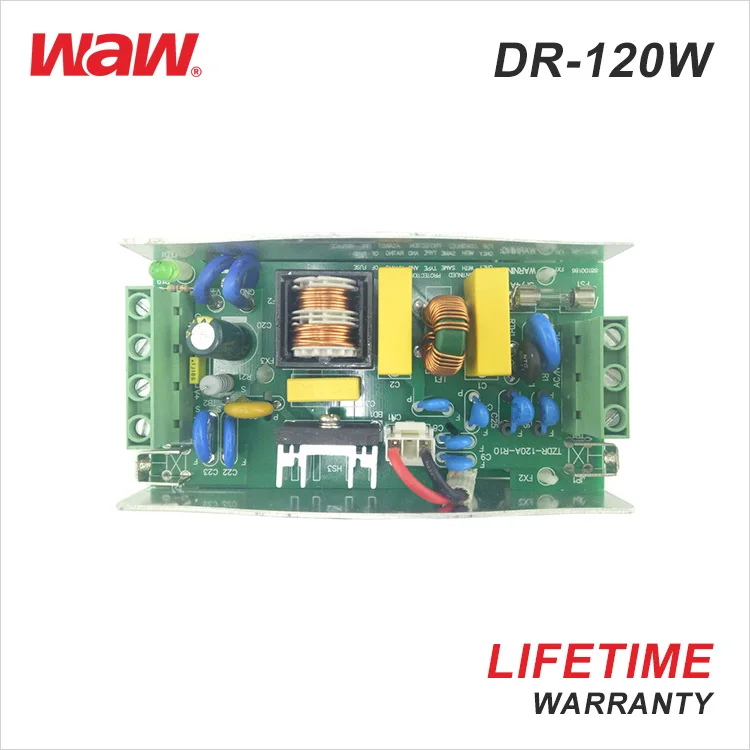

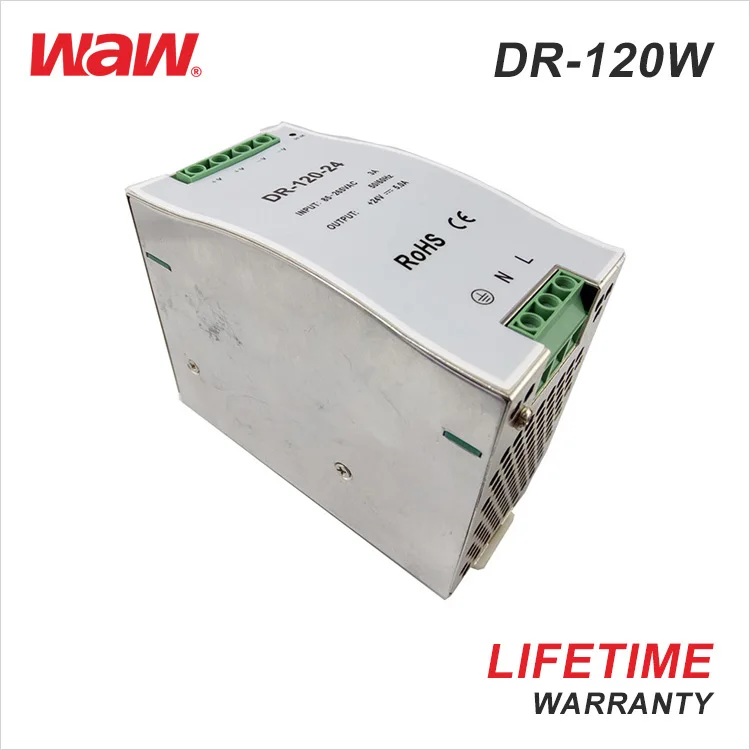

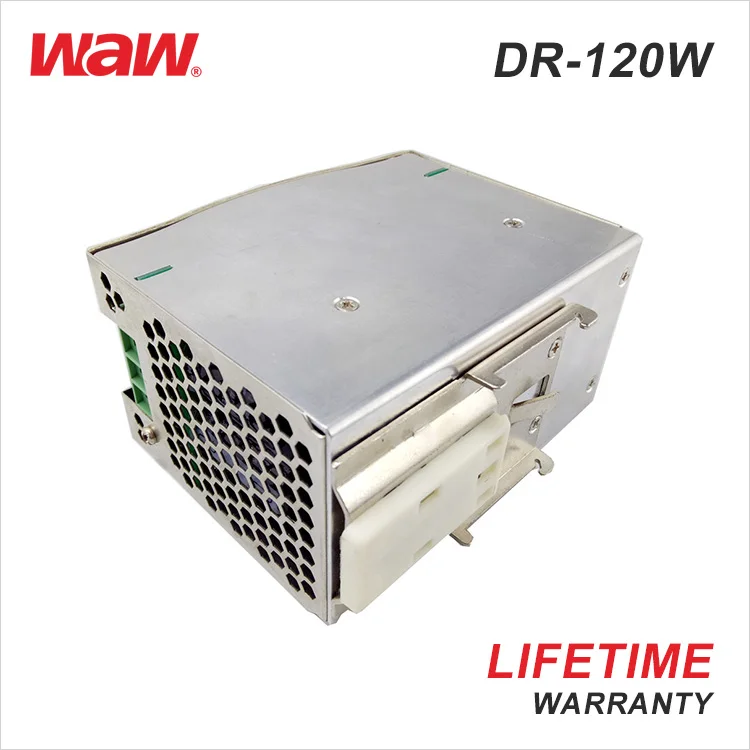

110v/220v ac to dc DR 120 24 120W 24V 5A Din Rail Power Supply
- Category: >>>
- Supplier: Yueqing Wode Electrical Co. Ltd.
Share on (60484068917):
Product Overview
Description
Product Description
110v/220v ac to dc DR-120-24 120W 24V 5A Din Rail Power Supply
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY!
Specifications
| Model | DR-120-5 | DR-120-12 | DR-120-24 | DR-120-36 | DR-120-48 | |
| OUTPUT | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated output current | 24A | 10A | 5A | 3.33A | 2.5A | |
| Output current range | 0-15A | 0-6.3A | 0-3.2A | 0-2.1A | 0-2.5A | |
| DC power | 120W | 120W | 120W | 120W | 120W | |
| Ripple and noise | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 21.6 ~ 26.4V | 32.4 ~39.6V | 43.2 ~ 52.8V | |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |
| line regulation | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Load regulation | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Setup,rise time | 1000ms,60ms/230VAC 1000MS,30MS/115VAC at full load | |||||
| Hold up time | 50ms/230VAC 20ms/115VAC at full load | |||||
| INPUT | AC voltage range | 90~132VAC/170~264VAC selected switch | ||||
| Frequency range | 47-63Hz | |||||
| Efficiency | 79% | 80% | 84% | 84% | 85% | |
| AC current | 3.3A/115VAC 2A/230VAC | |||||
| Inrush current | COLD START 30A/115VAC 60A/230VAC | |||||
| Leakage current | <3.5mA/240VAC | |||||
| PROTECTION | Overload | Above 105% rated output power | ||||
| Protection type:Hiccup mode,recovers automatically after fault condition is removed | ||||||
| Over-voltage | 5.75-6.75V | 13.8-16.2V | 27.6-32.4V | 41.4-48.6V | 55.2-64.81V | |
| protection type:Shut down o/p voltage,re-power on torecover | ||||||
| ENVIRONMENT | Working temp. | -10~+60℃ | ||||
| Working humidity | 20~90% RH non-condensing | |||||
| store temp.,humidity | -20~+85℃,10~95% RH | |||||
| Temp. coefficient | ±0.03%/°C (0~50°C ) | |||||
| OTHER | Overall dimension | 65.5*125*100 mm | ||||
| Weight | 0.8Kg | |||||
| CERTIFICATE | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | ||||
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | ||||||
| CE LVD Authenticate | EN61347-1:2008T A1:2001 EN61347-2-13:2006 | |||||
| EN60950-1:2006+A11:2009+A1:2010+A12:2001 | ||||||
| ROHS Authenticate | EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 | |||||
| EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008 | ||||||
