Product Overview

Description

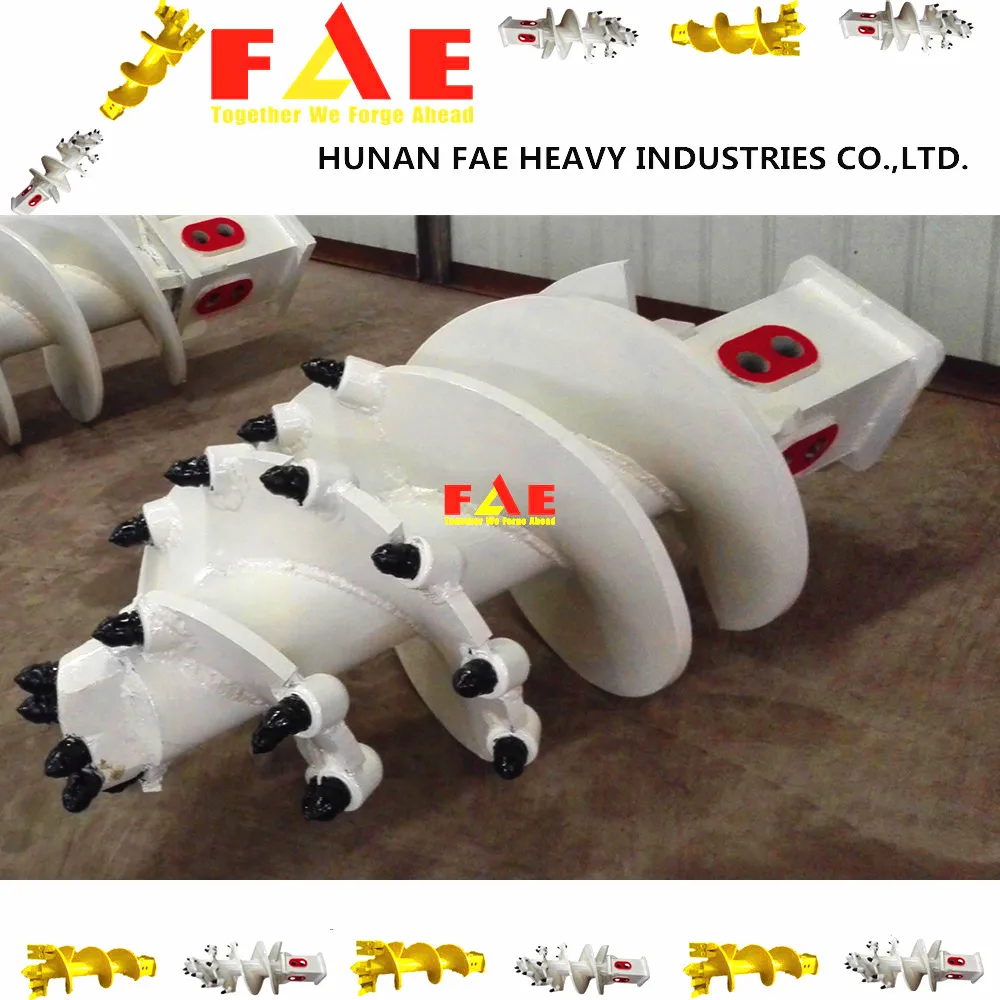

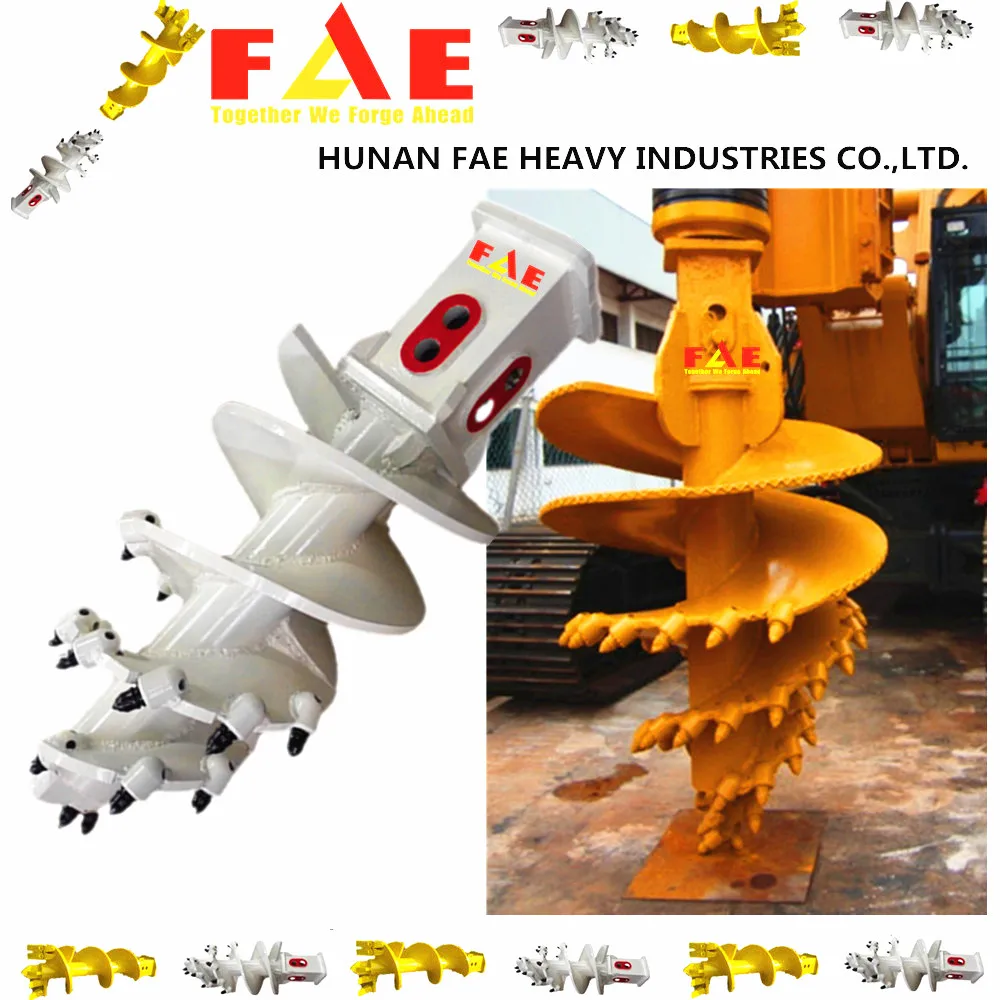

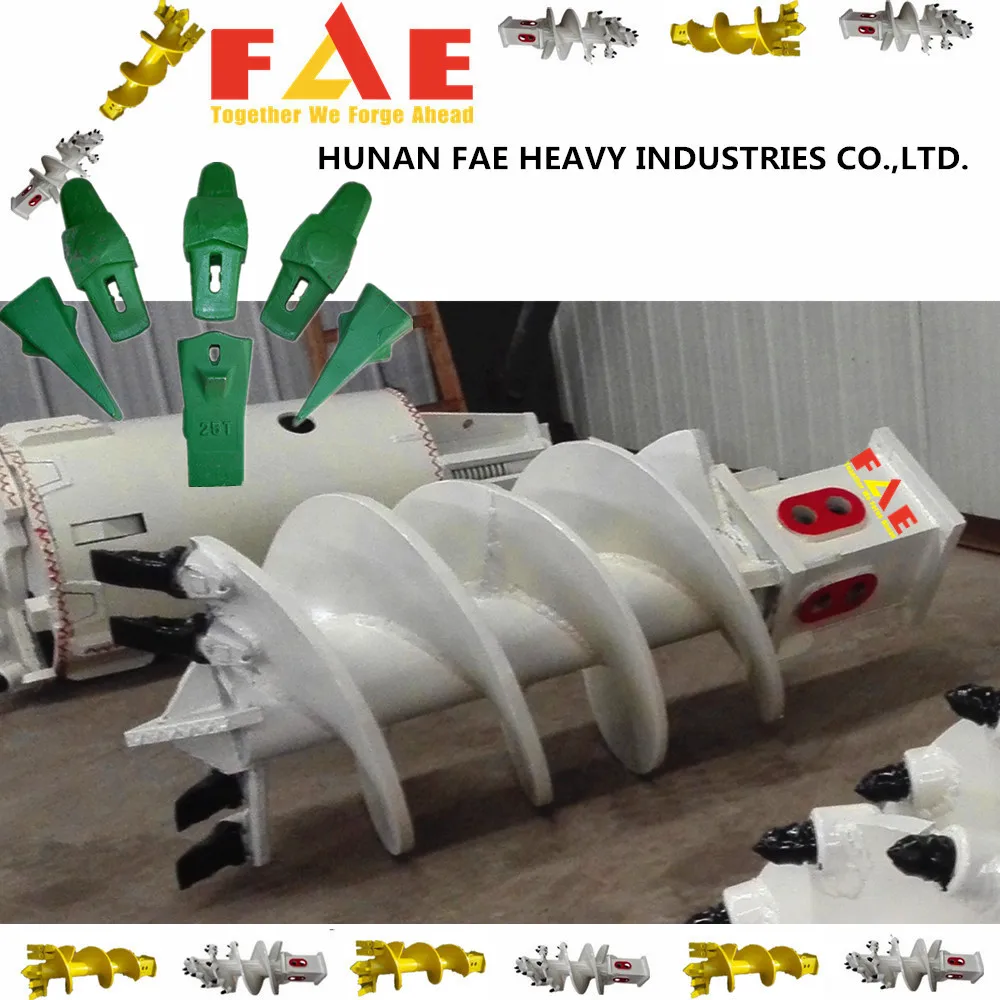

Quality hydraulic rock earth auger for hard rock

 1. high quality and competitive price

 2.long time use

 3. best service

4. drilling auger for drilling rigs/ machinery parts









Drill augers are divided into two types:

1-Conical auger

2-Flat rock auger

3-Continuous flight auger and auger head



1) Conical rock auger

There are two types for conical rock augers:

A-Single cut auger

B-Double cut auger



Drilling diameter range:600-1800mm

Centre pipe thickness:30mm

Flight thickness:20/30mm

What is the specifications of conical rock auger?

Drilling Dia mm	Shell Dia mm	Shell Length mm	Bucket thickness mm	Material
600	570	1200	20/30	16Mn
700	670	1200	20/30	16Mn
800	770	1200	20/30	16Mn
900	870	1200	20/30	16Mn
1000	970	1200	20/30	16Mn
1200	1170	1200	20/30	16Mn
1250	1220	1200	20/30	16Mn
1400	1370	1200	20/30	16Mn
1500	1470	1200	20/30	16Mn
1800	1770	1200	20/30	16Mn

*Other sizes could be manufactured as per customer's demand

Kelly box size as per customer's demand



2)Flat rock auger

There are two types for flat rock auger:

A-Single cut/flight auger

B-Double cut/flight auger



Drilling diamter range:600-1800mm

Centre pipe thickness:30mm

Flight thickness:20/30mm

What are the specifications of flat rock auger?

Drilling Dia mm	Shell Dia mm	Shell Length mm	Bucket thickness mm	Material
600	570	1200	20/30	16Mn
700	670	1200	20/30	16Mn
800	770	1200	20/30	16Mn
900	870	1200	20/30	16Mn
1000	970	1200	20/30	16Mn
1200	1170	1200	20/30	16Mn
1250	1220	1200	20/30	16Mn
1400	1370	1200	20/30	16Mn
1500	1470	1200	20/30	16Mn
1800	1770	1200	20/30	16Mn

 *Other sizes could be manufactured as per customer's demand

Kelly box size as per customer's demand

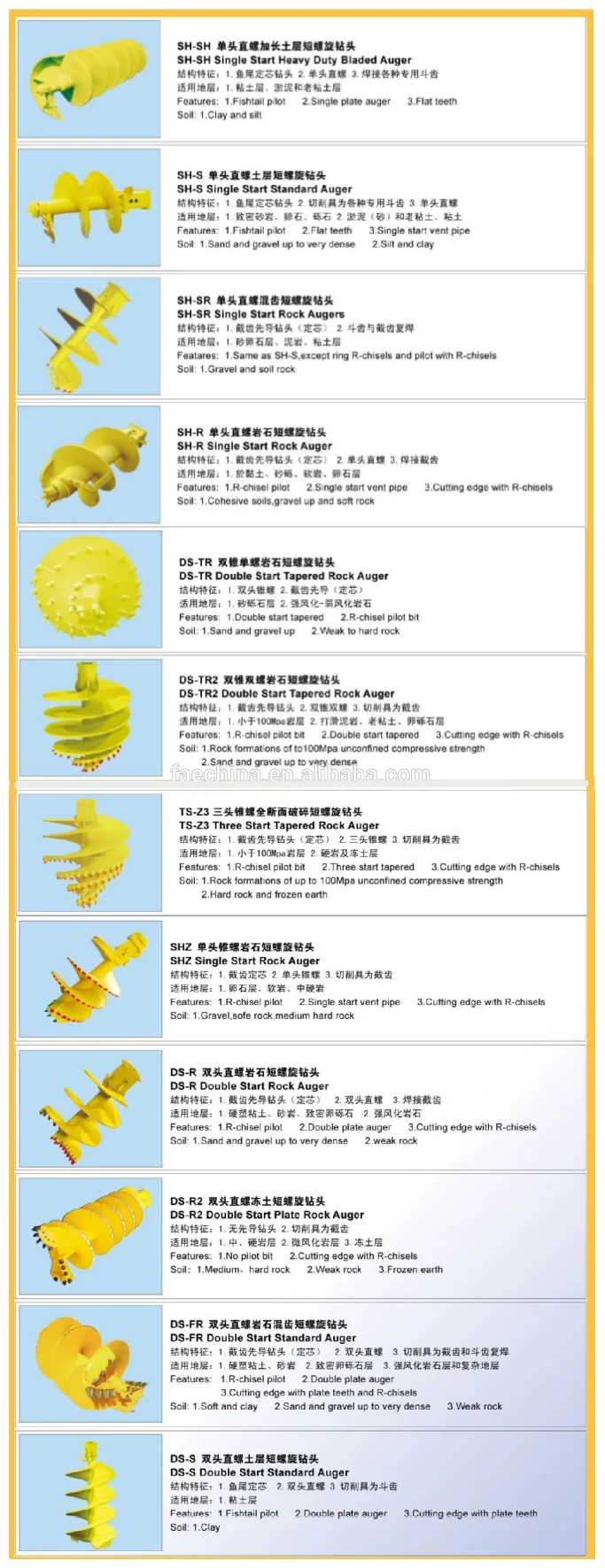

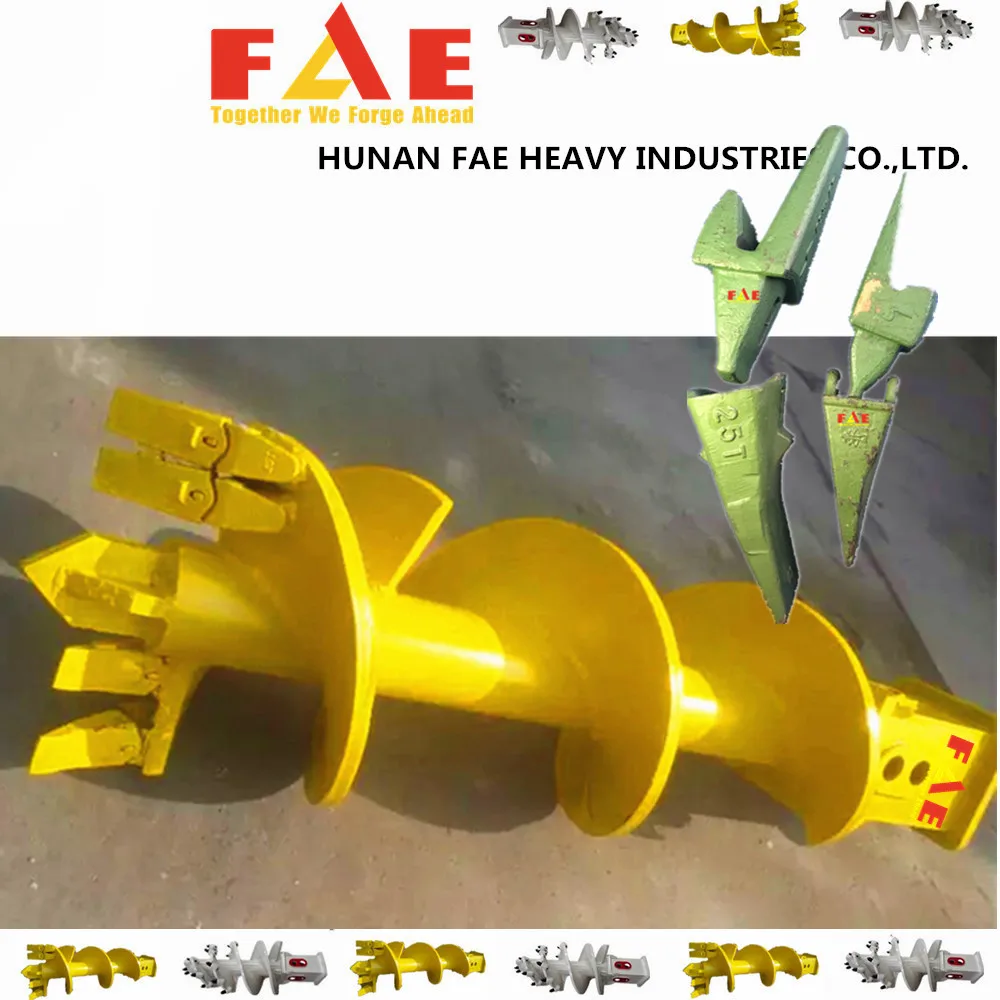

3) Flat or Butterfly Clay Auger  (Single Cut Auger and Double Cut Auger)

Main Applications:

1- The Single Cut and Double Cut Augers are suitable for drilling in clay, silt and loose to medium dense sand and gravel.

2- The Single Cut and Double Cut Augers with side cutters are suitable for drillin in hard clay, silt and medium to high dense sand and gravel.

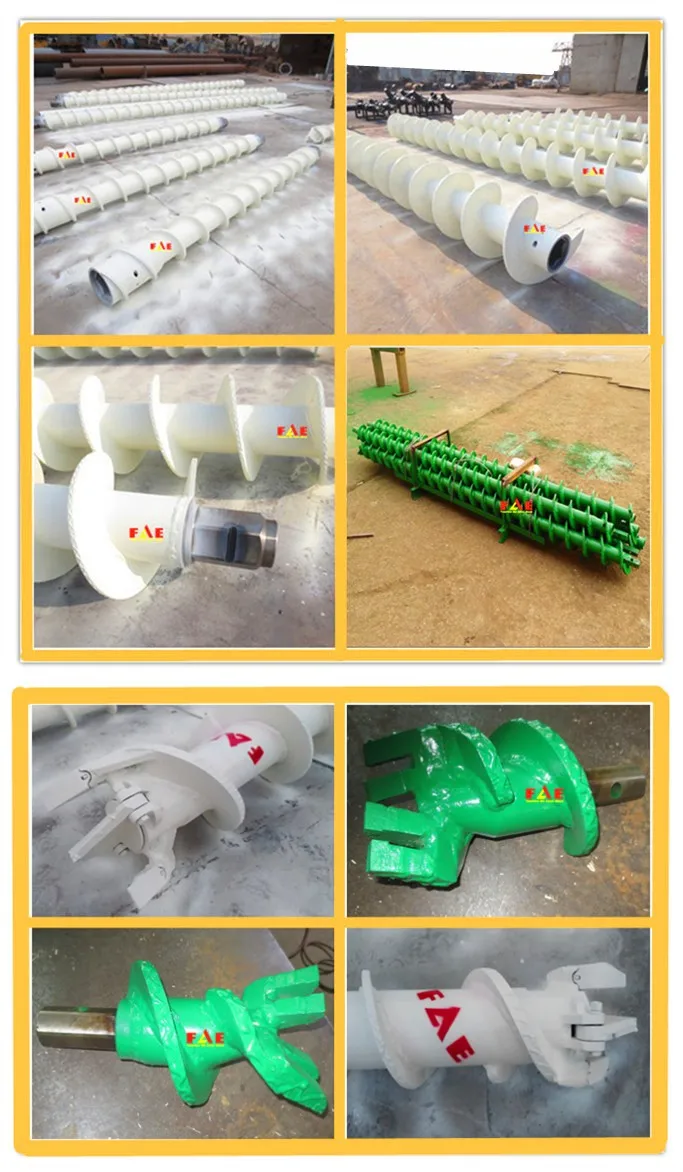

4)Continuous flight auger and auger head

What is the specifications of CFA auger and auger head?

Diameter mm	Coupling type	Flight thickness mm	Length m	Flight pitch mm	Weight kg
400	optional	16	2 3 4 5 6	340	283 386 489 592 695
500	optional	16	2 3 4 5 6	400	465 638 811 983 1156
600	optional	20	2 3 4 5 6	500	526 730 933 1137 1340
800	optional	20	2 3 4 5 6	500	671 948 1223 1499 1775
1000	optional	25	2 3 4 5 6	600	856 1225 1592 1961 2329

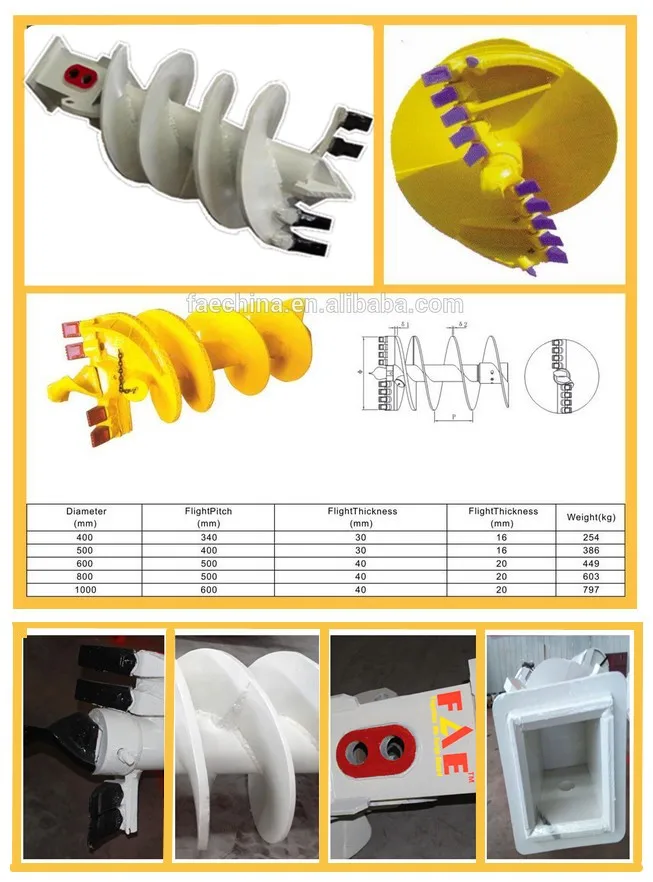

Diameter mm	Flight pitch mm	Flight thickness(top) mm	Flight thickness(bottom) mm	Weight
400	340	30	16	254
500	400	30	16	386
600	500	40	20	449
800	500	40	20	603
1000	600	40	20	797
