JEF 50 salsa tomato paste making/filling machine

Share on (60484351613):


Price:RUB 994,632.60 - RUB 1,071,142.80

Quantity:


Product Overview

Description



Company Information



.jpg



Product Description

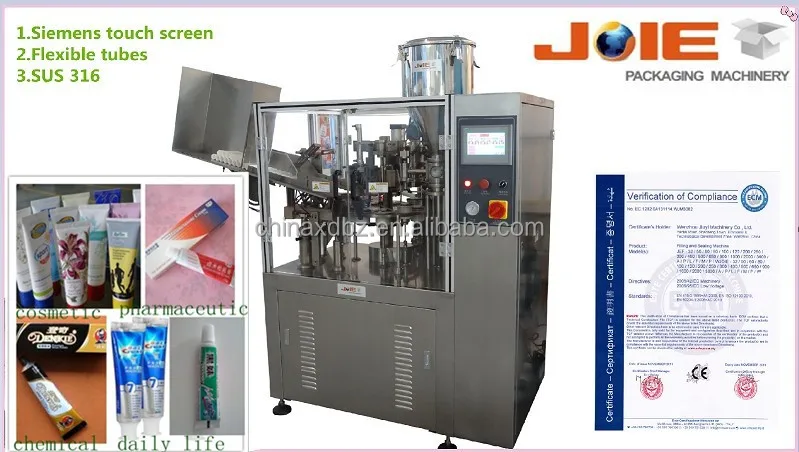

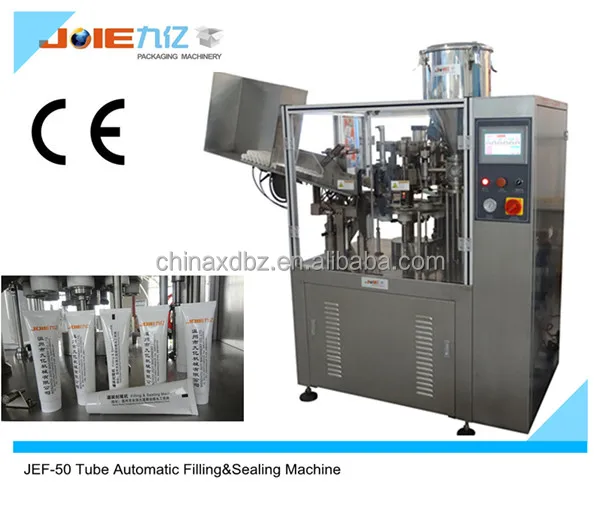

  JEF-50  Plastic/Aluminum Automatic Tube  Filling and Sealing Machine




Characteristics:



1.high precision of the system and reduce the tube body and color mark off color range.



2. automatic completion for the tube, for standard, inert filling temperature table body (optional), filling, sealing, code, the whole process of the finished product output.



3.can match a variety of different specifications of the filling head, adjust the quick and accurate (more than meet the specification, the viscosity of product production).


4, machine, light, electricity, gas integration, real, no tube no filling for tube does not reach the designated position, depression, automatic display (alarm); Opened the door to a variety of functions such as automatic stop.

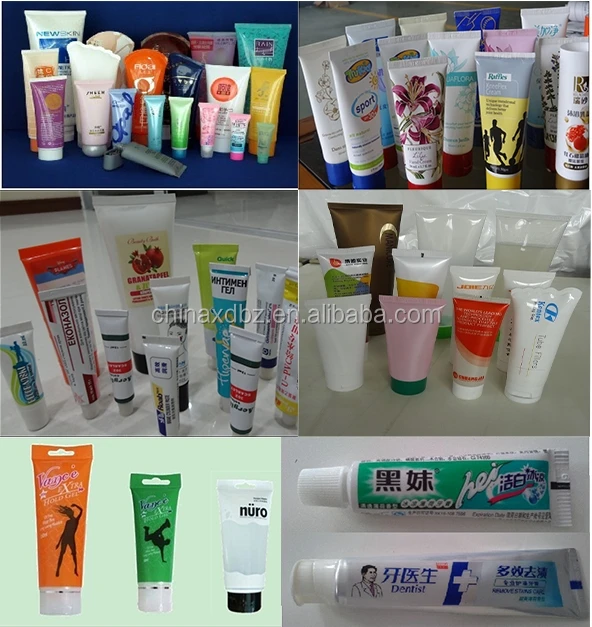

5. suitable for tomato sauce, peanut butter, honey, oil, juice, beverage, detergent, fertilizer, pesticides, ointments, adhesives, skin creams, hair dyes, shoe polish, toothpaste and other liquid or paste filling and sealing materials.

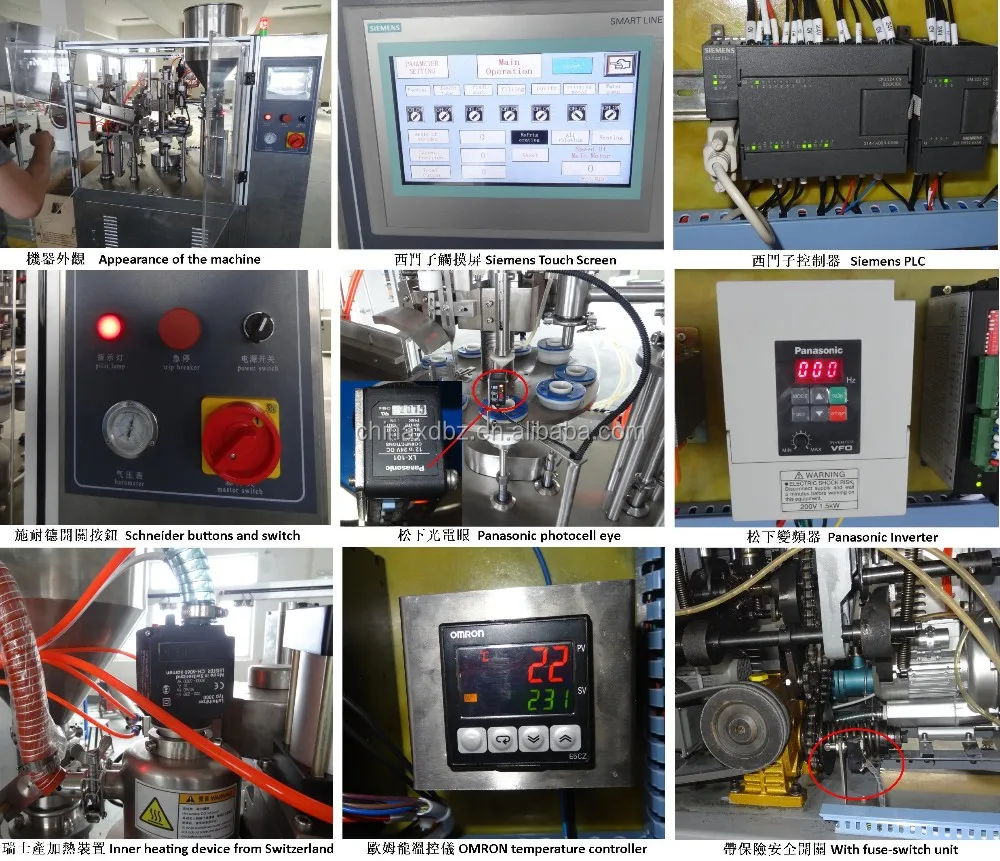

Machine details

filling and sealing machine Technical Parameter





Volta AC 220V/50HZ± 10o/ck
Heating power Main is 3KW (electric heating).
Motor power 1.1KW
Filling volume 5-250ml(tube)
Filling accuracy <1%
Capacity 1800-2400(tubes /h Adjustable)
Tube diameter 10-50mm
Tube length 210mm (Max. Length)
Hopper volume 40 L
Compressed Air pressure 0.6Mpa/ square centimeters
Dimension (LxW><H) 1900x1000x1950mm
Weight: (Approx) 900kgs

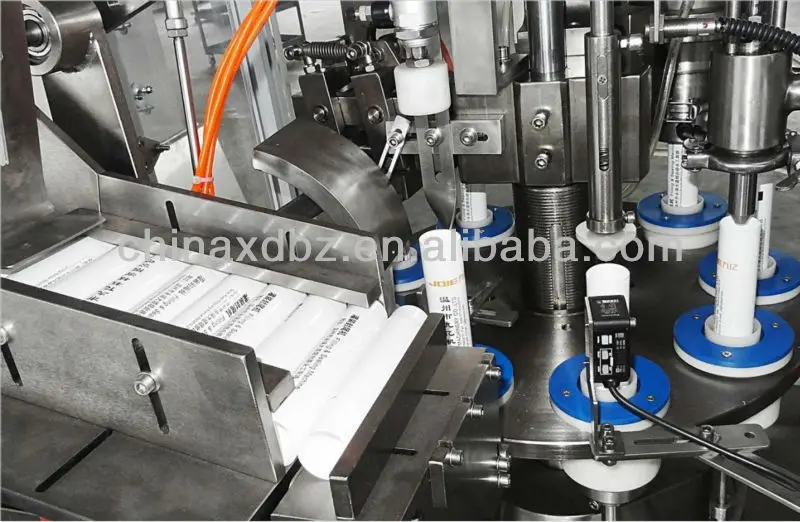

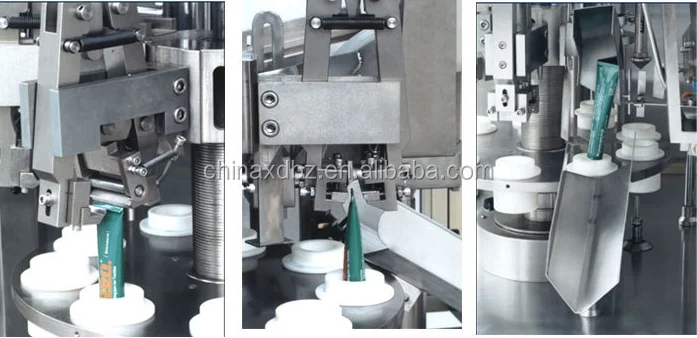

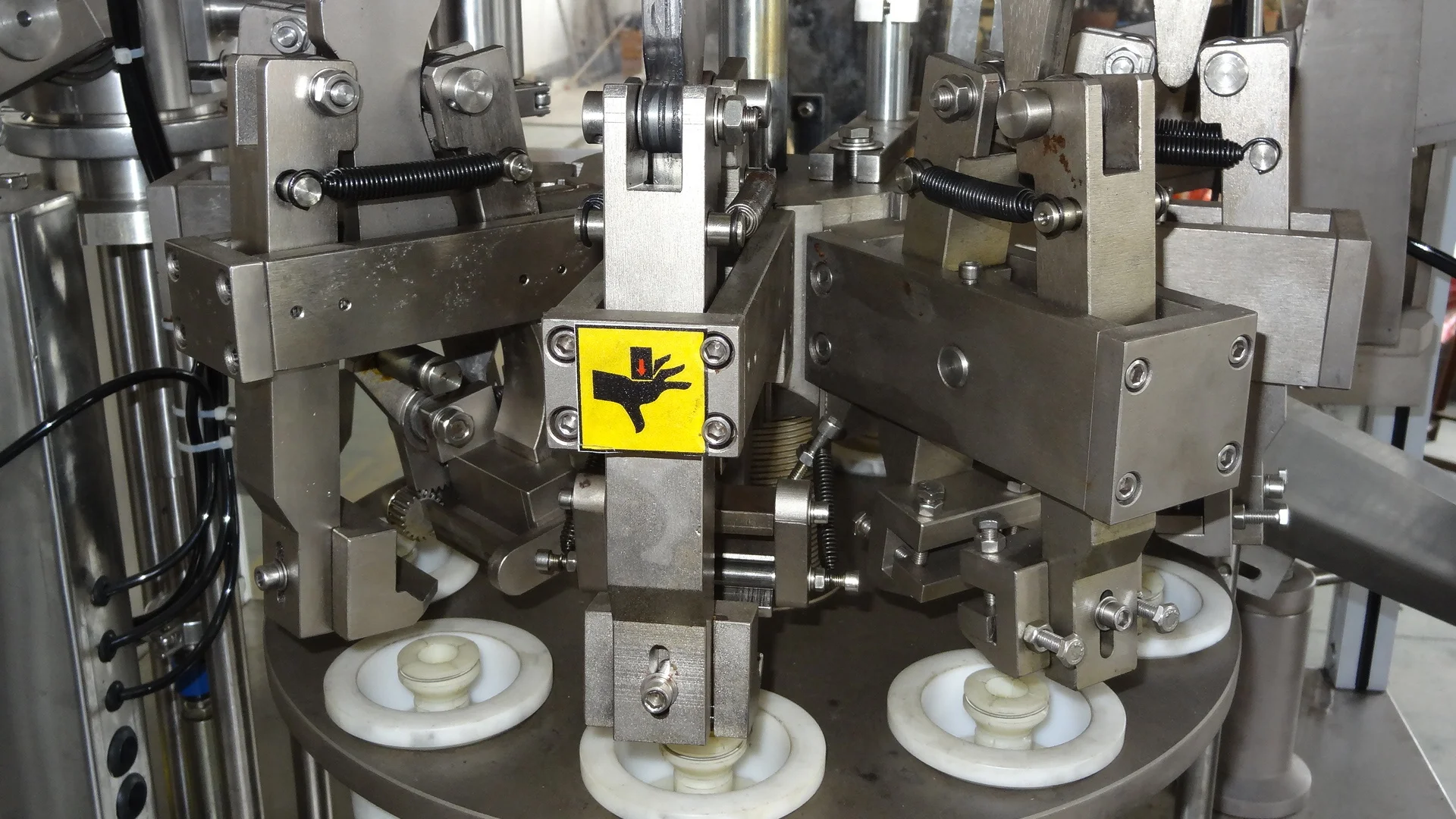

Detailed Images

1395111085768_hz-fileserver-upload-01_2972401

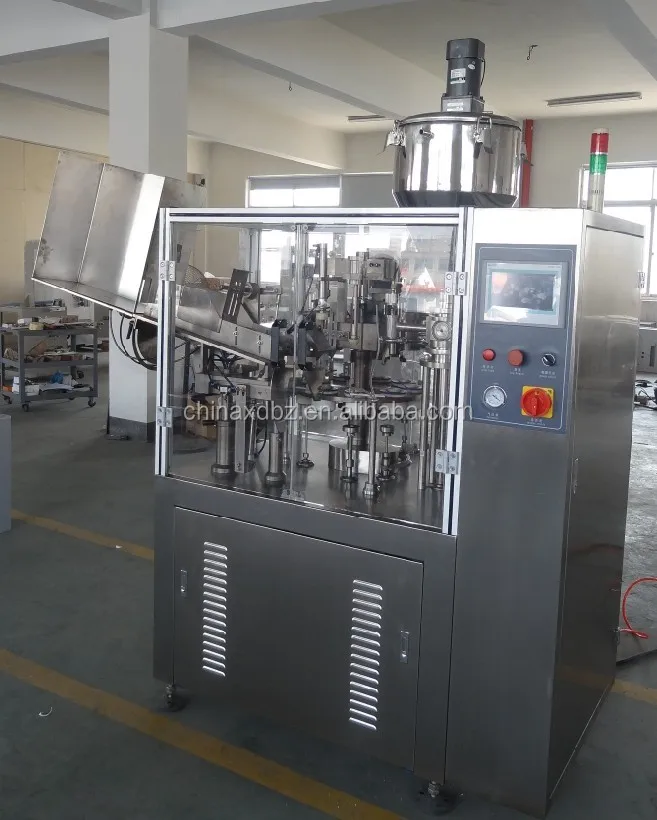

the machine finished.jpg

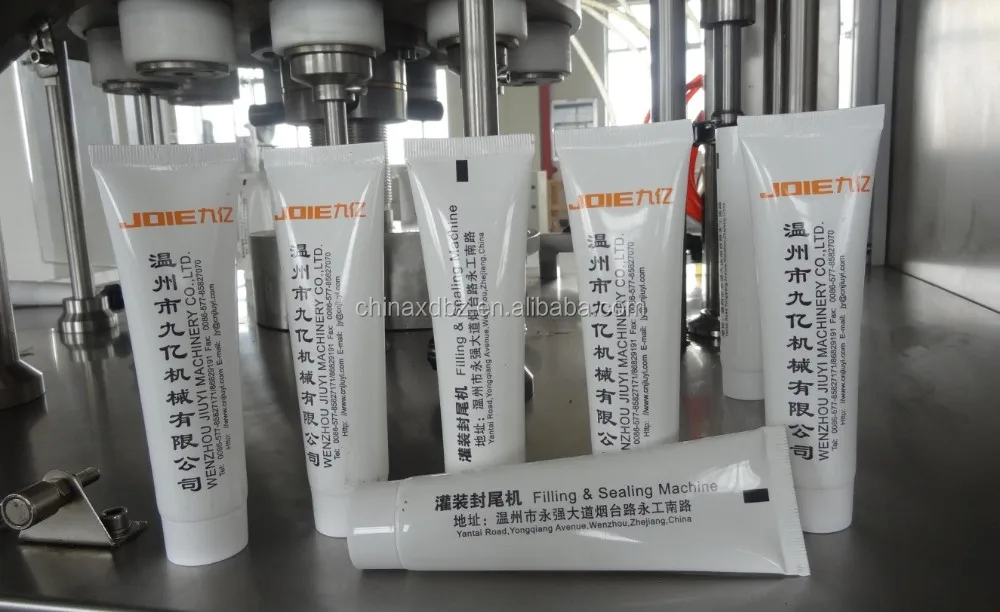

Filling and sealing sample.jpg
