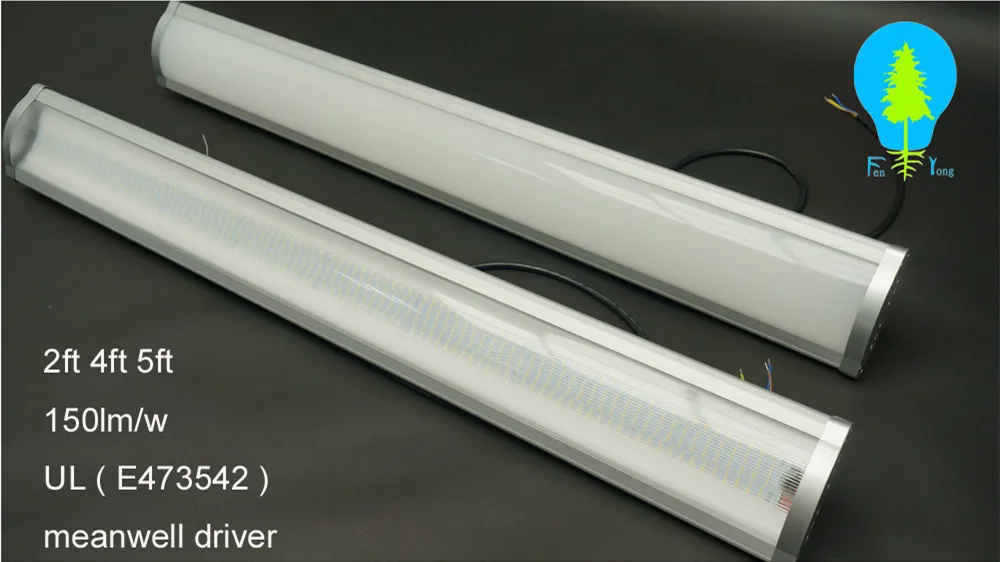

Garage warehouse 150w led high bay light luminaire

Product Overview

Description

Garage warehouse 150w led high bay light luminaire

Our Company

FY Lighting Co., Ltd. specializes in manufacturing finished illumination and decoration LED lights with over 500employees. Our company covers an area of 20,000 square meters and is located in Shenzhen, south China.



Our main products include but are not limited to: LED Flood Lights, LED Tube Lights, Tri-proof lights, LED Linear High Bay and LED Panel Lights series.



As a quality-first manufacturer, FY Lighting promises our LED products are up to CE, ROHS, TUV, UL, and FCC standards. We’ll be and always be strict with our products to ensure the beat quality.



 Description

1.IP65, water-proof, dust-proof, moisture-proof.

2.100-150 lm/w

3.Meanwell driver (dimmable, 100-277V,200-480V , montion sensor and emergency available)

4.No flicker or buzz

5.4m to 12m application

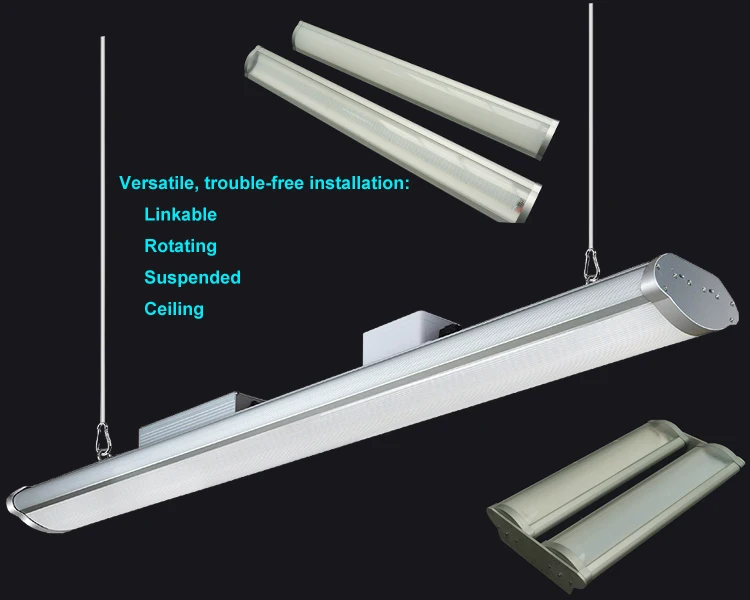

6.Versatile, trouble-free installation: linkable, rotating, suspended, ceiling.

7.5 years warranty

8.UL,CE,RoHS,VDE approved





Product Details



Parameters

Model No.	FY-HB-60W	FY-HB-100W	FY-HB-150W	FY-HB-195W	FY-HB-240W	FY-HB-240W
Length	2ft/600mm	4ft/1200mm	4ft/1200mm	4ft/1200mm	4ft/1200mm	5ft/1500mm
Voltage (V)	100-277AC 200-480AC
Power (W)	60w	100w	150w	195w	240w	240w
lumen	6900-7800	11500-13000	17250-19500	22400-25350	27600-31200	27600-31200
Color temperature	WW:3000-3500 NW:4000-4500 CW:5000-5500K
CRI	>80
Life time	50.000 hours
Package	68X20X18cm 1pc/carton 4.5kgs	128X20X18cm 1 pc/carton 8.0kgs	128X20X18cm 1 pc/carton 8.0kgs	128X20X18cm 1 pc/carton 8.0kgs	128X20X18cm 1 pc/carton 8.0kgs	158X20X18cm 1 pc/carton 10.0kgs



 Certification

UL Certificate:E473542
DLC : FY-HB-100W-L50K364B (100-277Vac)
FY-HB-100W-H50K364B (200-480Vac non dimmable)
FY-HB-100W-DIM-L50K364B (100-277Vac dimmable)
"Not all products are qualified on the DLC QPL. To view our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl.”



Quality Control

1.A series of testing like shaking test,low and high temperature test(-20°C~ 45 °C)drop testfrom the height of 1.2m in 6 directions, hi-pot test 4800V for 1 min and so on.

2.QC in every production process

3.Great material for heat sink:

Aluminium board and Aluminium housing guarantee double heat releasing to avoid light depreciation and prolong lifespan up to 50,000Hrs

 Waterproof IP65 150w led high bay lighting high power luminaire For outdoor application lighting

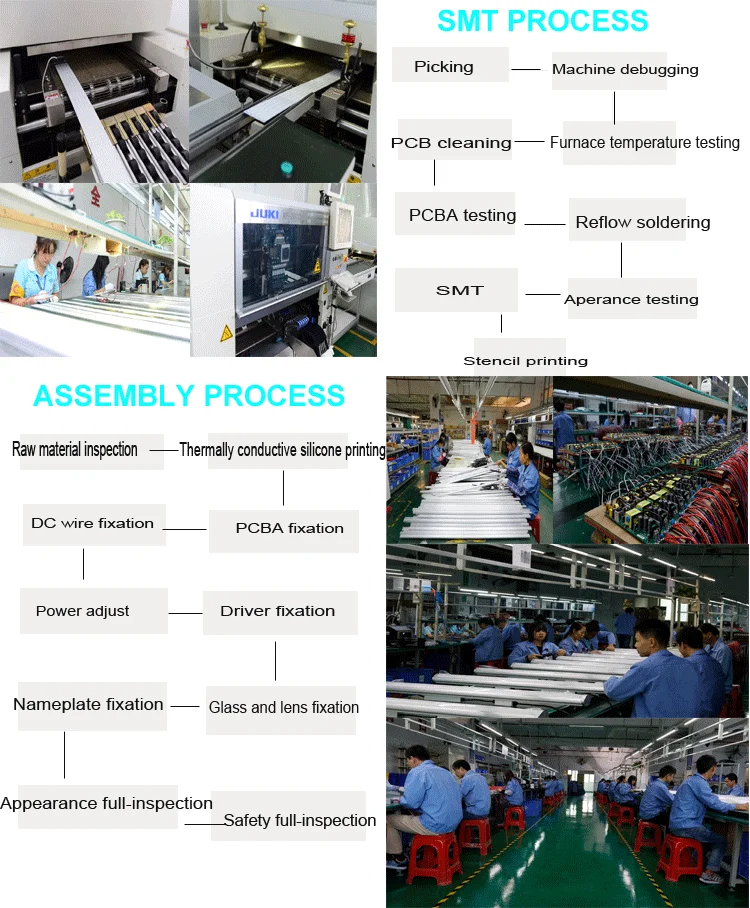

Manufacturing Proces Covered in the Audit Process:

Incoming Material Inspection → Assembly PCB → Jointing → QC Inspection → Test

→Assembly → Aging Test → Voltage Resistance Test → Function Test → Clean →

Finished Goods Inspection → Packaging → Warehouse/Delivery

 Waterproof IP65 150w led high bay lighting high power luminaire For outdoor application lighting

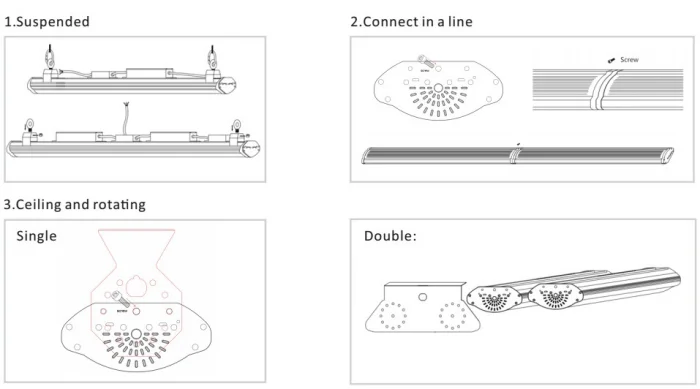

 Installation

Waterproof IP65 150w led high bay lighting high power luminaire For outdoor application lighting

Application

1. Factory, supermarket,  restaurant, school, parking, storehouse

2. switch board room, control cabin,  field control station, Low altitude channel,hospital

3.Suitable for interior lighting & the explosion-proof place.



 Waterproof IP65 150w led high bay lighting high power luminaire For outdoor application lighting
