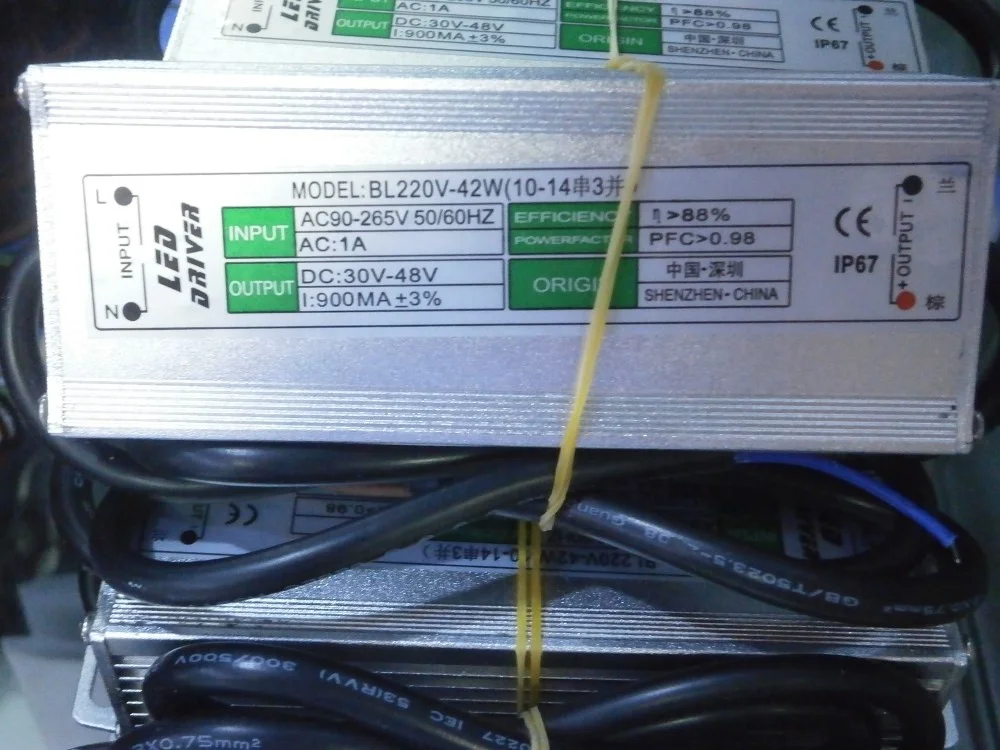

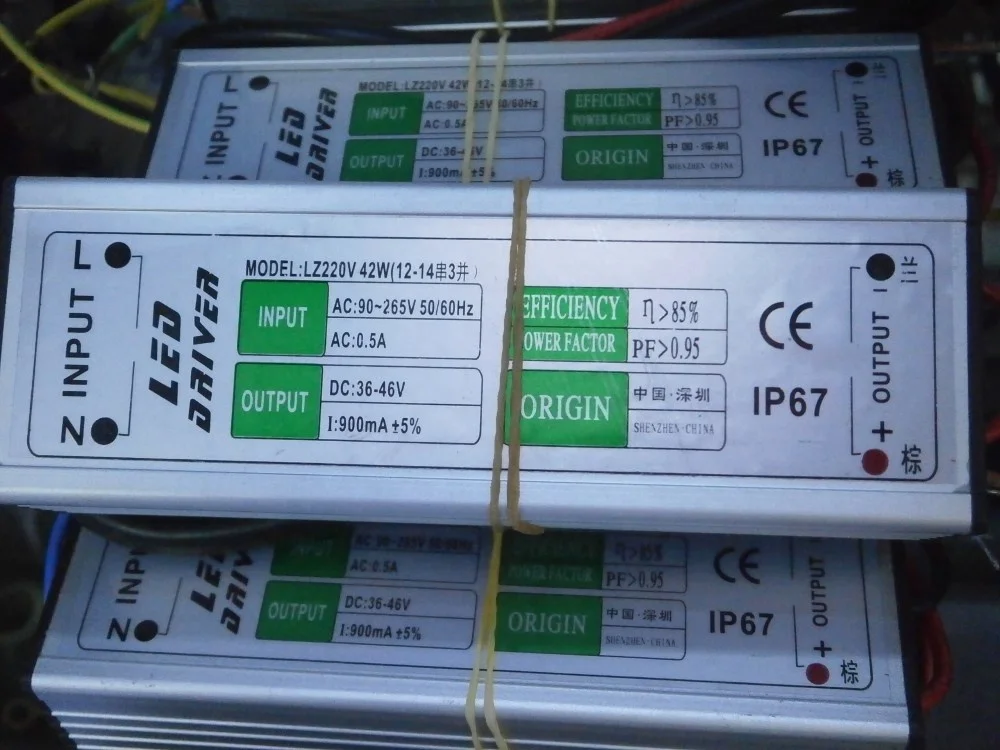

Waterproof constant current 900mA led driver 42W power supply

Product Overview

Description

Waterproof constant current led driver 42W 900mA IP65 power supply 12~14 series

Wholesale from factory





Model Number	SO-LZ220-42W
Place of Origin	China
Brand Name	SOT/OEM
Output Power	42W
Output Type	Single
Input Voltage	AC 90-265V
Output Voltage	DC 36-48V
Output Frequency	50-60Hz
Output Current	900mA
Power Factor	0.7-0.95 (optional)
LED Connection Type	high power led 12-14series and 3 parallel
Color	Silver or Grey
Material	Aluminum
Size	124x39x30mm
IP Rating	IP67, waterproof, dustproof
Lifespan	30,000-50,000 hours
Warranty	2 years
Certificate	CE, RoHS



Features of LZ led driver

1, Professional waterproof Constant Current LED Driver from tresun, accept oem orders

2, International full-range input voltage and widely used

3, Protection: shortcircuit/overload/overvoltage/overheat

4, Natural air cooled, 100% full load aged

5, Idle power < 1.1W

6, High quality components choosed and tested, all capacitors are 105°C long-life electrolytic

7, Capacity of surge of 300VAC: 5 seconds, working temperature up to 70°C

8, Passes 5G vibration test, high efficiency, long life & high reliability

9,  With CE certificate, complied RoHS standard

10, Over-heat, short-circuit & over-load protection with self-setting

11,  Rigorous ripple and low noise

12, 2-5-year warranty for 42w led driver 900mA constant current output

Model	Input voltage	Output voltage	Output current	efficiency	PF	Size ( L*W*H)	Certificate
10W(10S1P)	AC85-265V	30-40V	300mA±3%	0.88	≥0.95	79*29*21mm	CE, SAA, ROHS
20W(10S2P)	AC85-265V	30-40V	600mA±3%	0.88	≥0.95	105*35 *23mm	CE, SAA, ROHS
30W(10S3P)	AC85-265V	30-40V	900mA±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
40W(10S4P)	AC85-265V	30-38V	1.2A±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
50W(10S5P)	AC85-265V	30-38V	1.5A±3%	0.88	≥0.95	141*57*34MM	CE, SAA, ROHS
60W(10S6P)	AC85-265V	30-38V	1.8A±3%	0.88	≥0.95	155*62*38MM	CE, SAA, ROHS
70W(10S7P)	AC85-265V	30-38V	2.1A±3%	0.88	≥0.93	155*62*38MM	CE, SAA, ROHS
80W(10S8P)	AC85-265V	30-38V	2.4A±3%	0.88	≥0.93	155*62*38MM	CE, SAA, ROHS
90W(10S9P)	AC85-265V	30-38V	2.7A±3%	0.88	≥0.93	140*62*40mm	CE, SAA, ROHS
100W(10S10P)	AC85-265V	30-38V	2.8-3A±3%	0.88	≥0.93	140*62*40mm	CE, SAA, ROHS
120W(10S12P)	AC 85-265V	30-36V	3600mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
150W(10S15P)	AC 85-265V	30-36V	4500mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
160W(10S16P)	AC 85-265V	30-36V	4800mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
180W(10S18P)	AC 85-265V	30-36V	5400mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
200W(10S20P)	AC 85-265V	30-36V	6000mA±3%	0.9	0.99	219*66*44mm	CE, SAA, ROHS
