low price portable mini home solar panel kit LED lighting system solar powerbank with mobile charger MP3 radio
- Category: >>>
- Supplier: Guangdong Xindun Power Technology Co. Ltd.
Share on (60484827313):
Product Overview
Description
XD-T Solar Kit Moq is 15 Pcs
If You Want to Buy One Piece Solar Inverter/Solar System, Please Check the Recommended Products Below.They are the best-selling products in 2023
Feature
1. Portable mini solar kit power 10W 20W 30W.
2. Integrated Chassis: 5V/12V output.
3. Suitable for charging all types of mobile phones
4. Solar independent power supply.
5. High photoelectric conversion efficiency.

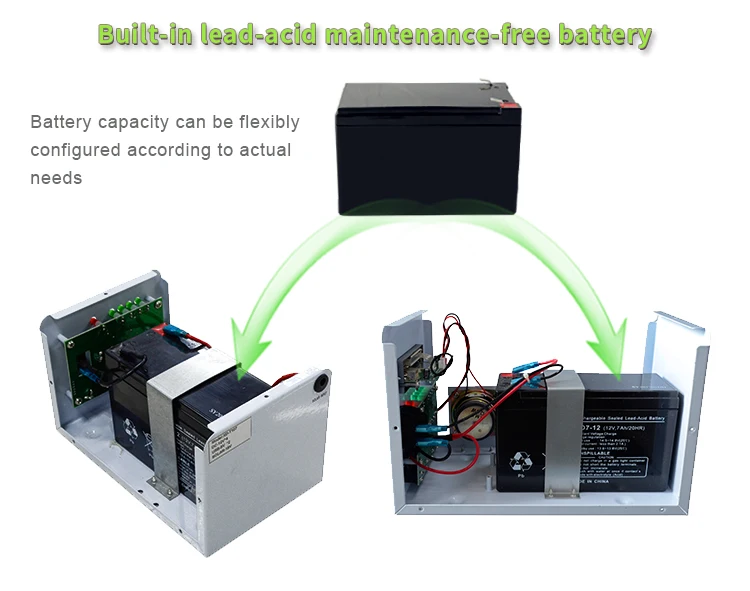

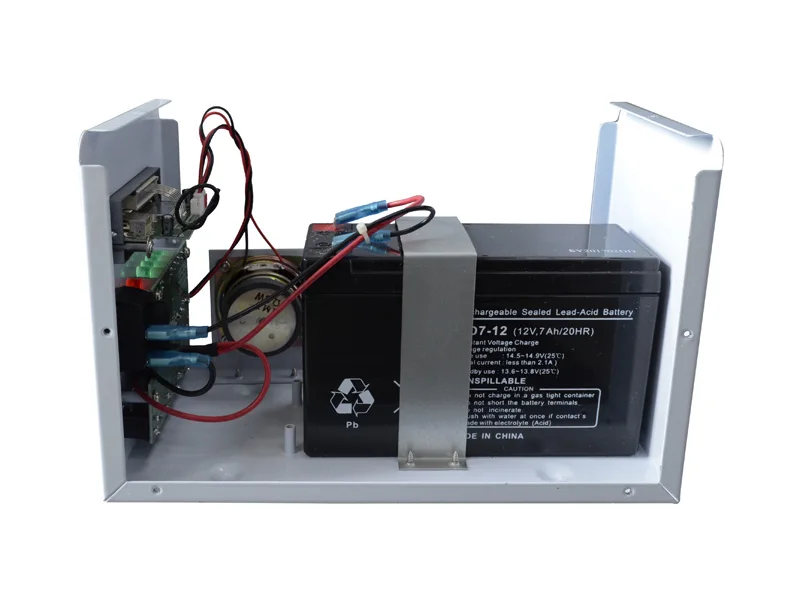

6. Built-in maintenance-free battery, safe and reliable.
7. Optional AC adapter for charging battery.
8. Multi-protections(charging/discharging and etc).
9. Mp3 player, radio fuction.
2. Integrated Chassis: 5V/12V output.
3. Suitable for charging all types of mobile phones
4. Solar independent power supply.
5. High photoelectric conversion efficiency.
6. Built-in maintenance-free battery, safe and reliable.
7. Optional AC adapter for charging battery.
8. Multi-protections(charging/discharging and etc).
9. Mp3 player, radio fuction.
Product Details
Specification
Specification | ||||||||||||||
Model: XD-T | 107 | 1012 | 207 | 2012 | 307 | 3012 | ||||||||
Rated voltage | 12VDC | |||||||||||||
Rated current | 3A | |||||||||||||
Capacity of battery | 7Ah | 12Ah | 7Ah | 12Ah | 7Ah | 12Ah | ||||||||
Power of solar panel | 10W | 20W | 30W | |||||||||||

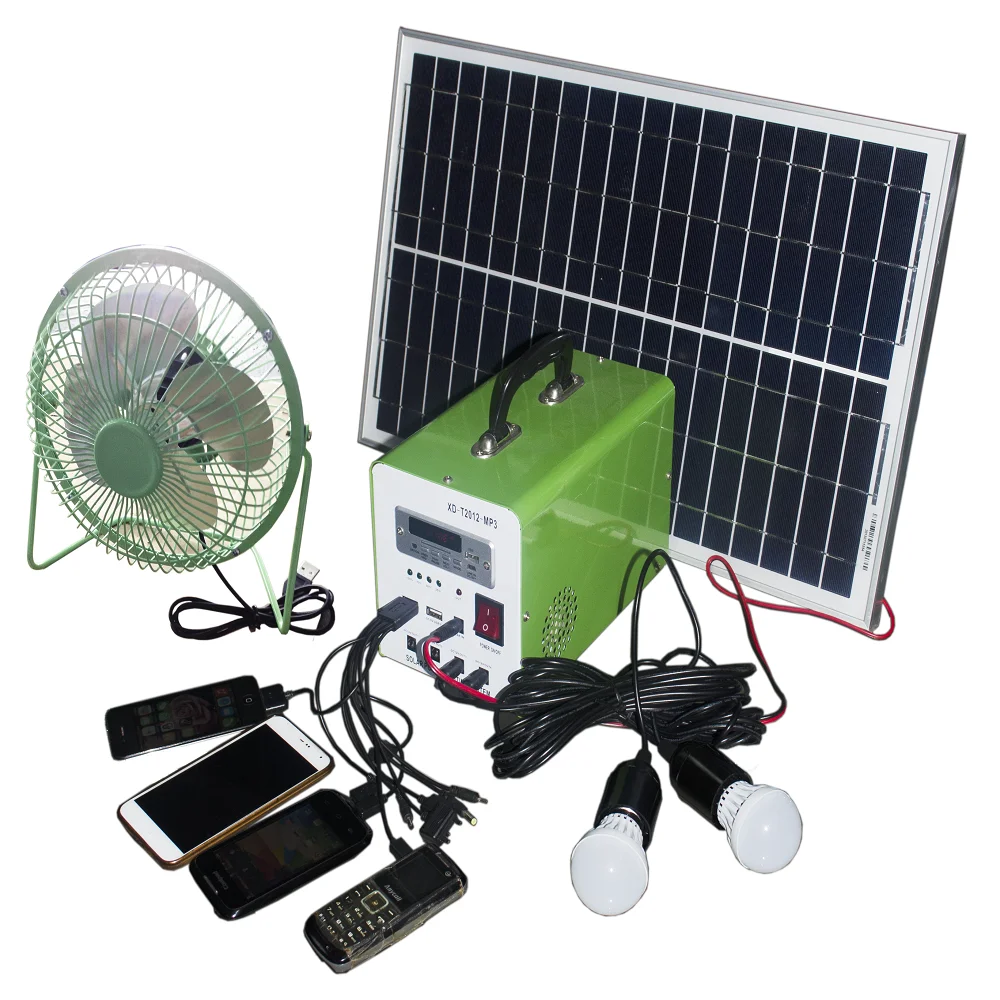

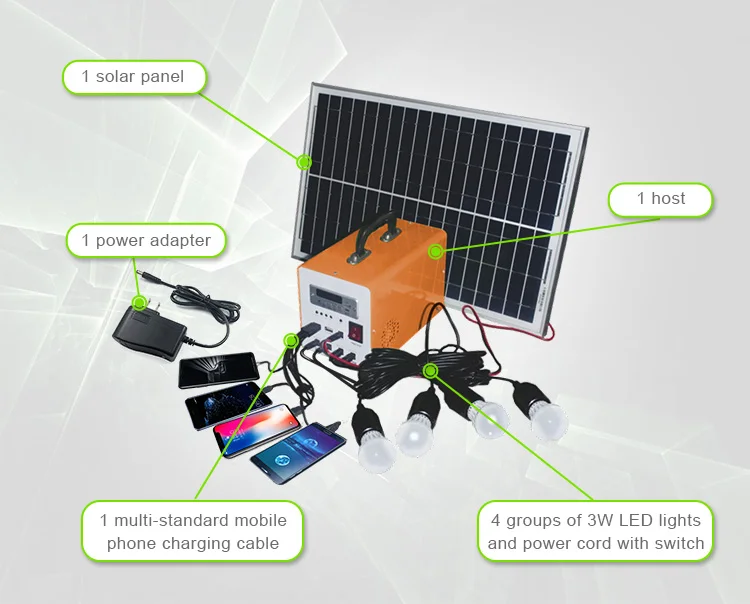

Accessories | 4pcs 3W LED bulbs, 4pcs LED bulb wires, 1 pcs multi-function mobile phone charging cable, 1pcs power adapter | |||||||||||||
Packing of machine& accessories (without MP3) | Product size（L*W*Hmm） | 205x125x130 | ||||||||||||
package size（L*W*Hmm） | 245x240x160(1pc) / 756x255x340(6pcs) | |||||||||||||
N.W.（Kg）/ 1 set | 3 | 4.5 | 3 | 4.5 | 3 | 4.5 | ||||||||
G.W.（Kg）/ 6 sets | 21.6 | 30.3 | 21.6 | 30.3 | 21.6 | 30.3 | ||||||||
Packing of machine& accessories (with MP3) | Product size（L*W*Hmm） | 235x138x157 | ||||||||||||
package size（L*W*Hmm） | 330x180x200(1pc) / 570x345x421(6pcs) | |||||||||||||
N.W.（Kg）/ 1 set | 3.5 | 4.9 | 3.5 | 4.9 | 3.5 | 4.9 | ||||||||
G.W.（Kg）/ 6 sets | 24.7 | 33.5 | 24.7 | 33.5 | 24.7 | 33.5 | ||||||||
Parameter | ||||||||||||||
PV input | Voltage | <25V | ||||||||||||
Current | 0.57A | 1.14A | 1.71A | |||||||||||
Capacity showed as charging voltage | 13V/25% 13.35V/50% 13.75/75% 14.5V/100% | |||||||||||||
Charging voltage | 14.5V±0.5V | |||||||||||||
Over current protection | >3A±0.2A | |||||||||||||
Over voltage protection | >25V±0.5V | |||||||||||||
Low voltage protection | <10V±0.5V | |||||||||||||
DC outout | Voltage | (10V~15.5V)±0.5V | ||||||||||||
Current | (0~3A)±0.2A | |||||||||||||
Capacity showed as discharging voltage | 12.5V/100% 12V/75% 11/50% 10.5V/25% | |||||||||||||
Protection | Over load/Over current/short circuit /high voltage/ low voltage | |||||||||||||
USB output | Voltage | 5V | ||||||||||||
Current | 750mA | |||||||||||||
Environment | Temperature | -10℃~40℃ | ||||||||||||
Humidity | 20%~90% ( No condensation) | |||||||||||||
Storage temperature | -10℃~60℃ | |||||||||||||
Storage humidity | 10%~90% ( No condensation) | |||||||||||||

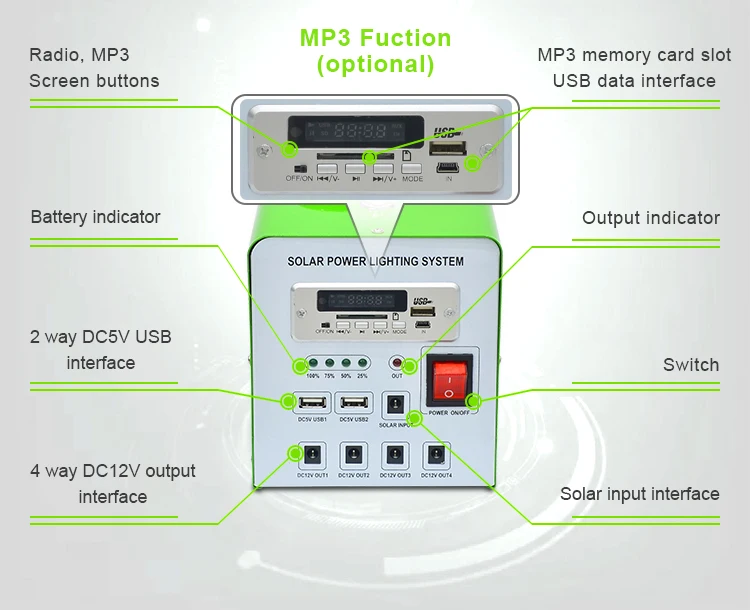

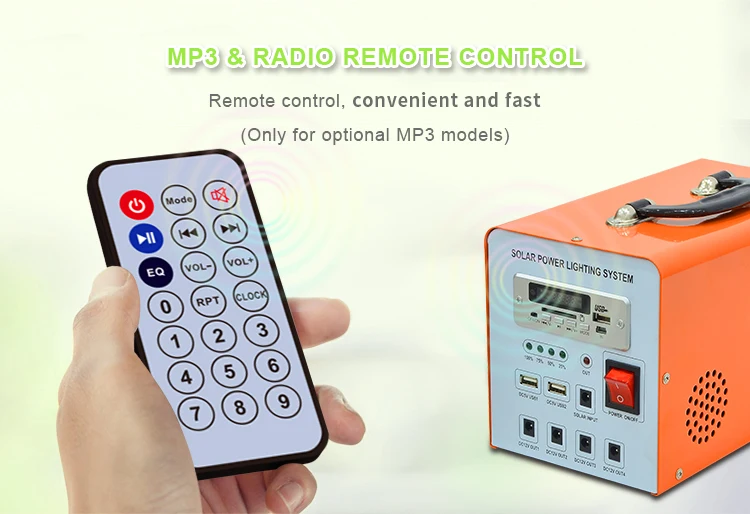

Optional | MP3 with radio (FM) function | |||||||||||||
Accessories
Application
Packing & Delivery
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment | ||||
T/T | EXW | 30% T/T in advance, balance paid before dispatch | ||
FOB | ||||
CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |||
CIF | ||||
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||||
Company Profile
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |
Factory | 7000 Square Meters, 100+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO9001:2015, CE, IEC, TUV, etc. | |
Patent | Software Paten, Design Patent, Project Pantent | |
