Bottle Usage Pilfer Proof Aluminum Lid Making Production Line

Product Overview

Description

About our factory,

 Our company is a leading manufacturer in China,specialising in metal packing machinery,able to supply to the clients the complete production lines for various caps,cans,some machines of the lines with function to request,and other mechanical equipments. Any query will be welcome and we will try our efforts to serve you well for good expansion.



 About the line,

This line is mainly applied for the bottle usage pilfer-proof lids making,like for various wine bottles.The complete line is  fully automatic,with production capacity about 200---250 cans /min.

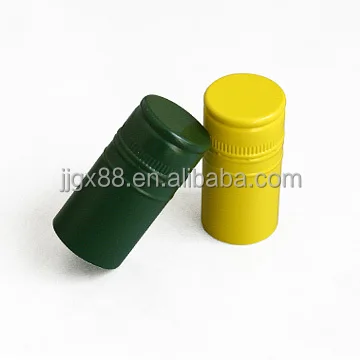

Ref picture of the caps,

Details of the machines for the complete line,

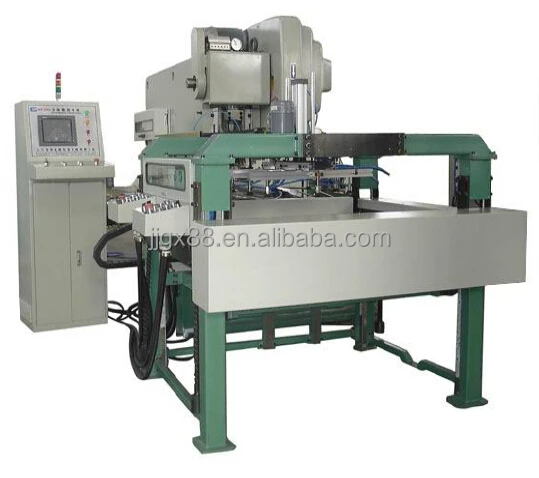

NCP-008A Full automatic NC punch(35 T)	Technical Parameter: (1).NC table Max. speed of arm and clamp,36 m / min; Feeding precision: ±0.1mm Motor: 2KW 380V 50HZ Outline size (L×W×H)(NC unit):1740×2340×1045mm Weight (NC unit): 1200kg (2). Feeding, Max size of material: Width :<950mm. Length :<900mm Max. weight of material: 3000kg Max. height of material: >500mm Lifting speed: 1.35 m/min Feeding speed: 12 m/min Power of complete set: 0.85KW Dimensions:(L×W×H):2900×2000×1650mm Weight of complete set: ~600kg (3).35T press Nominal pressure:350K.N Slide stroke:100mm Frequency of slide stroke:100—120 times /min Motor:4KW Dimensions: (L×W×H),1660*1340*2360mm Weight:5000 kgs   This punch is applied for forming of the rough caps by punched forming from the fed aluminum or tin plates

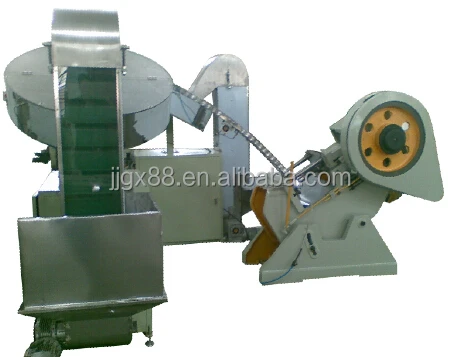

GX16T horizontal punch (applied for second / third-time stretching)	Technical Parameter: Production capacity: 100-140 pcs /min Motor power: 1.5KW 370W 180W Overall dimension: 1500*700*600mm Weight: 1190kgs This machine is applied for the  stretching of the punch formed caps by the punch machine. For small-sized caps,it needs one set of this machine for stretching only once;for higher caps,it needs two sets of these machines for stretching twice for figuration of the caps.

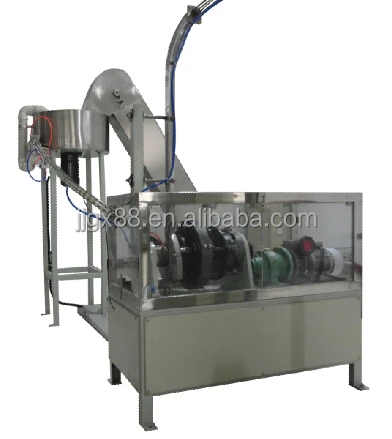

GX2GK5Z automatic knurling & ruling machine	Technical Parameter: Production capacity:200- 300 pcs /min Motor power: 180W 180W 370W Overall dimensions: 500*450*1200mm 1200*1500*2200mm Weight: 360kgs This machine is applied for the knurling and ruling of the figurate caps.

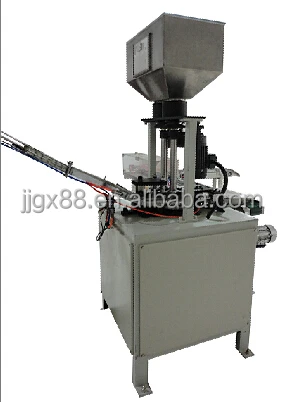

GX3JD2Z automatic liners inserting machine	Technical Parameter: Production capacity:200-250 pcs /min Motor power: 750W 180W 370W Overall dimensions: 800*700*1800mm 1200*1500*2200mm Weight: 660kgs This machine is high speed, applied for gaskets / liners inserted into the caps

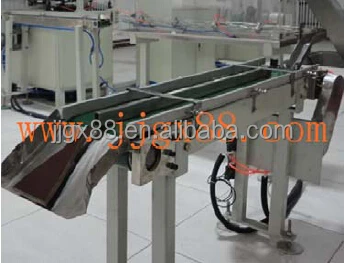

GX4CJ1 inclusion-cleaning counter	Technical Parameter: Production capacity: 200 pcs /min Motor power: 370W 180W Overall dimensions: 800*700*1600mm Weight: 90kgs It is applied for cleansing of inclusions in the caps during production and countering of the quantities.



Warranty:

One year after shipment, on proper operation conditions; During the time of warranty, if som components or spare parts get damaged, due to quality problems, the free new ones will be delivered to the buyers for replacement; otherwise, if it is the improper operation that leads to breakage or damage, the new components or spare parts will be provided by us, but they are charged; Beyond the time of warranty, all components for replacement will be charged.



Brief viewing of our factory, warehouse, workshop,





 CE Certification,













When details of the order are confirmed and on receiving 30% T/T in advance as deposit,the machines or complete production line will be put into production. When goods are finished,the machines or the complete production line will be tested in our factory. The buyers will be informed of the readiness for the machines,who will be kindly required to dispatch their technicians or trust the third party to our factory to check or inspect the machines. When machines or complete production line are testified to be qualified ,the balance,70% of the total amount should be paid. All the machines will be dismentled from the production line,repainted,and packed for loading and shipment.



Package for shipment,

All the machines will be packed in wooden case or follow the buyer's special instruction about the package requirements for delivery.We support the way of delivery by sea and by land.
