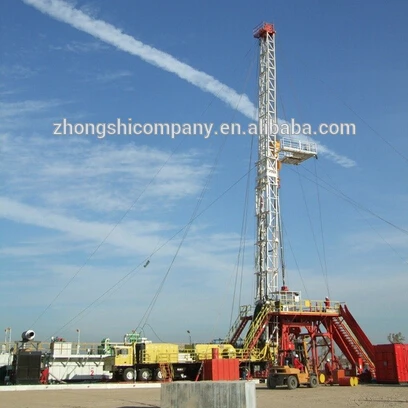

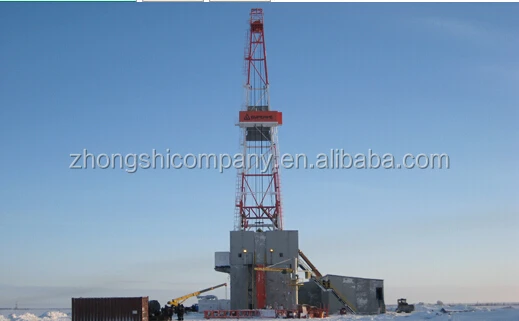

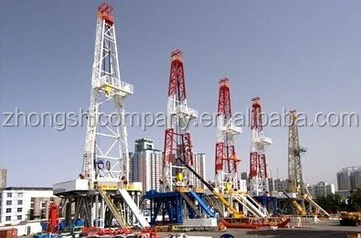

2000m/3000m/5000m Oil Well Drilling Rig ZJ20/ZJ30/ZJ40/ZJ50

ZJ30/1700DB Oil exploration drilling rig

ZJ30/1700DB Drill driven by ac frequency conversion motor, according to the function is divided into: derrick floor area, power and electrical transmission control, pump room area, mud circulation area, oil tank area and other auxiliary equipment. Adapted to the well depth within 3000 m of lateral drilling, directional well and vertical well drilling operation.

The rig drawworks and rotary table adopts the form of independent drive. Winch driven by a 600 kw ac frequency conversion motor, rotary table driven by a 300 kw ac frequency conversion motor. Two sets of F - 500 mud pump by another two YJ23A500kW ac frequency conversion motor drive, respectively. Powered winch motor via a set of two gears transmission speed and the chain box powered winch, implementation of winch is second gear. Rotary table with motor and rotary shaft straight association-like structure.

Product features:

1,Rig adopts modular structure, using pin connection between block and block, can realize quick move. Derik is front opening K type, the structure to suit two telescopic. Base for high and low a telescopic structure, installation, low on power drill itself, put up as a whole.

2,Drilling machine driven by ac frequency conversion mode and control, made a special work station of driller, the trachea, tubing adopts the rapid joint and remove the obvious installation tag.

1.About Feedback

•  1) After your inquiry we will give you a quick revert within 12 hours


•  2) Any questions do free to let me know and my trade manager will stay on line all the time


•  3) The time you consult us ,the convenience will follows you.

2.Why choose us?

• 1) Choose us,you will find a cost-efficient way.


• 2) Choose us,convenience will follows you all the time .


• 3) After inquiry you will realize we are the one that you are looking for .

Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 18 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of casing accessories likebow spring centralizer, solid rigid centralizer,float equipment, cementing plug etc.

We have 9 factories, more than 500 employees, and many kinds of production equipments.

We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.

With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
