A.Description of Zlp 800 Suspended Platform Spare Parts Lifting Equipment
Suspended platform is the latest products developed by RUIBIAO,with the features like more stable than elevator when start/stop,which greatly enhance the security and the service life of hoist and steel wire rope.The product has won the National hightech patent certificate.
ZLP Suspended Platform is a new decorating machinery, which can replace the traditional scaffold and is mainly used in decorating, cleaning and maintenance of external walls of high buildings, such as cement coating, wall brick coating, painting, glass installing, ship building and repairing, big vessels, bridges, dams, chimneys, etc. Using Balance suspended platform can reduce work intensity and raise work efficiency.
B.Parameter of the suspended platform
| Name | Technical parameter of construction platform | ||||
| Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 | |
| Rated load | 500KG | 630KG | 800KG | 1000KG | |
| Lifting speed | 8-10m/min | 8-10m/min | 8-10m/min | 8-10m/min | |
| Platform Dimension L×W×H(mm) | 5000(2+3m)×720 | 6000(1+2+3m)×720 | 7500(2.5m*3)×720 | 7500(3*2.5)×720 | |
| ×1300 | ×1300 | ×1300 | ×1300 | ||
| Lifting Height | 100M | 100M | 100M | 100M | |
| Cable | 100M | 100M | 100M | 100M | |
| Steel rope | Dia:8.3mm | Dia:8.3mm | Dia:9.1mm | Dia:8.6mm | |
| Hoist | Power | 1.5KW*2 | 1.5KW*2 | 1.8KW*2 | 2.2KW*2 |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |
| Safety lock | Permission force of | 30KN | 30KN | 30KN | 30KN |
| impact | 3°~8° | 3°~8° | 3°~8° | 3°~8° | |
| Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~.1.5m | 1.3~.1.5m | 1.3~.1.5m |
| Galvanized | Support adjustable height | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m | 1.44~2.14m |
| Counterweight | 800KG | 1000KG | 1000KG | 1200KG | |
| 20’ft container load qty | 10 sets | 10 sets | 8 sets | 8 sets | |
| Type | A-alloy platform, Hot Dipping Platform, Steel platform | ||||
C.Pictures of the suspended platform
D.The main purposes of the suspended platform
- Exterior wall construction and decoration of high-rise building, installation of panel wall and structural members of exterior wall.
- Repair, maintenance and cleansing of exterior wall of high-rise building.
- Construction, inspection, repair and maintenance of large project, for instance: chimney, dam, bridge and head frame.
- Welding, cleansing and oil-painting of large ship.
- Fabrication and installation of bulletin board on buildings at heights.
E.Drawing of the suspended platform
F.Component of the suspended platform

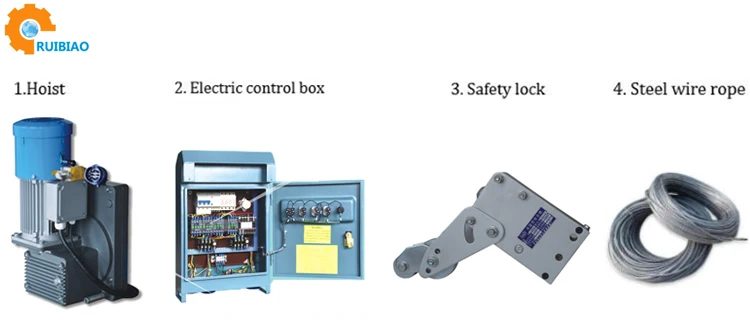

Suspended platform is mainly conmposed by suspension mechanism, hoist, safety lock, electric control box, working platform.
Its structure is reasonable and easy to operate. It can be make-up and break-out according to the actual need. The suspended platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building
Production Flow
Our Services
Customized Parts Solutions Ruibiao specialize in design, custom and manufacture electric motors,including rack and pinion,Suspended platform,electric motor,Gearbox,safety device,elevator Overload Sensor,winch,cable,Limit Switch,worm gear.All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the construction hoist spare parts in our Product Categories now! |
