Hook type shot blastingmachine/single hook shot blasting machine/used for fitness equipment

Product Overview

Description

Hook type shot blastingmachine/single hook shot blasting machine/used for fitness equipment

Product description

Q37 series hanger shot blasting cleaning machine is mainly used in steel structures, casting, the surface cleaning and strengthening of the aluminum alloy parts and other components, are widely used in foundry, forging, machinery, iron and steel industry, etc. Have no pit, compact structure, high productivity etc.

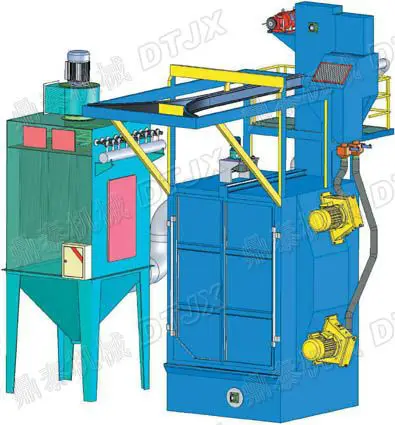

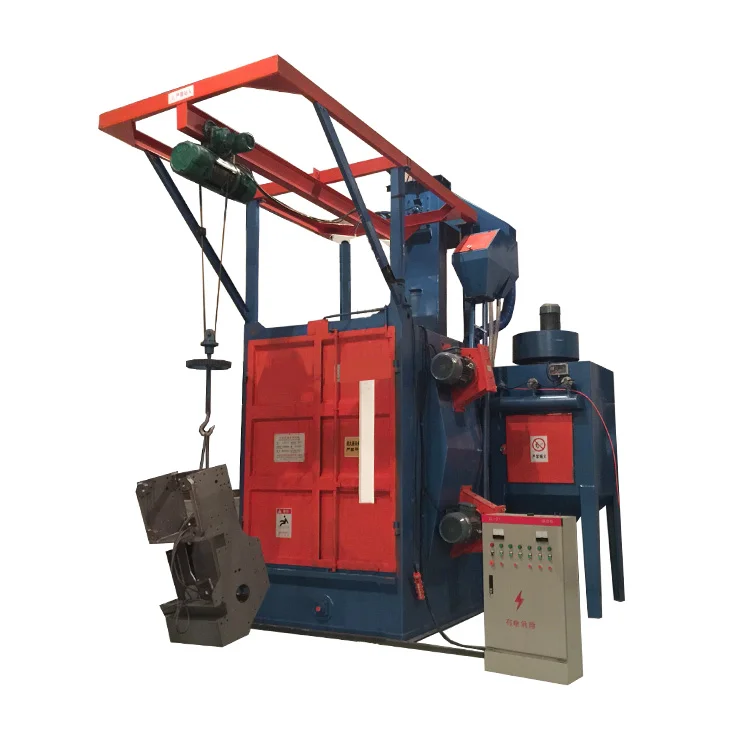

Q378 single hook type shot blasting machine,Metal surface cleaning equipment

Structure

1.Applicable to many varieties, large, casting, forging, welding and heat treatment of surface cleaning or reinforcement;
2.Single hanger type and double type;
3.Chamber adopts fully closed structure, no projectile splash phenomenon;
4.With special wear-resistant alloy cast iron plate
5.Using electric hoist implementation artifacts on unloading, lifting and walking
6.Using rotation devise implementation artifacts in indoor blasting of positive and negative rotation
7.Use automatic or manual control

Technical parameters



Item	Unit	Q376	Q378	Q3710	Q3720	Q3730	Q3750	Q3780
Single Load	kg	600	1000	1000	2000	3000	5000	8000
blast quantity	kg/min	200	250	250	250	250	250	250
separation capacity	T/h	25	30	30	45	45	60	60
lifting capacity	T/h	25	30	30	45	45	60	60
Cleaning workpiece size	mm	600*1100	800*1500	1000*1850	1400*2300	1600*2300	1600*2500	2000*3000
Air volume	m3/h	2800	6000	9000	15000	15000	18000	20000
Total power	kw	22	37	46	61	64	78	81
