Stainless Steel ASTM A351 304 304L 316 316L CF3 CF3M CF8 CF8M CF8C Material Bevel Gear Operated Flat Gate Valve

Stainless Steel ASTM A351 304 304L 316 316L CF3 CF3M CF8 CF8M CF8C Material Bevel Gear Operated Flat Gate Valve

Category: >>>
Supplier: High Mpa Valve Group Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

Welcome to High Mpa Valve Factory

>>Standards

Design Standard: API 6D / JB/T 5298
Inspection & Test: JB/T 9092
Pressure-Temperature Rating: GB/T 13927
End Flange Dimension: ANSI B16.5a

>>Application

Applicable Temperature: -45℃ ~ 250 ℃
Applicable Medium: Water / Oil / Gas / Etc.

Pressure Rating: Class150 ~ Class900

Size Range: 1" ~ 40"

\t Material of Construction
\t Cast Iron	\t IS 210 Gr FG 200
\t Cast Carbon Steel	\t ASTM A216 Gr WCB / WCC
\t Cast Stainless Steel	\t ASTM A351 Gr CF8 / CF8M
\t Forged Carbon Steel	\t ASTM A105
\t Forged Stainless Steel	\t ASTM A182 Gr F304 / F316

\t Design & Testing International Standard
\t Valve Design	\t API 594 / API 600 (ISO 10434) / API 6D (ISO 14313) / API 602 / API 603 / API 608 / API 609 / IS 780 / BS 1414 / BS 14846 / BS 1868 / BS 1873 / BS 5351 / ASME B 16.34 (BS 5351) / DIN 3352 / DIN 3356 / DIN 3357
\t Pressure Testing	\t API 598 / API 600 / API 6D
\t Face To Face	\t ANSI B16.10
\t End Connection	\t Screwed AS PER BSP/BSPT/NPT, Weld AS PER SW/BW, Flange AS PER RF/RTJ
\t Flange Connection	\t ANSI B16.5 (For NPS≤24) / ANSI B16.47 SERIES B, ANSI 16.47 SERIES A, MSS SP-44 (For NPS >24)
\t Butt Weld End	\t ANSI B16.25
\t Socket Weld End	\t ANSI B16.11
\t Screwed End	\t ANSI B1.20.1 (BSP/NPT)
\t Wall Thickness	\t API 600 / BS 1868
\t Pressure Rating	\t AS PER ANSI 150# 300# 400# 600# 900#
\t Engineering Option	\t Gear Operated, Electrical Actuated, Pneumatic Actuate
\t Size Range	\t AS PER NPS 1" - 40"

Products Show

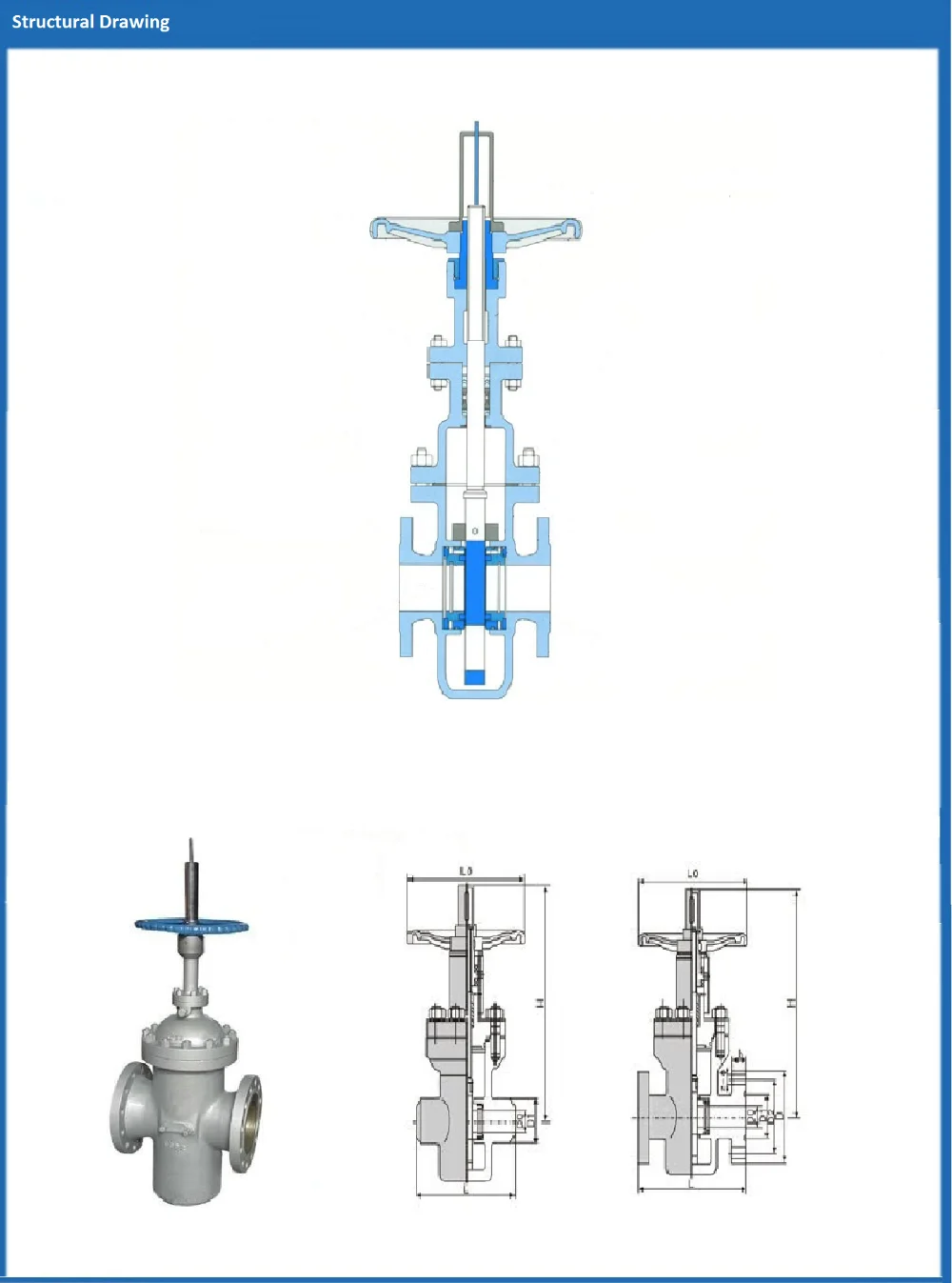

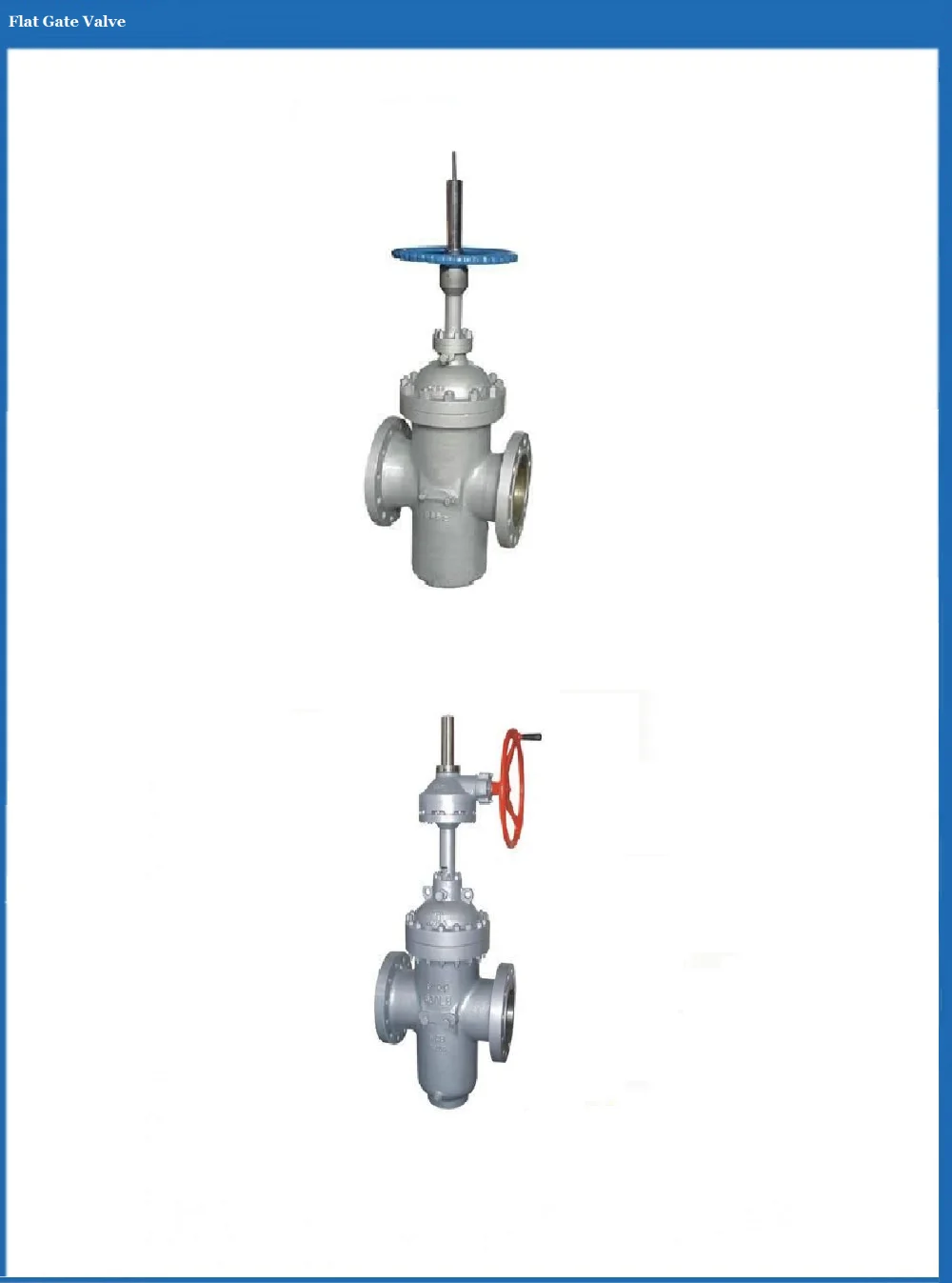

Structure of Flat Gate Valve

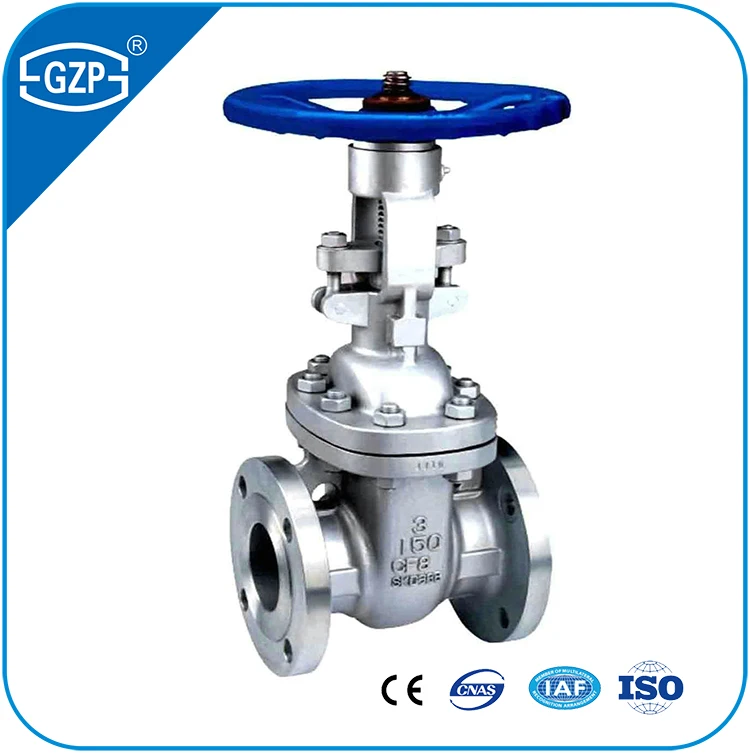

Gate valves consists of three main parts: body, bonnet and trim.

The body is generally connected to other equipment by means of flanged, screwed or welded connections.

The bonnet, which containing the moving parts is attached to the body, usually with bolts to permit maintenance.

The valve trim consists of the stem, the gate, the disc or wedge and the seat rings.

Advantages of Flat Gate Valves

>> Good shutoff features
>> Gate valves are bidirectional and therefore they can be used in two directions
>> Pressure loss through the valve is minimal

Industrial Valves

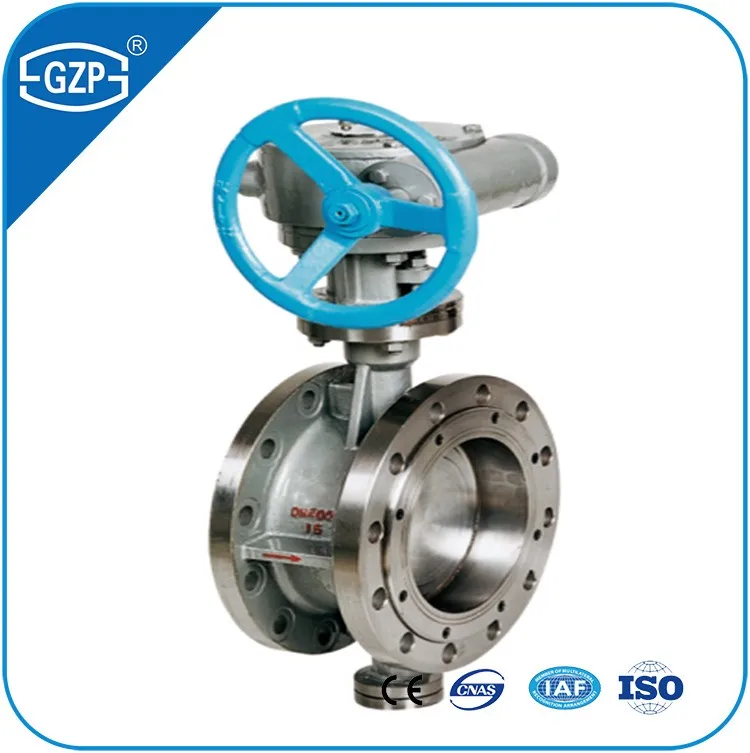

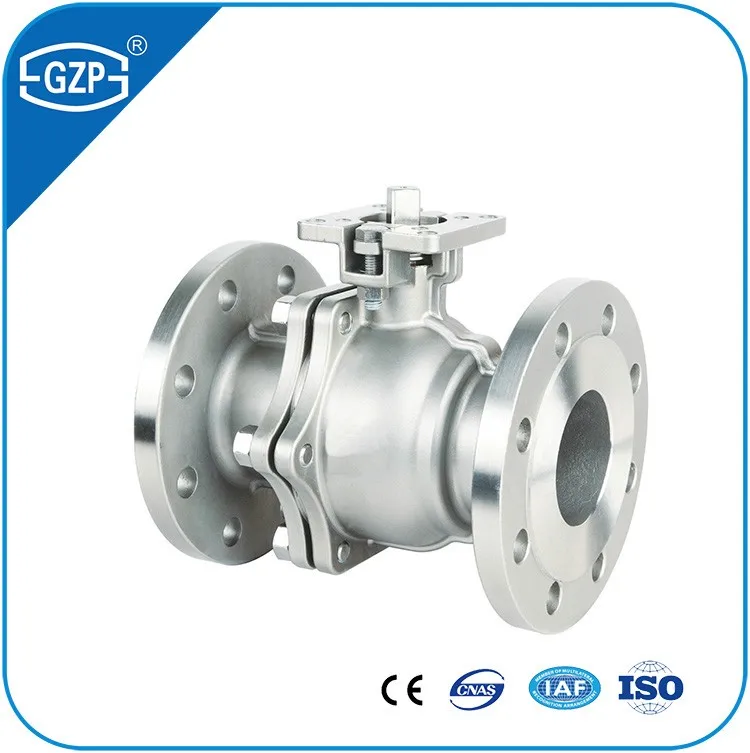

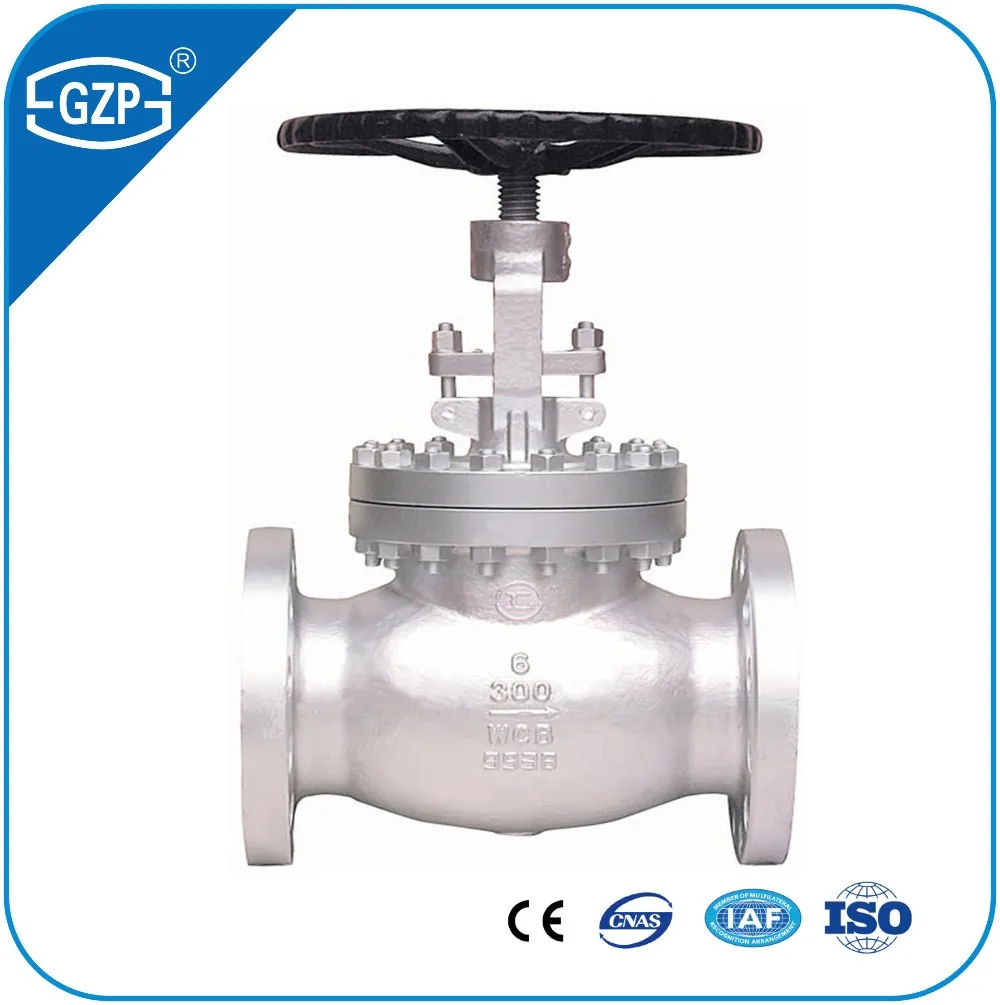

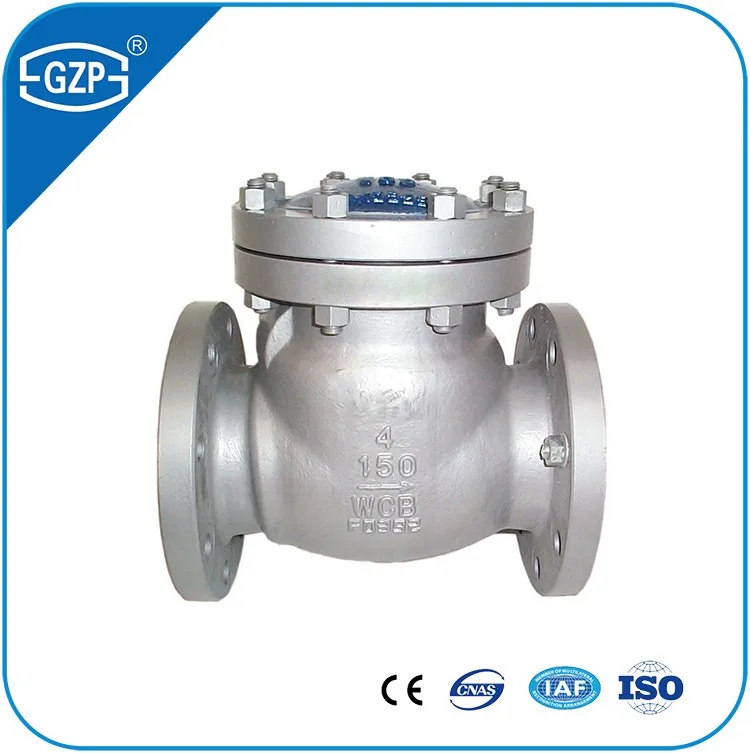

China High Mpa Valve Manufacturing have main 5 production line include: Gate Valve, Globe Valve, Check Valve, Ball Valve & Butterfly Valve.

Material include: Carbon Steel & Stainless Steel
