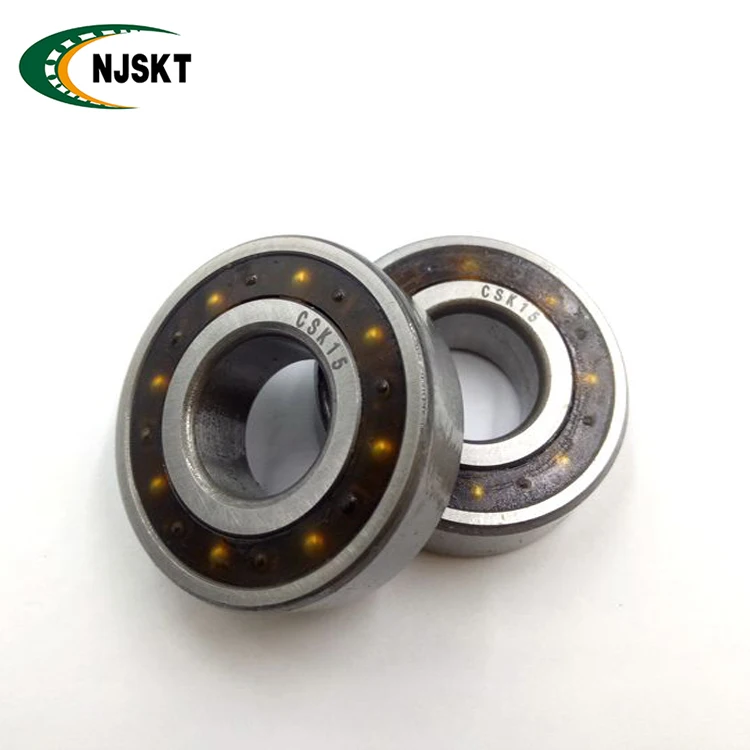

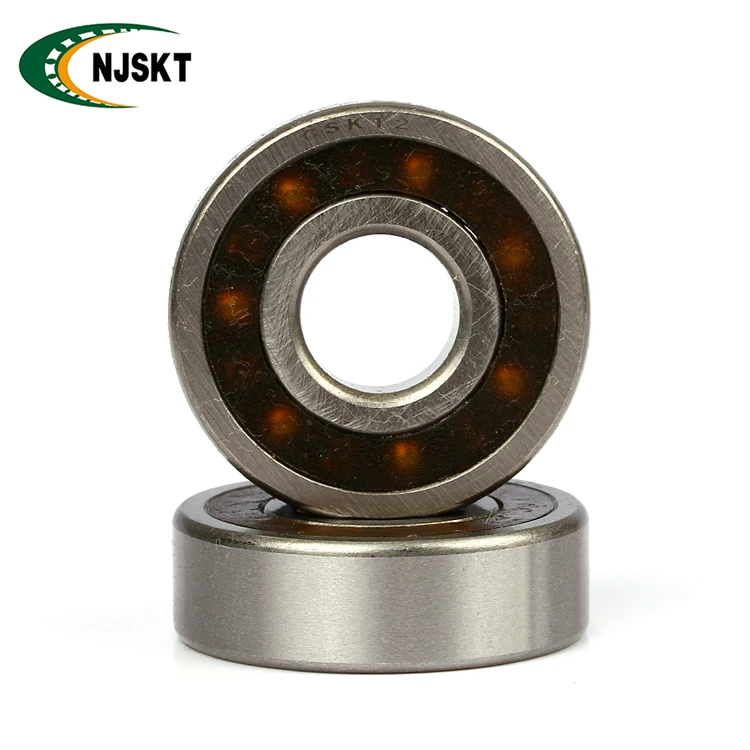

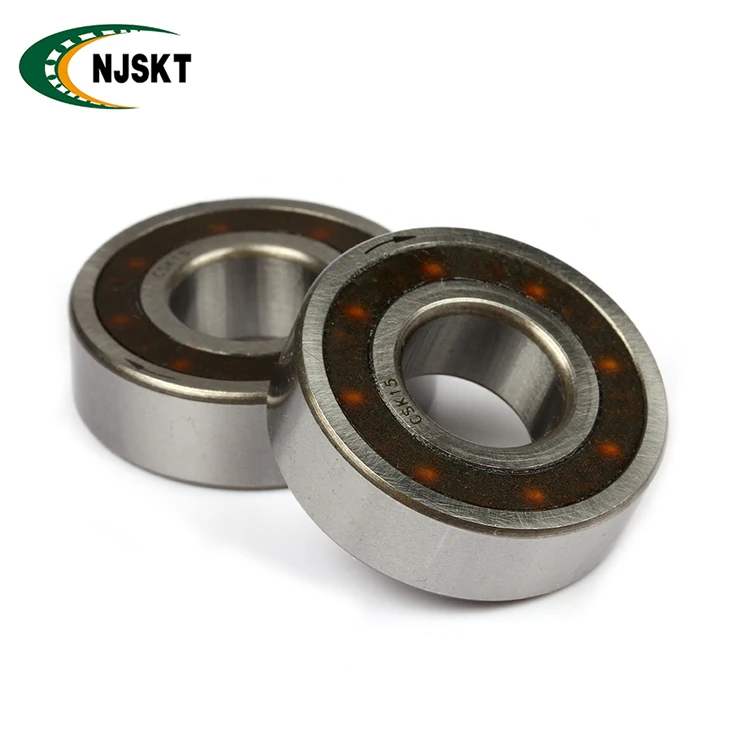

fishing reel one way bearing, overrunning clutch bearing CSK35 CSK35PP with keyway

Product Overview

Description

CSK series overrunning clutch bearing, ball bearing, one-way bearing CSK35 PP



One-way bearing is free to rotate in one direction, while in the other direction on a bearing locked. One-way bearings inside the metal shell that contains lots of roller, needle or ball, and the rolling seat (hole) shape so that it can only scroll in one direction, while in the other direction will have great resistance.

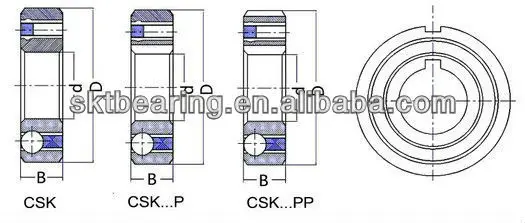

CSK series is without sealed and keyway.

CSK...2RS series is sealed on both sides.

CSK...P series is with one keyway on inner ring.

CSK...PP series is with two keyways on inner ring and outer ring



One-way bearing features:

High carrying capacity

Enough storage grease space

High limited speed

Long life



One-way bearing application:

One-way bearings are widely used in printing machinery, packing machinery, food machinery, two-speed gearboxes, electric roller, exercise equipment, automobile industry; Household appliances, fishing reel, Currency detector, etc.



One-way bearing types:

We may produce many kinds of one-way bearing including: HF, HFL, FC, FCB, RCB, RC, F, IWC, EWC, DC, CSK, CKB (B200), ASNU, CKA, FWD, NF, DZ, CKA, CKZ, MG, ASNU, UHF, GC, CKH, PB, CKY, CKF, NYD, CKS and so on.





Details:
Name	one way bearng, overrunning clutch bearing, ball bearing
Brand	NJSKT, STIEBER, KOYO, TSUBAKI
No.	CSK35 PP
Quality Standard:	ISO9001:2008
size:	following list
Minimum quantity:	1 piece
Precision:	P0, P4, P5, P6
Vibration:	ZV1,ZV2,ZV3
Clearance:	C2, C3, C4, C5
Hardness:	59-63 HRC
Seal Types	open or sealed
Material:	Gcr15, Gcr15SiMn, Chrome steel
Cage material	steel

size:

Bearing NO.	nominal torque          Tn(N.m)	boundary dimension			limit speed (r/min)				bearing series	inner ring keyway(b×t)	Outer ring keyway  (b×t)	weight  (kg)
		bore d	OD	breadth  L	bore		outer ring
					grease lubrication	oil lubrication	grease lubrication	oil lubrication
CSK12	7.4	12	32	10	10000	11000	5500	6500	6201			0.04
CSK15	13.5	15	35	11	8400	9400	5000	6000	6202	5×1.5	2×0.6	0.06
CSK17	24.5	17	40	12	6300	7800	4200	5200	6203	5×1.8	2×1.0	0.07
CSK20	40	20	47	14	6300	7800	4200	5200	6204	6×2.0	3×1.5	0.11
CSK25	68	25	52	15	4800	5900	3400	4200	6205	8×2.0	6×2.0	0.14
CSK30	110	30	62	16	4000	5000	2800	3500	6206	10×2.3	6×2.0	0.21
CSK35	140	35	72	17	3500	4000	2200	2800	6207	10×2.4	8×2.5	0.3
CSK40	260	40	80	22	3000	3800	2000	2500		12×2.4	10×3.0	0.5
CSK12 2RS	7.4	12	32	14	10000	11000	5500	6500				0.05
CSK15 2RS	13.5	15	35	16	8400	9400	5000	6000		5×1.5	2×0.6	0.07
CSK17 2RS	24.5	17	40	17	6300	7800	4200	5200		5×1.8	2×1.0	0.09
CSK20 2RS	40	20	47	19	6300	7800	4200	5200		6×2.0	3×1.5	0.154
CSK25 2RS	68	25	52	20	4800	5900	3400	4200		8×2.0	6×2.0	0.175
CSK30 2RS	110	30	62	21	4000	5000	2800	3500		10×2.3	6×2.0	0.27
CSK35 2RS	140	35	72	22	3500	4000	2200	2800		10×2.4	8×2.5	0.4
CSK40 2RS	260	40	80	27	3000	3800	2000	2500		12×2.4	10×3.0	0.6

Shipment

For small orders,we send by express UPS,DHL,FEDEX, or EMS with Thracking number. For big quantity, we will ship by air or by sea.



Payment terms

1. We can accept PAYMENT terms: T/T  L/C

2. For small amount, we accept Western Union and PAYPAL



Delivery date

Normally ready goods and stock within 4-15 days. Bulk quantity within 30-45days.



Samples Policy

sample cost needed and freight collected. We will reduct this part expense from the total value when place order.



Package

1. Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton

2. Commercial packing: 1pc/plastic bag + color box + carton

3. As the clients' requirement



Service:

We are 100% manufacture. We can supply you technical support.

We have strict quality control processes. We supply high quality bearings with fair price.

We may supply other brand bearings and offer buyer labels.

We can manufacture any bearings according to customer's drawings and samples.
