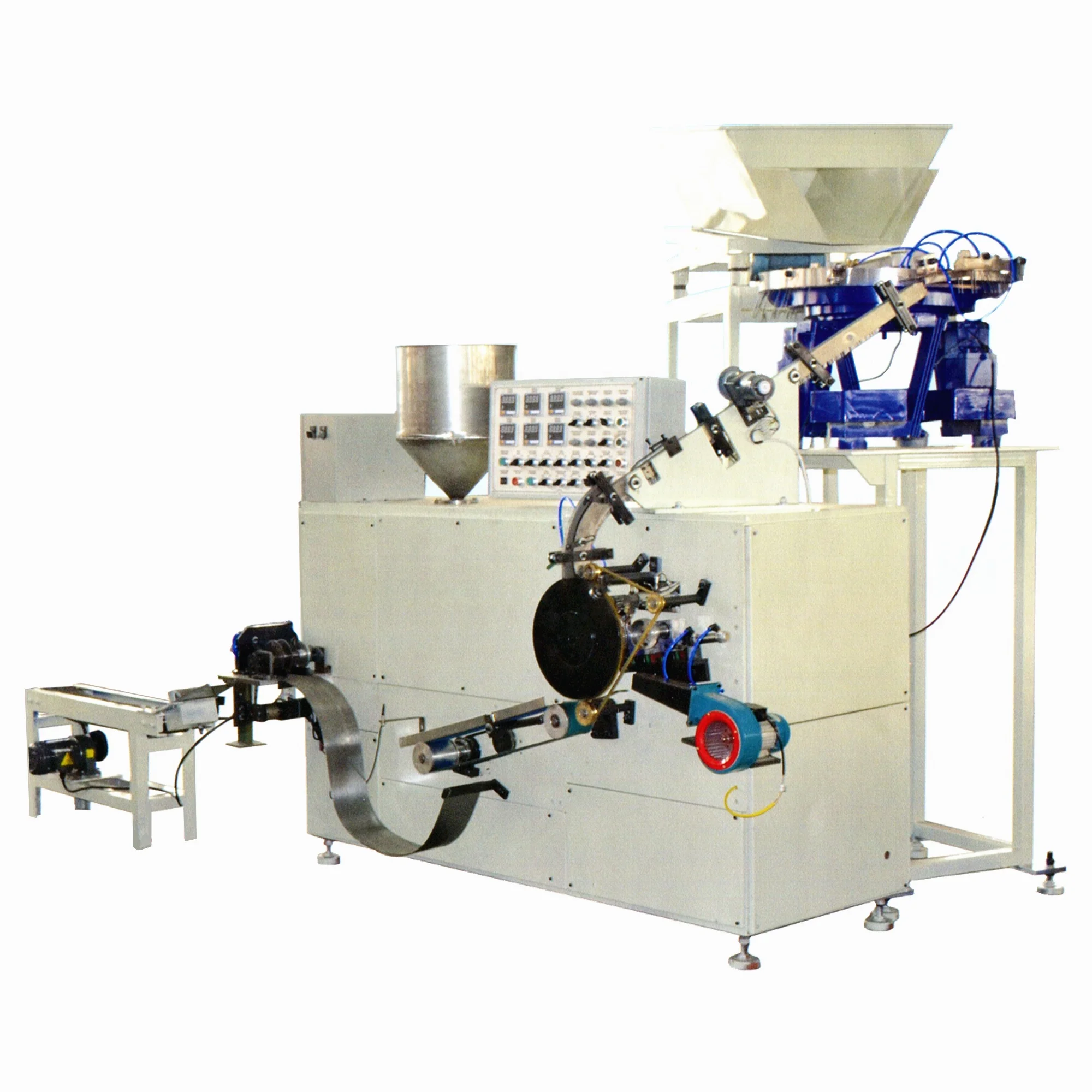

This plastic strip nail collator is a special kind of plastic strip collated nail machine. Combined the advantages of similar Taiwanese and Korean sources with our own unique technology, we successfully developed this quality-reliable, cost-effective, appearance-attractive and operation-easy product.
Nail collating speed
1000 nails /Min.
Applicable nail sizes
Shank dia.
Ø2.5mm - 4.0mm
Length
50 - 100mm
Strip Spec.
Angle
21° Degree *
Nails per strip
28 nails
Material for plastic strip
Reinforced PE
Power supply
AC 380V, 50Hz, 3-phase (upon request, others
available too, like: AC 220V, 60Hz, 3-phase)
Rated power
Approximately 13KW
(two motors, heating tubes & vibratory feeder )
Operating speed control
2 variable frequency inverters
Compressed air
≥ 4.5Kg/cm2
Net weight
1500kgs
Overall dimensions ( L x W x H )
2850 x 1520 x 2500 (mm)
* Other inclination angle is available upon request but needs purchasing more separate accessories.
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.
