TRB155 Long Durability and Stable Performance Excavator Hydraulic Hammer, Hydraulic Breaker
- Category: >>>
- Supplier: Beijing Pro Drill Equipment Co. Ltd.Beijing Ltd.
Share on (60485433436):
Product Overview
Description
Product Description
| General introduction: |
We are a professional manufacturer specialized in the hydraulic breaker with superior quality, We also supply other concerned hydraulic spare parts including main body assembly, the back head, cylinder assembly, front head, piston, reversing valve, oil seal retainer and etc. Our products can be used for Komatsu, Hitachi, Kobelco, Kato, Sumitomo, Hyundai, Volvo excavator, etc.
1) use the highest strength material to get better wearing resistance.
(2)Easy maintenance,prolonged life.
(3) we have accumulated sales of 20,000 units, rich maintenance experience.
(4)The warranty period is 1 year.
Specification:
| TRB 155 | Unit | Side-Type | Top-Type | Silenced-Type | |
| Applicable excavator | ton | 28~35 | 28~35 | 28~35 | |
| Gross Weight | kg | 2440 | 2700 | 2635 | |
| Main body weight | kg | 1283 | 1283 | 1283 | |
| Required oil flow | l/min | 180~240 | 180~240 | 180~240 | |
| Set pressure | bar | 240 | 240 | 240 | |
| Operating pressure | bar | 160~180 | 160~180 | 160~180 | |
| Impact rate | bpm | 300~450 | 300~450 | 300~450 | |
| Tool | Diameter | mm | 155 | 155 | 155 |
| Length | mm | 1500 | 1500 | 1500 | |
| Impact energy | kg.m | 663 | 663 | 663 | |

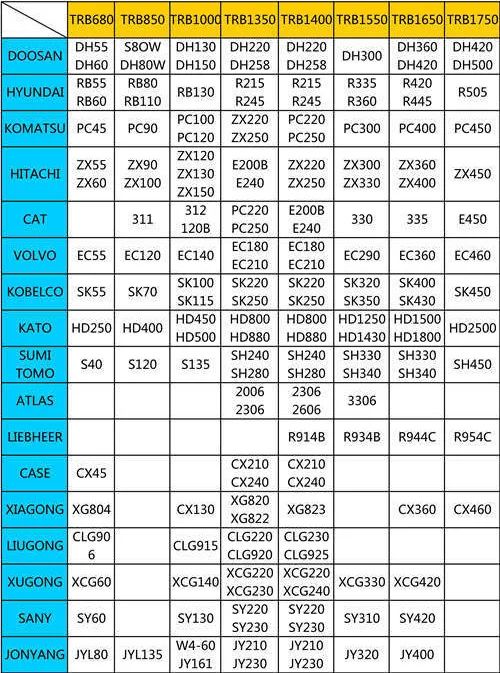

TRB Hydraulic Breakers to fit excavators brand & model No.

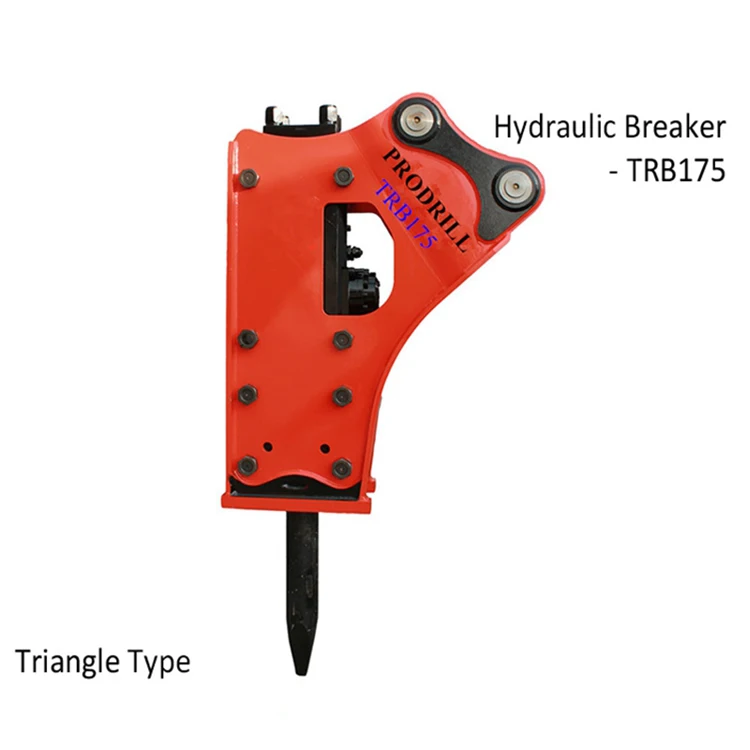

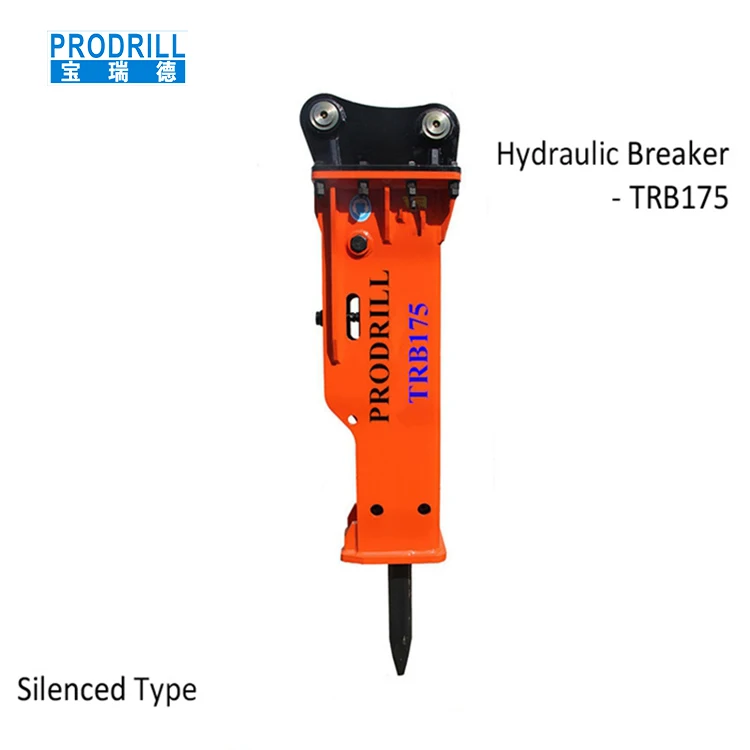

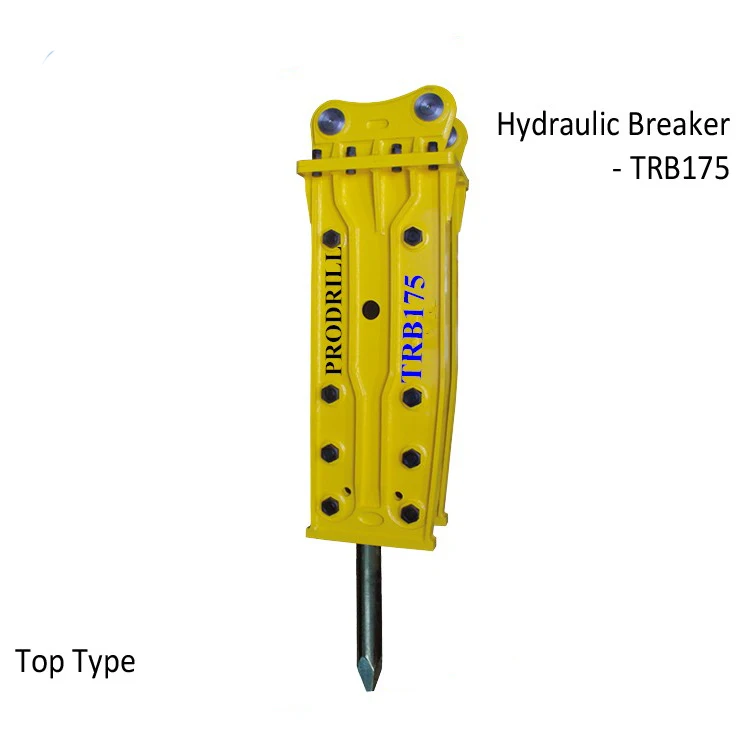

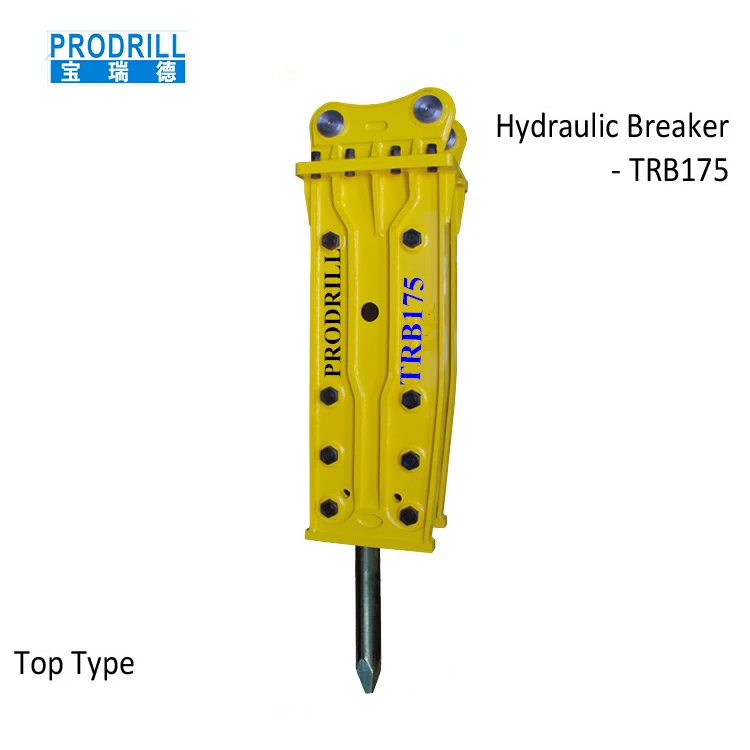

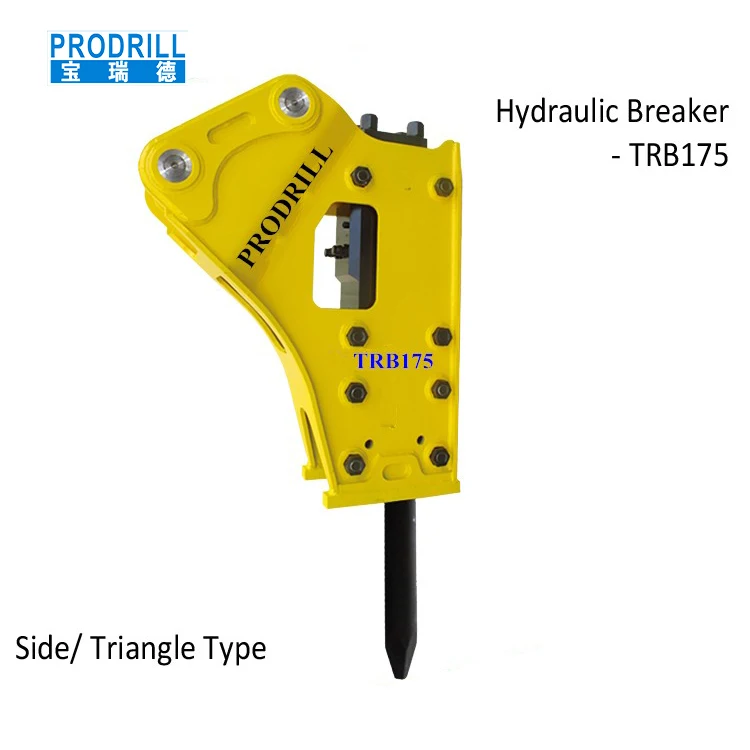

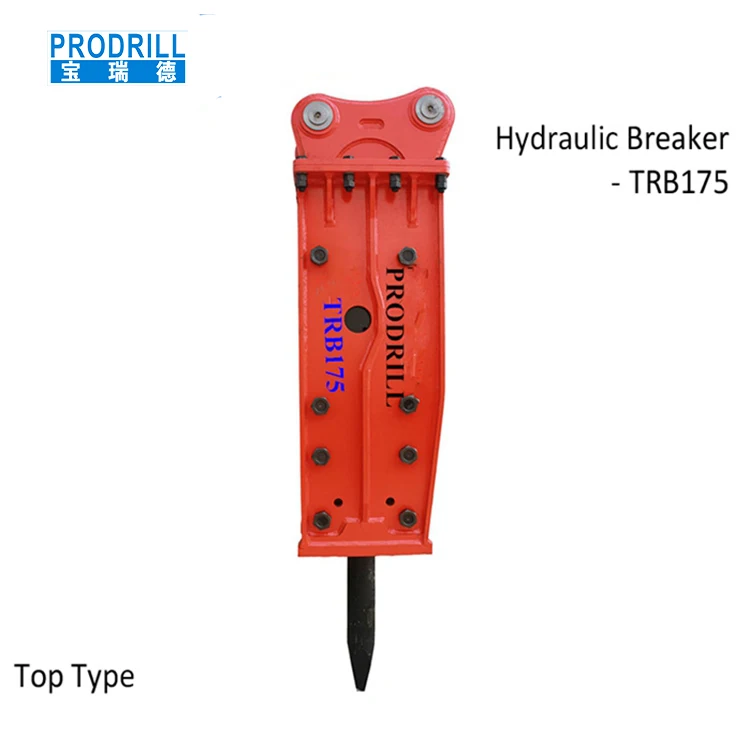

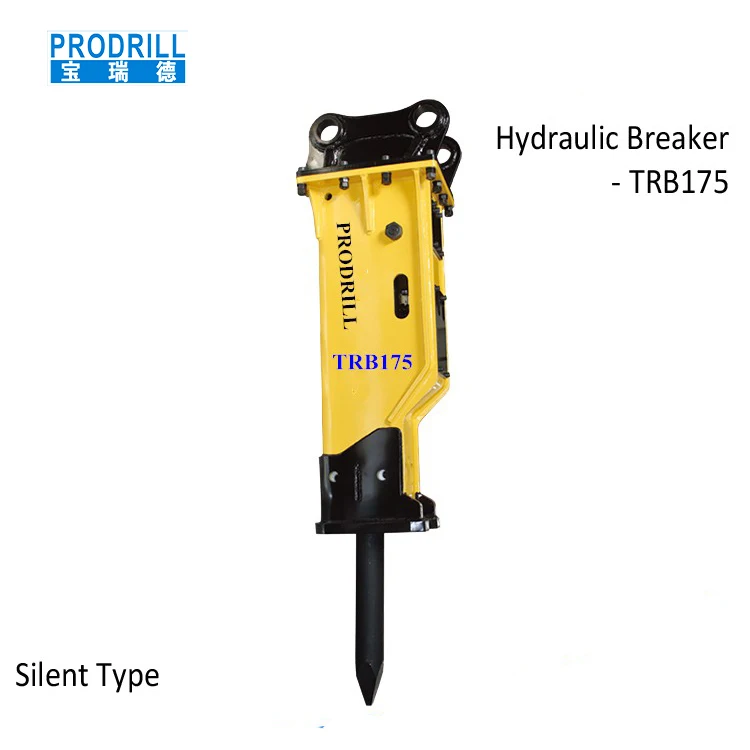

| Product Photos |

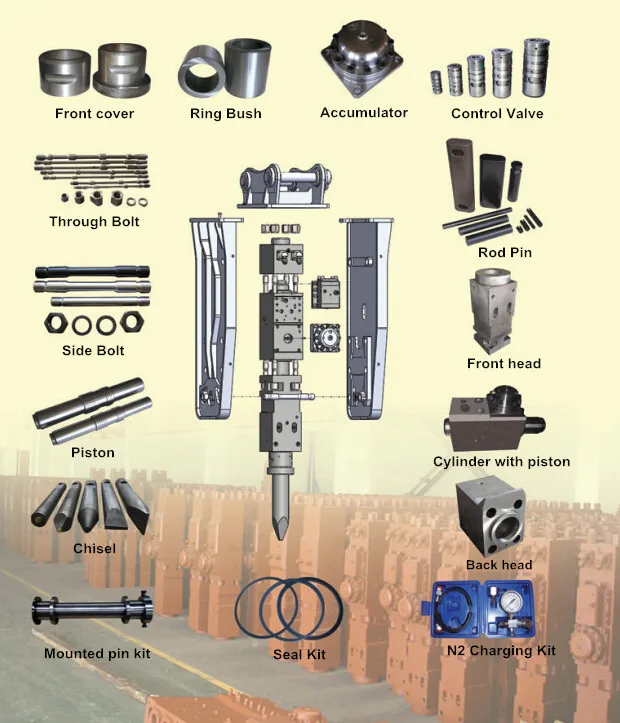

| Spare Parts |

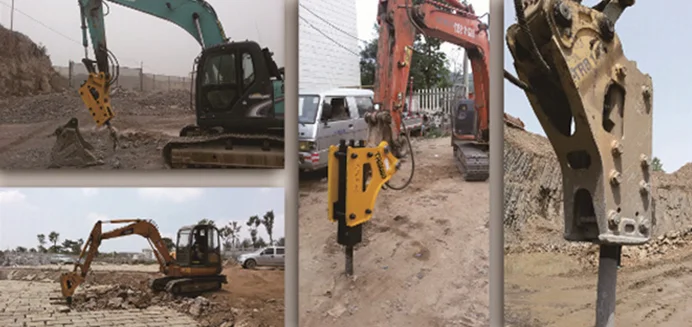

Applications
![_%T]DWHP]B3ROVS46C`2P.png](http://sc01.alicdn.com/kf/HTB1pjicLXXXXXXoXXXX760XFXXXp/224307276/HTB1pjicLXXXXXXoXXXX760XFXXXp.png)
Packaging & Shipping

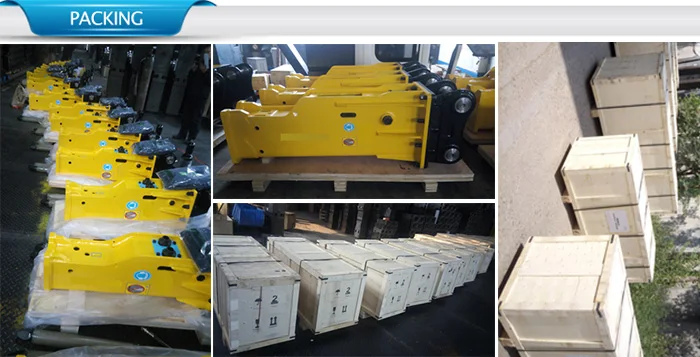

Packaging & Delivery:
Two chisels, a netrogen device with a netrogen bottle, a gauge, all hoses and a maintenance tool box with all
necessary tools
Fumigation-free Plywood Boxes For Export
Fumigation-free Plywood Boxes For Export

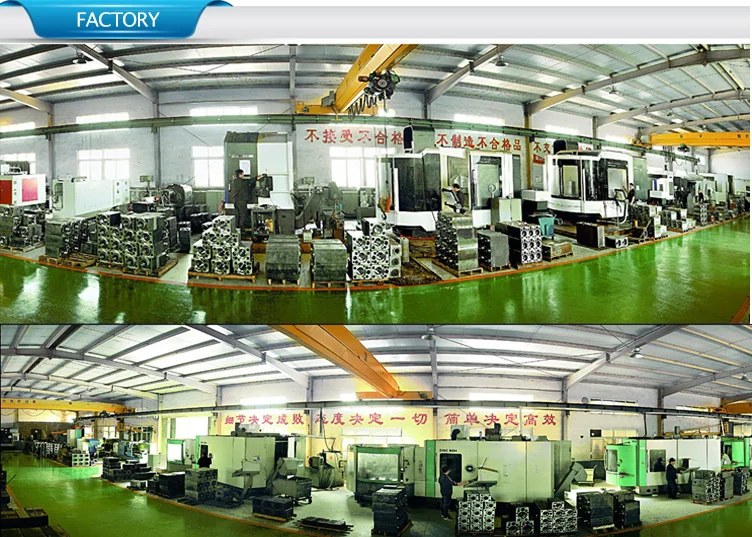

Process of products

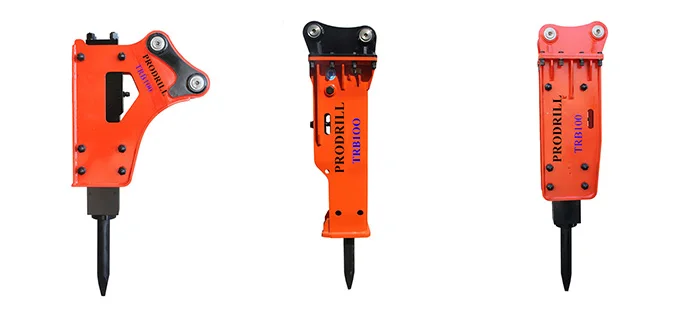

More Products
FAQ
Terms & Conditions of Ordering:
1 .Payment Terms:
T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: we suggest Courier express or by air
Bulk order: we suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded)
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a
refund.
