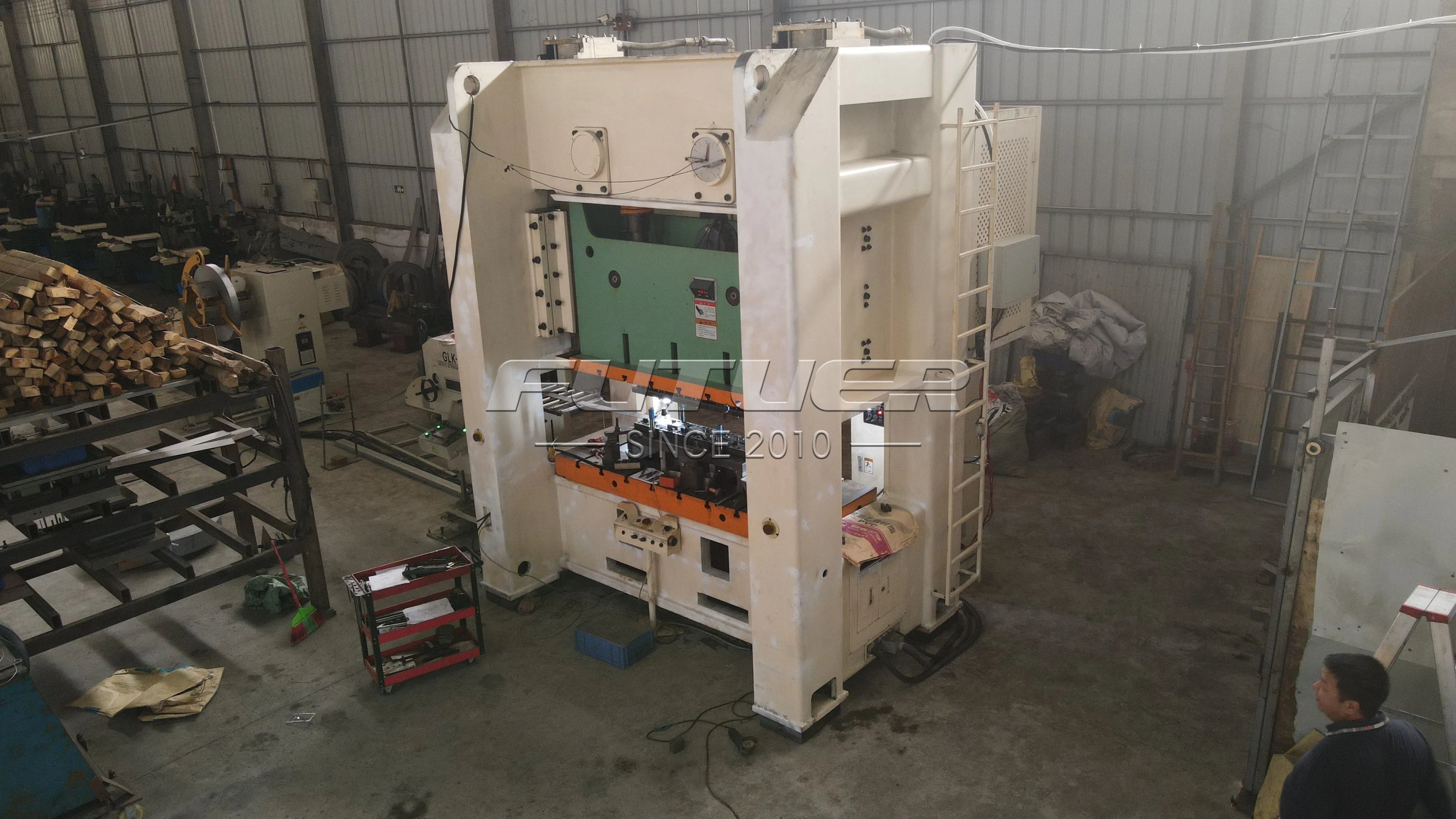

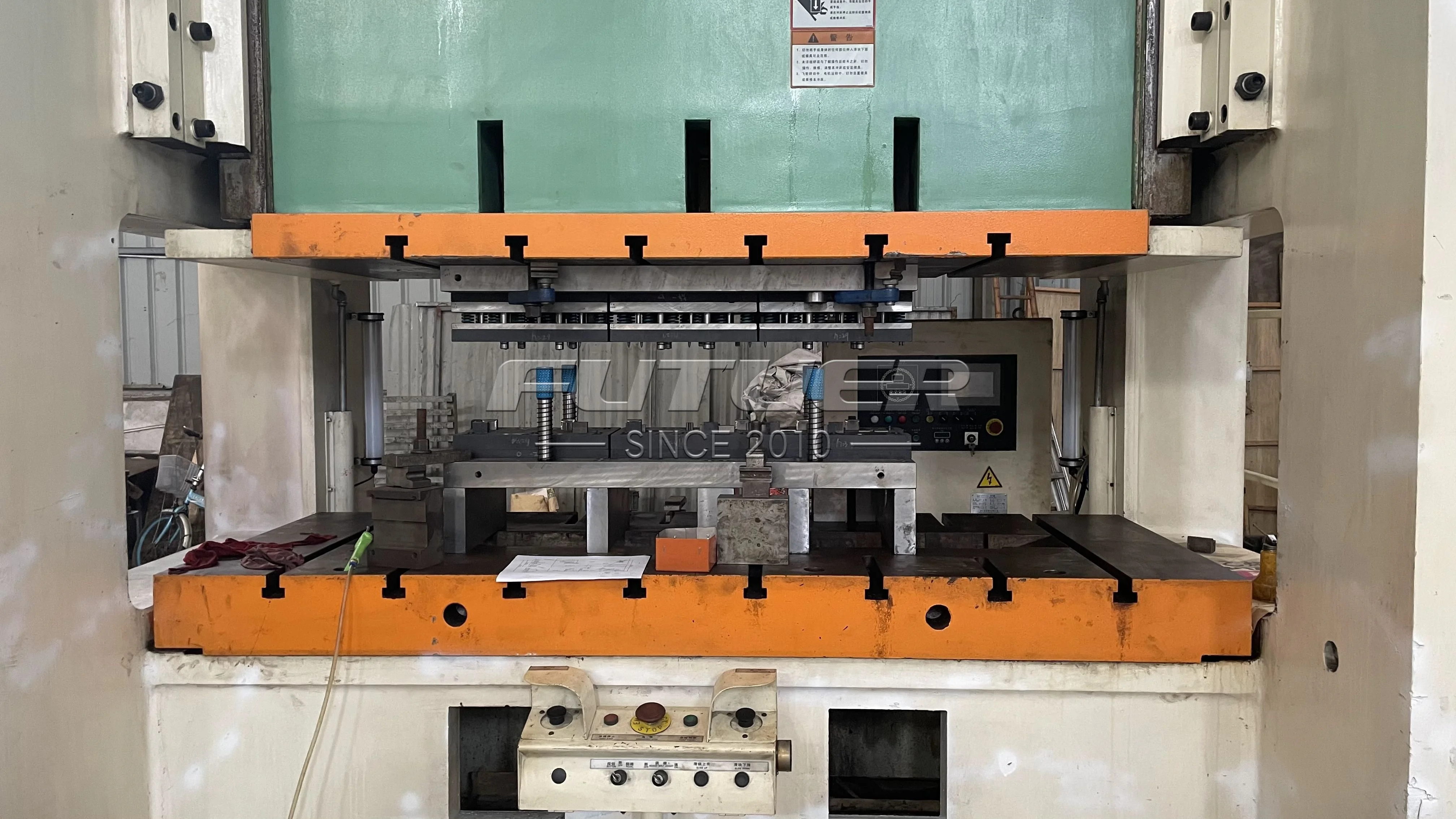

Fixed platform power punch Professional double point power press Hinge production line Open double point power press
- Category: >>>
- Supplier: Foshan Fanshun Machinery Co. Ltd.
Share on (60485548369):
Product Overview
Description
Products Description
production size

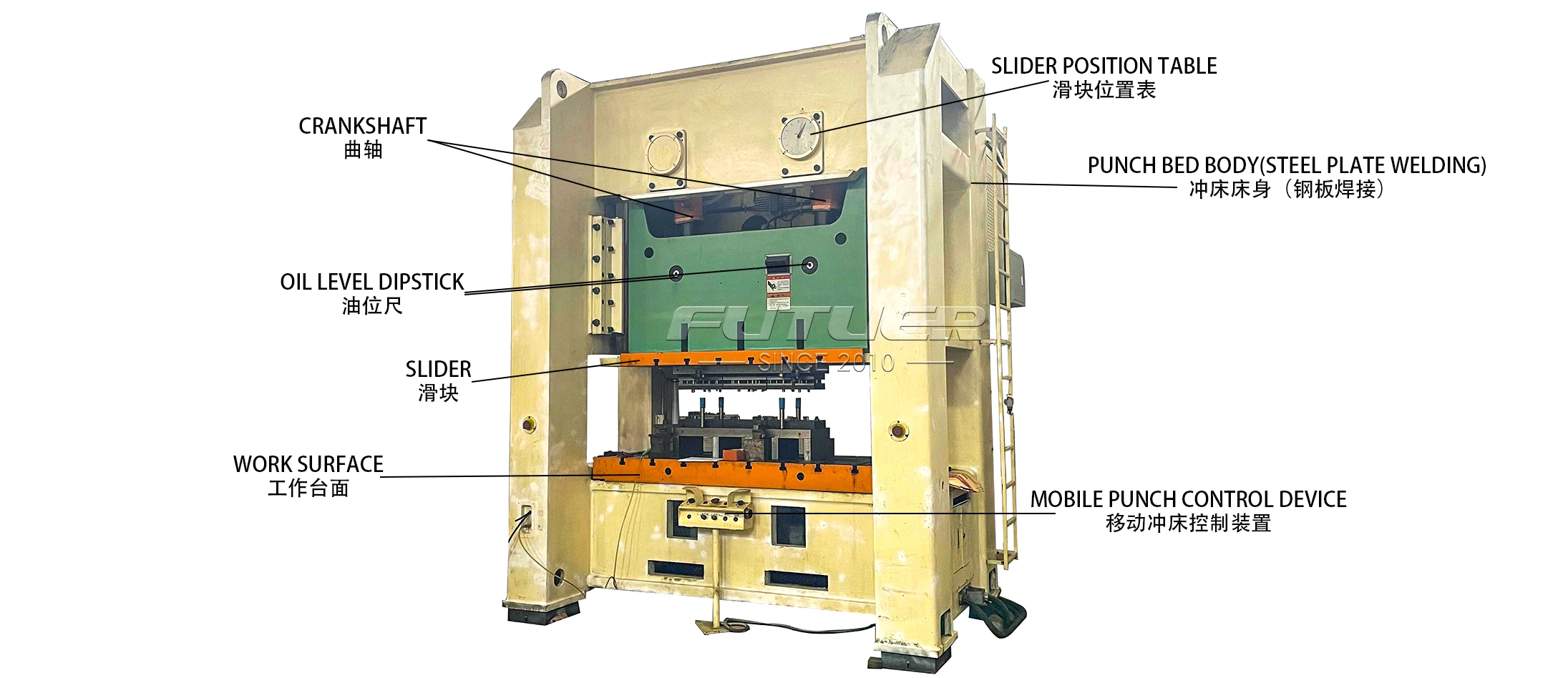

1. Steel plate welded integral frame column structure fuselage to ensure high strength of the fuselage
2. The double crankshaft rotates in the opposite direction, offsetting the lateral force
3. High performance, high torque dry friction clutch, optional wet clutch
4. Hydraulic overload protection device
5. Eight high-precision long guide rails
6. Electric mode adjustment, digital display
7. Lift-up balancing cylinder device
8. Imported double solenoid valve
9. Electric thick oil forced lubrication system
10. The balance cylinder adopts manual thin oil lubrication system
11. Equipped with a set of blowing device
12. Optional air cushion (airbag type or cylinder type), NC feeding device, photoelectric protection device, frequency converter to achieve adjustable stroke times
2. The double crankshaft rotates in the opposite direction, offsetting the lateral force
3. High performance, high torque dry friction clutch, optional wet clutch
4. Hydraulic overload protection device
5. Eight high-precision long guide rails
6. Electric mode adjustment, digital display
7. Lift-up balancing cylinder device
8. Imported double solenoid valve
9. Electric thick oil forced lubrication system
10. The balance cylinder adopts manual thin oil lubrication system
11. Equipped with a set of blowing device
12. Optional air cushion (airbag type or cylinder type), NC feeding device, photoelectric protection device, frequency converter to achieve adjustable stroke times
Description | unit | JM36-110 | JM36-160 | JM36-200 | JM36-250 | JM36-315 |
Nominal force | kN | 1100 | 1600 | 2000 | 2500 | 3150 |
Nominal stroke | mm | 5 | 6 | 7 | 8 | 8 |
Fixed | min-1 | 50 | 45 | 35 | 30 | 25 |
Varibale | 36~65 | 30~55 | 25~45 | 20~35 | 20~30 | |
Max die height | mm | 400 | 450 | 500 | 550 | 600 |
Die height adjustment | mm | 90 | 100 | 110 | 120 | 120 |
Bolster(F*B*L*R） | mm | 680*1650 | 760*1920 | 840*2250 | 920*2450 | 1000*2400 |

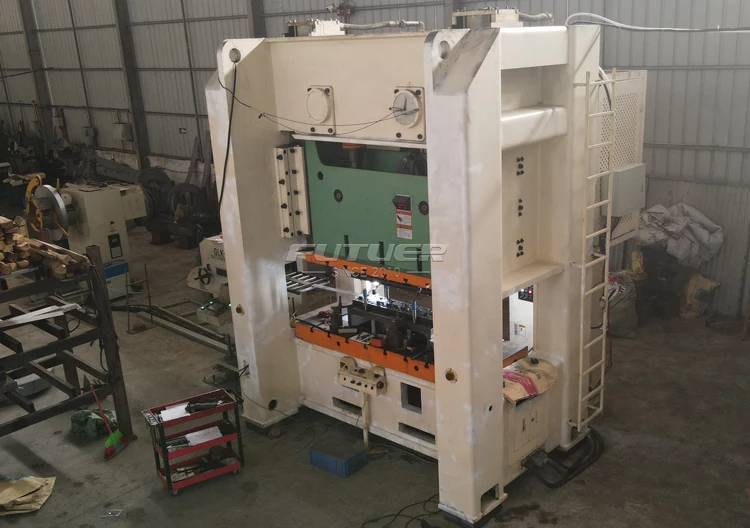

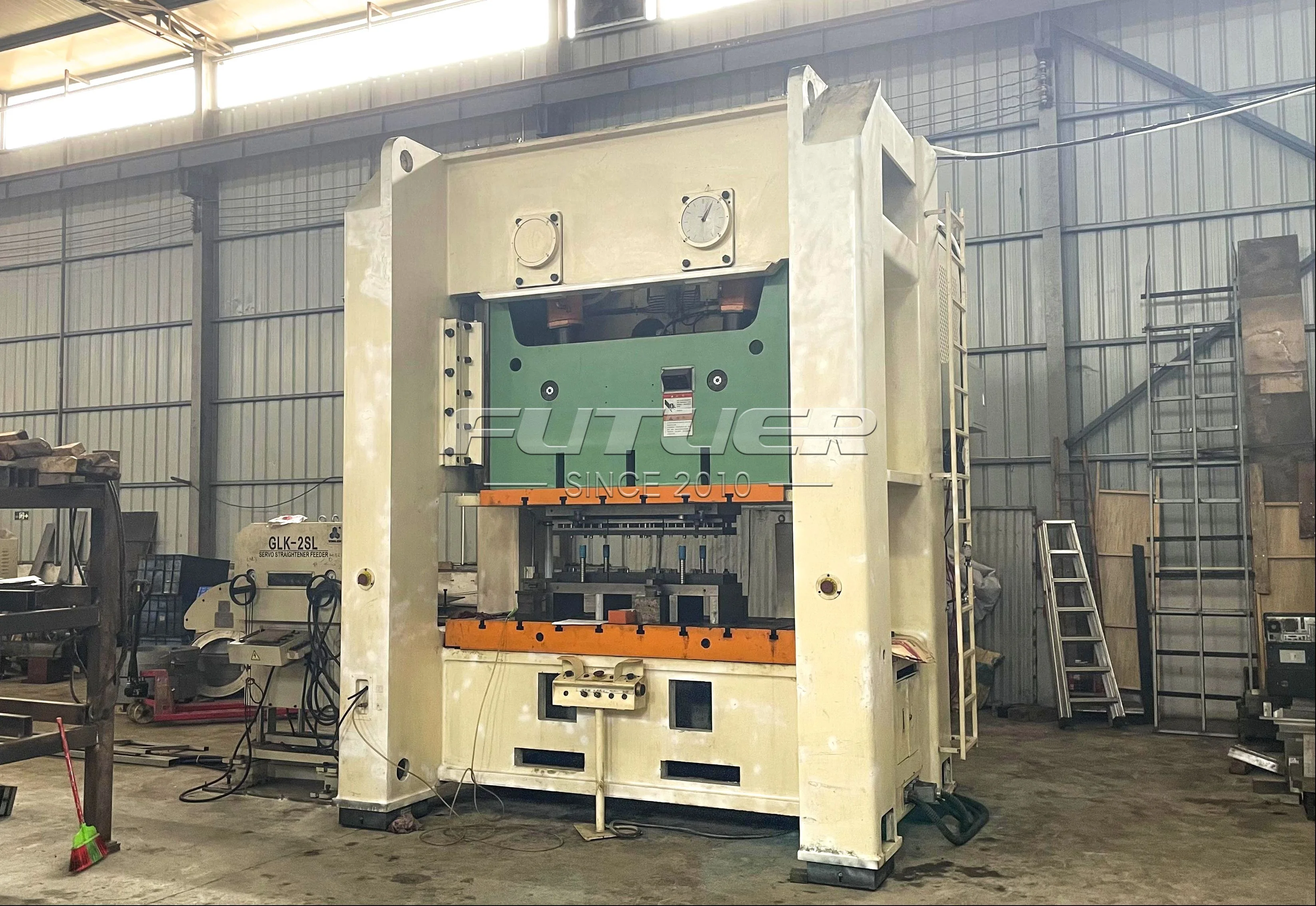

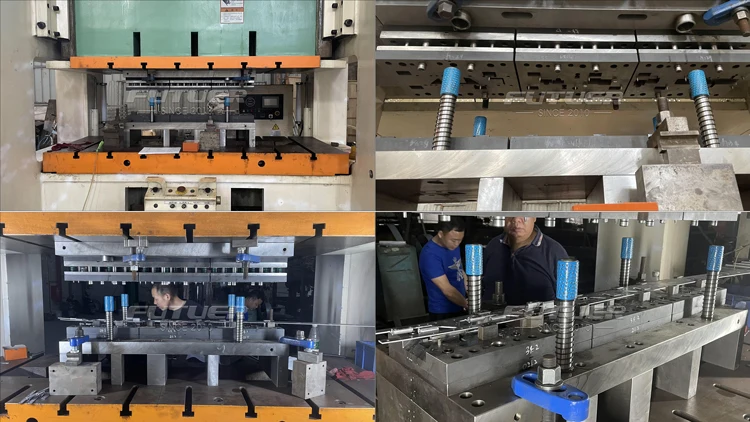

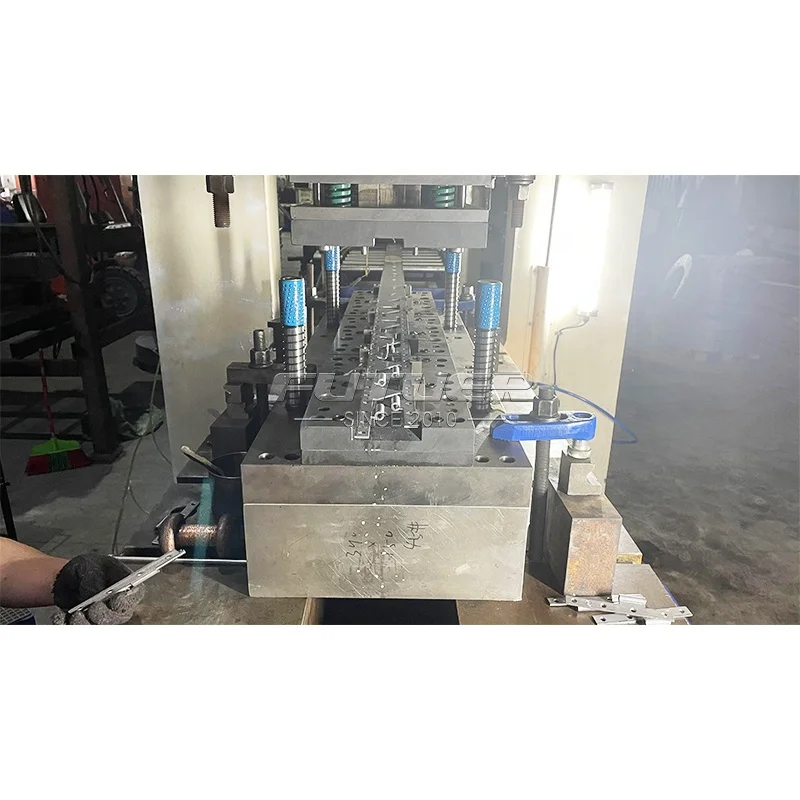

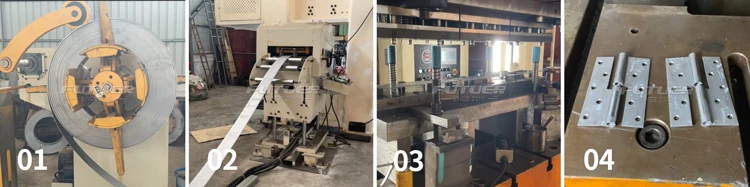

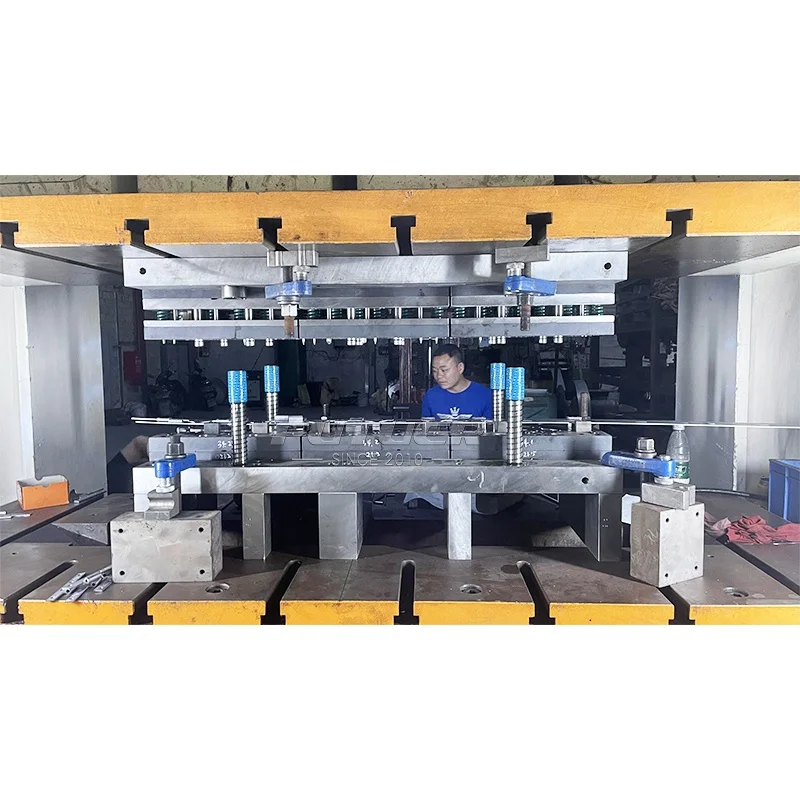

Details Images
