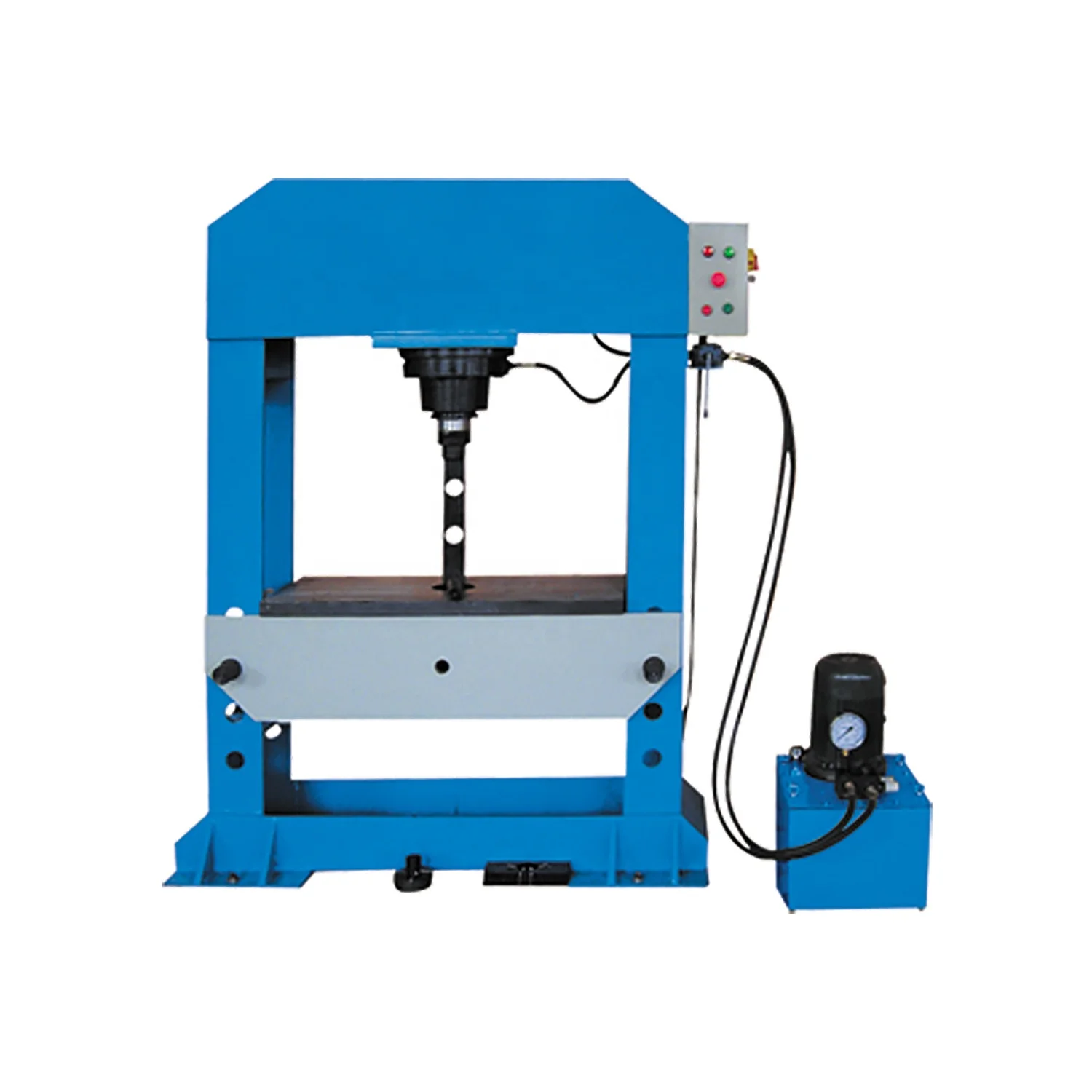

HP 500 TTMC Electric Hydraulic Press Machine, 5000KN Capacity H Frame Hydraulic Press Machine
- Category: >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (60485558752):
Product Overview
Description
Product Overview
TTMC H Frame Shop Press
500 Tonne Industrial Hydraulic Press
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well has all general pressing applications
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well has all general pressing applications
FEATURES AT A GLANCE
500-ton capacity hydraulic press.
1200 mm working width.
Fitted with metric / imperial pressure gauge
1200 mm working width.
Fitted with metric / imperial pressure gauge
Adjustable table height
Includes 2-piece V-block.
Strong hydraulic cylinder ensures precise pressing during operation
Fixed horizontal ram position (Optional available for moveable ram position)
Heavy duty robotic welded steel fabricated frame
Hydraulic joystick control lever
Includes 2-piece V-block.
Strong hydraulic cylinder ensures precise pressing during operation
Fixed horizontal ram position (Optional available for moveable ram position)
Heavy duty robotic welded steel fabricated frame
Hydraulic joystick control lever
Ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc
PRODUCT SPECIFICATIONS
TTMC H Frame Shop Press, if you need model not listed on the following chart, please contact us
Item No. | 382001 | 382002 | 382011 | 382017 | 382006 |
Model | HP-30 | HP-50 | HP-63 | HP-80 | HP-100 |
Capacity (KN) | 300 | 500 | 630 | 800 | 1000 |
Pressure (Mpa) | 25 | 25 | 25 | 30 | 30 |
Piston travel (mm) | 200 | 220 | 220 | 260 | 250 |
Table travel (mm) | 270 | 405 | 405 | 650 | 405 |
Table size (mm) | 300x400 | 350x480 | 350x480 | 400x780 | 460x980 |
Packing size (cm) | 123x55x168 | 148x64x200 | 150x65x195 | 170x65x200 | 175x75x220 |
Hydrau. station (cm) | - | - | - | - | 73x63x96 |
N.W./G.W. (kg) | 420/650 | 520/593 | 620/700 | 995/1195 | 1020/1220 |
Item No. | 382012 | 382013 | 382014 | 382015 | 382016 |
Model | HP-150 | HP-200 | HP-300 | HP-400 | HP-500 |
Capacity (KN) | 1500 | 2000 | 3000 | 4000 | 5000 |
Pressure (Mpa) | 30 | 31.5 | 31.5 | 31.5 | 31.5 |
Piston travel ( mm) | 250 | 300 mm | 300 | 300 | 300 |
Table travel ( mm) | 405 | 405 | 405 | 405 | 405 |
Table size ( mm) | 460x980 | 500x1000 | 700x1200 | 800x1200 | 900x1200 |
Packing size ( cm) | 179x72x220 | 194x80x225 | 210x95x270 | 230x100x290 | 230x100x290 |
Hydrau. Station ( cm) | 73x63x96 | 90x80x106 | 110x120x135 | 110x120x135 | 110x120x135 |
N.W./G.W. (kg) | 1360/1540 | 1734/1840 | 4200/4500 | 5500/5850 | 6500/6900 |
