Automatic Spiral Paper Tube Making Machine SJG-1000-IV
Usage and Features:
This Spiral Paper Core winder is suitable to produce thick walled cores for various applications like reel cores, film winding cores, carpet cores etc. which widely used for paper mill, plastic ,non-woven, stainless steel, PPGI and building mould industry.
This machine adopt PLC control, HMI input, The cutting carriage which driven by servo motor moves on a free slide rails synchronized with the main tube winder. The online fine cutting unit delivers burr free cores without dust and noise generation.
This Spiral Paper Core winder is suitable to produce thick walled cores for various applications like reel cores, film winding cores, carpet cores etc. which widely used for paper mill, plastic ,non-woven, stainless steel, PPGI and building mould industry.
This machine adopt PLC control, HMI input, The cutting carriage which driven by servo motor moves on a free slide rails synchronized with the main tube winder. The online fine cutting unit delivers burr free cores without dust and noise generation.
,Machine Technical Specification:
Machine Model | JG-1000-IV | ||||||
Paper Tube Diameter | 75~650mm | ||||||
Paper Tube Thickness | 1~30mm | ||||||
Working Speed | 1~15m/min | ||||||
No. layers of machine | 44 layers | ||||||
Cutting type | Servo motor control and sensor switch | ||||||
Control Type | HMI input, PLC control | ||||||
Machine power | Total around 35KW | ||||||
Detailed Images
Introduction of product advantages or application effect or application mode

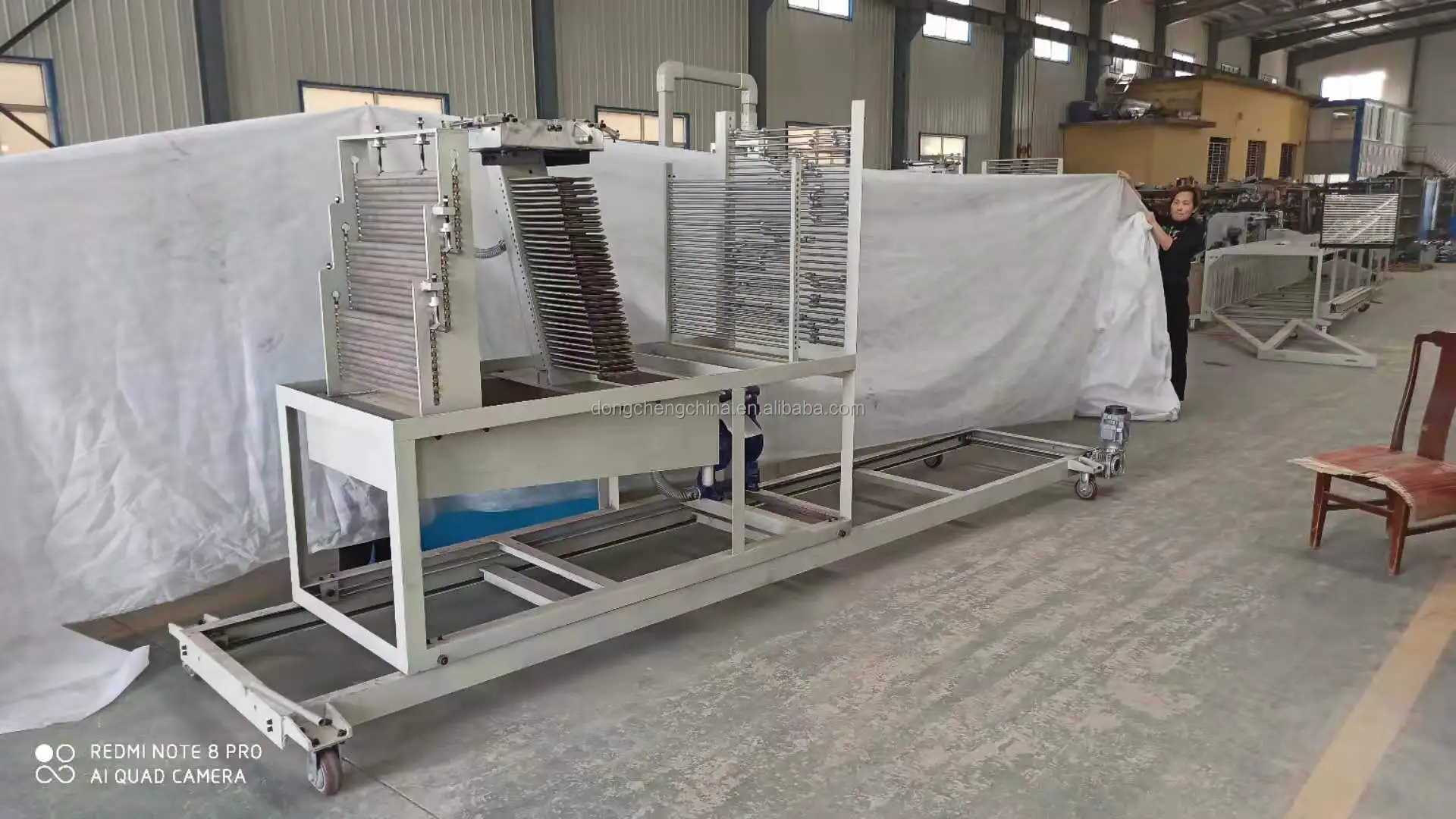

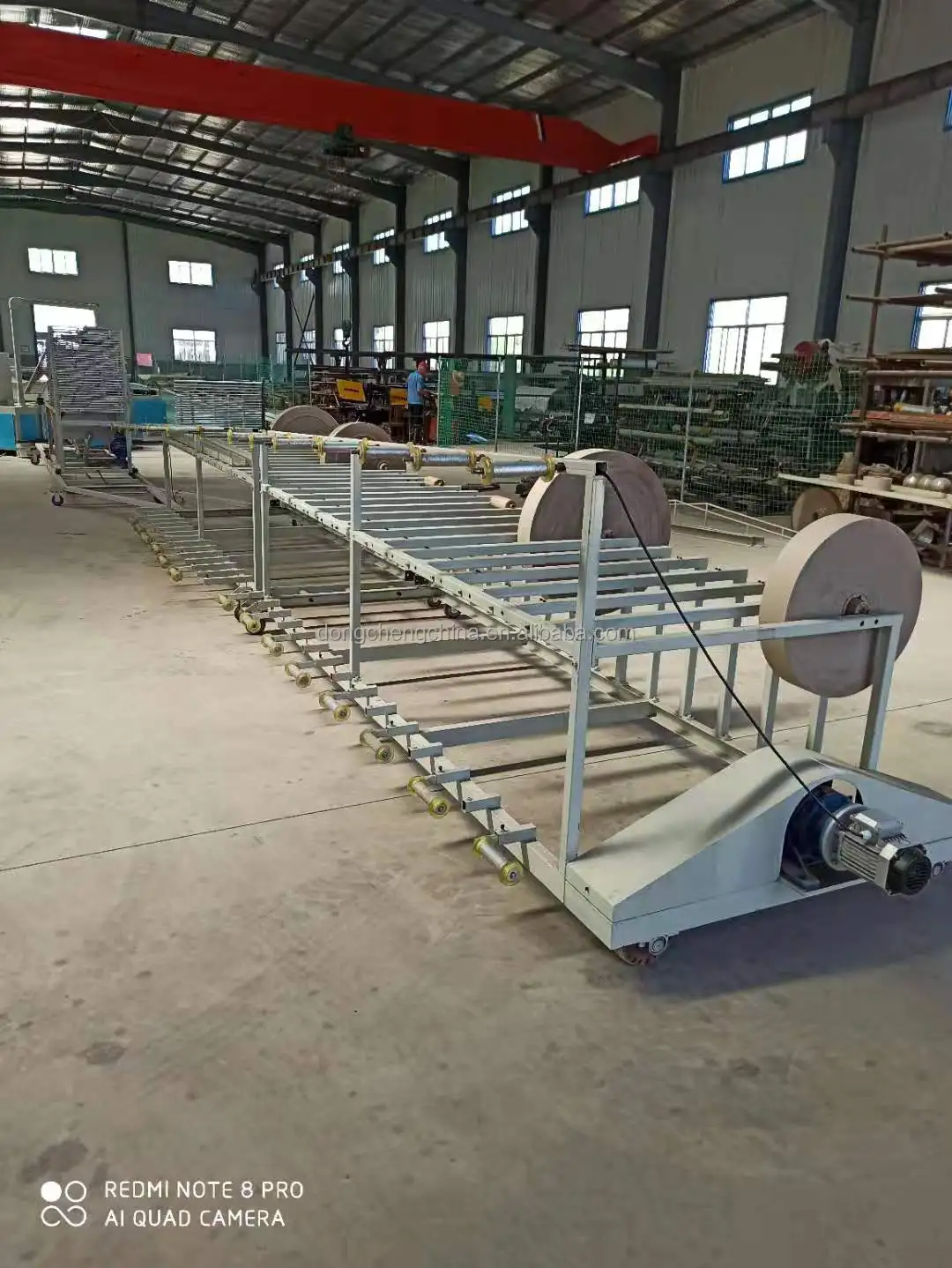

Paper Stand
The stand could be move left or right through electric motor, save labor and easy for adjust while produce different diameter tube
It could load 30 layers paper rolls, with electric hoist for loading paper reels
Integrate frame type,square tube welded , high rigidity and stable
Glue Unit
The glue unit could be move front and back on the bottom guide , easy to operate according to glue dry situation
Each layer have separate glue sick, easy for paper feeding
With Pneumatic diaphragm pump to drive and control glue from tank to top
Cutting Unit
With Servo Motor Control cutting length, high accuracy and good cutting quality
Easy for adjustment of sawing blade and supporting roller

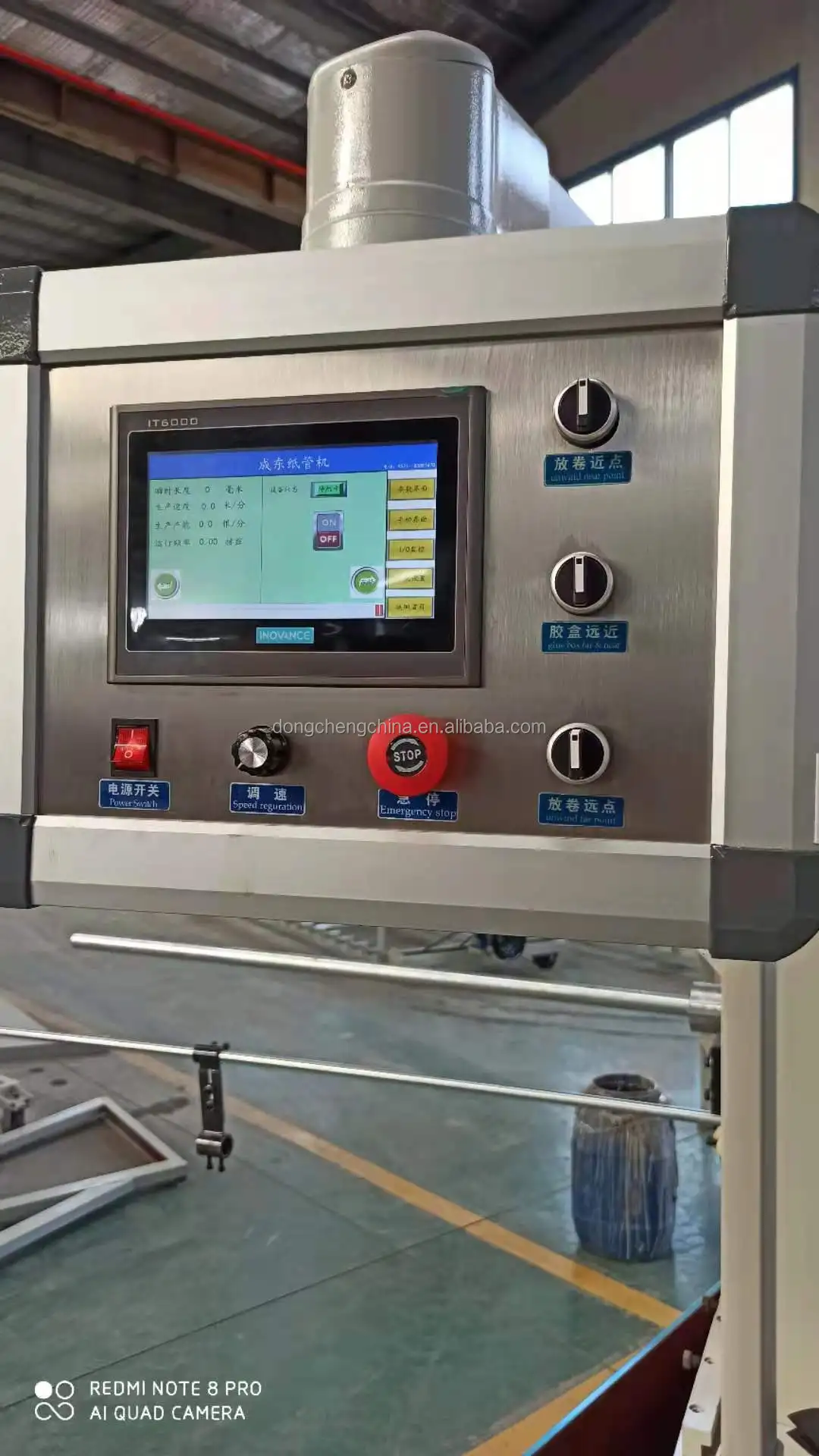

Operation Panel
HMI input, PLC control
Input required cutting length
Adjust working speed through Frequency inverter
Input required cutting length
Adjust working speed through Frequency inverter

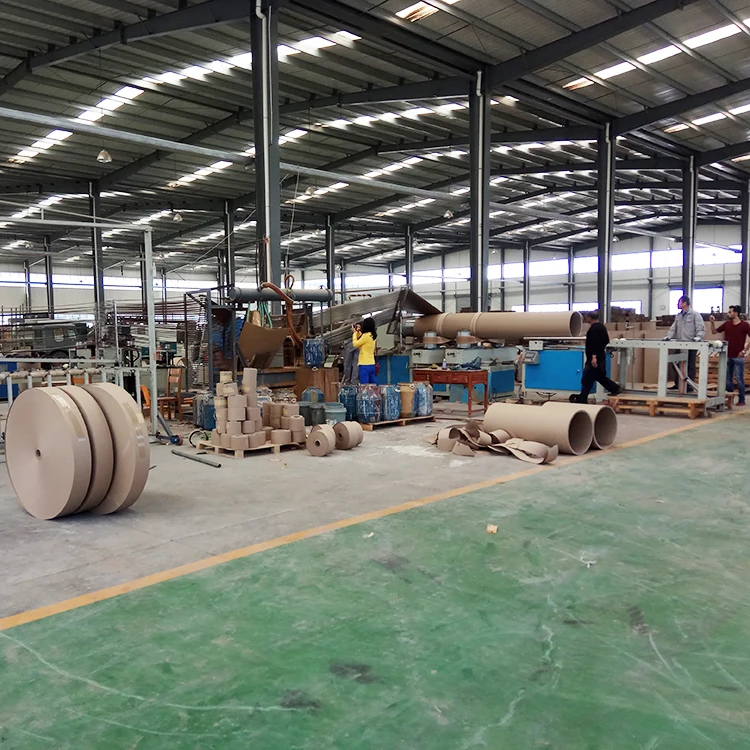

Product made by this machines
Maximum outer diameter 680mm
Strong, suitable for stainless steel, color steel, aluminum foil, copper strip, paperboard and construction industries, characterized by large load-bearing, low cost, energy saving and environmental protection.
Strong, suitable for stainless steel, color steel, aluminum foil, copper strip, paperboard and construction industries, characterized by large load-bearing, low cost, energy saving and environmental protection.
