1.Description: 1)puff snack food extruder machine is improved and developed based on advanced technology by SAIBAINUO Company. This line has features of flexible collocation, extensive applied raw materials, various snacks and easy operation. It is full automatic from mixing, extruding, shaping,cutting, drying to flavoring in one-pass operation. By changing the moulds and process technology, you can produce various shapes of puffing snacks such as rings, flowers, balls, strips, moons, stars etc. Also, you can produce core-filling snacks with the same line. All the puffed food taste crispy, easy to be digested. They meet with great favor home and abroad.
2). Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
2.Machines Materials: All the machines are made by stainless steel
3.Specification of the corn puff snacks food machine:
Model
SLG65
SLG70
SLG85
Install Power
65KW
110KW
190KW
Consumption Power
42KW
77KW
133KW
Output
120-150KG/H
220-260KG/H
500-600KG/H
Dimension
19000×1300×2200M
22000×1300×2200M
30000×1300×2500M
We are the biggest and most professional food machine manufacturer in China since 2004, quality is our culture, so with us your money in safe, your business in safe.

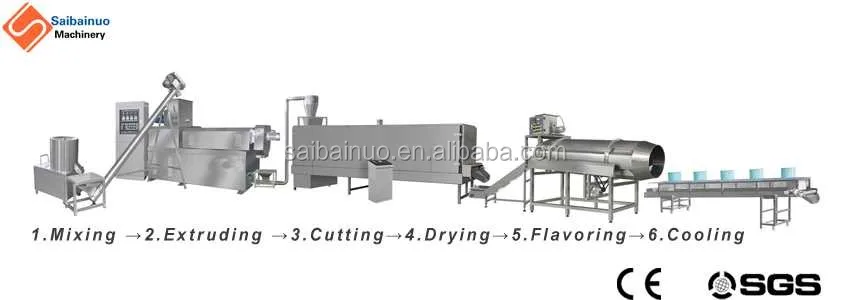

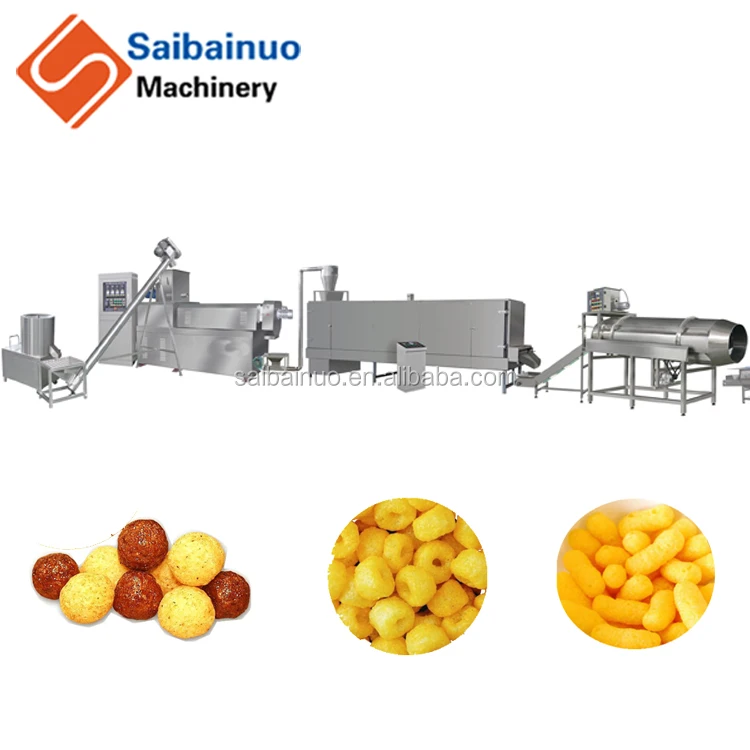

This is our 150kg/h and 250kg/h snacks food production line.
The inside structure of our twin screw extruder.

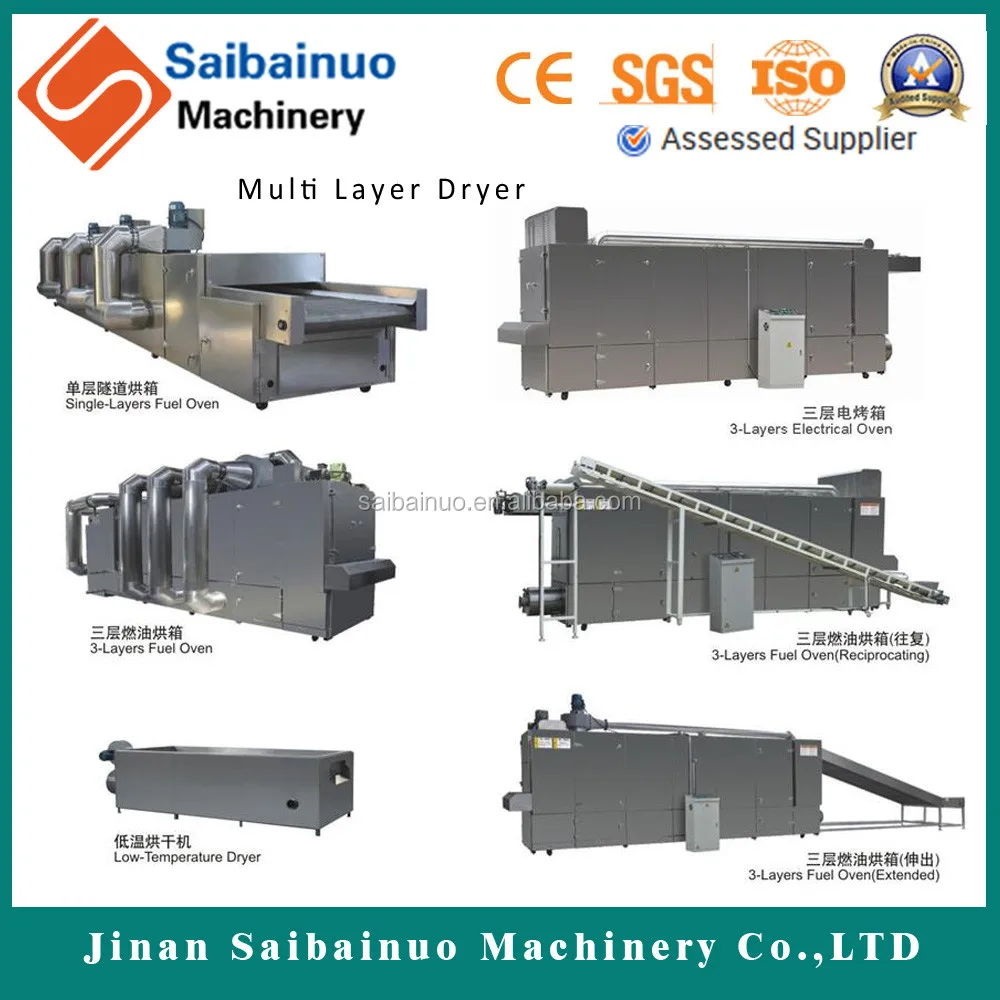

Our multi-layer dryer.
Detailed Images
Name: high speed mixer
Dimension(m): 1.1×0.8×1.4 Motor Power: 4KW Speed: 400rpm Throughput: 25kg per loading (5-6 minutes per loading) Functions: mix raw powder material with water Features: 1. stainless steel material(1.5mm). 2. new handle-opened design of discharge holes,no material leak 3.High speed can mix material better than other slow mixer.
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7 Motor Power: 1.1KW Screw speed: 300rpm convey height range:1.5~2.5M barrel diameter: Φ141mm Function: Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable. Features: stainless steel material(1.5mm) and advanced surface spraying handle.
Name: twin screw extruder
Dimension(m): 2.4×1.0×1.3 Main Motor Power:22KW Feeder motor:0.75kw Cutting motor: 1.5kw Heating power:10kw Extruder diameter:Φ65 mm Function: Extrude and cook raw material into different size and shapes Features: Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC. The gear box has forced lubrication system. All motors can be adjusted the speed by Inverter. The Extruder can change different molds to produce different Shapes product.
Name: multi-layer dryer
Dimension(m): 5.4×1.3×1.8 Heating Power:27kw Motor power:0.75kw Belt speed:0.1-10M/minute Temperature: 20-200℃ Function: There are three layer inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food. Features: The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer. Heating adopts the electric heat tube. It has automatic temperature Control system. The belt and the cover are all stainless steel.

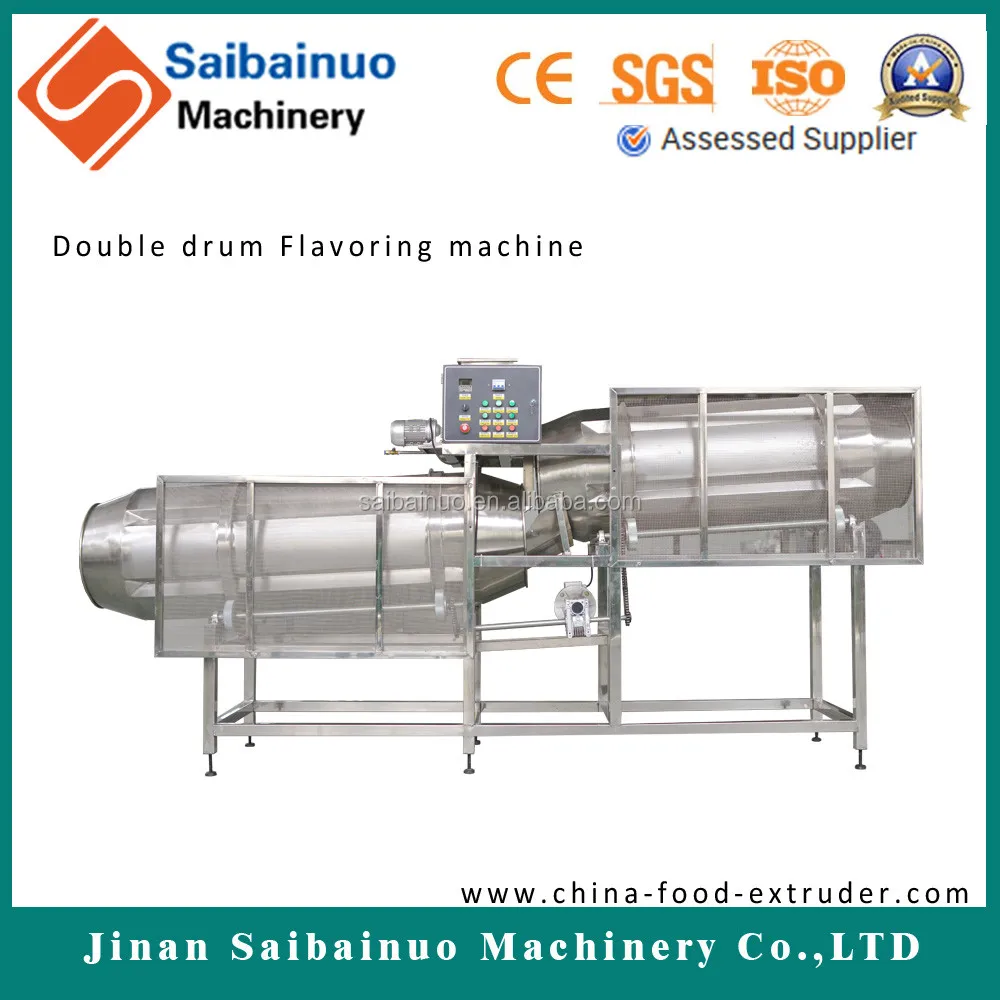

Name: flavoring line
Dimension(m): 3.8×0.8×1.8 Motor Power: 1.5KW Function: Scatter the powder seasoning on the food, The roller will mix the fat and seasoning powder evenly. Make food nice taste. Feature: Stainless steel material(1.5mm thickness).
Name: cooling conveyor
Dimension(m): 5.0×0.7×1.1 Motor Power:1 KW Function: Cool the pet food after flavoring ,make the pet food suitable for packing. Feature: Stainless steel material Have fan and baffle,better cooling and no leakage.
Certifications
Our Service
Pre-sale service: 1.Related machines's technical parameter will be supplied to customer. 2.According to customer's factory size, factory layout can be provided in advance. 3. According to customer's material cost, general formulation can be prepared well. 4.Special machine can be supplied as customer's request. 5.Professional Advice about Market, machines, processing , materials, packing can be supplied 6. Suggesting professional ship agent or helping book ship as customer request.
After sale service: 1.Allocation chart as the buyer's request will be supplied. 2.Operation manual will be supplied after shipment. 3.One year warrantee, life time maintenance with cost price. 4.Free easy broken spare parts will be sent with container . 5.First installation can be done by engineer. 6.Training workers in customer's factory.
Packing & Delivery
Packaging & Shipping: 1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case. 2)Customer's requirement is available. 3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
