Product Overview
Description

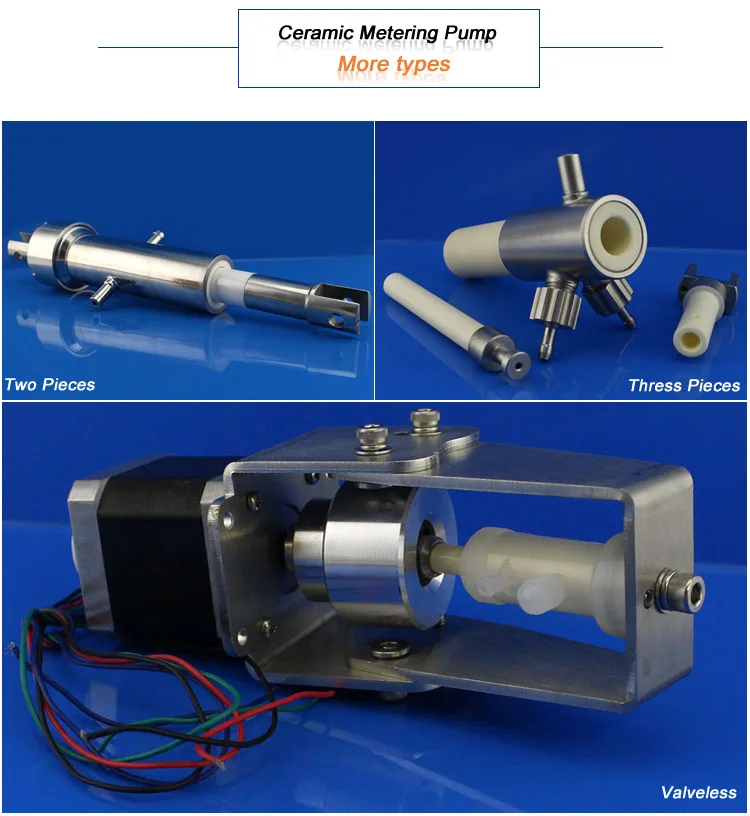

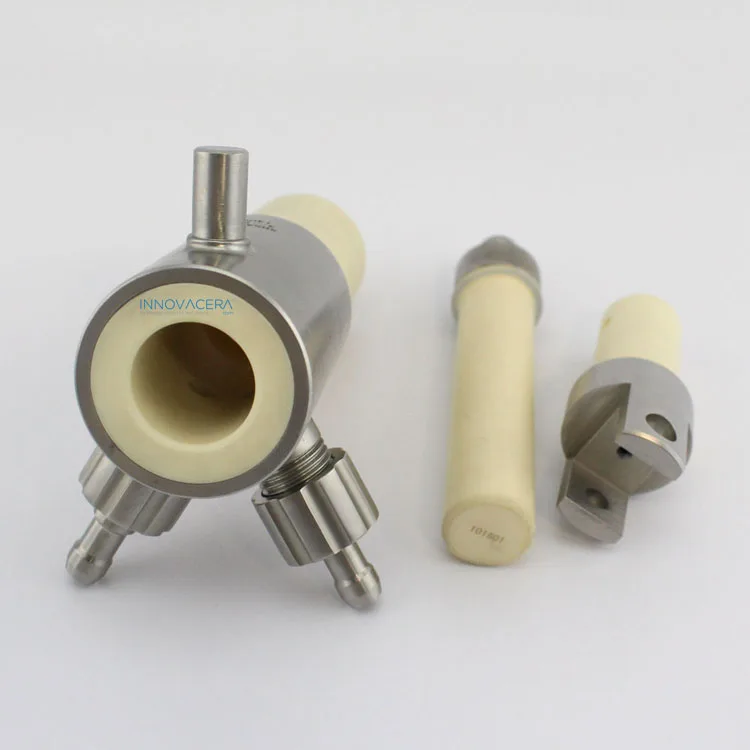

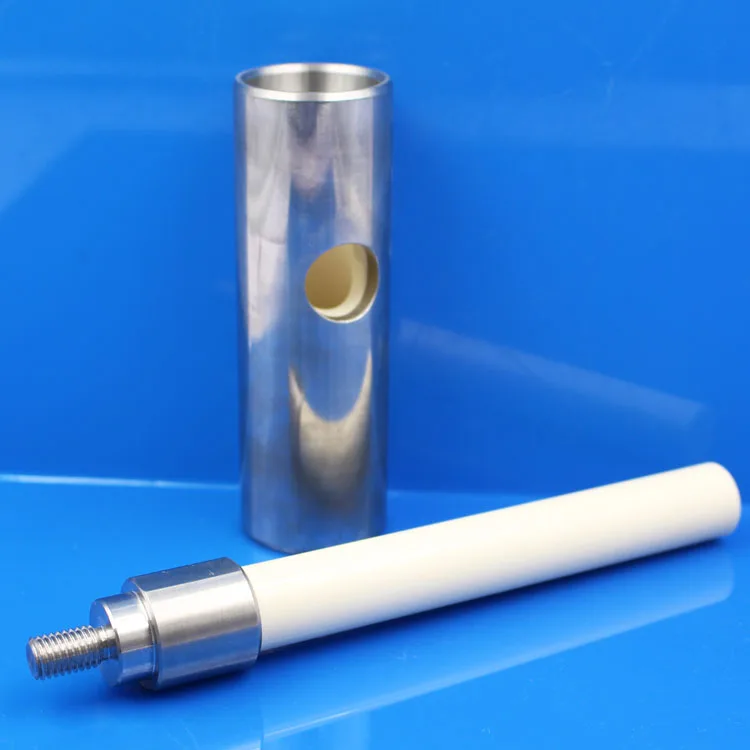

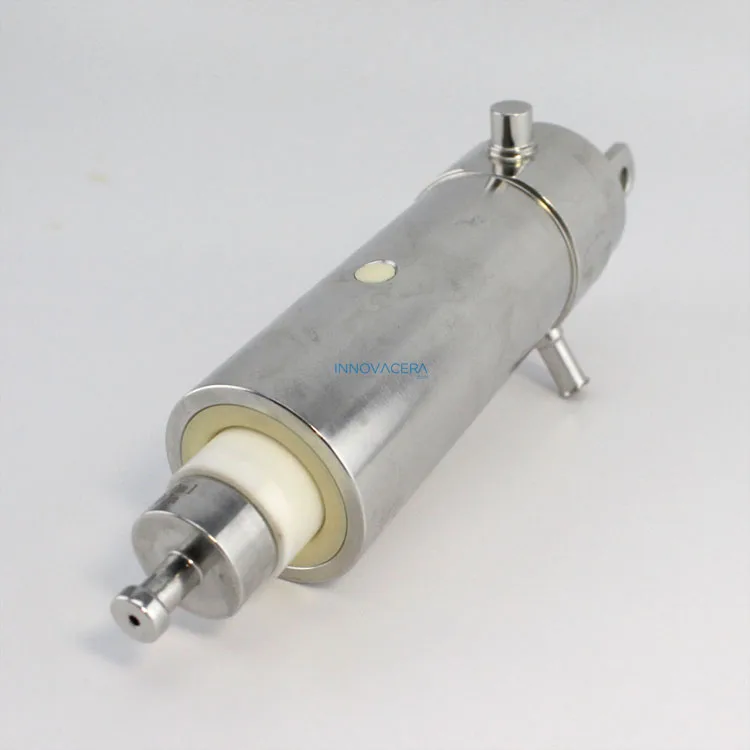

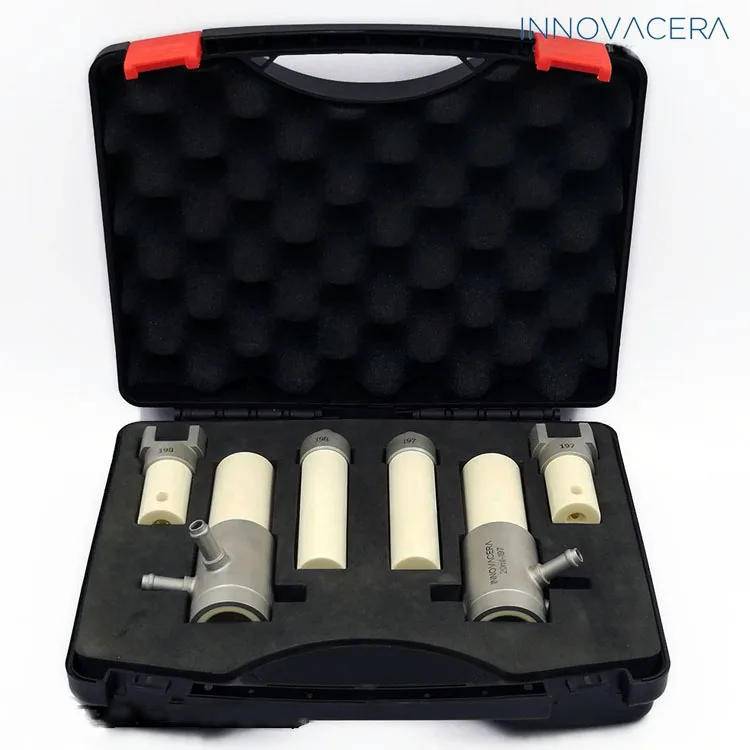

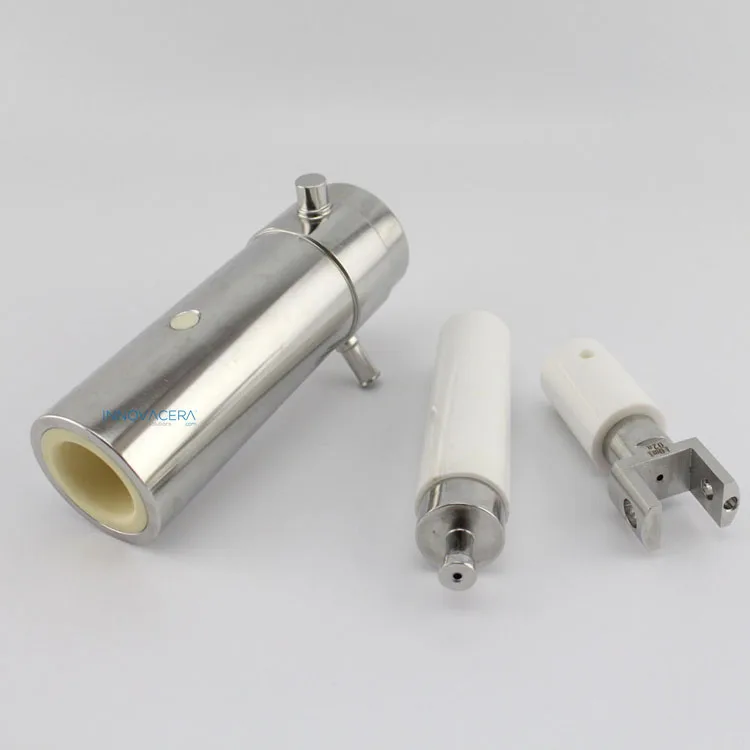

Innovacera ceramic metering pump including a ceramic piston, valve, cylinder set with housing.
Perfusion Volume Scope: 0.1-2000ml or custom design.
The housing for ceramic sleeves sets are typically comprised of 316 Stainless Steel, Custom materials can be used and are available upon request. The piston,valve,cylinder set is sealed by the fit of the piston into the cylinder. Our pump modules are positive displacement mechanisms that do not contain external valves and can run for hundreds of millions of cycles without measurable wear.
.Low maintenance cost
.High tech ceramics
.Fast assembly
.Hardness higher than stainless steel pumps coatings.
Perfusion Volume Scope: 0.1-2000ml or custom design.
Super High Perfusion precision: (perfusion transmitter is water for injection) ±0.25%
Material | 99.7%alumina/zirconia(bsed on product characteriatics can shoose different ceramic materials),the appearance mof stainless316l/304 |
Filing Volume | 0.5-2mL/1-5mL/3-10mL(or OEM) |
Custom Range | 2-200mL |
Filing Accuracy | >=0.25% |
FAQ
1.What's the filling volume?
It is 0.5ml-1000ml
2.How about the filling accuracy?
It is +/-0.25%-+/-5%
3.Will it pollute the filling product?
No,our inside product is ceramics.There's no pollution for medium throughhout the filling process.
4.What's the material of your metering pump?
SS316L,Alumina Oxide Ceramics,Zirconium Oxide Ceramics.
5.Can you do according to our drawing?
Yes ,we can do according to your drawing.
If you are interested in our products, please click here to send me an inquiry, and I will reply you within 8 hours
