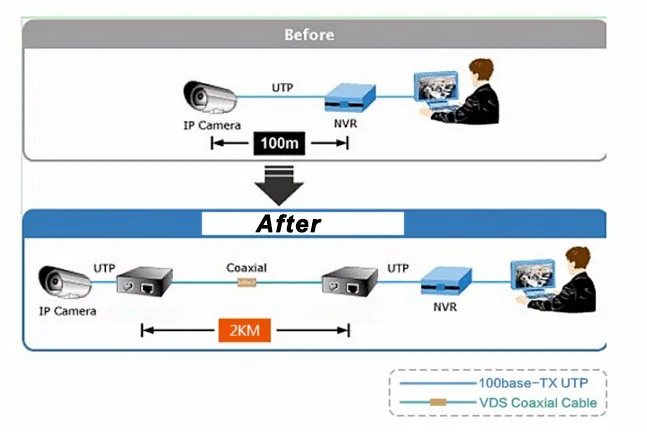

The product is based on the IEEE newest P1901 technology, support in a variety of media such as coaxial cables, telephone lines and twisted pair to transmit hd video and high-speed data signal. Its long transmission distance, high speed of communication, support multimedia business, support grouping network.

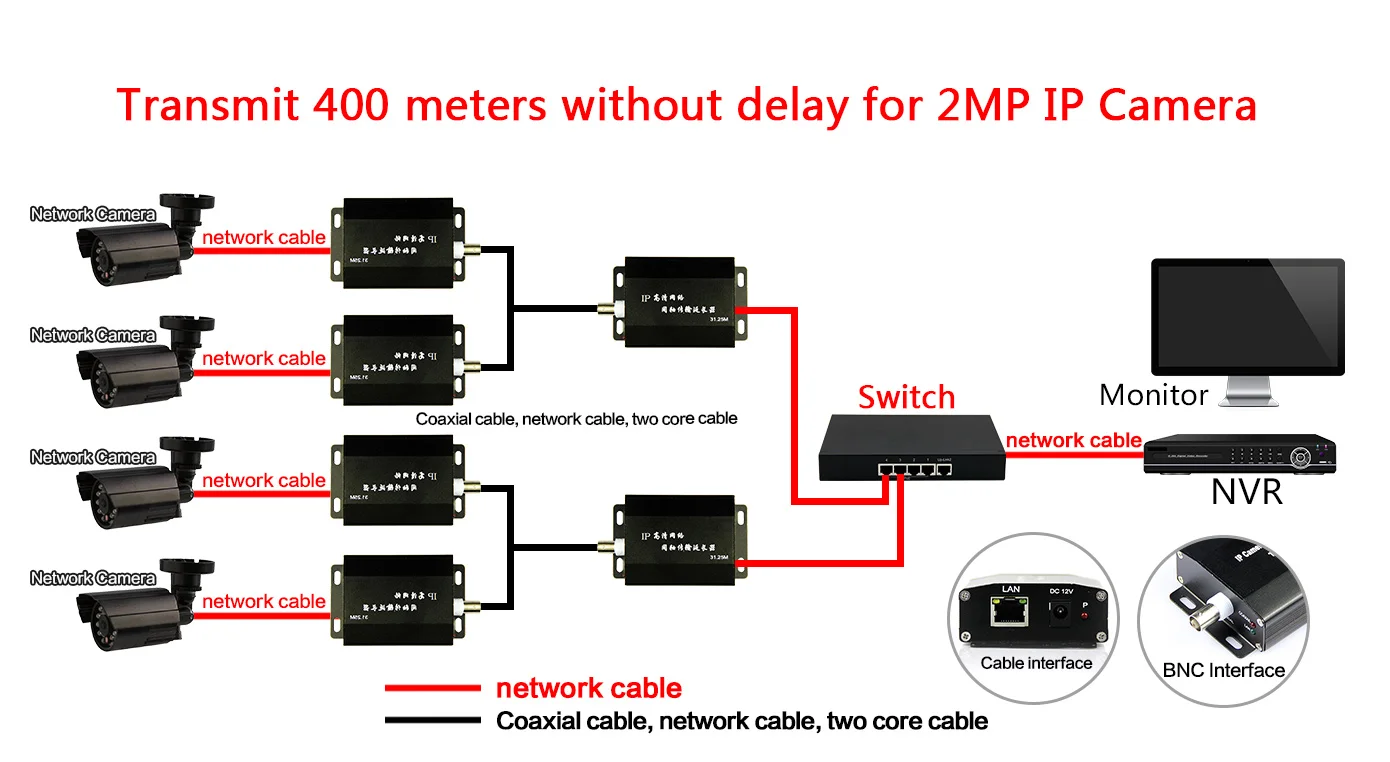

Widely used in all kinds of LAN and wan network, network camera signal transmission, and EOC power supply system’s transmission system, etc.
Key features

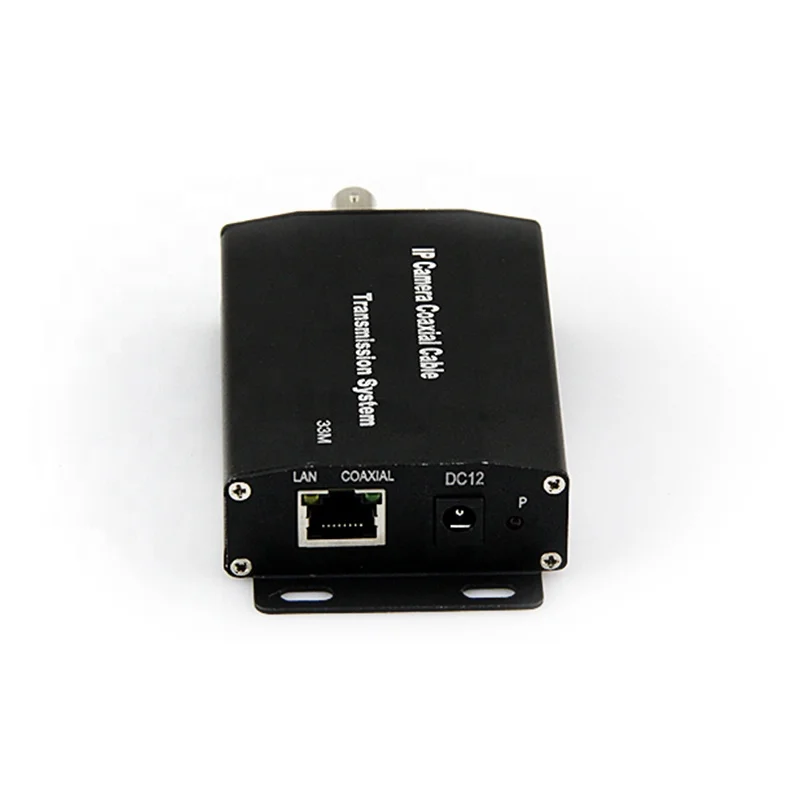

1. One 10/100Base TX (TX) Ethernet port with RJ-45 connector
2. Auto negotiation of speed and duplex mode on TX port
3. Auto MDI/MDIX on Ethernet port
4. IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX compliant
5. Line port uses BNC connector
6. Line port link is full-duplex up to 260Mbps over existing coaxial cable
7. A thread can be connected 6pcs products at the same time
8. Status LED’s for monitoring and connection status
9. Encryption watchdog function, put an end to happen the crash
