LSR deicing heating cablecan be widely applied to the tank and pipeline transport of liquid freeze protection, keep the process temperature, heating, ramp, pedestrian crossing roads, roof and floor, and so on.

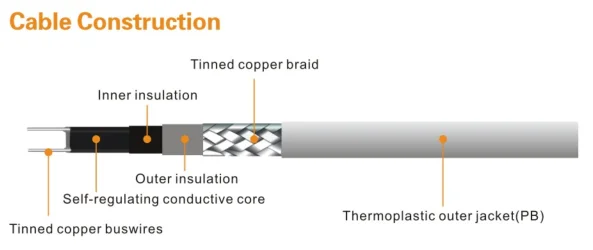

Since the limit type electric tracing band distribution in two core heating effect of conductive polymer materials, the outer sheath of the semiconductor polymer, polymer alloy shielding net and outer sheath. When an electric current passes through the cable temperature rise, cable resistance increase at the same time. Therefore, the output power of electric tracing band and the increase and decrease of temperature. Due to the temperature change of the thermal power and electric tracing band, the core of the semiconductor material heating performance and high/low temperature resistance of variable temperature change trend. Since the limit type electric tracing band even overlap does not overheat. Don't need special design, because limit type electric tracing band can be arbitrary cut scene working length accurately correspond to the actual length of the pipeline without special tools, installation is very simple. So thermostat is not necessary in some applications. It will never overheat or burnout even when wrapped by itself (overlapped). It can also be cut to any length. As the result, we got an energy efficient heating cable.
LSR deicing heating cable is resistant to watery and inorganic chemicals and protect against abrasion and impact damage.
Technical Summary
LSR Series

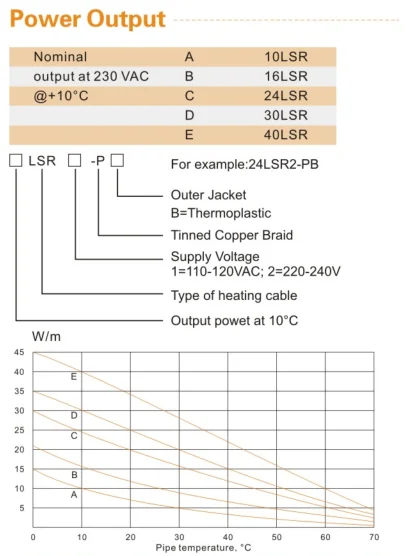

Output power @ + 10°C
(W/m)
Maximum maintain temperature
(°C)
Max length @ +10°C 16/30A
(m)
Max length @ + 0°C 16/30A
(m)
Max length @ -20°C 16/30A
(m)
Dimension
(mm)
Weight
(kg/100m)
10LSR
10
65
163/203
143/183
113/183
10.7×4.5
7.25
10LSR-PB
10
65
163/203
143/183
113/183
12.8×5.8
11.5
16LSR
16
65
110/151
100/124
86/98
10.7×4.5
7.25
16LSR-PB
16
65
110/151
100/124
86/98
12.8×5.8
11.5
24LSR
24
65
89/118
75/94
63/80
10.7×4.5
7.25
24LSR-PB
24
65
89/118
75/94
63/80
12.8×5.8
11.5
30LSR
30
65
71/98
60/77
52/65
10.7×4.5
7.25
30LSR-PB
30
65
71/98
60/77
52/65
12.8×5.8
11.5
40LSR
40
65
62/72
52/60
45/53
10.7×4.5
7.25
40LSR-PB
40
65
62/72
52/60
45/53
12.8×5.8
11.5
LSR Series:
LSR: Flame retardant thermoplastic outer insulation jacket protect against certain inorganic chemical solutions, it also protect against abrasion and impact damage.
LSR-PB: Flame retardant thermoplastic outer jacket protect against certain inorganic chemical solutions, it also protect against abrasion and impact damage.
Max resistance of braid: ≤18.2Ω/km
Bus wire gauge: 16AWG
Application
LSR is ideally used for process temperature maintenance and frost protection of regular diameter pipelines, tanks, valves, flanges, roof & gutter de-icing, snow melting and other application where low temperature is needed. It is suitable for hazardous area, and cable with fluoropolymer outer jacket can also be used in hazardous area and corrosive area. The cable with UV stabilized thermoplastic elastomer outer jacket is provided to cover the braid for wet applications and exposure to the sun.
Characters
1.Long life time: PTC semi-conductive matrix with high quality and excellent technology. 2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature. 3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation crosslinking reaction. High insulation resistance. 4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required. 5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped. 6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate. 7.Cable durable: UV protection, high and low temperature resistant, weather resistant.
