Gear Motor DC 18V
- Category: >>>
- Supplier: Ningbo Jigu Motor Technology Co. Ltd.
Share on (60486279469):
Product Overview
Description
Gear Motor DC 18V
Product Overviews
| Diameter |
Motor & Gearbox 12/28/36/42/60/90/115 to 160mm (Customized) |
| Voltage |
DC Input 3v, 6v, 9v, 12v, 24v, 36v, 48v, 60v (Customized) AC Input 110v, 220v, 230v, 380v (Customized) |
| Power | 12/20/50/75/100/125/200/250/300 to 800w (Customized) |
| Speed | Variable Speed (Customized) |
| Torque | 0.3/3/5/20/25/30 to 50N.m (Customized) |
| Shaft | Bare / D-Cut / Double D-Cut / Pin Hole / Keyway shaft (Customized) |
| Bearing at output | Ball Bearing |
| IP Class | IP55 / IP65 / IP68 (Customized) |
| Accessories | Gearbox, Encoder, Brake, Cool Fan etc (Optional) |
| Note | Ratios and shaft configuration can be designed |
DATASHEET DOWNLOAD
Product Description
|
Product Name |

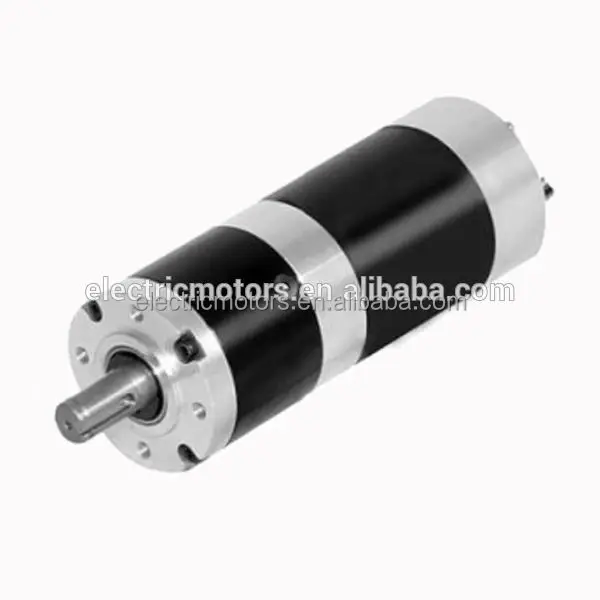

BLDC Planetary Gear Motor |
| Model No. | GP-36PGM30 |
| Voltage | 24V |
| Motor | Dia 36mm; Length 60mm |
| Gearbox | Dia 36mm; Length 31/38.5/48.2/55.4mm |
| Rated Speed | 4-431rpm |
| Rated Torque | 0.1-3Nm |
| Motor Technical Data | |||||||
| Model |
Rated Voltage VDC |
No-load Speed r/min
|
No-Load Current A |
Rated Speed r/min
|
Rated Torque mN.m
|
Output Power W
|
Biggest Torque N.m |
| GP-36PGM30 | 24 | 2Gear Motor DC 18V | 0.09 | 1600 | 30 | 4.8 | 0.36 |
| Gearbox Technical Data | ||||||||||||||
| Reduction Ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | ||
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | ||
| Length (mm) | 31.0 | 31.0 | 38.5 | 38.5 | 38.5 | 48.2 | 48.2 | 48.2 | 48.2 | 55.4 | 55.4 | 55.4 | ||
| No-load Speed (r/min) | 539 | 386 | 143 | 105 | 74 | 39 | 28 | 20 | 14 | 11 | 7.6 | 5.4 | ||
| Rated Speed (r/min) | 431 | 309 | 114 | 84 | 59 | 31 | 23 | 16 | 12 | 9 | 7 | 4 | ||
| Rated Torque (N.m) | 0.10 | 0.14 | 0.34 | 0.46 | 0.66 | 1.1 | 1.6 | 2.2 | 2.5 | 3 | 3 | 3 | ||
| Max. permissible load in a short time | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | ||

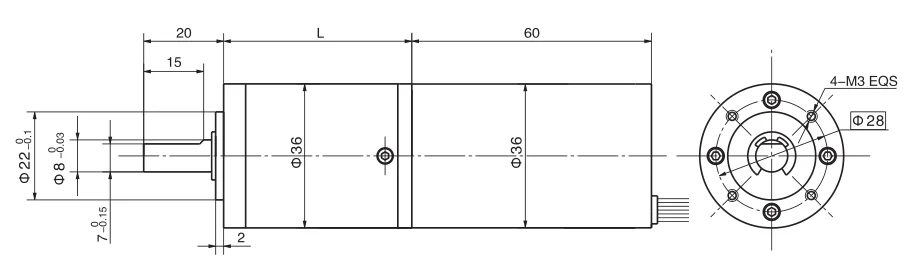

| Outline Drawing |
|
|
 |
Application
Customized Solutions
|
Customized Motor Solutions GP Motor specialize in design, custom and manufacture electric motors, including ECM Motor, PMDC Motor, Brushless Motor, Gear Motor, Servo Motor, AC Motor as well as Motor Parts. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
Company Information
Our Service
Favorable Comments
Since 1991, GP Motors has designed and manufactured the highest quality custom, ECM Motor, PMDC Motor,
Brushless Motor, Gear Motor, Servo Motor, AC Motor as well as Motor Parts in the industry. All of our custom
electric motors, electromechanical motor assemblies and components are engineered and manufactured in
our 120,Gear Motor DC 18V square foot state-of-the-art manufacturing facility located in Ningbo, Zhejiang.
