Women Ladies PVC Jelly Shoes Machine for Making Melissa Sandals
- Category: >>>
- Supplier: Dongguan Jinlei Shoe-Making Machine Co. Ltd.
Share on (60486292365):
Product Overview
Description
Product Description

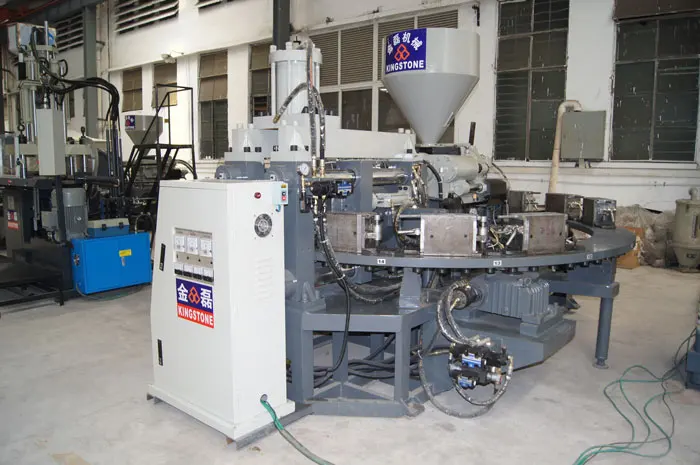

JL-128 Women Ladies PVC Jelly Shoes Machine for Making Melissa Sandals

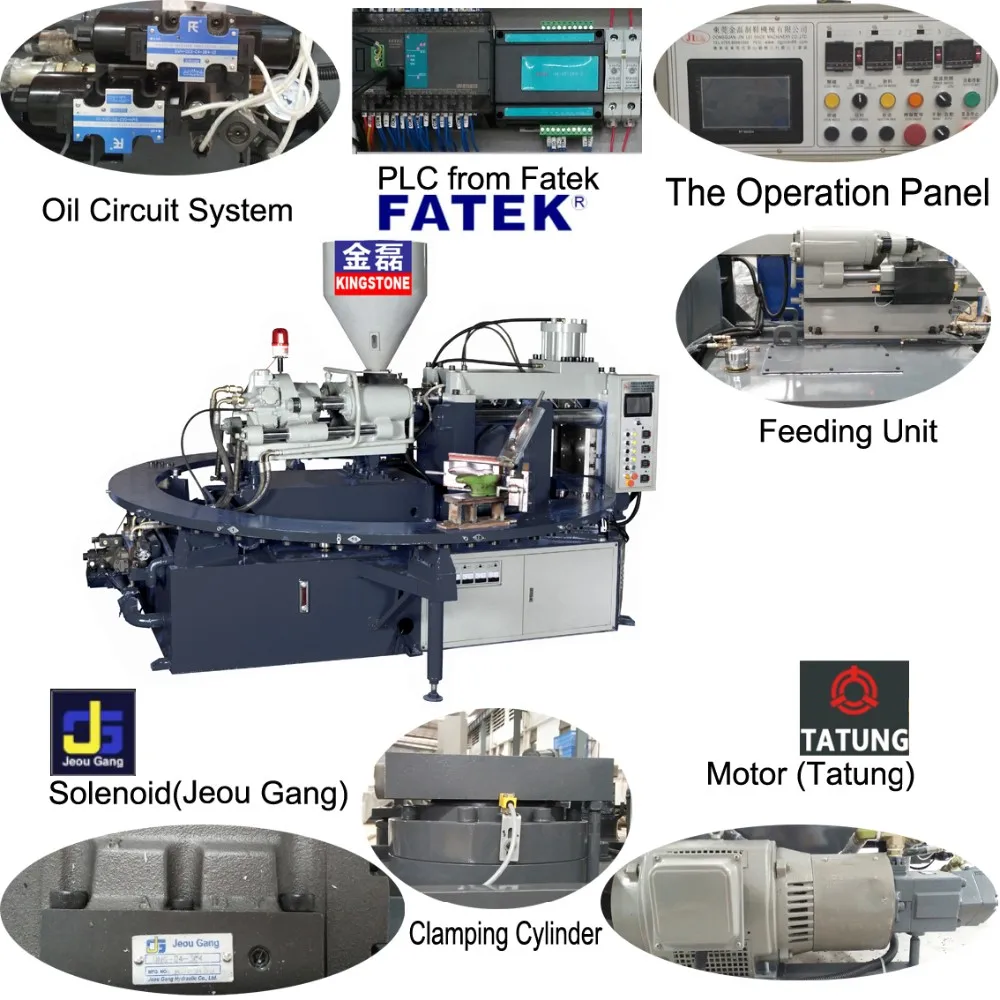

>> Advantages of Machine
1. By computer,Electrical box, PLC control --- more simple,fast and precision.
2. 10/12/16/20/24/30 Stations for choose. --- Suit for different production capacity.
3. Computerization in analysis and design --- the machine is well in stability.
4. Conformed to human engineering in design --- it features operational compatibility.
5. It could be equipped with servo system. --- can save 30~40% electricity.
6. It could be equipped with cooling system. --- can cooling the mould and extend the mould life.

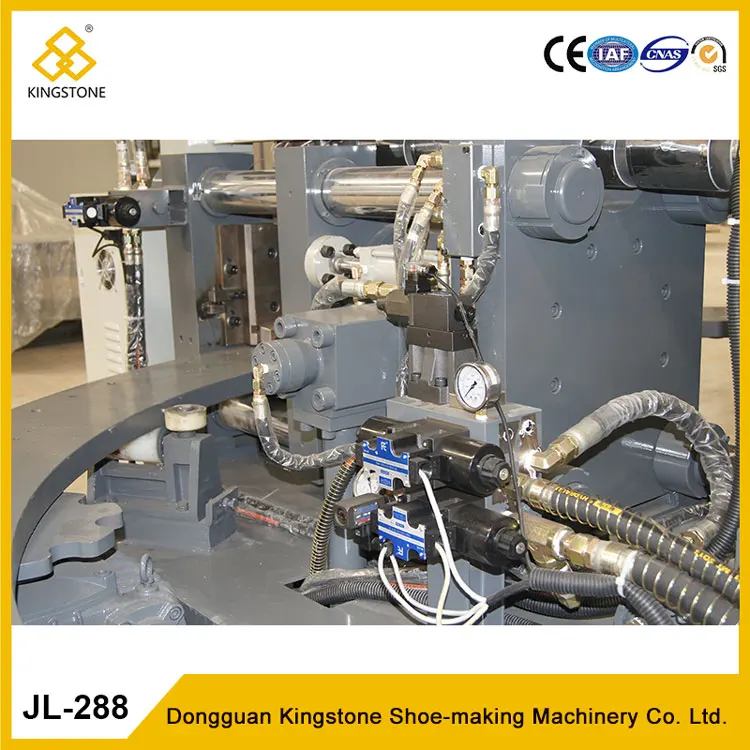

7. The well-interconnected oil circuit by electric control --- can reduce waiting time, quicken production rate, and promote productivity.
Special Features
1. Material: Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPU.
2. Products: specially designated to manufacture short height full plastic boots or shoes. It is particularly effective to the making of Jelly Shoes and Crystal Shoes.
3. Conformed to human engineering in design, it features operational compatibility.
4. The adopted movable ejection unit controlled by oil pressure makes it easier to clear away the material.
5. Pressure switch assures the locking strength by mold lock system for far better product.
6. The emergent safety button is to safeguard the operational safety.
7.The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.
8. As the feeding is controlled by back pressure, it is capable of adjusting foaming density of raw material.
Specifications | |||||
Machine model | JL-128 | ||||
Mould-clamping Unit | |||||
Work station |
| 12,16,20 | |||
Clamping force | TON | 120-150 | |||
Opening stroke | MM | 210 | |||
Mould dimension | MM | 600*280 | |||
Height of injection nozzle | MM | 280 | |||

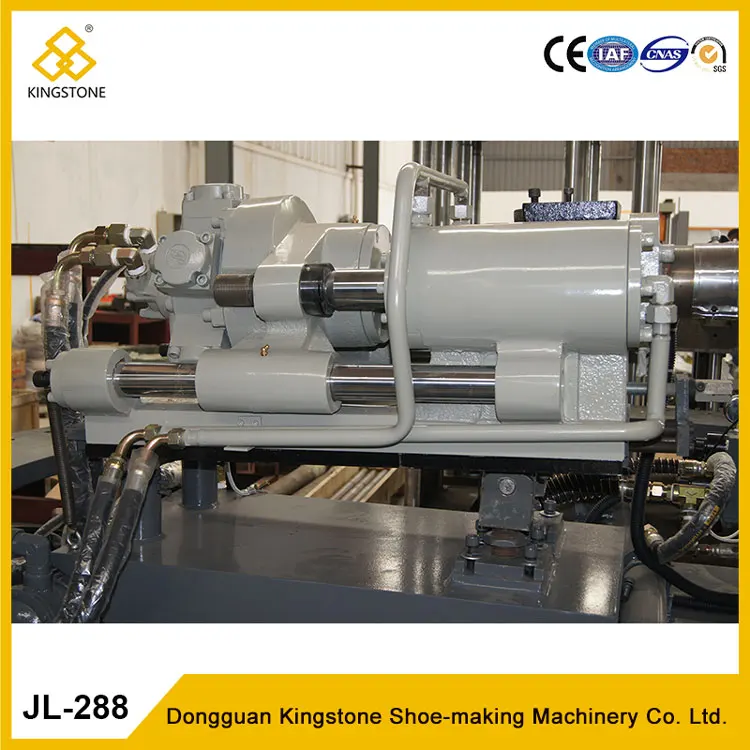

Injection Unit | |||||
Injector | SET | 1 | |||
Screw diameter | MM | 65/70/75 | |||
Screw L/D ratio | L/D | 20 | |||
Max.injection volume | cm3 | 650-1000 | |||
Injection speed | Cm/s | 10 | |||
Screw rotation speed | R.P.M | 0-200 | |||
Electricity Consumption | Normal | Servo | |||
Heating power of injector | KW | 7 | 7 | ||
Hydraulic unit motor | KW | 18.5 | 15.7+7.5 | ||
Total power | KW | 25.5 | 30.2 | ||
Temperature control | Section | 4 | 4 | ||
Power consumption per hour | Kw/h | 15-20 | 7-10 | ||
Dimension and Weight | 20 Stations | ||||
Machine dimension | (L*W*H)MM | 4600*3700*2500 | |||
Machine weight | KGS | 6500 | |||
*Note:Above data only for reference. | |||||
Finished Products
The machine can produce PVC slipper, sandals, jelly shoes, crystal shoes, short boots.
Some designs for your reference.
More designs please contact us.

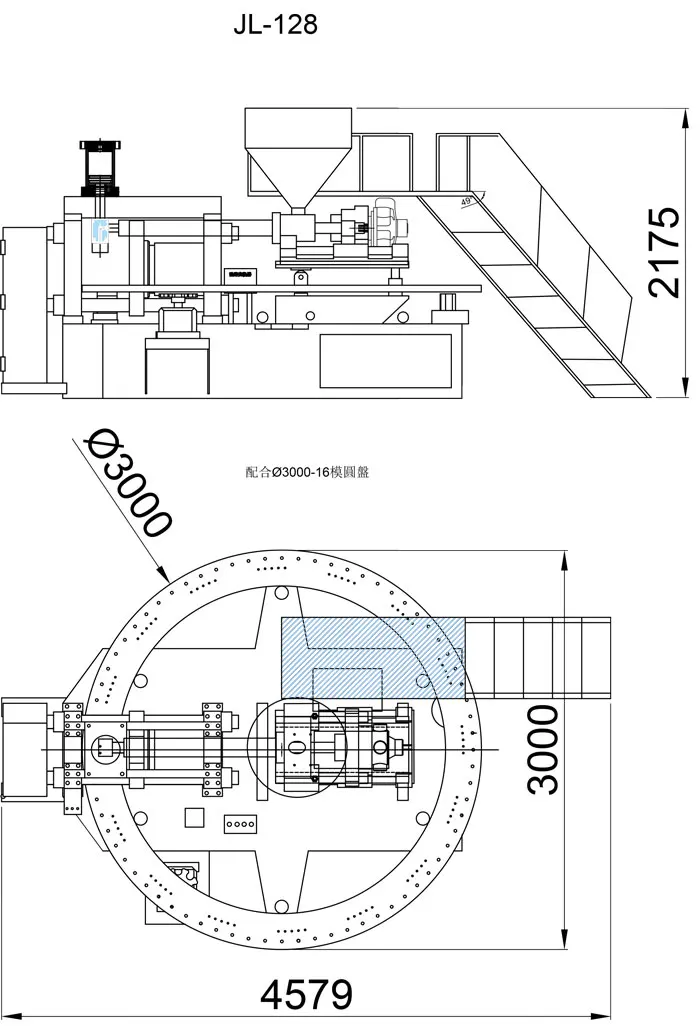

Machine Design
Packaging & Shipping
One 20 feet container for the machine loading.
