Aluminum Windows Single Head Corner Crimping Machine

Share on (60486750337):


Price:

Quantity:


Product Overview

Description


Aluminum Windows Single Head Corner Crimping Machine


LZJ-120C





Single Head Corner Crimping Machine LZJ-120C.jpg


Specification:

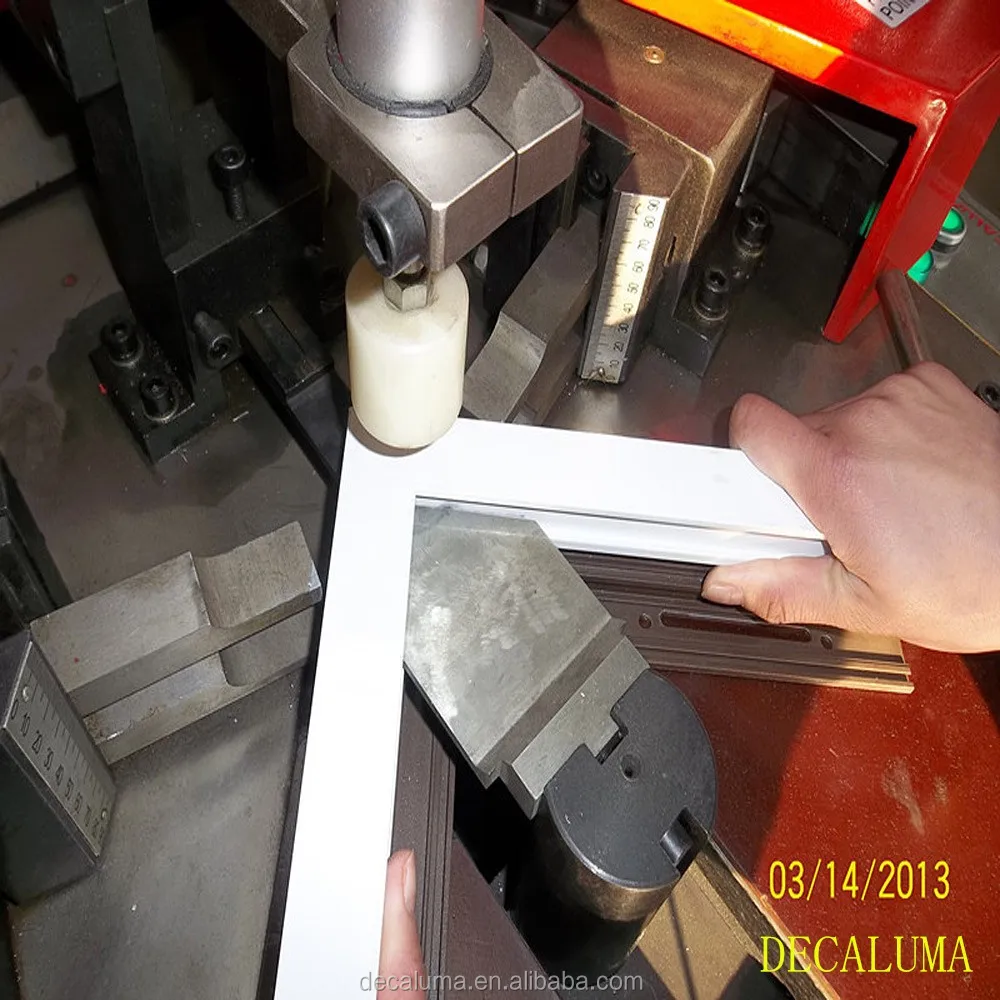

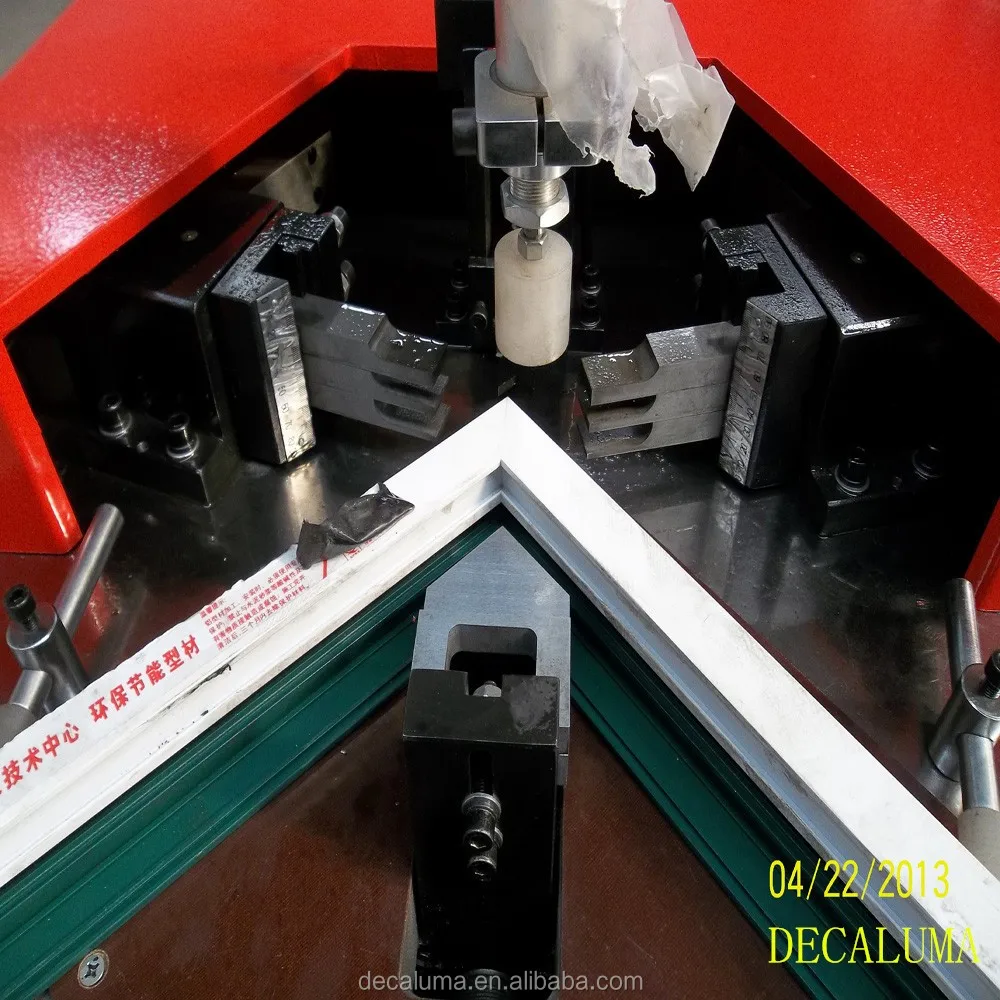

1. Crimping machine are used for crimping corners of aluminum profiles of all types,such as aluminum frame and sash corner crimping, especially for the high-quality profile, such as thermal bridging profile.





2. Corner crimping tools drive by hydraulic system, ensures stable working.





3. The right and left punches drive by hydraulic cylinder through mechanical combination action, which makes two punches feeding synchronously, that avoid deformation of corner crimping process and enhance corner connection efficiently.





4. This machine has this feature: convenient operation thus make less error in processing.

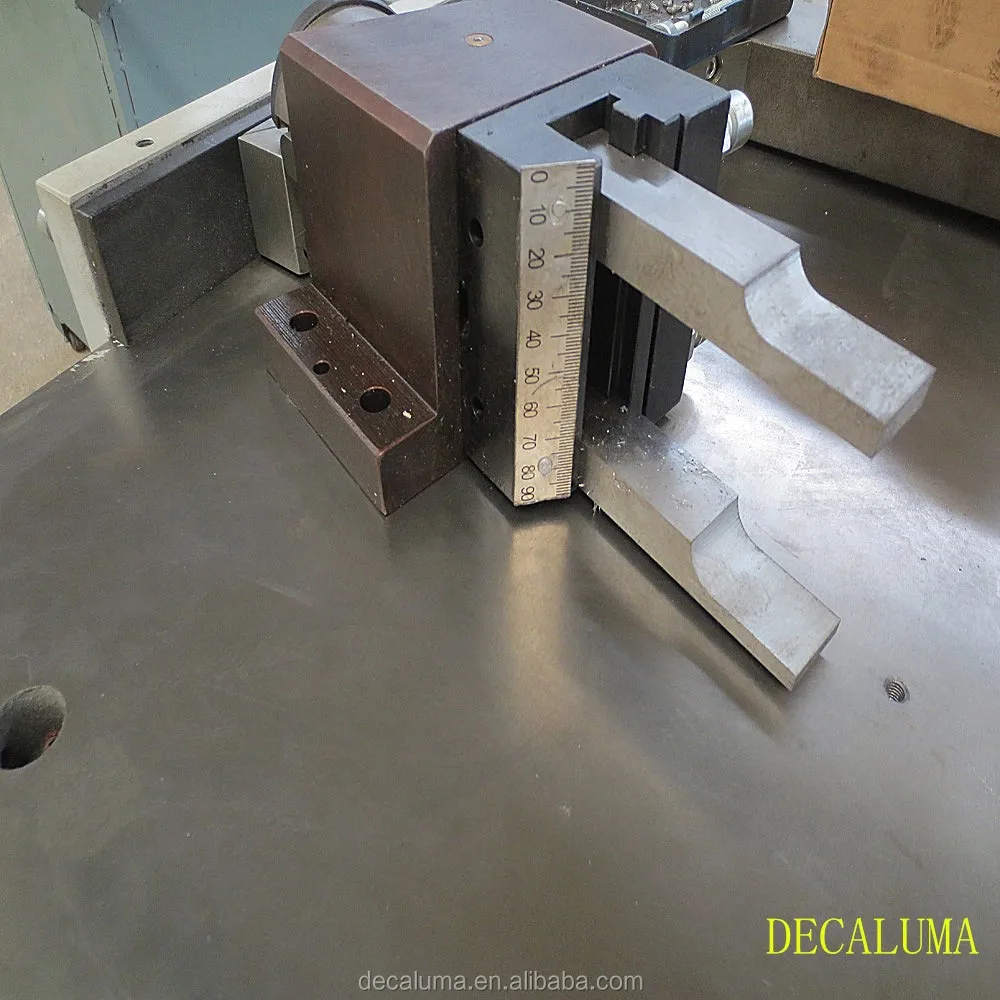

5. Distance of tool knife can be adjustable, as the screw thread connection easy working for tools.

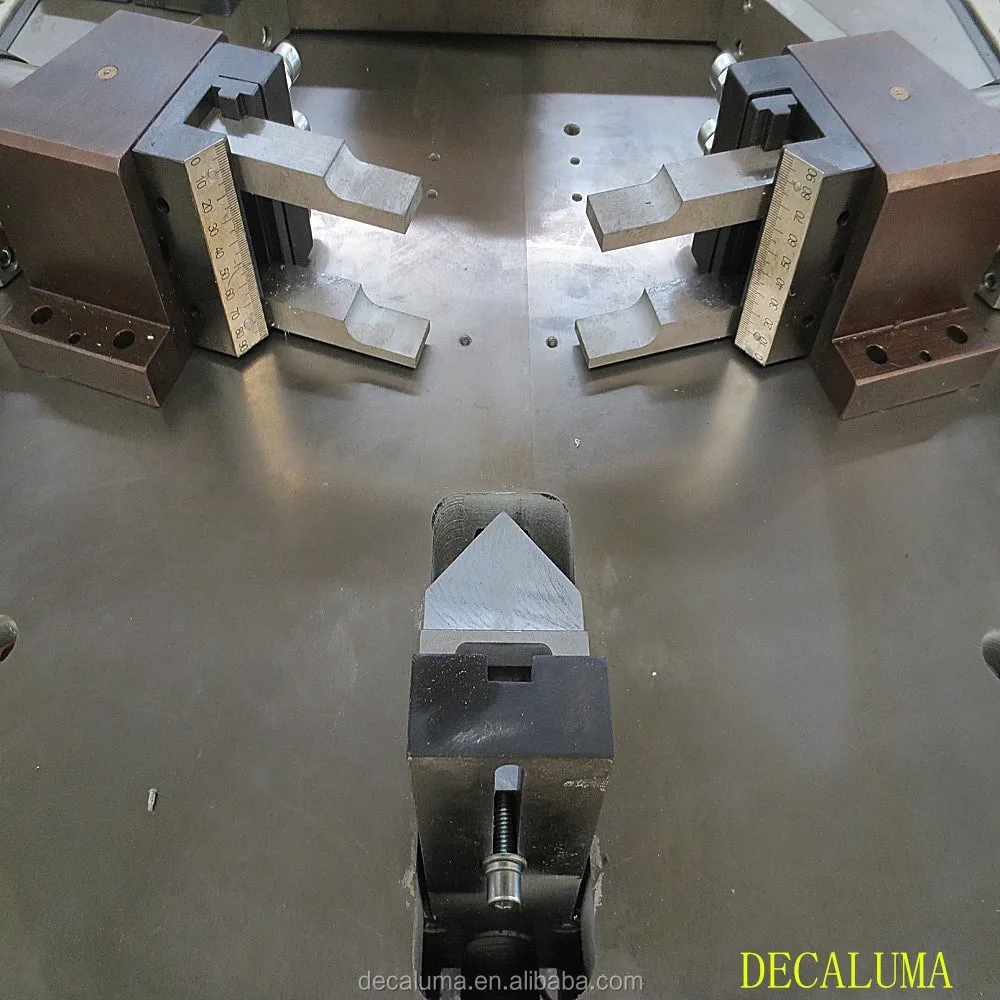

6. It collocates single cutter of many points crimping cutter, ensures reliable crimping for all kinds of profiles








Technical Parameter:





















































Power supply



Made to order



Operation air pressure



0.5~0.8Mpa



Motor power



1.5KW



Air consumption



20L/min



Rating pump pressure



20Mpa



Combining height



Max 120mm



Cylinder stroke



85mm



Orientation adjustment range



54mm



Combining pressure



12Mpa



Dimension



980*1100*1210mm



Weight



400kg










Packaging & Shipping


 Packaging and Shipping >>                                                                     DECALUMA



1.Each product will be carefully packed with plastic film package,to make sure it will arrive safely and available for customized packing.


2.For wooden case, the machine is packed by plastic film first , then packed in wooden case carefully.








Our Services


 Our Service >>                                                                                             DECALUMA


1.sample service:


     Engineer available overseas


2. Customized service:


      Free industrial information, free investment analysis for windows, doors, and curtain wall project, free  layout design for window, and door and curtain wall product line.


3.After sales service:


      One year guarantee


     Free adjustment


     Free training to operation and maintenance workers


     Provide quick supply of spare parts for window and curtain wall companies.









Company Information


Company Profile >>                                                                                     DECALUMA


    JINAN DEGA MACHIEN CO.,LTD (Decaluma) is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.


   Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.


QQ20160305160035 QQ20160305160028  QQ20160305160023


 Certificate >>                                                                                              DECALUMA


{D3UB}IK{6I]J]IOYH11B3V_


 Quality Check >>                                                                                         DECALUMA


ISO


On the Exhibition >>                                                                                    DECALUMA


DWGM9RZ0X$CN%4`2F)}7XA


 Cooperative Partner >>                                                                            DECALUMA




imported qualified accessories:


Simens


Omron


AieTEC


Seimec


NSK


ABBA


Schneider








FAQ


FAQ >>                                                                                                         DECALUMA


1 Which equipment does a new door and window factory need?


1).double head cutting saw,model:LJZ2-500*4200A


2).Lock hole copy milling machine,model:LXF-300*100


3).End milling machine,model:LXD-200


4).Automatic Corner connector automatic cutting saw,model:LJJZ-500


5).Single head Corner combining machine,model:LZJ-120C


tupian2. When you can do if my machine have some problems?


 1) We can send you free components to you if your machines are in guarantee time.


 2) We can send our engineers to repair your machines


3. When can we arrange shipment?


  We usually arrange shipment within 15 days after getting   deposit,but customized machines should be more than 25 says


4. Are you trading company or manufacturer?


    manufacturer(OEM)





Contact us


Contact Us >>                                                                                               DECALUMA





Welcome to visit our website and DECALUMA will spare no effort to help you select suitable machine.








Related Products


Related Products >>                                                                                     DECALUMA

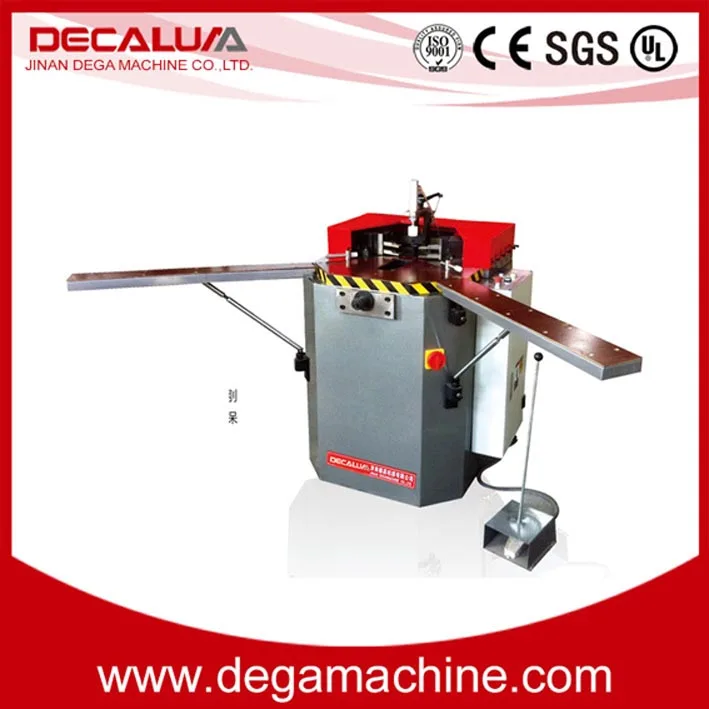

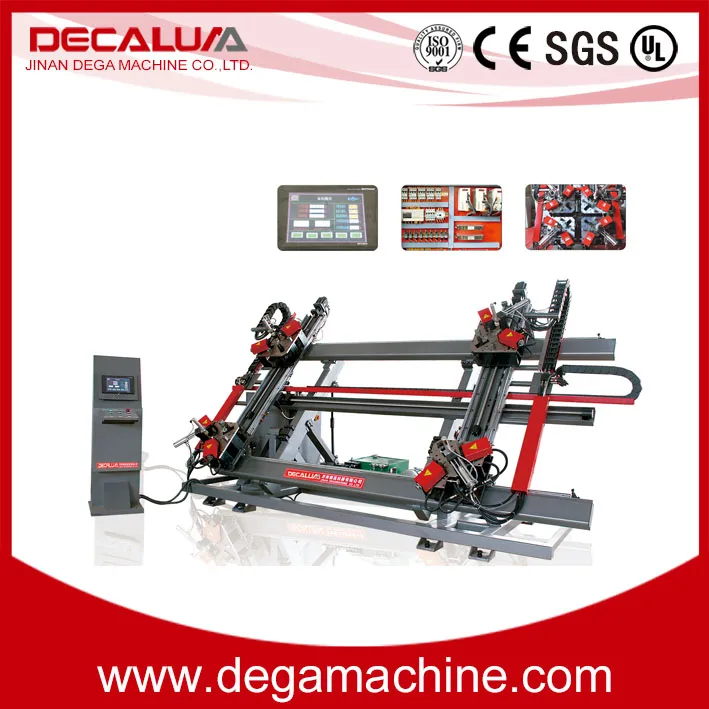

LZJ-120E LZJ4-CNC-100*1800*3000
