Polyurethane PU Foam Sandwich Panel for HVAC System
- Category: >>>
- Supplier: Xiamen Green Foam Insulation Material Co. Ltd.
Share on (60486796814):
Product Overview
Description
Product Description

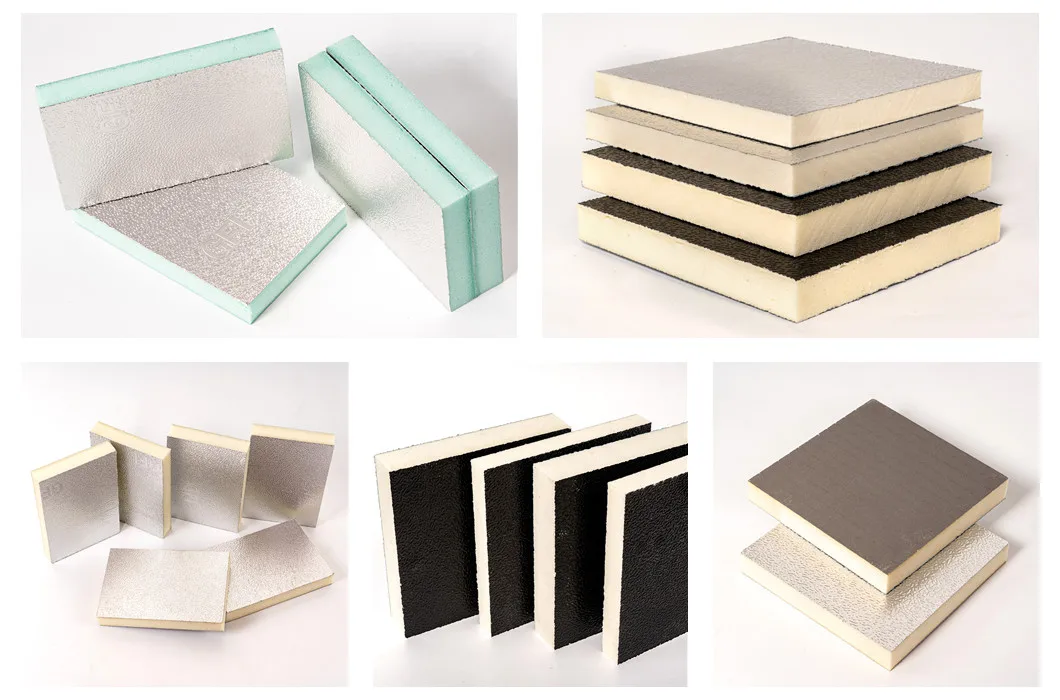

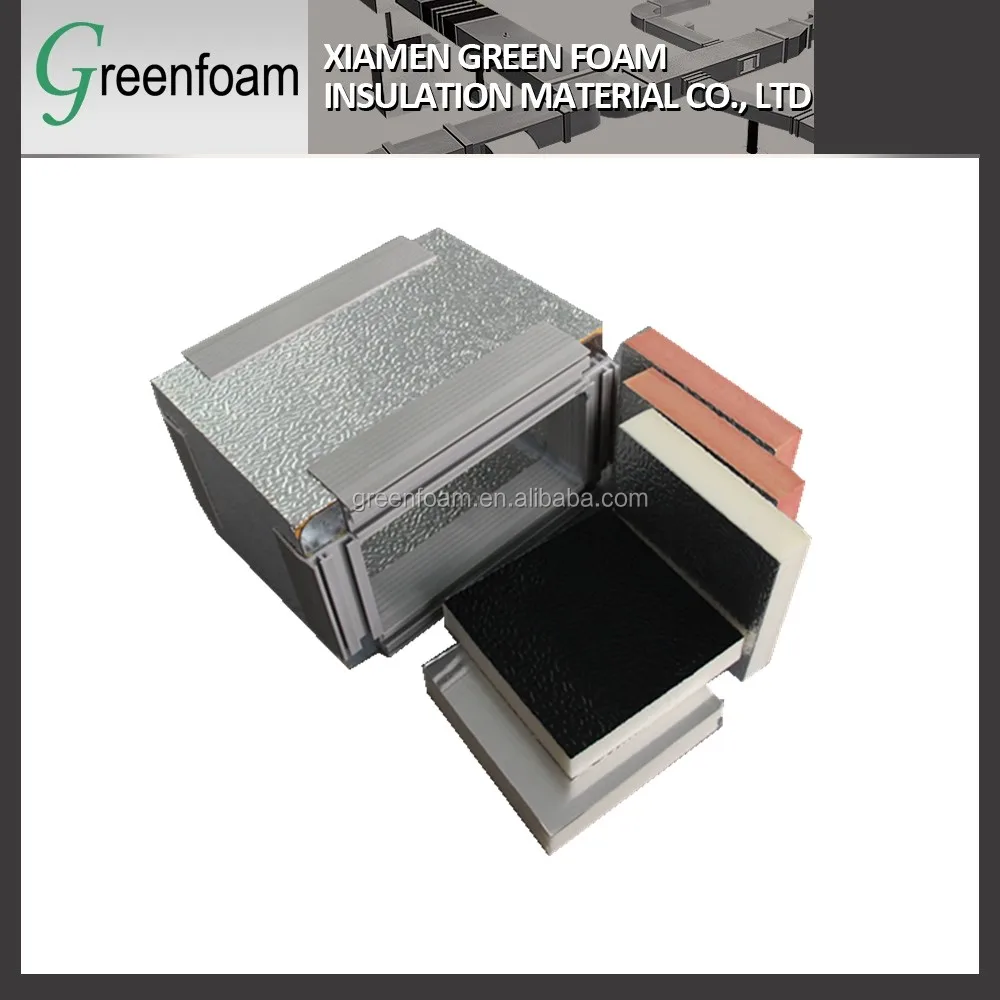

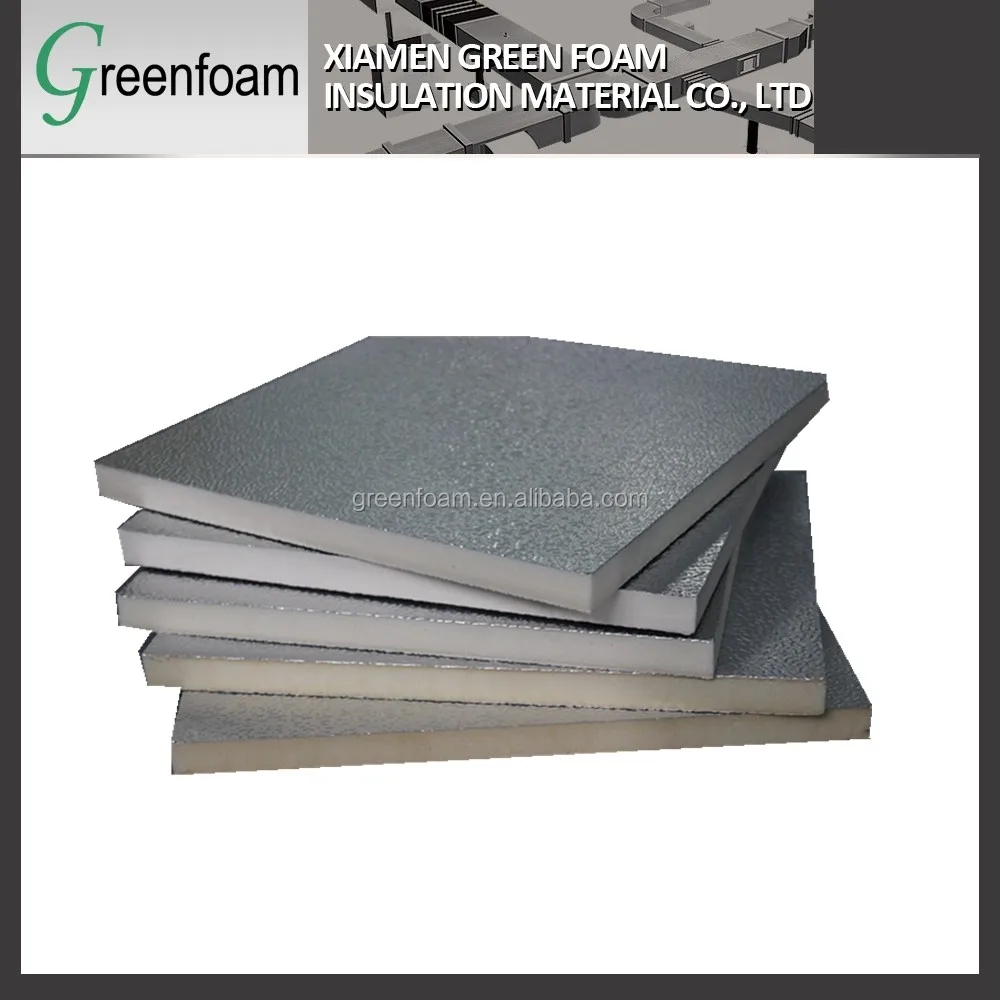

GFI 20mm HVAC PUR Insulated Aluminum Panel consist of PUR insulation foam, with black aluminum foil or normal aluminum sheet on both sides. It is used for central air conditioning duct system. It is energy saving and environment frendly. It had become more and more popular all over the world.

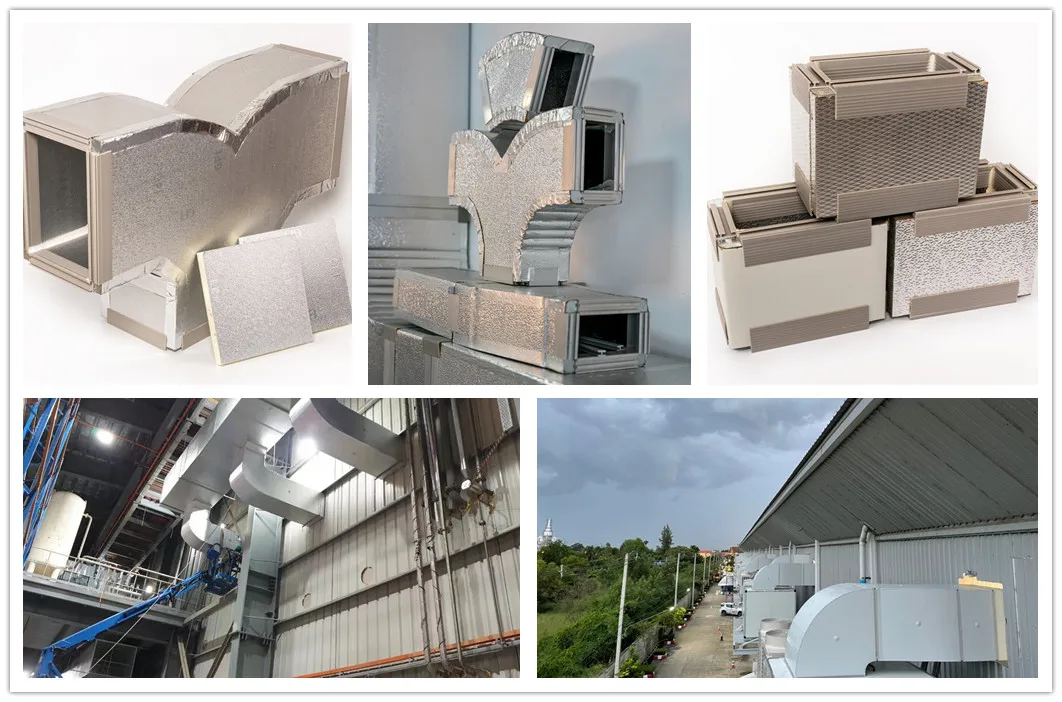

Compared with traditional galvanized Iron ( steel metal) ductwork, HVAC PIR Insulated Aluminum Panel have offers a high performance, light weight and robust system that requires only a single fix installation process. It is widely used in the ventilation systems of central air conditioning units in hospital, hotel, market, supermarket, guesthouse, airport, stadium, workshop, food store, pure project and so on.
Technical Data:
| Standard Size | 3950/2950/2900*1200*20mm |
| Foam Density | 50 kg/m3 |
| Aluminum foil thickness | 0.08mm/0.2mm |
| Thermal Conductivity | 0.02W/m.k |
| Compressive Strength | 0.25MPa |
| Bending Strength | 2MPa |
| Water Absorption | 0.1% |
| Dimension Change | 0.3% |
| Maximum Wind Velocity | 13-20m/s |
| Maximum Running Temperature | 70 ℃ |
Packaging & Shipping

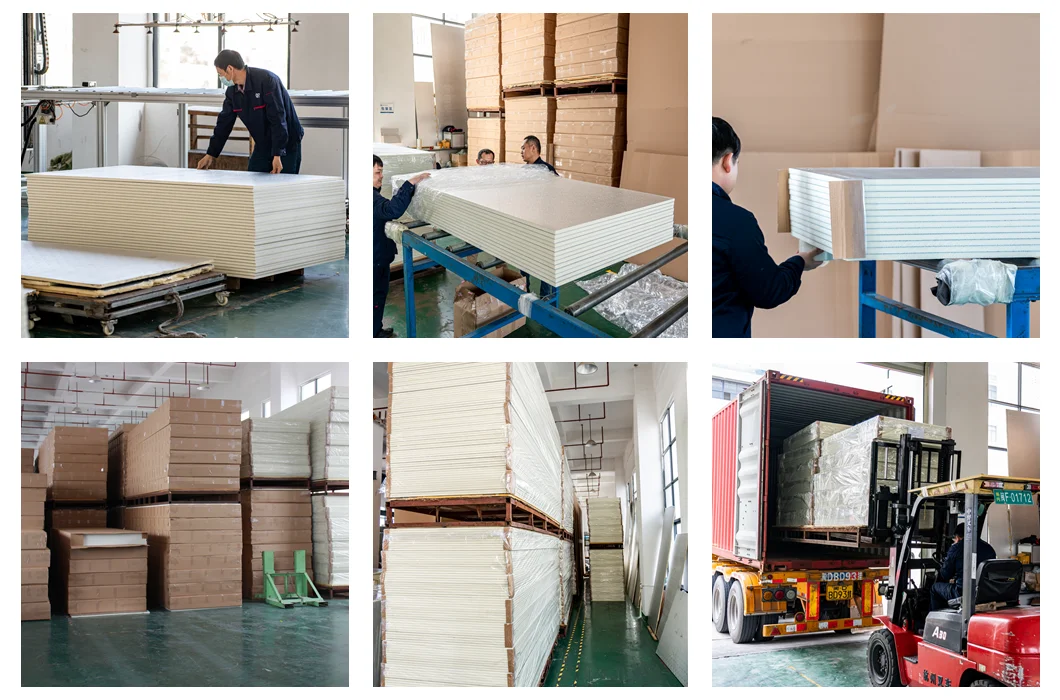

20mm HVAC PUR Insulated Aluminum Panel will be packed as below details:
1. 40'HQ Container: 3950/2950*1200*20mm, 10 sheets packed in one carton, total 660sheets(3950mm) / 880sheets(2950mm).
2. 20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.
Company Information
Business Negotiation
We have attended many RHVAC Exhibitions in different countries, such as Thailand, Australia, Pakistan and so on. Many customers also come to visit our factory. We warmly welcome all customers and friends to visit our factory for cooperation.
Hot selling product
If you need more info, please feel free to contact us:
MS. Annie
Mob(WhatsApp): 0086-15359280538
Website: //www.gfiduct.com/
