Portal crane Harbour heavy lift rail type crane 20T Marine Lifting Crane
- Category: >>>
- Supplier: Henan Province Modern Crane Co. Ltd.
Share on (60486998835):
Product Overview
Description
Portal crane Harbour heavy lift rail type crane 20T Marine Lifting Crane
FAQ
| Dear friend, It's better to send us inquiry with confirmation of the info below, then we can offer very quick. |
In order to choose the suitable type crane for your need, please provide us the following data.
-Lift capacity? (Ton)
-Span(m)
-Lift height? (Meter)
-Power supply? Is 380V/50Hz/3P?
-Your nearest port?
| Dear friend, you can come to our factory for visiting ,we will be waitting !!!! |
A container crane (also container handling gantry crane ) is a type of large dockside gantry crane found at container terminals for loading
and unloading intermodal containers from container ship.
Rail Mounted Gantry Crane Features:
a). High efficiency, make full use of yard, high automatic;
b). Few fault, lower energy consumption, low cost;
c). Wide span, can step astride 14 or more containers;
d). Can stow 5 to 6 floors containers;
e). Make full use of yard, so that it can store more containers;
f). Simple structure, easy maintenance, reliable operating;
g). Electric drive, save energy;
h). Crane travels along the rail, not flexible, working range is limited;
i). Applied to stacking area and greater throughput of container port.
RMG

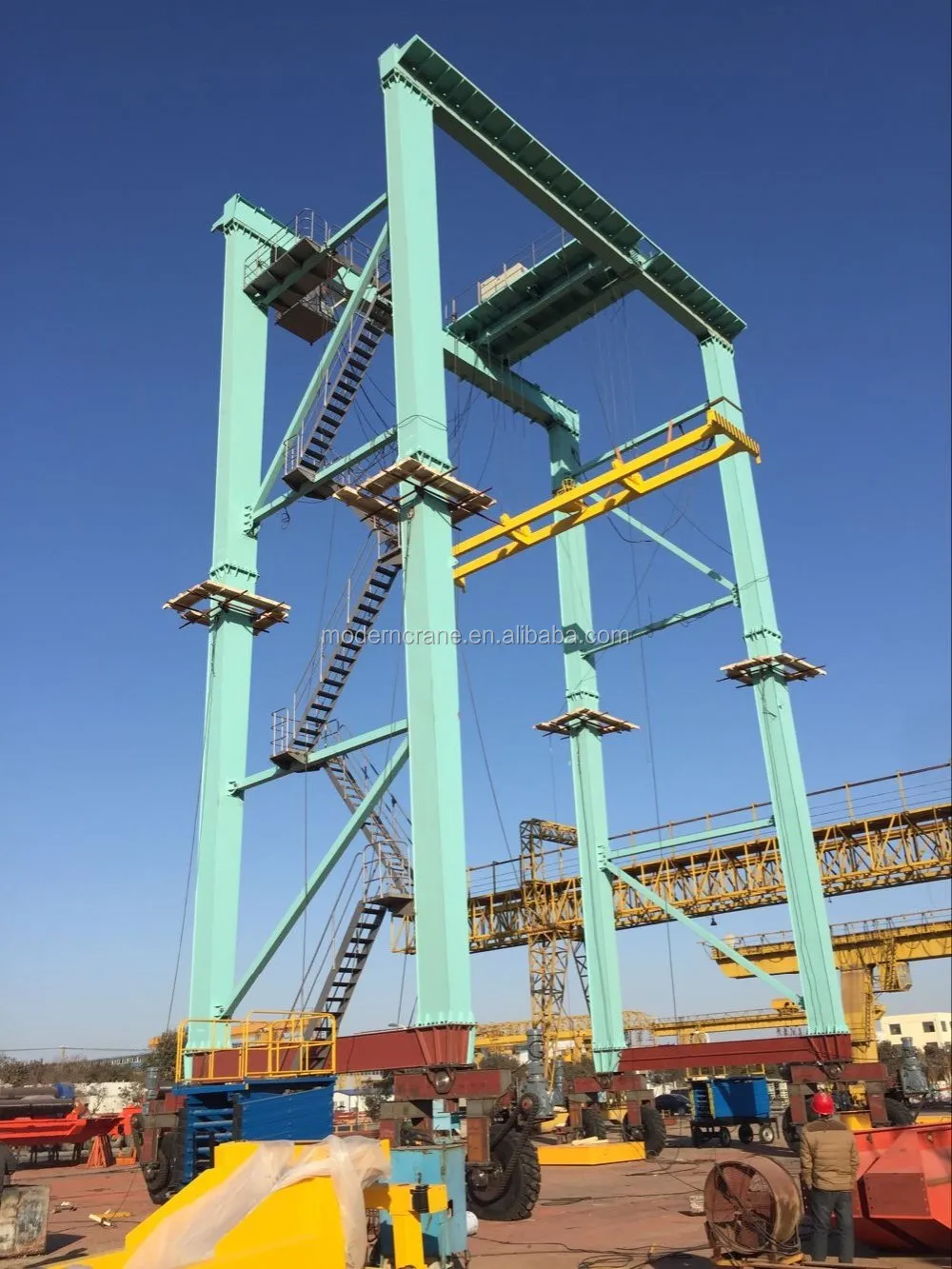

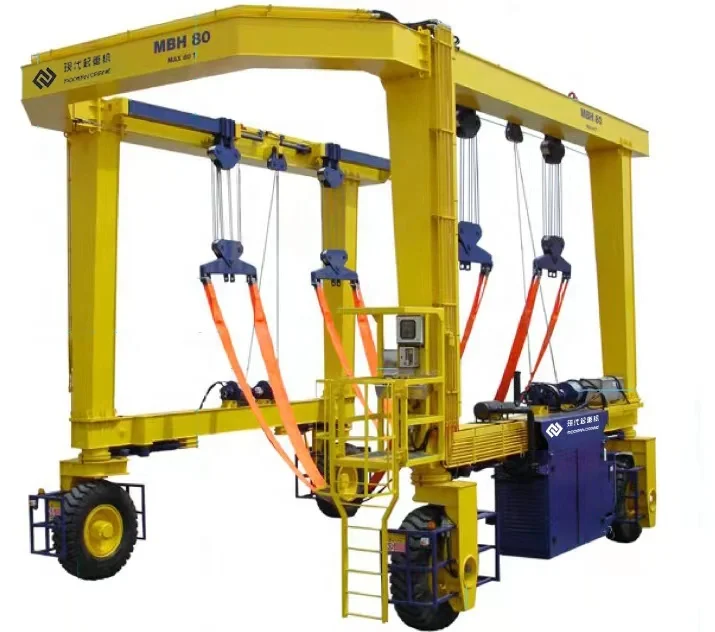

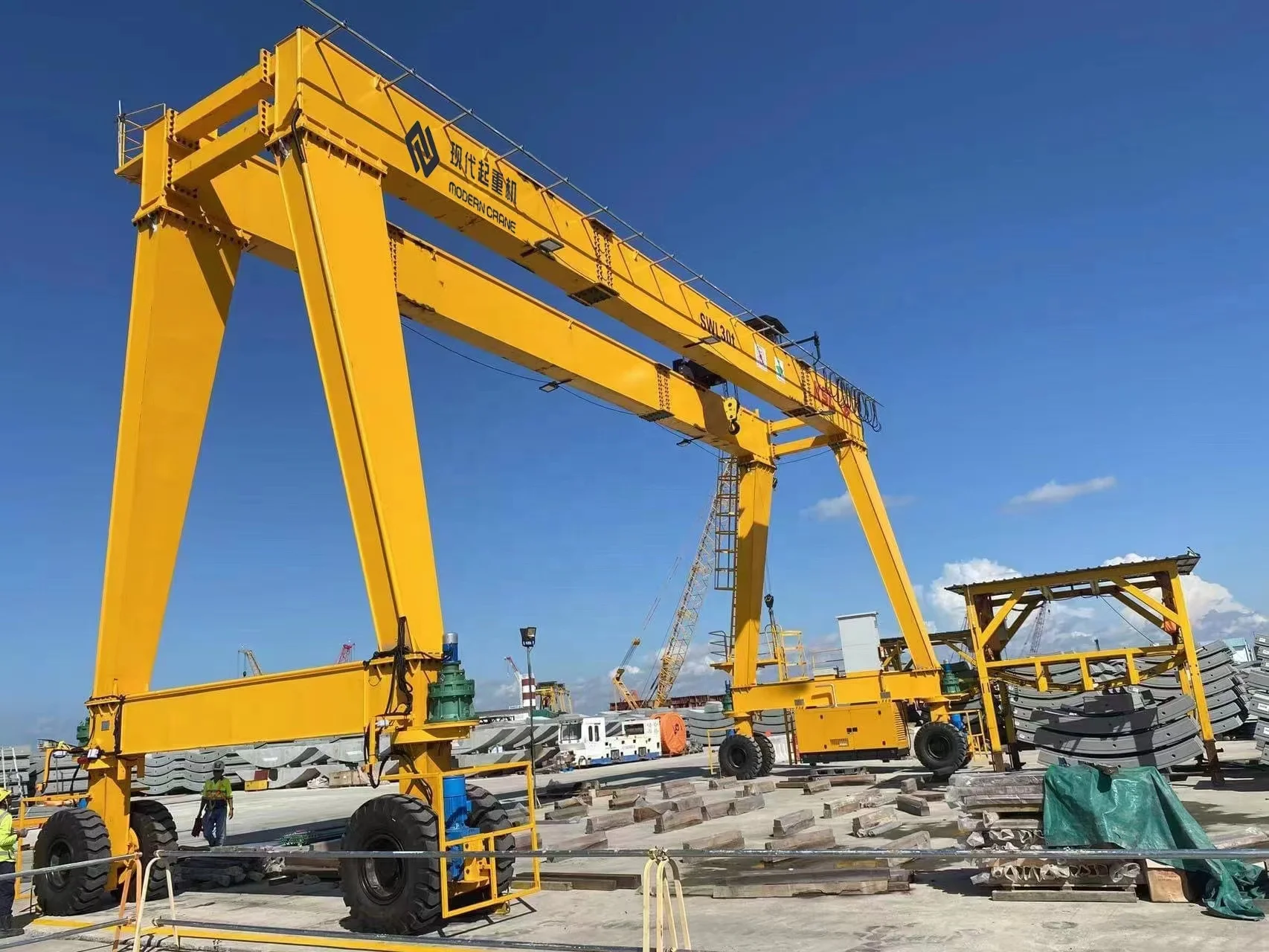

Rubber Tire Container Gantry Cranes /RTG Crane
1.Capacity: 5-75t
2.lifting height: 13m
3.span: 18m-35m
4.CE certificates
application
Rubber Tire Container Gantry Cranes /RTG Crane is applied in outside warehouse , factories and mines ,station and port for loading and unloading or lifting of scrap.
As the crane is usually used at outdoor,we design rain-proof equipment above the trolley to protect it and extend service life.
Technological Parame
Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
Span | m | 12,16,20,24,30 | ||||||
Lifting height | m | 6,9 | ||||||
Operation method | Pendent line with push button/ cabin | |||||||
Speed | Lifting | m/min | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
Cross travel | m/min | 20 | 20 | 20 | 20 | 20 | ||
Long travel | Ground | m/min | 20 | 20 | 20 | 20 | 20 | |
Cabin | m/min | 30,40 | 30,40 | 30,40 | 30,40 | 30,40 | ||
Electric hoist | type | CD/MD | ||||||
Working duty | A3 | |||||||
Power supply | AC | 380V/50HZ/3P | ||||||
Packaging & Shipping
delivery and payment
Q:Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after payment.
Q:What’s the Min order to your company?
A:1 set.The sample order, if we have stocks, we will send out the products within 1 week.
Q:What’s the advantage of your company?
A:We have exported our lifts and service to more than 100 countries. We have speclized team workfor you, you will get our feedback within 24 hours./ Germany and Italian advancedmanufacturering technology.
Q:What need you know when i inquiry to you ?
A: We need to know your Max Capacity,Platform size and Lift height.
